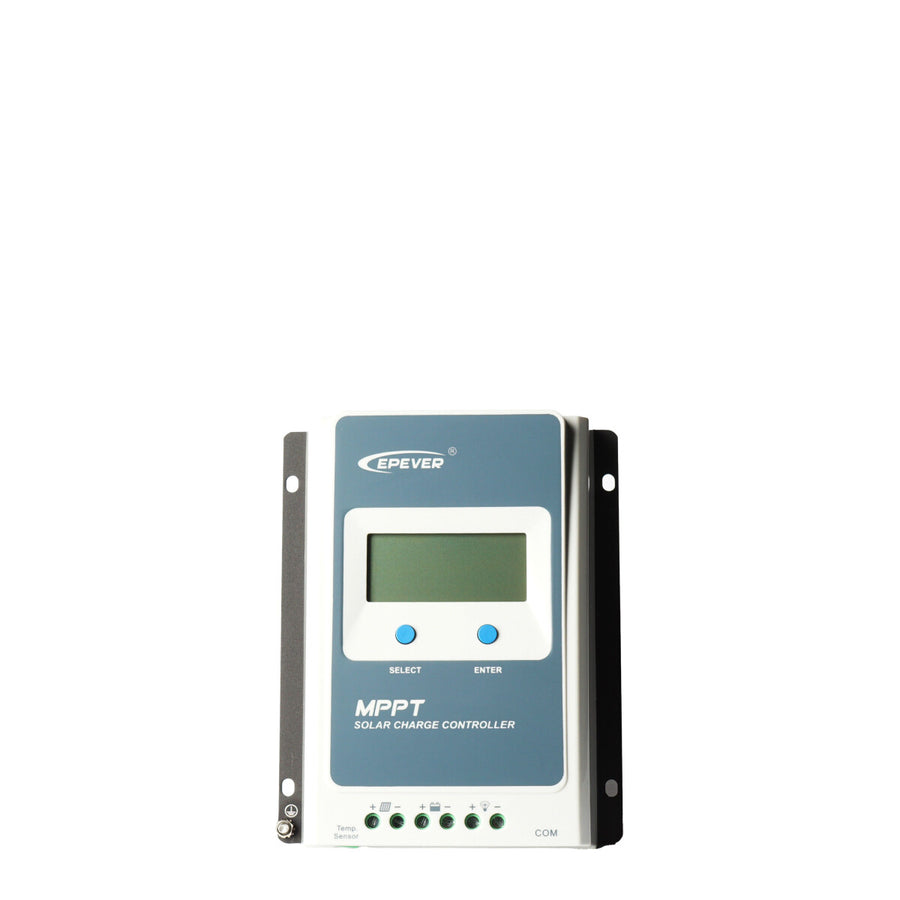

EPEVER Solar Charge Controller Tracer 1210 AN 10A MPPT for 12V / 24V

EPEVER Tracer 1210AN MPPT Solar Charge Controller – 10 A for 12 V / 24 V Systems, High Efficiency & Versatile Use

The EPEVER Tracer 1210AN is a reliable 10 A MPPT solar charge controller for 12 V and 24 V systems, specifically designed for maximum energy efficiency while ensuring high operational safety. With modern MPPT technology, it achieves excellent energy yield, even with changing weather and light conditions. The controller is ideal for small to medium-sized solar systems – whether for mobile or stationary use.

10 A Charging Current – Compact, Yet Powerful

• Designed for up to 10 A charging current
• Optimal for smaller PV systems with limited space
• Efficient operation at 12 V or 24 V system voltage
• Space-saving design, ideal for mobile applications such as RVs or boats

Maximum Power Yield Thanks to MPPT Technology

• Tracking efficiency of over 99.5%
• DC/DC efficiency of up to 98%
• Intelligent tracking of the maximum power point
• Wide MPP voltage range for flexible module combinations

Modern Communication & System Monitoring

• Integrated LCD display for system overview
• RS485 interface with support for optional Wi-Fi or 4G modules
• Compatible with PC software, app, or remote control
• Real-time energy data retrievable at any time

Reliable Protection for Batteries and Solar System

• Multiple protection: overcharge, over-discharge, short circuit, reverse polarity, and much more.
• Automatic voltage detection for 12 V and 24 V
• Temperature compensation for optimized charging behavior
• Power reduction in case of overheating for safe continuous operation

Flexible, Robust, and Durable

• Supports various battery types, including lithium and AGM/gel batteries
• Various load modes for individual application scenarios
• High-quality components for long lifespan and stable performance
• Full load operation possible even at high ambient temperatures

With 10 A charging current, modern MPPT technology, and comprehensive protection functions, the Tracer 1210AN is a compact but extremely powerful solution for anyone who wants to efficiently operate and monitor their solar system. Ideal for off-grid energy systems in RVs, garden sheds, boats, or small PV systems.

Documents & Downloads

• Datasheet EPEVER Tracer AN
• Manual EPEVER Tracer AN
