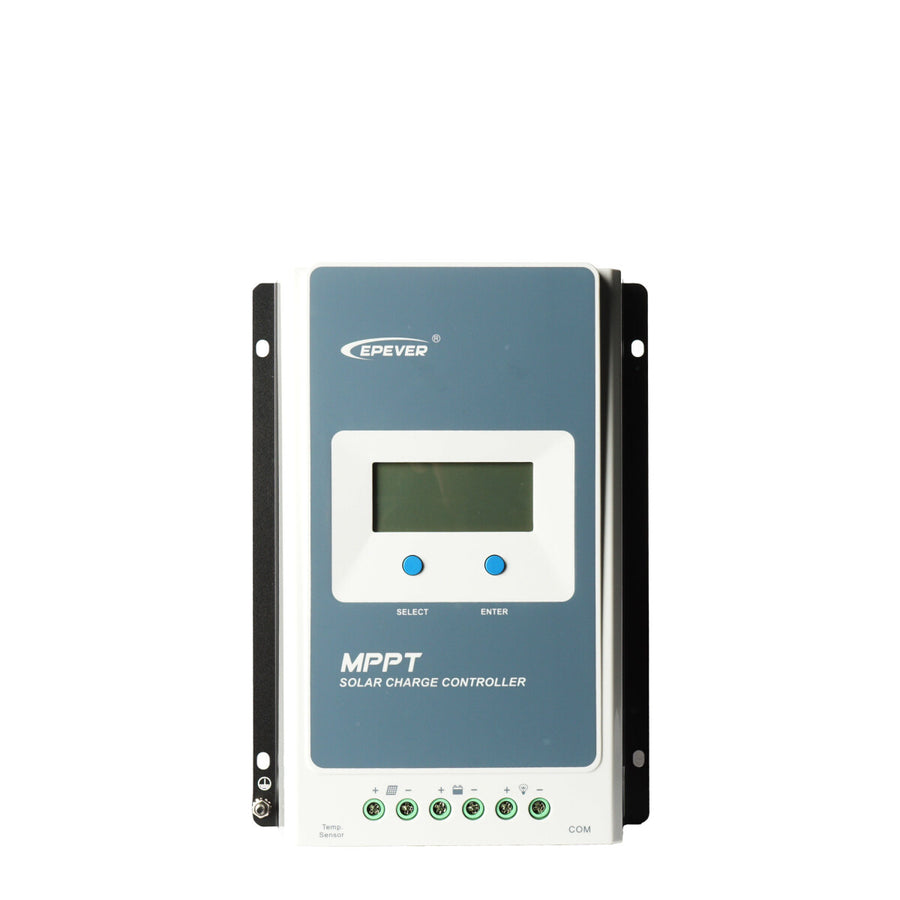

EPEVER Solar Charge Controller Tracer 3210 AN 30A MPPT for 12V / 24V

EPEVER Tracer 3210AN MPPT Solar Charge Controller – 30 A for 12 V / 24 V Systems, High Performance for Demanding Solar Installations

The EPEVER Tracer 3210AN is a modern 30 A MPPT solar charge controller for 12 V and 24 V systems, offering maximum efficiency and reliability for medium to larger solar applications. With intelligent MPPT technology, it improves the energy conversion of your PV system by up to 30%. The common negative grounding makes it particularly suitable for use in RVs, while its versatile features also support professional stationary operation – for example, in communication systems or off-grid installations.

Powerful 30 A Charge Controller for Greater Demands

• 30 A charging current – ideal for high-performance solar systems
• Automatic detection of 12 V and 24 V system voltage
• Perfectly suited for mobile applications, RVs, garden sheds, or off-grid systems

Efficient Energy Conversion through MPPT Technology

• MPPT tracking efficiency ≥ 99.5%
• DC/DC efficiency up to 98%
• Detection and tracking even with multiple MPP peaks
• Wide MPP voltage range for flexible module combinations

Convenient Control & Monitoring

• LCD display with backlight for clear status information
• RS485 interface with MODBUS protocol
• Fully programmable via PC software or mobile app
• Real-time energy statistics for transparent system analysis

Safe Operation Under All Conditions

• Comprehensive electronic protection against overload, short circuit, reverse polarity & more
• Temperature compensation (for lead-acid batteries)
• Overheating protection through automatic power adjustment
• Stable full-load operation even at high ambient temperatures

Versatile & Future-Proof

• Adjustable battery types: Gel, AGM, flooded, and user-defined
• Negative grounding via the negative terminal – ideal for vehicle applications
• Applicable in private, commercial, and mobile solar systems

The Tracer 3210AN is the right choice for anyone looking for a powerful, flexible, and safe 30 A MPPT charger. Whether in a camper, at a cabin, or in professional installations – this controller ensures stable and efficient solar power utilization.

Documents & Downloads

• EPEVER Tracer AN Datasheet
• EPEVER Tracer AN Manual
