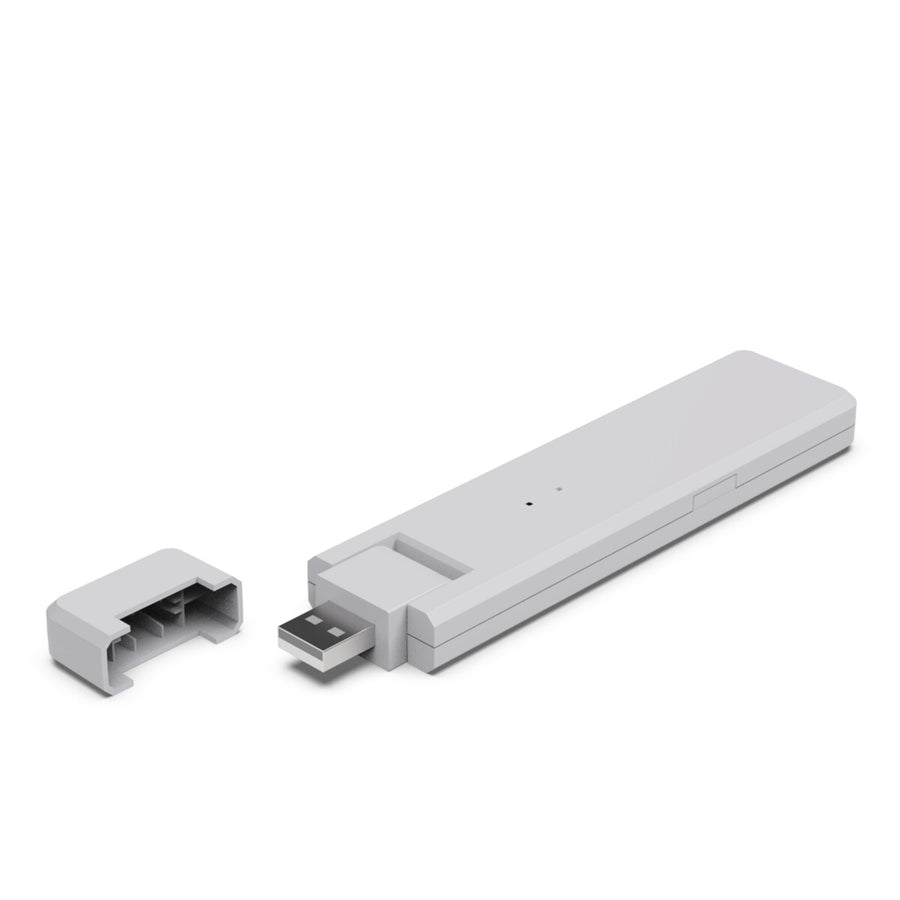

Hoymiles DTU WLite-S Data Transfer Unit for HMS
Hoymiles DTU WLite-S Data Transfer Unit for HMS
SKU:WS301-31621
Couldn't load pickup availability
Monitor Your Solar Energy: Hoymiles Gateway DTU-WLite for Efficient Remote Monitoring and Maintenance
The Hoymiles Gateway DTU-WLite is a data transfer unit that uses 2.4G wireless technology to collect information from microinverters and send it via Wi-Fi to the Hoymiles monitoring system S-Miles Cloud. It is compatible with the HM and MI series from Hoymiles.
The DTU-WLite allows you to monitor data and alarm messages at module level and enables remote access and maintenance of your microinverter system from anywhere via the S-Miles Cloud. Monitoring is designed for up to 4 modules, making it ideal for smaller photovoltaic systems.
Please note: The DTU-WLite is powered by a 5V USB power supply that connects to a standard household outlet. The power supply is not included in the scope of delivery, but the unit is compatible with most USB power supplies that provide at least 1A.
Features
- Module-level monitoring for up to 4 solar modules
- Plug-and-play for easy installation
- Remote system maintenance via the S-Miles Cloud
- Direct connection via a USB port
- Real-time display of data and alarms via the S-Miles Toolkit
- LED status indicator
- Users can create an S-Miles account independently; instructions can be found in the Hoymiles download area.
| Technical Data | Hoymiles DTU-WLite-S |
| Communication | Sub-1G |
| Internet connection | Wi-Fi (802.11b/g/n) |
| Power consumption | 1 W |
| Power consumption (max.) | 5 W |
| Monitoring capacity | 4 PV Modules |
| Max. distance (open space) | 400 m |
