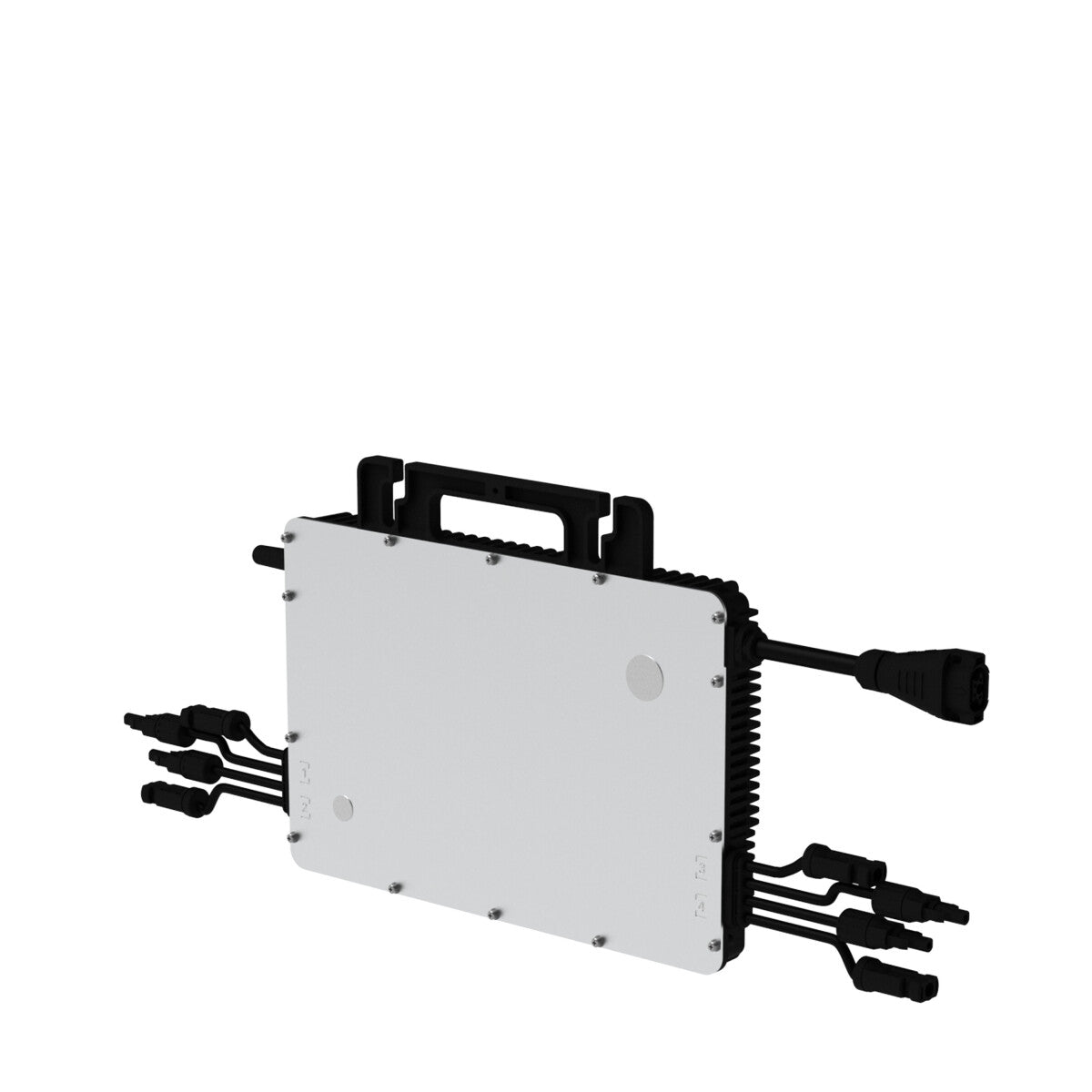

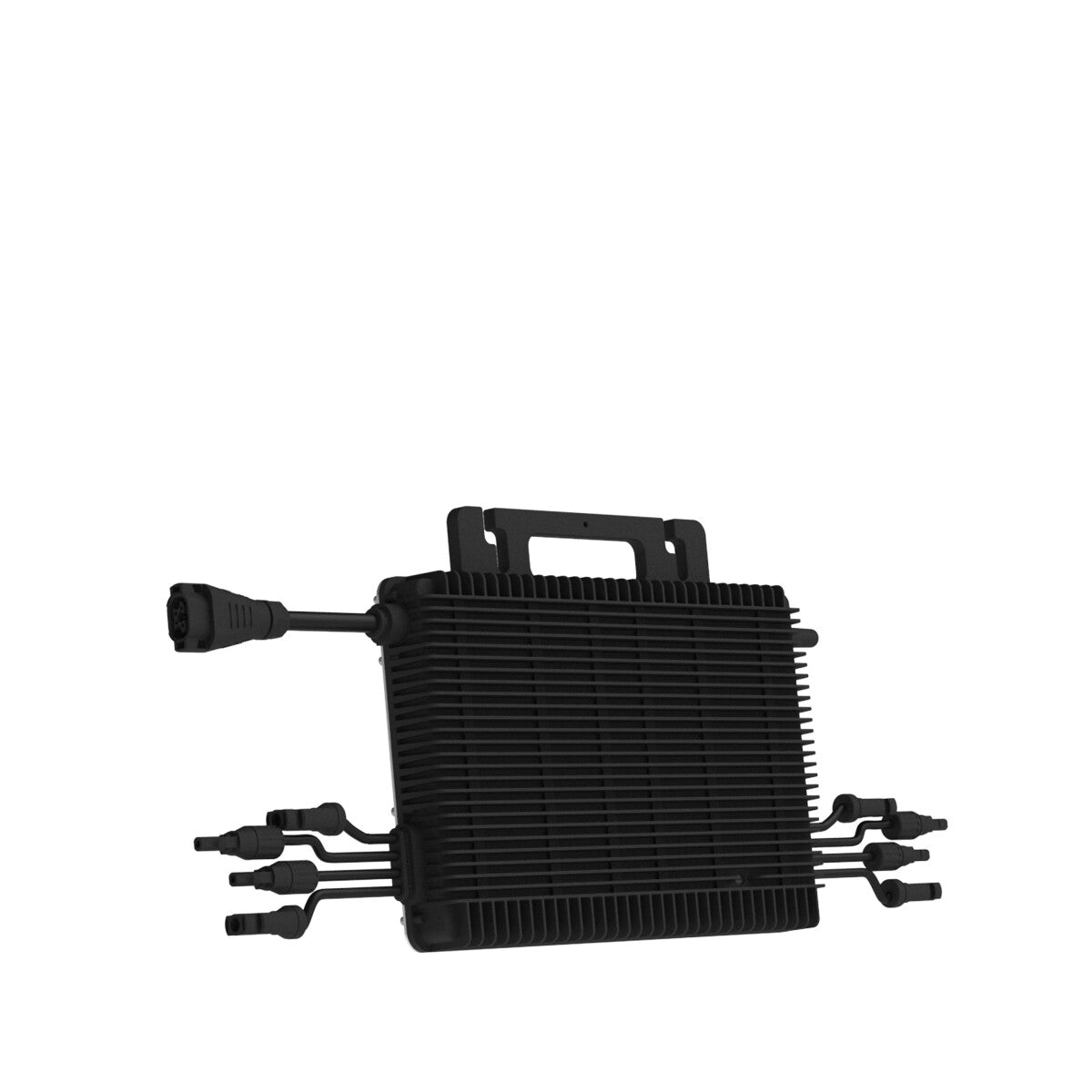

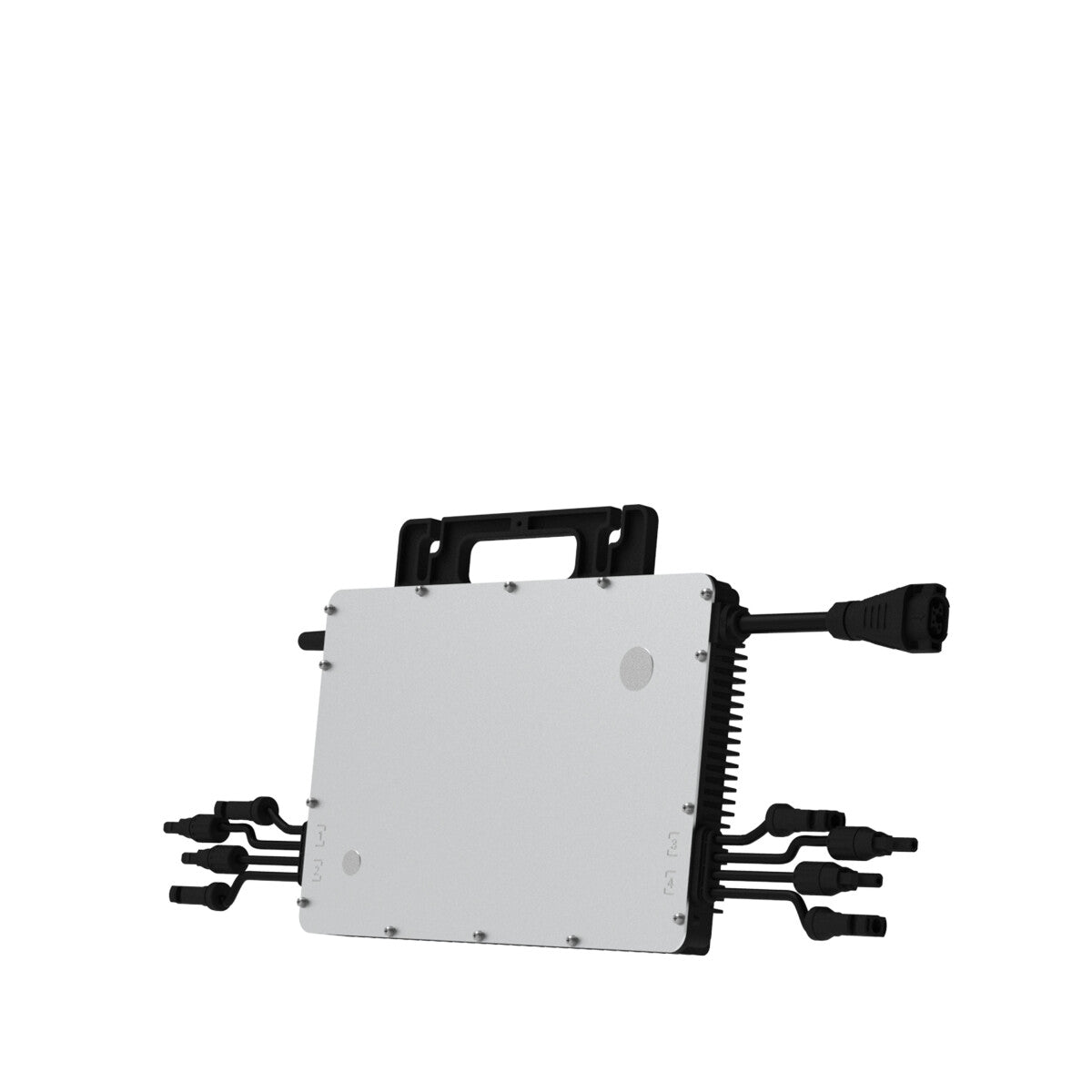

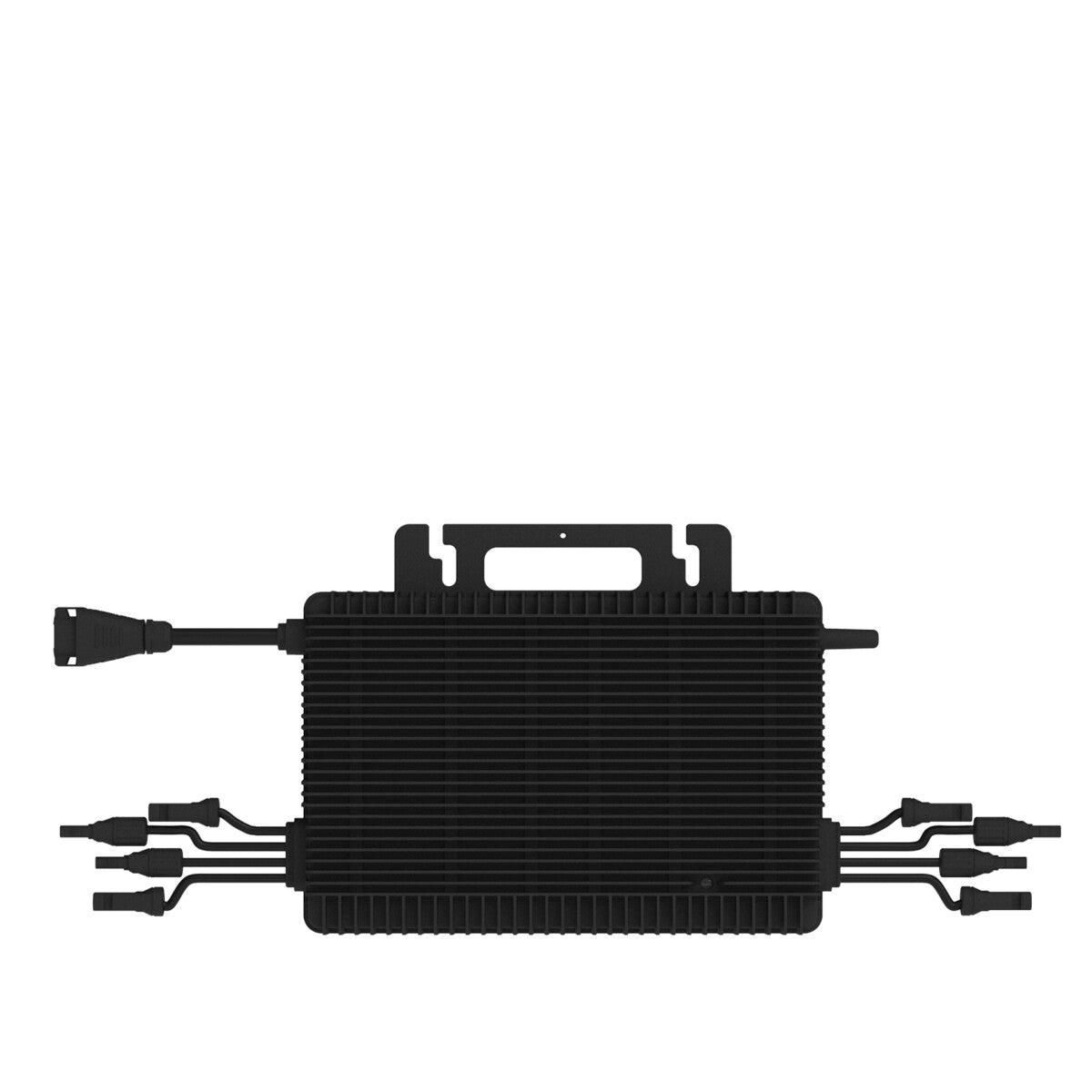

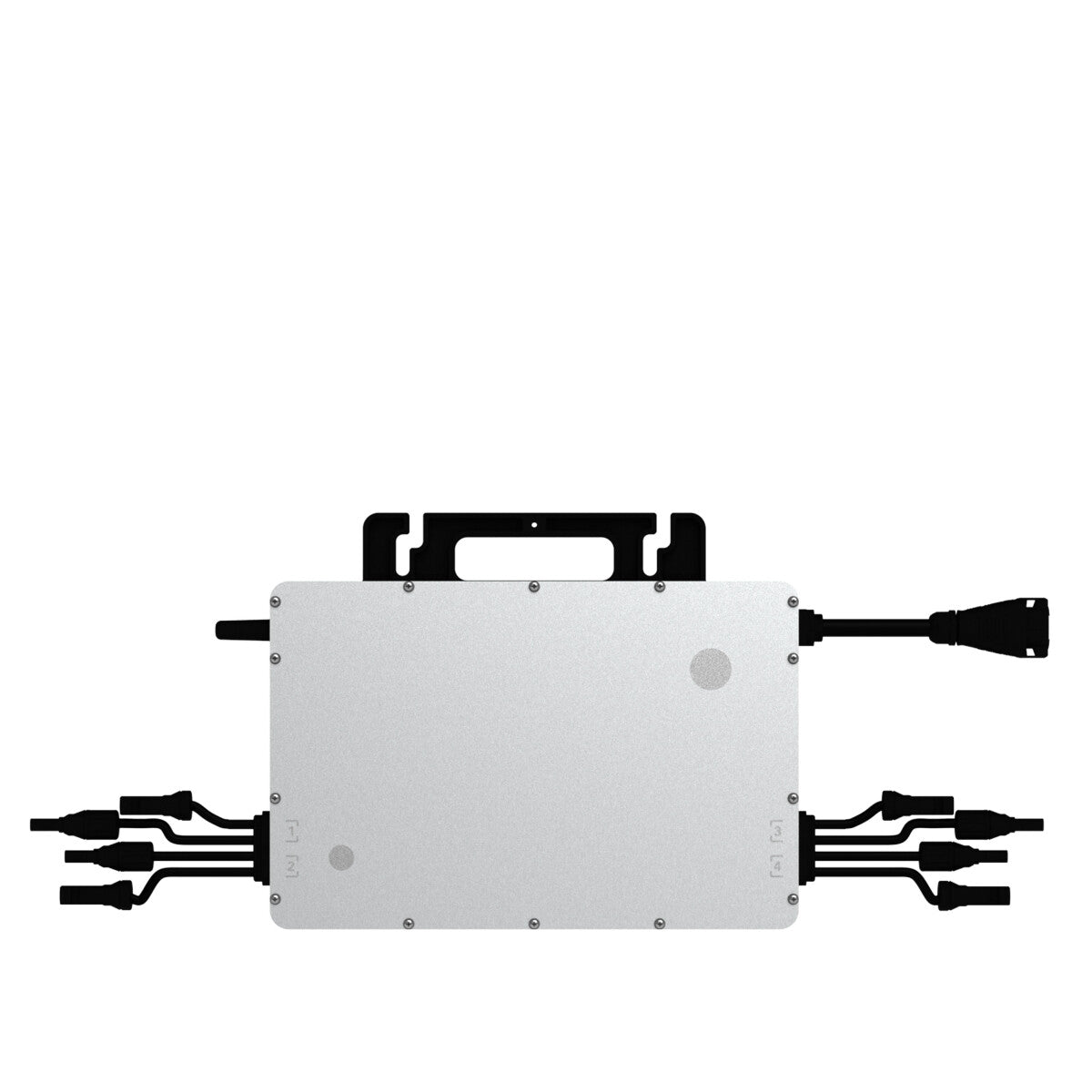

Hoymiles HMS-1600-4T Microinverter

Hoymiles HMS-1600-4T Microinverter: Efficient Solar Energy for Your Balcony Power Plant

The Hoymiles HMS-1600-4T microinverter brings advanced solar technology directly to your home. With a compact design and a weight of only 5.56 kg, it enables efficient energy generation from up to four solar modules, with a power of 320 W to 540 W each. Thanks to its low starting voltage of only 22 V and its wide DC operating voltage range (16-60 V), the HMS-1600-4T is perfectly suited for a variety of PV modules.

Safety and Efficiency with the HMS Series

The HMS-1600-4T offers additional safety through its rapid shutdown and isolated transformer. The Sub-1G radio solution ensures reliable communication with the Hoymiles DTU gateway.

Main Features of the Hoymiles HMS-1600-4T

• MPPT Technology: Maximum Power Point Tracking (MPPT) minimizes the effects of shading, dust, or aging.
• System Reliability: Decentralized architecture prevents complete failure in the event of a malfunction.
• Peak Efficiency: 96.7% efficiency for maximum energy efficiency.
• 12-Year Warranty: 12-year product warranty for long-term reliability.
• High Safety: Integrated protection functions and rapid shutdown.
• Easy Installation: Quick and straightforward assembly thanks to its compact design.

Optimal Reliability

Due to their decentralized design, microinverter systems are more reliable than conventional inverters, as a single malfunction does not lead to the failure of the entire PV system. The Hoymiles HMS-1600-4T is designed for temperatures up to +65°C and, thanks to its robust, IP67-certified housing, is perfect for outdoor installations.

Simple Setup

Planning PV systems is significantly simplified with Hoymiles microinverters. They can be flexibly mounted on the PV mounting rack or directly under the solar modules, eliminating the need for conventional, bulky inverters. By directly connecting the modules to the microinverters, the risk of high DC voltage is eliminated, increasing safety for installers and users.

Optimal Monitoring and Control (Optional)

• S-Miles App and Cloud: Monitor your system with the S-Miles App or the S-Miles Cloud.
• DTU Lite-S: The DTU Lite-S enables system monitoring.
• DTU Pro-S: With the DTU Pro-S, you can change settings and monitor.

Product Advantages at a Glance

• High efficiency through precise MPPT
• Integrated protection functions and rapid shutdown
• Easy installation and robust IP67 certification
• 12-year product warranty
• Sub-1G radio solution for stable communication
• Monitoring possible via S-Miles App or Cloud

Documents & Downloads

• Datasheet HMS-1600-4T
• Manual HMS-1600-4T
• Instructions HMS-1600-4T
