Home › 4x4 Accessories › OSRAM LED Headlight Cube PX4500 Flood, 12/24V









Lighting

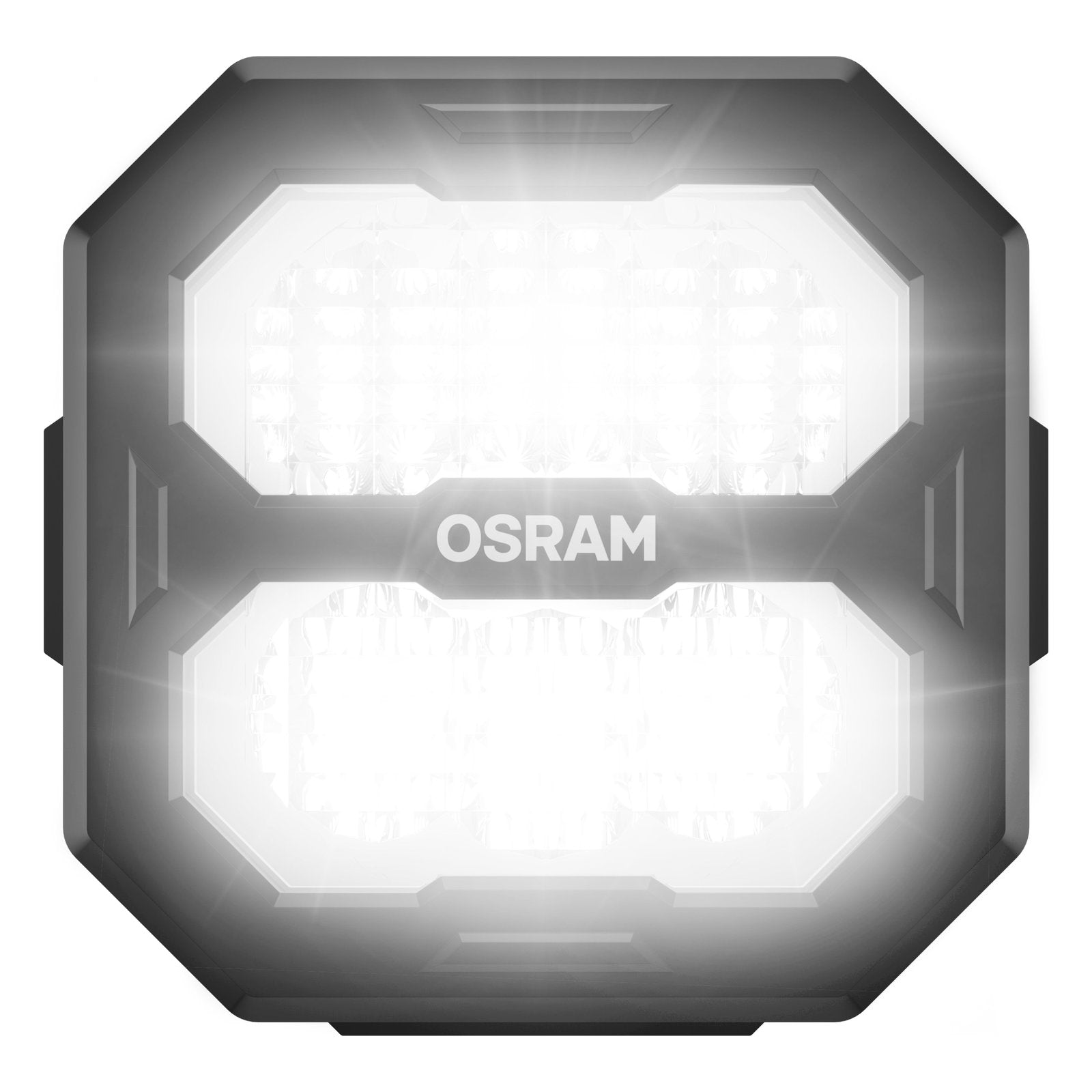

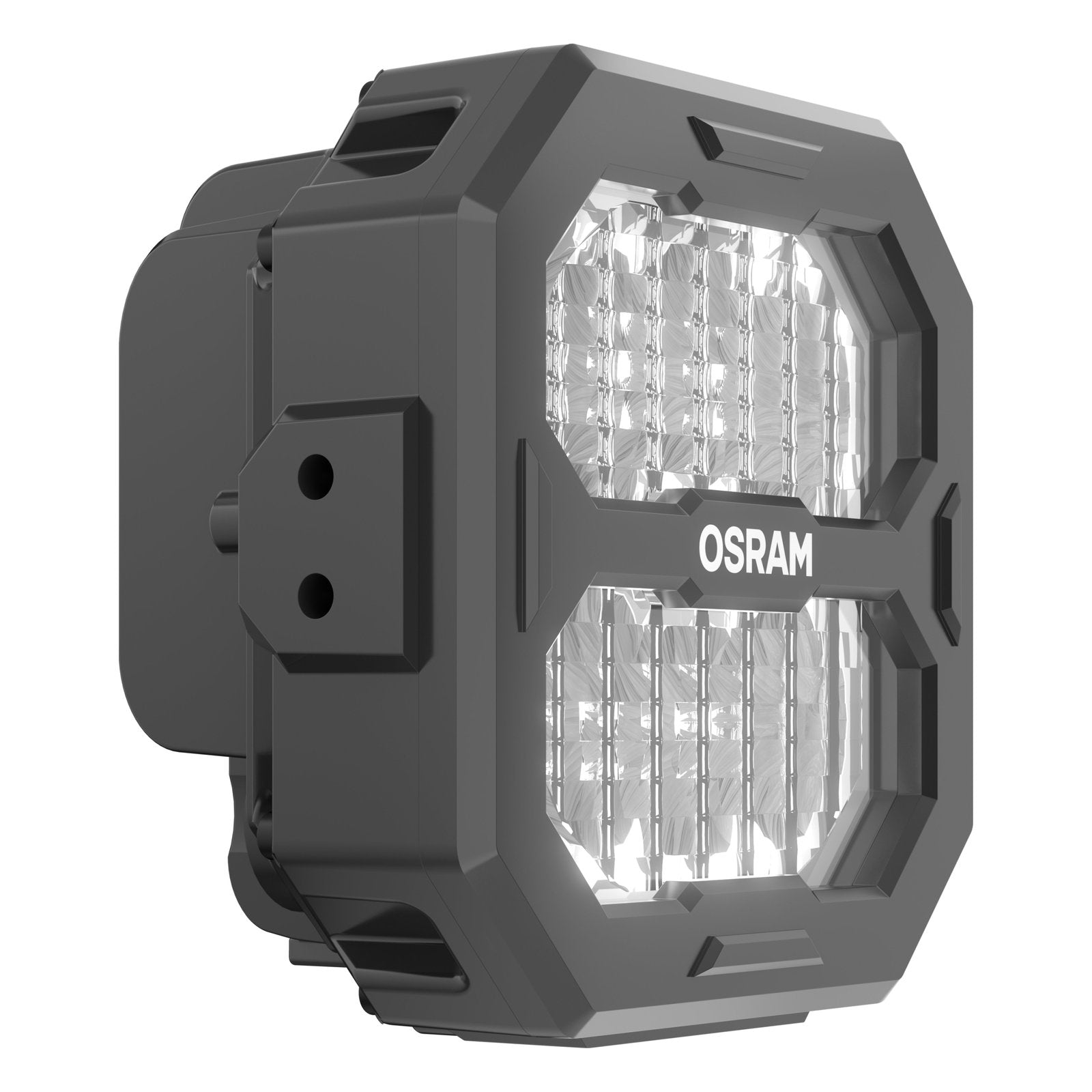

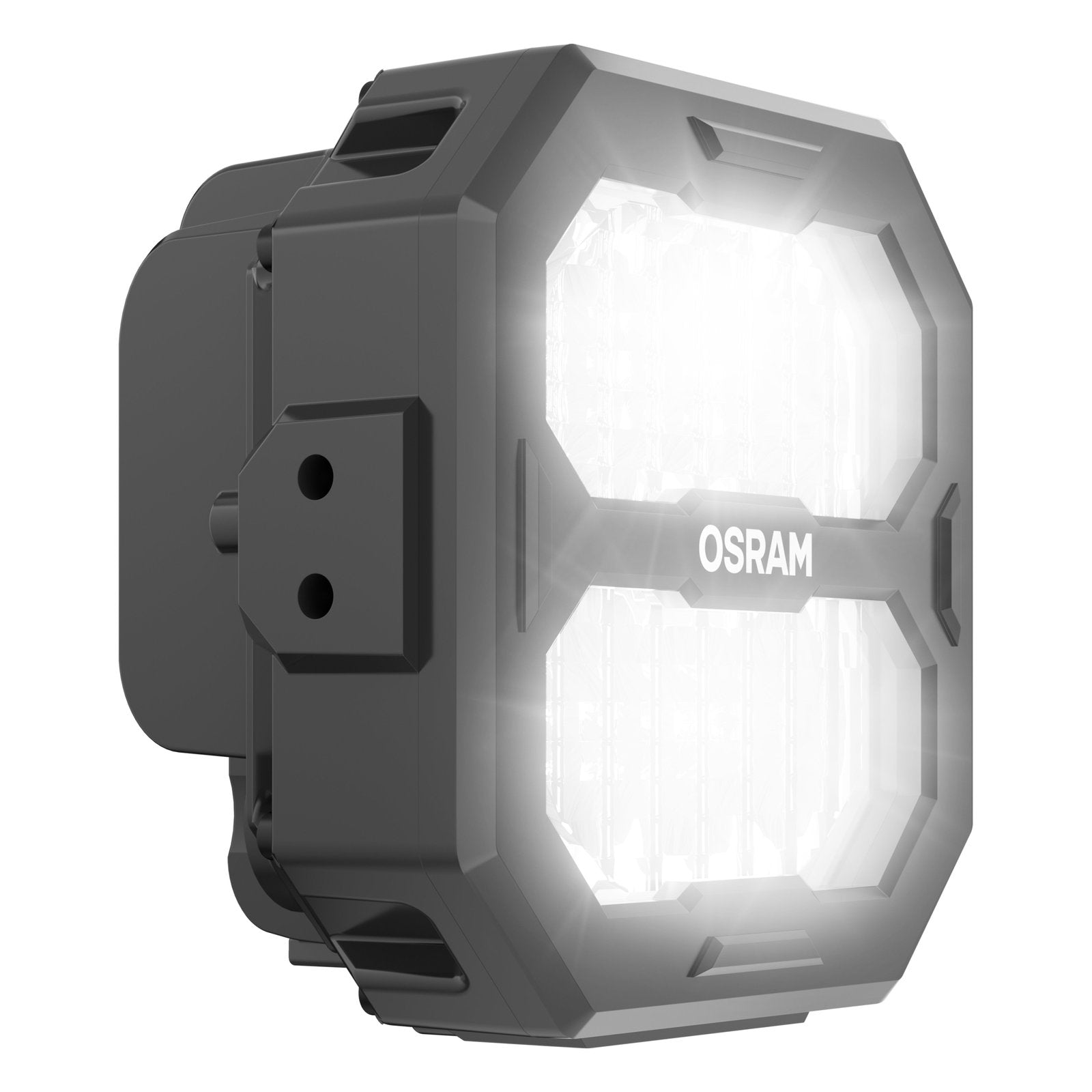

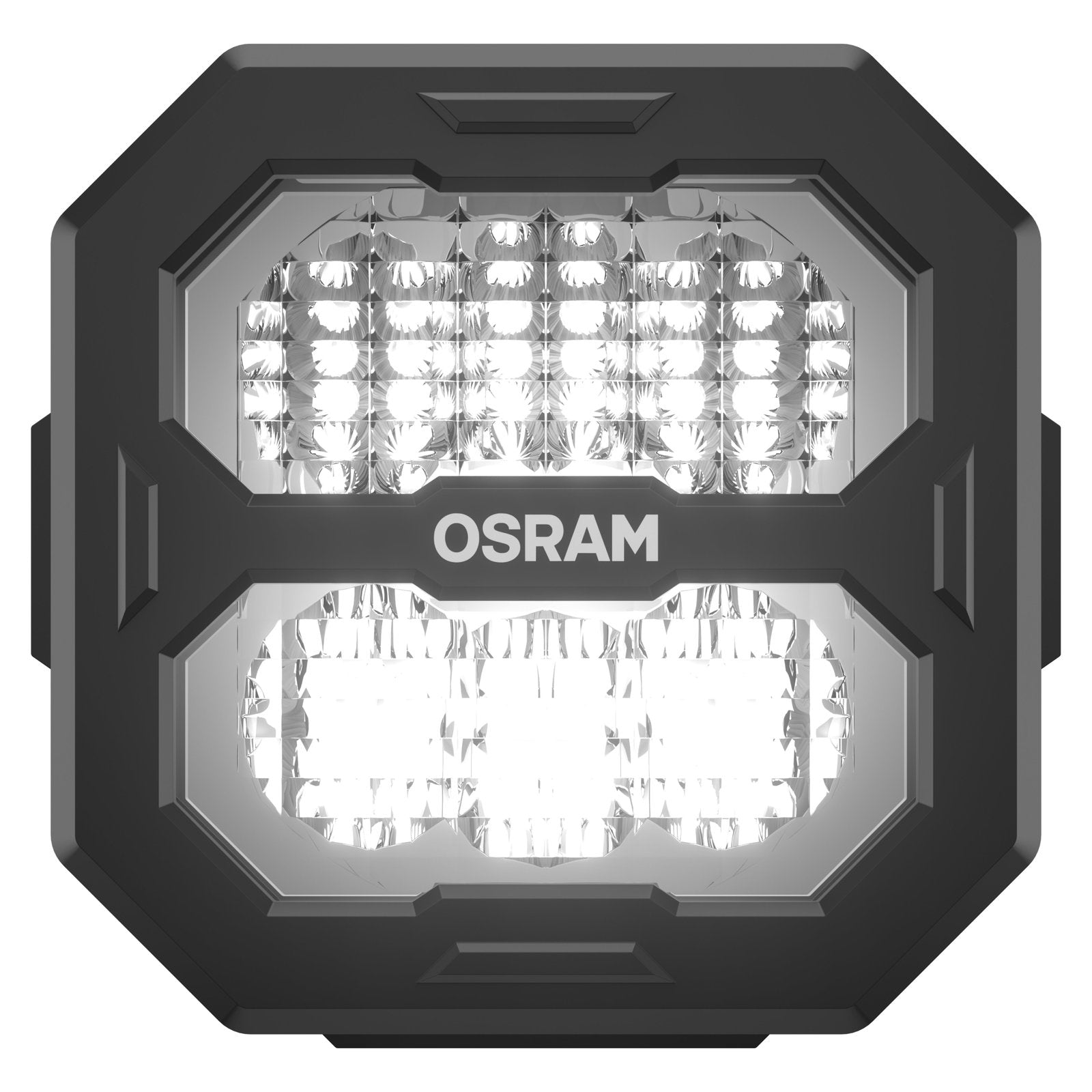

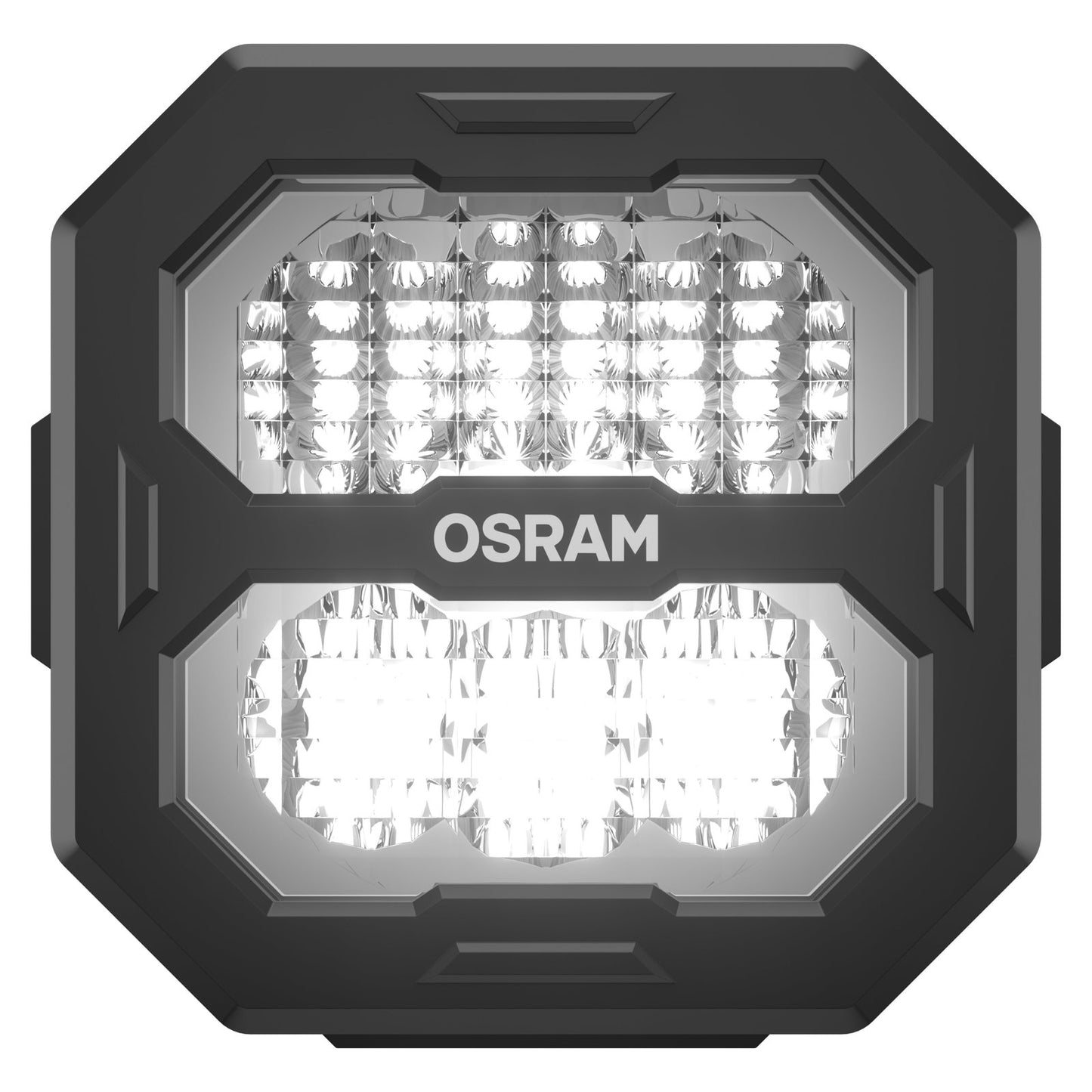

OSRAM LED Headlight Cube PX4500 Flood, 12/24V
Item no.: TR36-LEDPWL109-FL
€130,95
Available again soon
🇩🇪 Ships from Germany
↺ 14-day returns
💬 Advice
With OSRAM's PX Series, it is now possible to find exactly the right lighting for a variety of tasks and applications. With the PX Series, particular emphasis was placed on the most important aspects of work light use: illumination, performance, quality, shape, durability, and functionality. This also results in increased safety at work for you and others.
Features & Characteristics:
OSRAM's LED work and auxiliary lights offer the most sophisticated LED technology on the market. Please note: High beams and fog lights must be installed in pairs (except "Singlemount").
The manufacturer OSRAM grants a 5-year warranty on LED work and auxiliary lights.
The warranty conditions, scope, and manufacturer's address(es) can be found at:
www.osram.de
Your statutory warranty remains unaffected.
Attention! Please note:
Every certified headlight has a reference number (abbreviated as REF. NO. in our texts). This is located directly on the lens cover or housing. The sum of all reference numbers of the headlights mounted on the vehicle (original + auxiliary headlights) must not exceed 100.
Features & Characteristics:
- Over- & undervoltage protection
- Die-cast aluminum housing with special black coating
- Three mounting options:
- Direct mounting
- Flexible standard mounting 36-LEDPWLACC101 (not included in scope of delivery)
- Heavy-duty mounting 36-LEDPWLACC102 (not included in scope of delivery)
- Efficient reflector lens design with powerful OSRAM LEDs
- Shatterproof polycarbonate lens
- For 12V & 24V vehicles
- specifically developed for tough everyday work
OSRAM's LED work and auxiliary lights offer the most sophisticated LED technology on the market. Please note: High beams and fog lights must be installed in pairs (except "Singlemount").
The manufacturer OSRAM grants a 5-year warranty on LED work and auxiliary lights.
The warranty conditions, scope, and manufacturer's address(es) can be found at:
www.osram.de
Your statutory warranty remains unaffected.
Attention! Please note:
Every certified headlight has a reference number (abbreviated as REF. NO. in our texts). This is located directly on the lens cover or housing. The sum of all reference numbers of the headlights mounted on the vehicle (original + auxiliary headlights) must not exceed 100.
Specifications
- Artikelnummer: LEDPWL109-FL
- Ausführung: FL = Flood

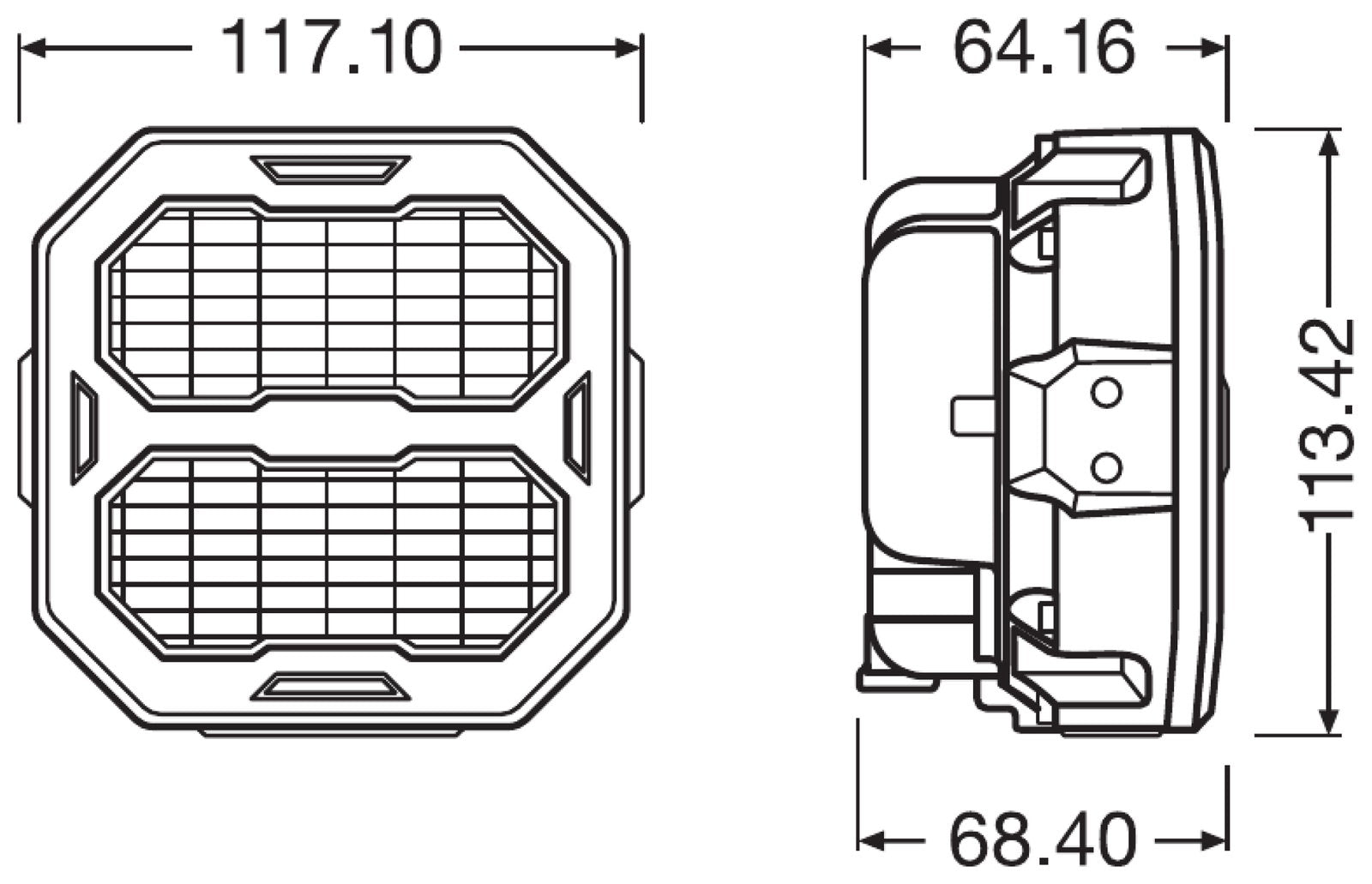

- Maße: 117,1x68,4x113,4mm
- Gewicht: 698 g
- Nennspannung: 12/24 V
- Nennleistung: 45 W
- Prüfspannung: k.A.
- Lichtstrom: 4500 lm
- Farbtemperatur: 6000 K
- Light distance at 1lx [PIM]: 105 m
- Lebensdauer: 5000 h

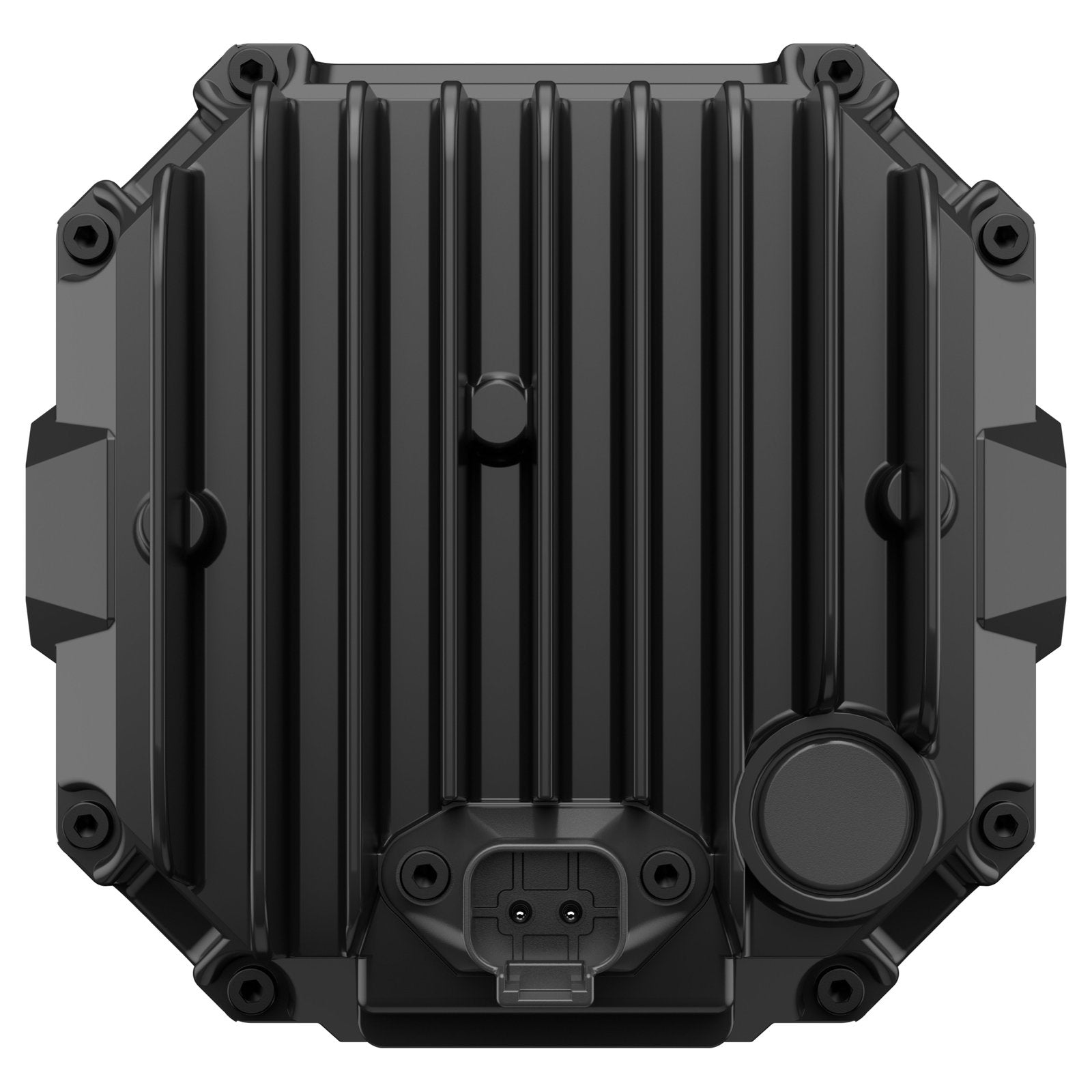

- Anschluss zur Lampe: DT Connector
- Technologie: LED
- Normen: ECE R10, CISPR25, CLASS 5, FCC p
- Prüfzeichen-Zulassung: k.A.
- Schutzart: IP6K8, IP6K9K
- Referenznummer: k.A.
Documents
Product safety (GPSR)
Safety notices
Sicherheitshinweise gemäß GPSR
Lesen Sie vor der Benutzung sorgfältig die Bedienungs- bzw. Anbauanleitung.
Vorsicht: Elektrische Spannung.
Achtung: Heiße Oberfläche - Verbrennungsgefahr.
Achtung nicht im Rauschzustand verwenden.
Vorsicht vor scharfen und spitzen Gegenständen - Verletzungsgefahr.
Kein Spielzeug - nur sachgerecht verwenden!
Achten Sie auf eine sichere Umgebung.
Manufacturer contact
Hersteller & EU Verantwortlicher:
Osram GmbH
Marcel-Breuer-Straße 4
D 80807 München
Mail: contact@osram.com
