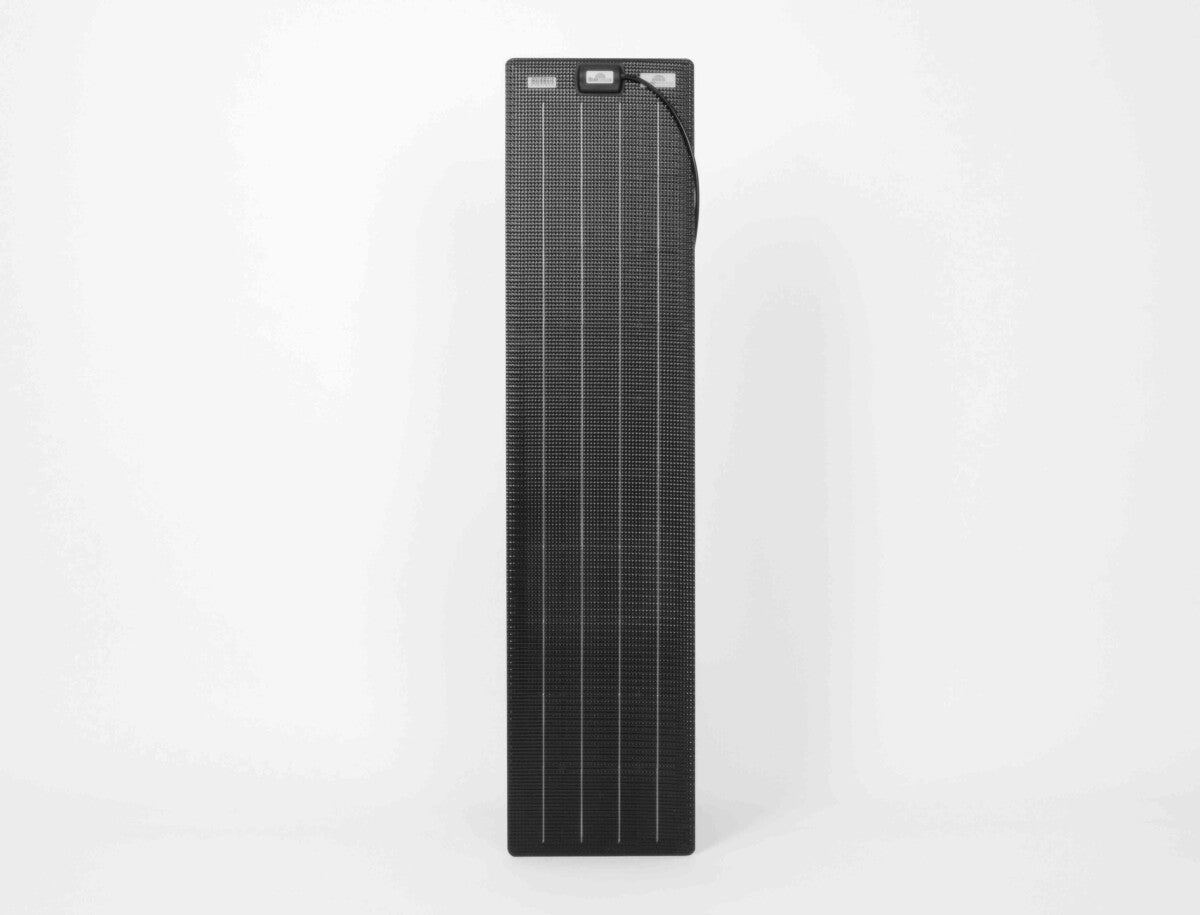

SunWare SW 20146 Black, 46 Wp

SunWare SW Solar Module Series 20 Black 46Wp 12V: High-Performance Energy Solutions for Maritime Applications

Product Introduction: Experience maximum energy efficiency at sea with the Marine Solar Modules Series-20, ideally designed for walkable installation directly on deck. These modules, manufactured in Germany, are not only extremely robust and saltwater-resistant, but also optimally suited for direct gluing or screwing onto the deck, requiring no rear ventilation. Equipped with only one connection cable at the front, these modules allow for uncomplicated installation.

Performance and Flexibility: The Marine Solar Modules Series-20 are characterized by their high performance, even in diffuse light, thanks to the exclusive use of solar cells of the highest performance class. Their semi-flexible design adapts perfectly to deck curvature and allows for a maximum flexibility of 3%. Due to the special laminate structure, the modules are 100% sea and saltwater resistant, making them ideal for use in harsh marine environments.

Construction Features: These modules are not only light and compact, but also offer outstanding power output thanks to the built-in monocrystalline PERC high-performance solar cells, protected by EVA laminate and ETFE top layers. The Marine Solar Modules of Series-20 can be securely mounted with screws, adhesive, or SunWare clips and are walkable even with boat shoes when permanently installed.

Installation Flexibility: The included 3-meter connection cable and the option to route the cable inside the deck increase installation flexibility.

Application and Reliability: Marine Solar Modules Series-20 are a reliable energy source, specially developed for demanding marine and saltwater use. They are the ideal choice for demanding boat owners who seek high functionality and long-lasting durability in an aesthetically pleasing design.

Documents & Downloads

• Datasheet Series 20
• Manual Series 20
• Technical Drawing
