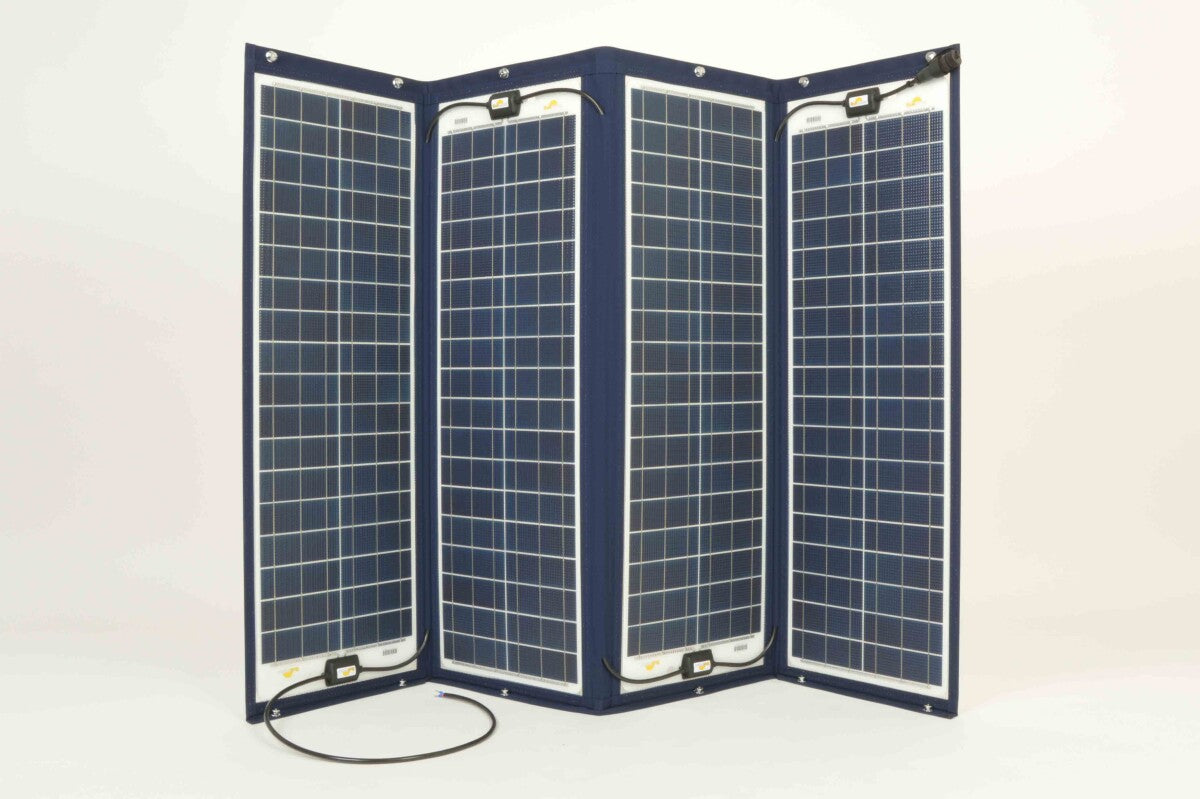

SunWare TX 42052+ 240 Wp, navy blue

SunWare TX+ Extension Solar Module 240Wp: Effortlessly Expand Your Solar System

Product Overview: The SunWare TX+ Extension Solar Module 240Wp offers the perfect solution to easily expand your existing TX solar system. These modules are identical in construction to the standard TX modules but feature an additional extension socket, allowing for seamless integration into your current system.

Easy Expansion: If you already have a TX module installed and wish to expand your system, simply replace the existing module with the new TX+ module. The "old" TX module to be replaced will then be plugged into the extension socket of the new module. An included extension socket facilitates this process, and a compatible plug is supplied with the module.

Installation and Compatibility: Please remember to check the polarity of the plugs and sockets before the first insertion. The blue negative cable must be connected to the pin with the grounding symbol, while the red positive cable must be connected to pin 1. The cables and the plug system are designed for loads up to 16A, so multiple modules can be connected without exceeding the maximum plug load.

Important Note: Not all modules are supplied directly with an extension plug, as every plug and socket carries potential corrosion risks, especially in a salty environment. Ensure that with TX+ modules, either the waterproof cap is screwed on or a plug is placed on the socket to guarantee a durable and secure connection. With the SunWare TX Extension Solar Module 240Wp, you can efficiently expand your solar system and extract maximum energy from it.

Documents & Downloads

• Datasheet TX Series
• Manual TX Series
• Technical Drawing
