SunWare TX Rail 12052 Solar Module – 60 Wp for efficient railing mounting

The SunWare TX Rail 12052 solar module is the compact solution for boats and yachts that seek maximum energy efficiency even in small spaces. With 60 Wp peak power, robust construction, and well-designed railing mounting, this module is ideal for maritime use. It can be installed flexibly, easily aligned, and delivers impressive yields even when vertically oriented – thanks to the reflection of sunlight on the water surface.

Efficient energy generation in the smallest space

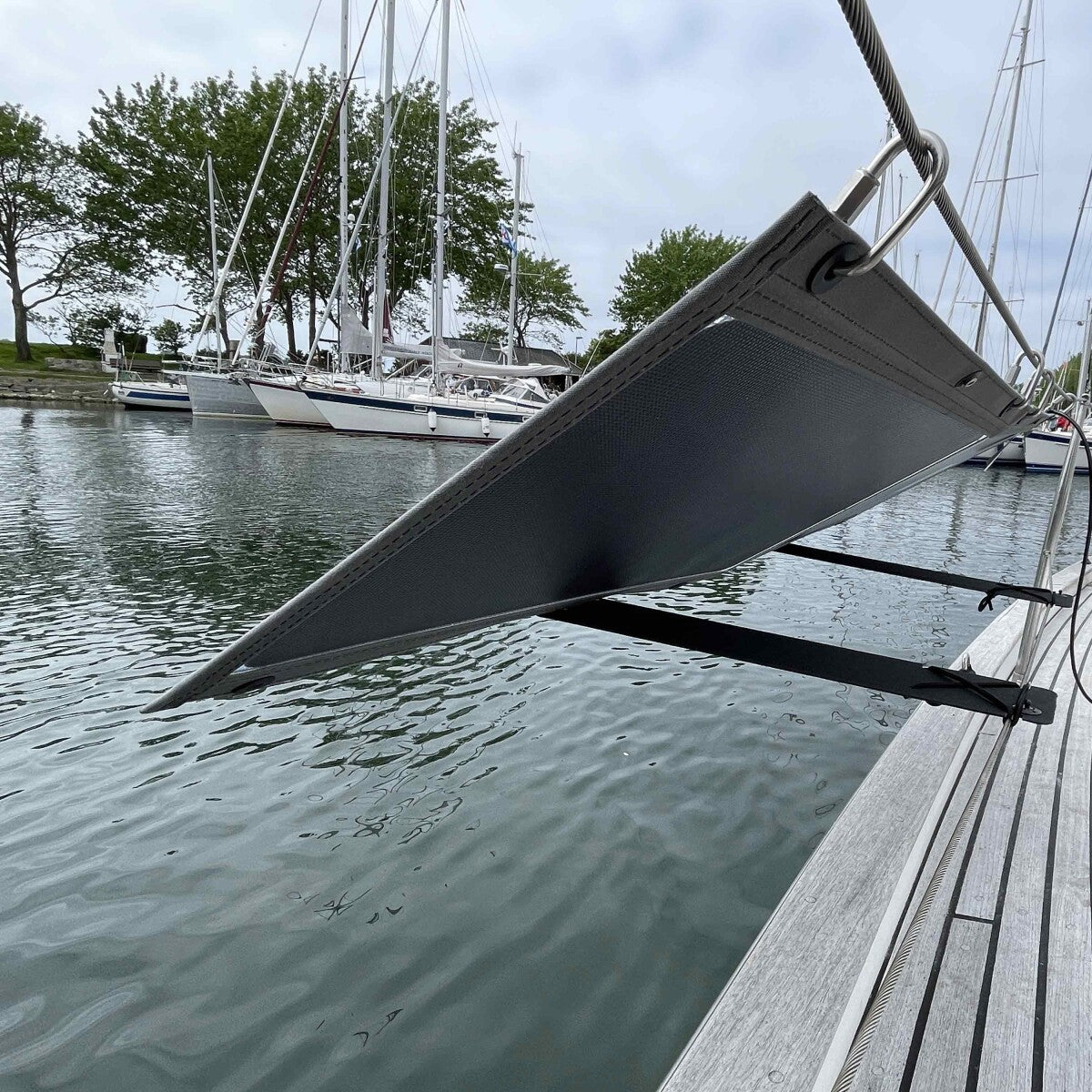

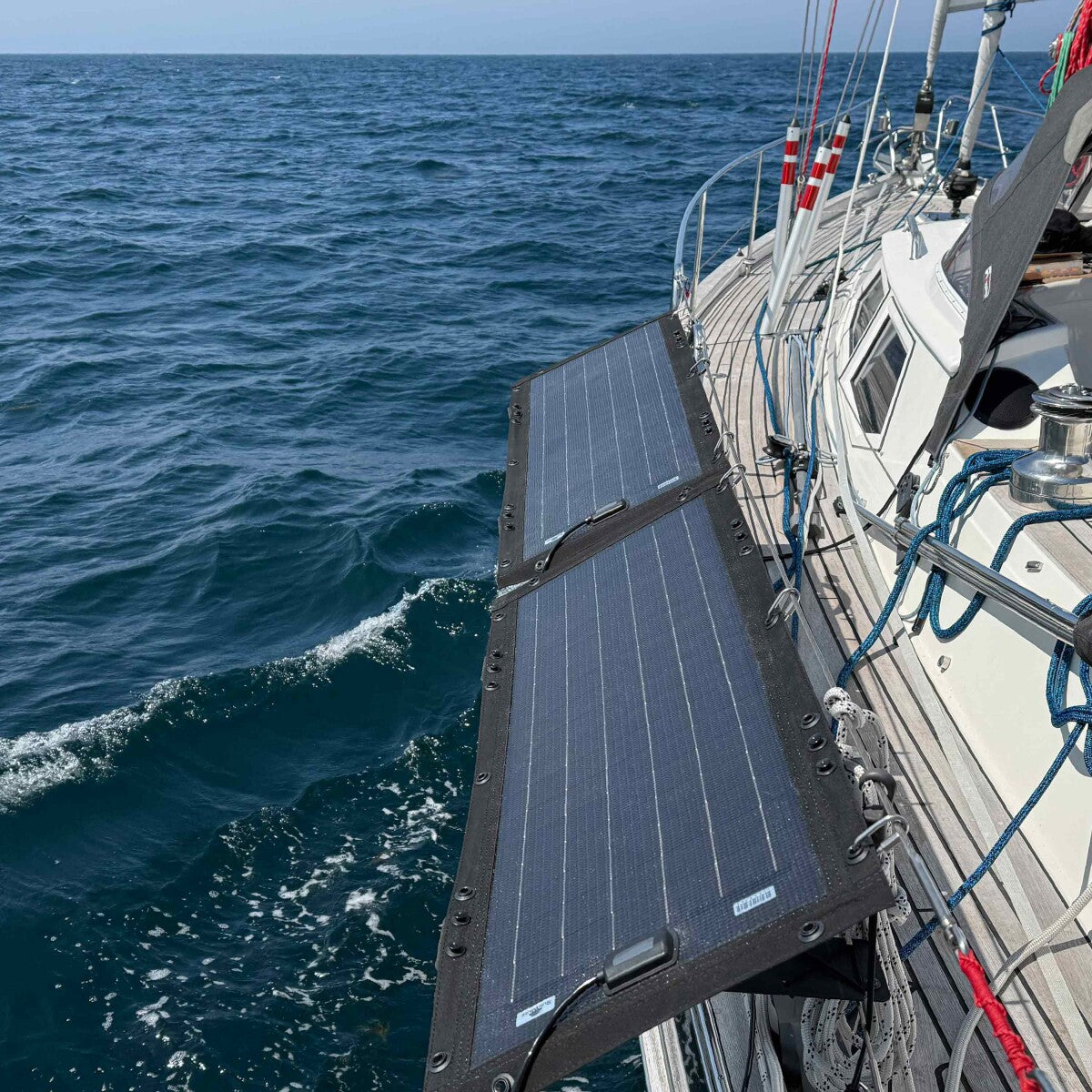

The TX-Rail series from SunWare was specially developed for mounting on the railing. The TX Rail 12052 is securely attached to the upper railing wire rope with the included screw hooks. Due to the reflection on the water surface, the module reliably generates solar power even in a vertical position – ideal when sailing or in port.

Thanks to the included TX-Riser system, you can flexibly extend the module to optimally align it with the sun. This maximizes your yield, even with changing sun positions.

Independent power wings – constant energy supply

• PV power: 60 Wp
• Voltage: 12 V DC
• Single-wing design with stable textile edging
• 3 m connection cable (2 × 2.5 mm²)

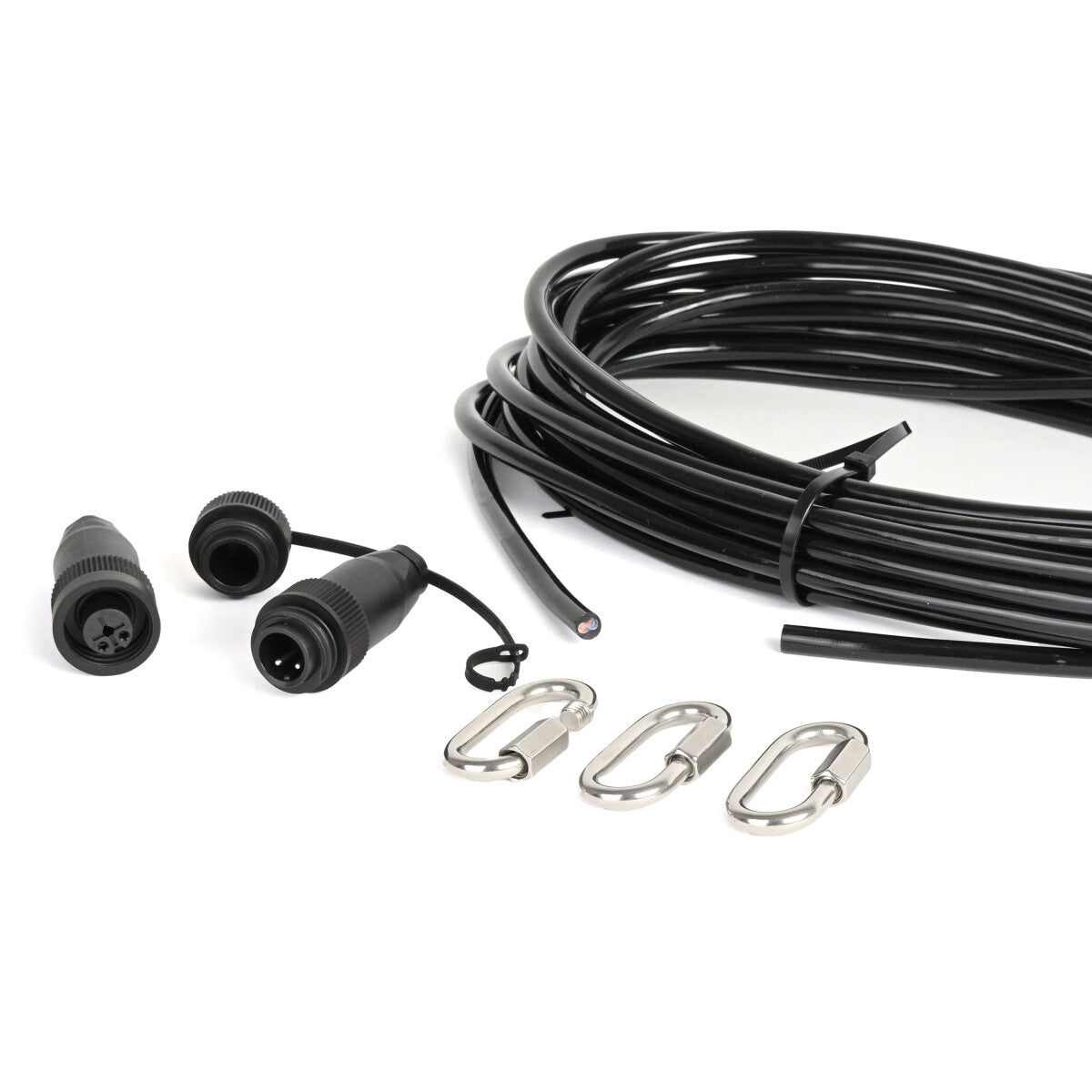

• 10 m supply line, waterproof plug & socket incl. protective cap
• TX-Riser Mono included in delivery
• Foldable & mobile use

Easy installation & flexible handling

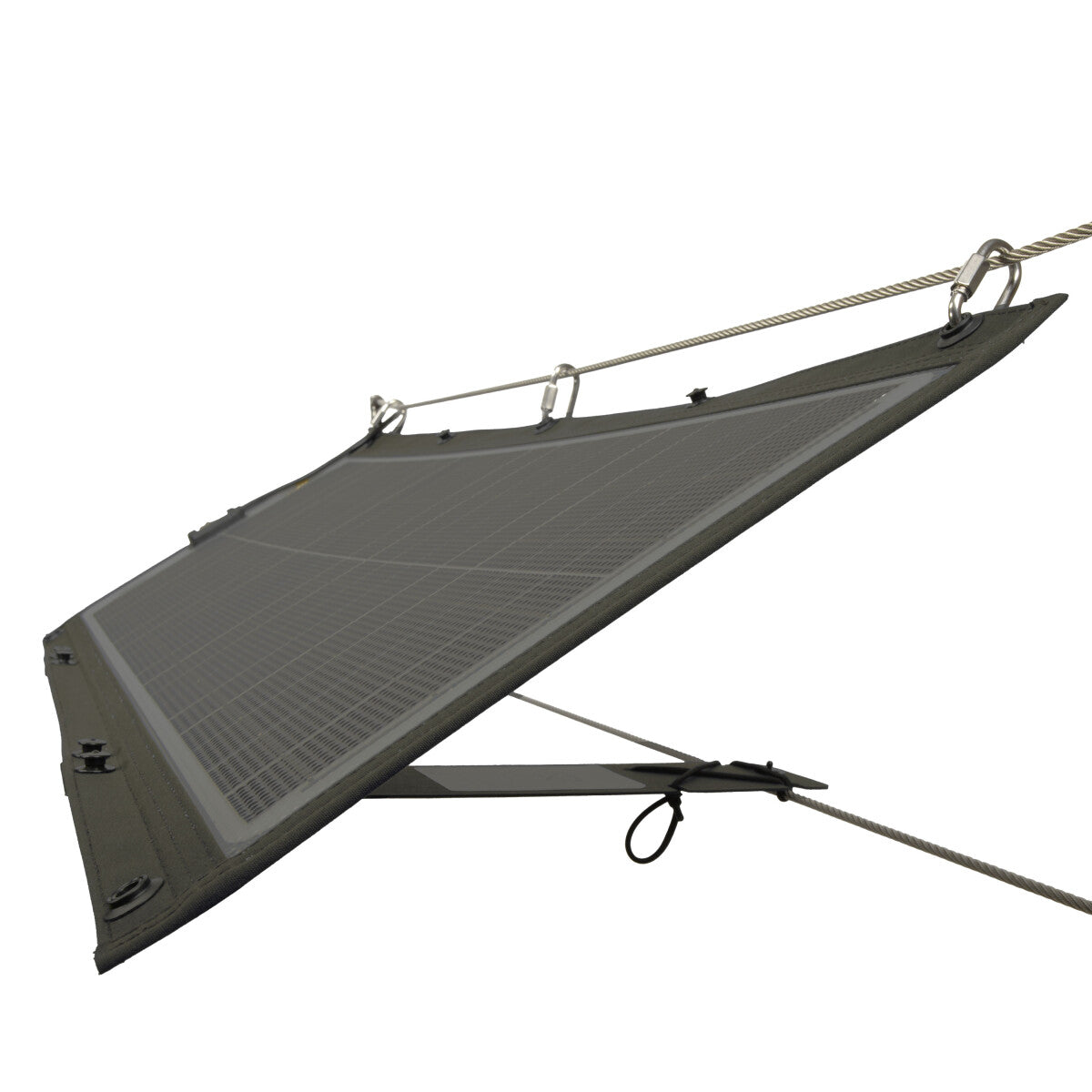

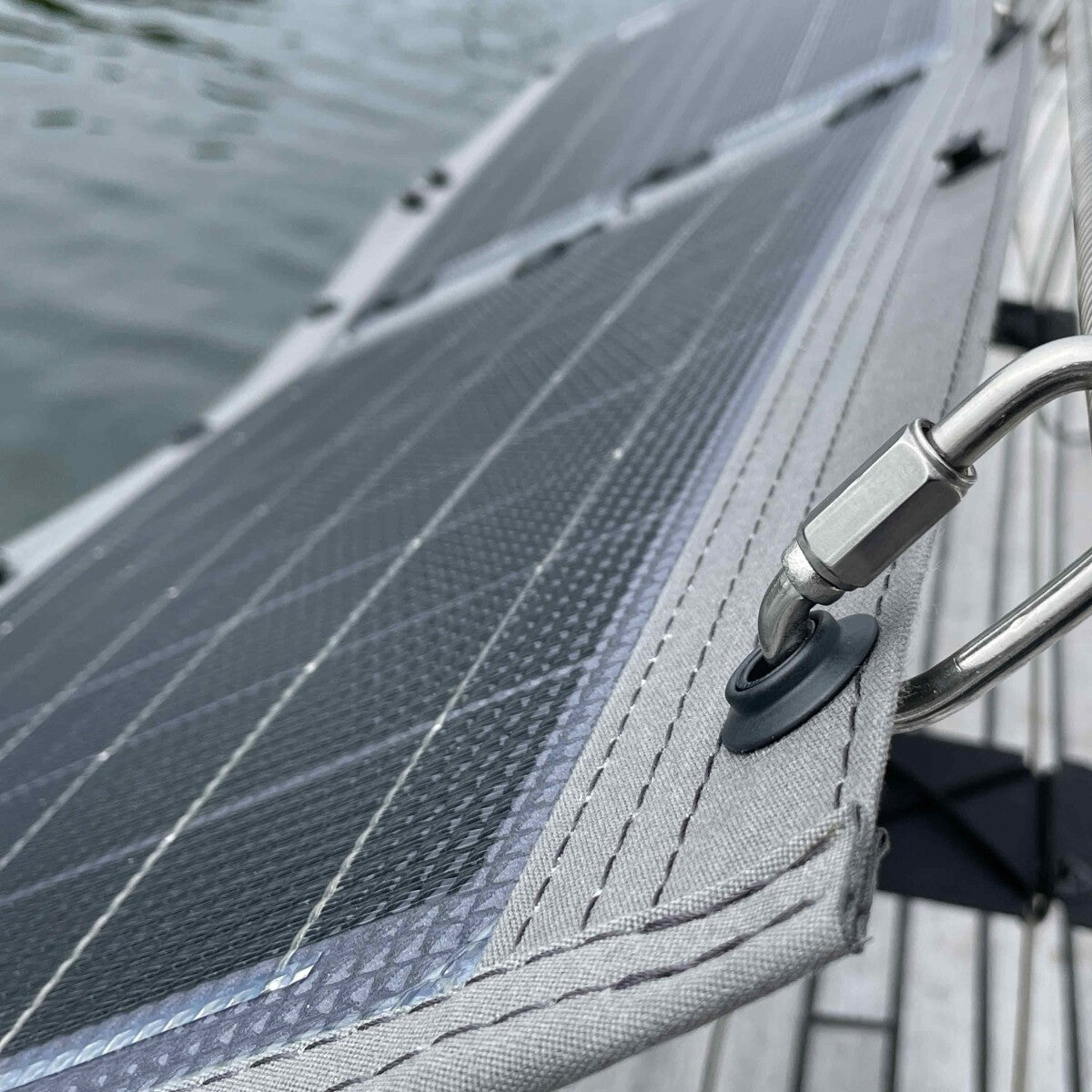

• Mounting with screw hooks on the upper railing wire rope
• TX-Riser Mono can be fixed with LOXX elements
• Can be detached on one side & extended for optimal sun tracking
• Fully mobile, even with risers mounted
• Railing remains usable as a safe handrail

Robust, lightweight & saltwater resistant

• Saltwater & UV resistant materials
• Crystalline high-performance cells
• Flexible, unbreakable design
• Waterproof plug connections
• 100 % Made in Germany

Your advantages at a glance

• 60 Wp power with compact size
• Easy railing mounting with screw hooks
• TX-Riser Mono for flexible sun tracking
• Maintenance-free & durable
• Lightweight, foldable & saltwater resistant
• Incl. 10 m cable & waterproof plug connection

Compact, smart & boat-friendly

The SunWare TX Rail 12052 solar module combines intelligent technology with a well-thought-out design. Whether for continuous operation, onboard power supply, or mobile use – this compact 60 Wp module reliably provides you with energy wherever you need it. The perfect choice for efficiency and quality Made in Germany.
