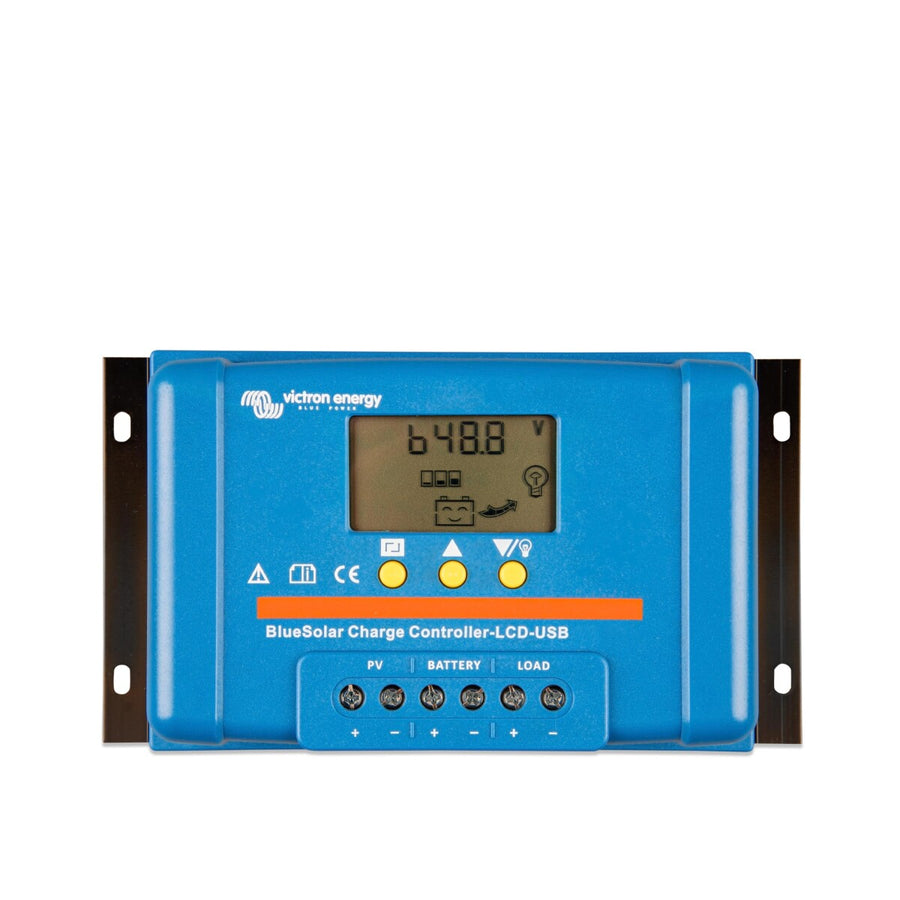

Victron BlueSolar PWM-LCD&USB 48V-10A
Victron BlueSolar PWM-LCD&USB 48V-10A
SKU:WS300-3732
Couldn't load pickup availability
Victron BlueSolar PWM-LCD&USB 48V-10A: Overview and Functionalities
The Victron BlueSolar PWM-LCD&USB 48V-10A uses Pulse Width Modulation (PWM) for charge voltage regulation and combines it with a multi-stage charging algorithm.
LCD Display for Monitoring and Setup
The Victron BlueSolar PWM-LCD&USB 48V-10A features an LCD display that allows for easy monitoring of the system status and straightforward configuration. This feature provides you with direct insight into important system data and simplifies settings.
Intelligent Load Output for Battery Protection
By connecting all loads to the dedicated load output, overcharging of your battery is effectively prevented. The output automatically disconnects the load as soon as the battery reaches a critical discharge state, to avoid damage from deep discharge. For special loads such as inverters that require a direct connection to the battery, the load output offers a practical solution, although a special interface cable may be necessary.
Adjustable Voltage Settings and Day/Night Operation
You have the option to individually set the voltage thresholds for switching loads on and off. The day/night time setting allows you to define a specific switch-on time after dark, which is particularly useful for lighting applications.
Flexible Battery Charging Algorithm
The charge controller supports pre-programmed charging algorithms for various battery types such as AGM, GEL, flooded, and LiFePO4 (only models with integrated Battery Management System - BMS), so charging processes can be optimally adapted to your battery.
USB Outputs for Additional Charging
Equipped with two 5V USB outputs, the charge controller allows charging devices such as smartphones or tablets directly from the controller, with a maximum current of 2A for both outputs combined.
The Victron BlueSolar PWM-LCD&USB 48V-10A offers a comprehensive solution for energy control of your solar system with user-friendly functions and flexible setting options to maximize the efficiency and lifespan of your batteries.
| Technical Data | BlueSmart PWM-LCD USB 48V-10A |
| Battery Voltage | 48 V |
| Nominal Charge Current | 10 A |
| Max. Solar Voltage | 100 V |
| Self-Consumption | < 10 mA |
| Automatic Load Disconnection | yes |
| Temperature Range | - 35 °C to + 60 °C |
| Protection Class | IP20 |
| Dimensions | 101 x 184 x 47 mm |
| Weight | 300 g |
