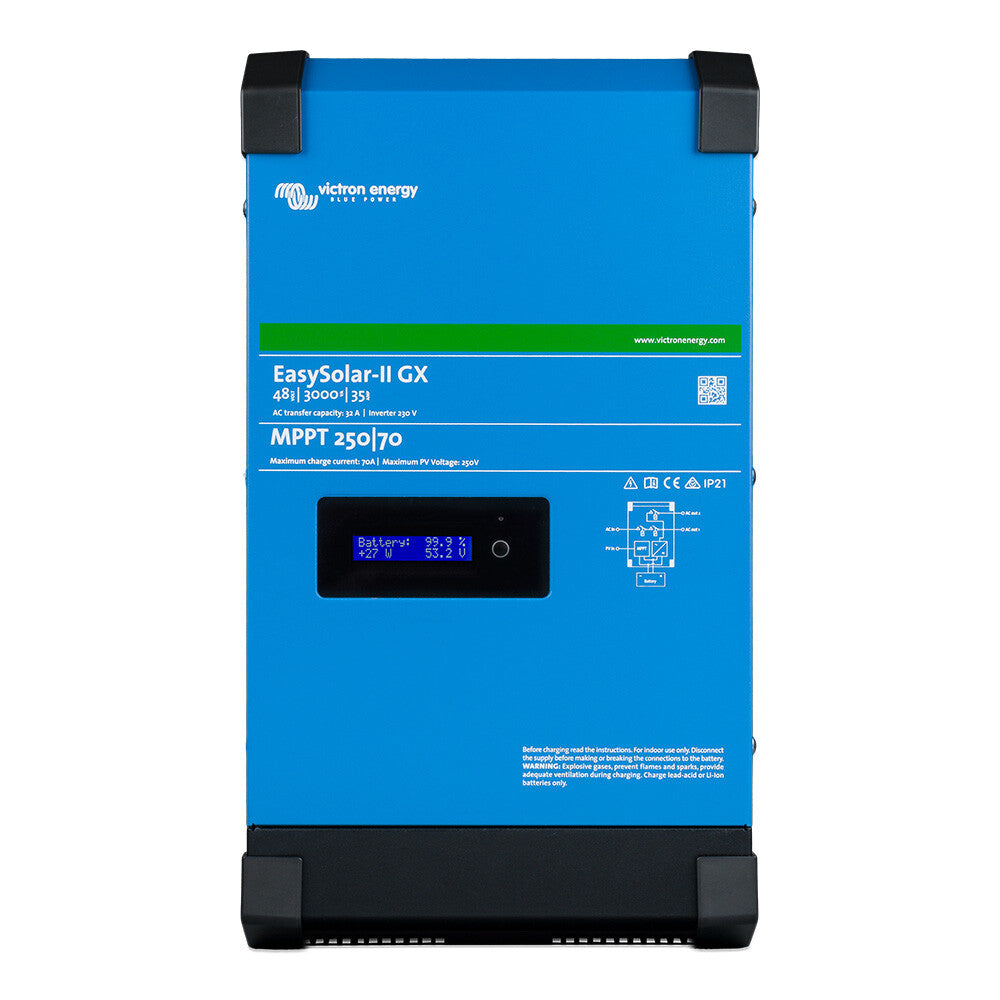

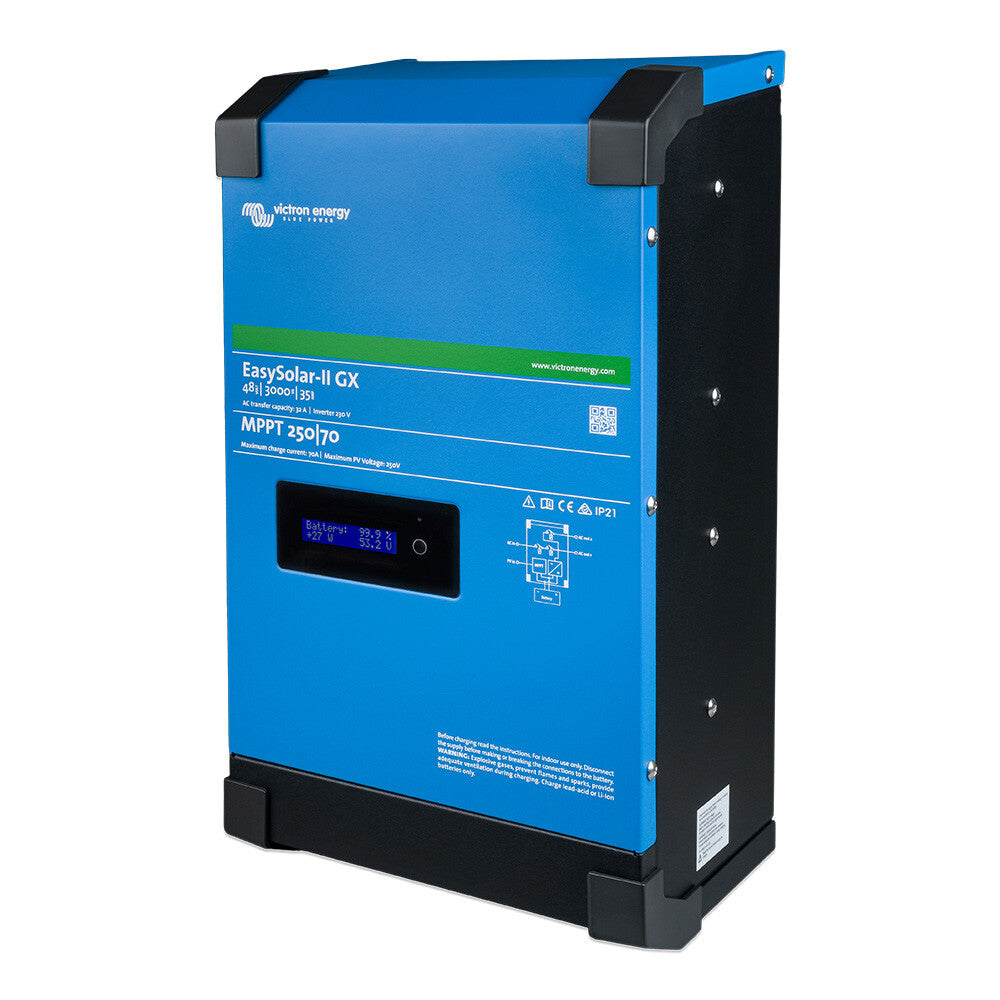

Victron EasySolar II 24/3000/70-32 MPPT 250/70 GX

EasySolar-II GX Multifunction Device: Charge Controller, Inverter, and Battery Charger Combined.

The EasySolar-II GX combines an MPPT solar charge controller, an inverter/battery charger, and a control center in one enclosure. The product is easy to install, with minimal wiring.

The Solar Charge Controller: SmartSolar MPPT 250/70-Tr

The integrated charge controller comes from Victron's SmartSolar series and guarantees maximum yields with the ultra-fast MPPT process. Particularly in overcast conditions, when light intensity is constantly changing, an extremely fast MPPT controller improves energy yield by up to 30% compared to PWM charge controllers and up to 10% compared to slower MPPT controllers.
Critical partial shading of the solar modules is detected by the MPP controller, and a new operating point is sought, ensuring high yields even under the most unfavorable circumstances. The DC output of the SmartSolar MPPT is connected in parallel to the DC connection of the MultiPlus-II inverter/charger.
The MultiPlus-II's on/off mechanism also controls the SmartSolar.

MultiPlus II 24/3000/70 Inverter and Battery Charger

The Victron Multiplus 24/3000/70 is a device combination of a 2400W sine wave inverter and a battery charger. The smartly integrated battery charger delivers an impressive 70A, allowing batteries to be charged extremely quickly when shore/grid power is available. The sine wave inverter integrated into the Multiplus converts the 24V DC from the battery into 230 V AC. Thanks to the pure sine wave, the voltage quality is perfectly suited even for sensitive electronic devices.

GX Device

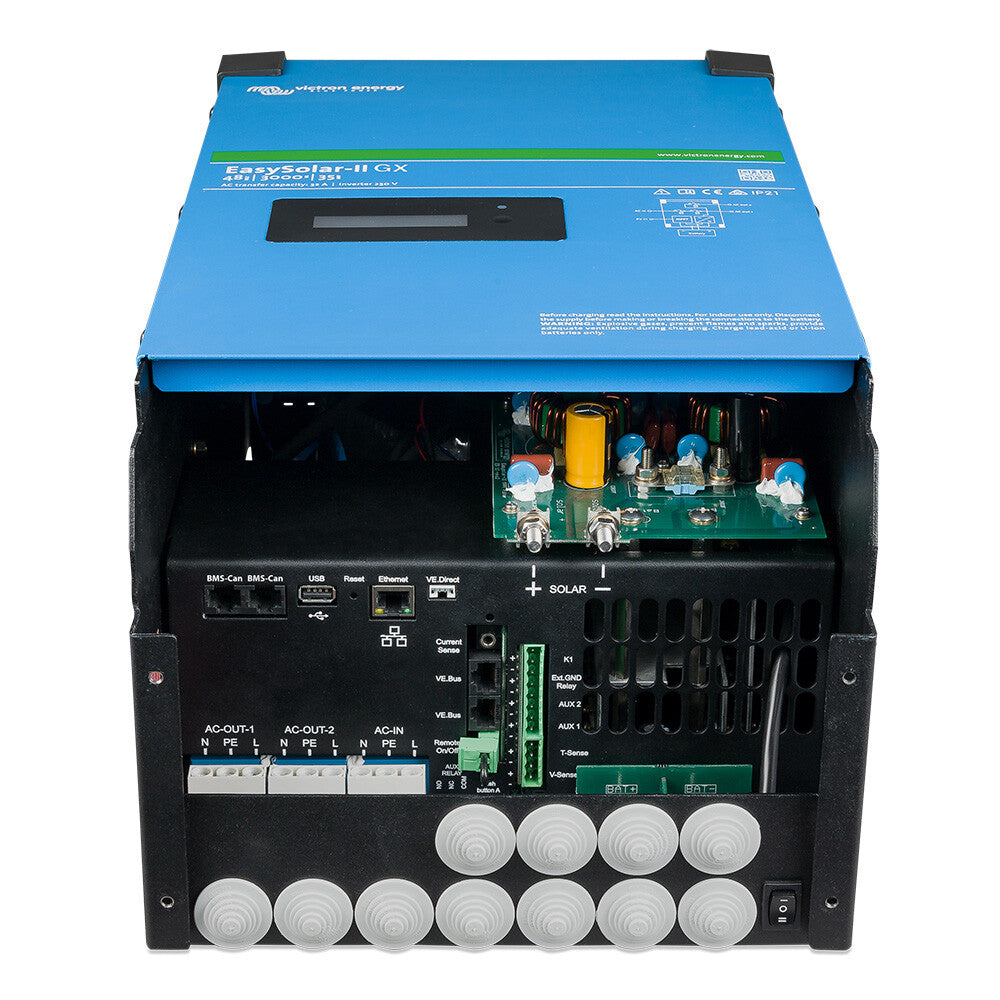

The integrated GX device includes:

• A BMS-Can interface. This can be used to connect to a compatible CANbus-managed battery. Please note that this is not a VE.Can compatible connection.
• A USB port
• An Ethernet port
• A VE.Direct port

The GX device controls the MultiPlus-II and the SmartSolar MPPT with one VE.Bus and one
VE.Direct connection each.

Display and WiFi

The display shows parameters for the battery, inverter, and solar charge controller. Parameters can be accessed with a smartphone or other Wi-Fi-enabled device. Additionally, Wi-Fi can be used to set up the system and change settings.

The high-end device is characterized by the following features:

• 2400 W continuous AC power, 5500 W peak power
• 24 V battery system voltage
• Pure sine wave inverter, suitable as a UPS
• max. 2000 W PV power
• Main battery charging up to 70 A
• Transfer switch with 32 A
• Color Control Display for settings and system information display
