Victron Lynx Distributor M10

Victron Energy Lynx Distributor (M10) – Module for Fuse Monitoring in the Lynx DC Distribution System

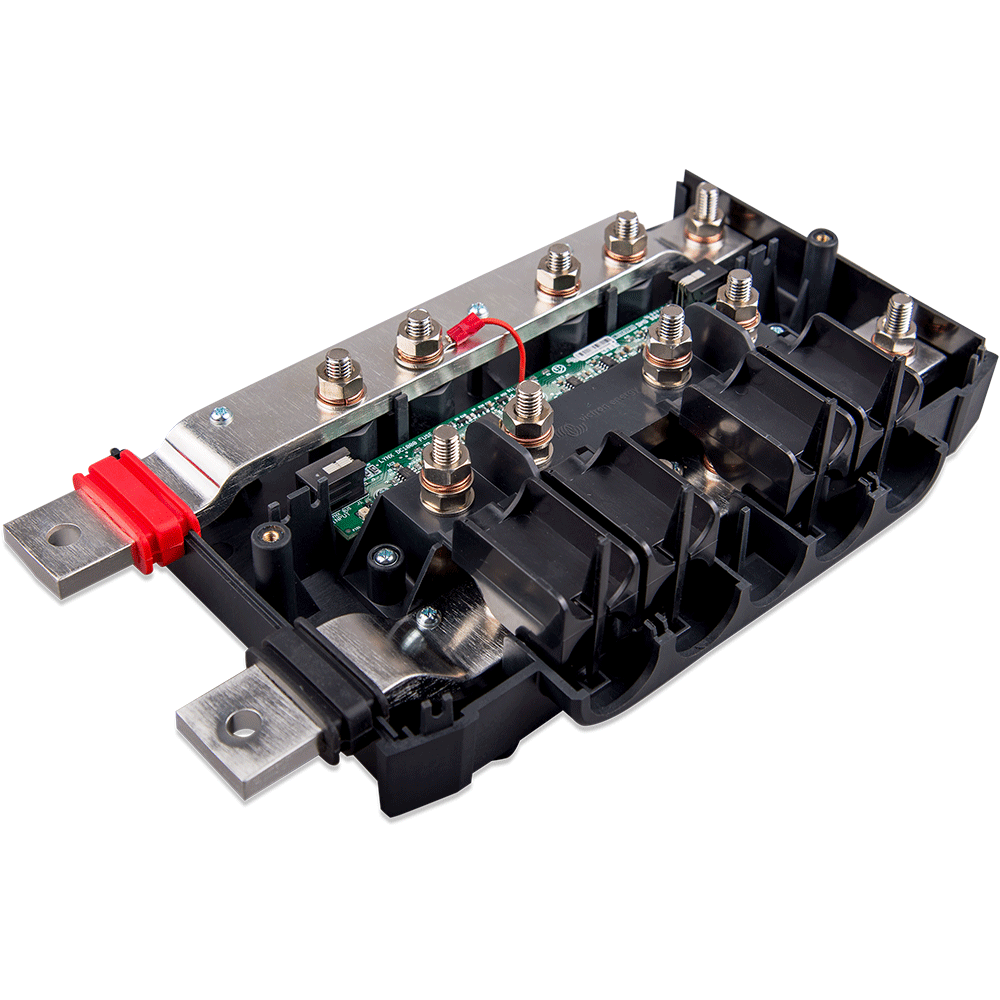

The Victron Energy Lynx Distributor (M10) is a central component of the Lynx distribution system, serving as a modular DC busbar with four fuse slots. Integrated monitoring detects the status of each fuse and indicates its status via illuminated LEDs on the front. If a fuse blows, the affected LED turns red and an alarm is sent to the connected Lynx Smart BMS, enabling direct and quick response to malfunctions.

Key Features of the Lynx Distributor (M10)

• Four Fused Slots: For DC fuses, reliably monitored
• Fuse Detection and Alarm Function: Detects and reports blown fuses via LED and alarm to the BMS
• LED Indicators: Power LED and 4 LED indicators for fuse status for quick diagnosis
• Compatibility with GX Devices: Monitor up to four Lynx Distributors with a Cerbo GX, CCGX, or Venus GX, complemented by GX Touch Panels 50 or 70
• RJ10 Cable: 40 cm long cable for connection to a Lynx Smart BMS (500 or 1000) for monitoring

Flexible System Voltages and Robust Construction

The Lynx Distributor is designed for system voltages of 12 V, 24 V, and 48 V and is made of robust ABS material, ensuring durability and resilience. The busbar features a positive and a negative busbar: The positive busbar offers four fused connections with fuse monitoring, while the negative busbar offers four connections and an additional ground connection.

Important Note on the M10 Designation

The "M10" designation refers to the busbar connections used to connect the modules. The connections for fuses and cables, however, are in M8 format.

Documents & Downloads

• Manual Lynx Distributor M10
