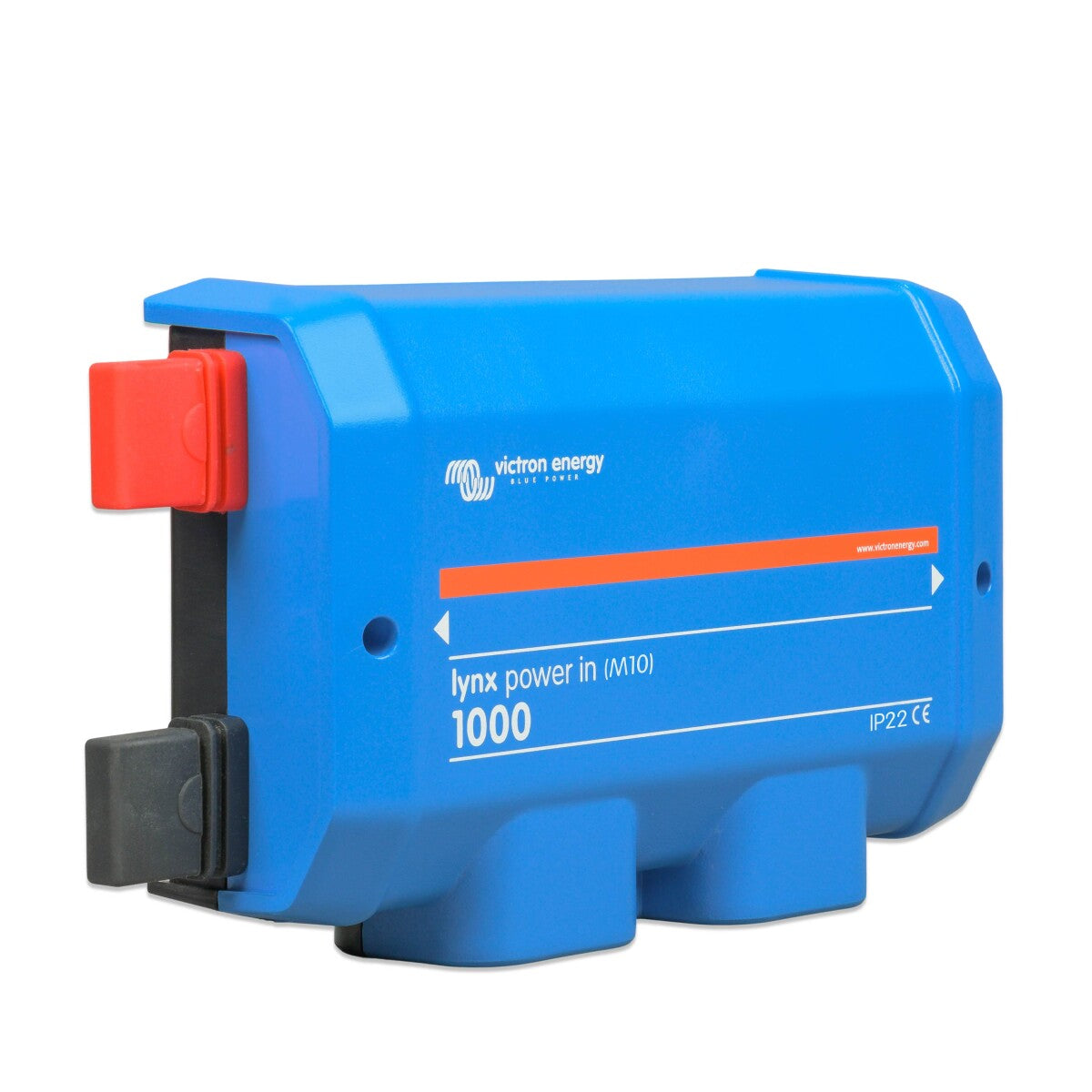

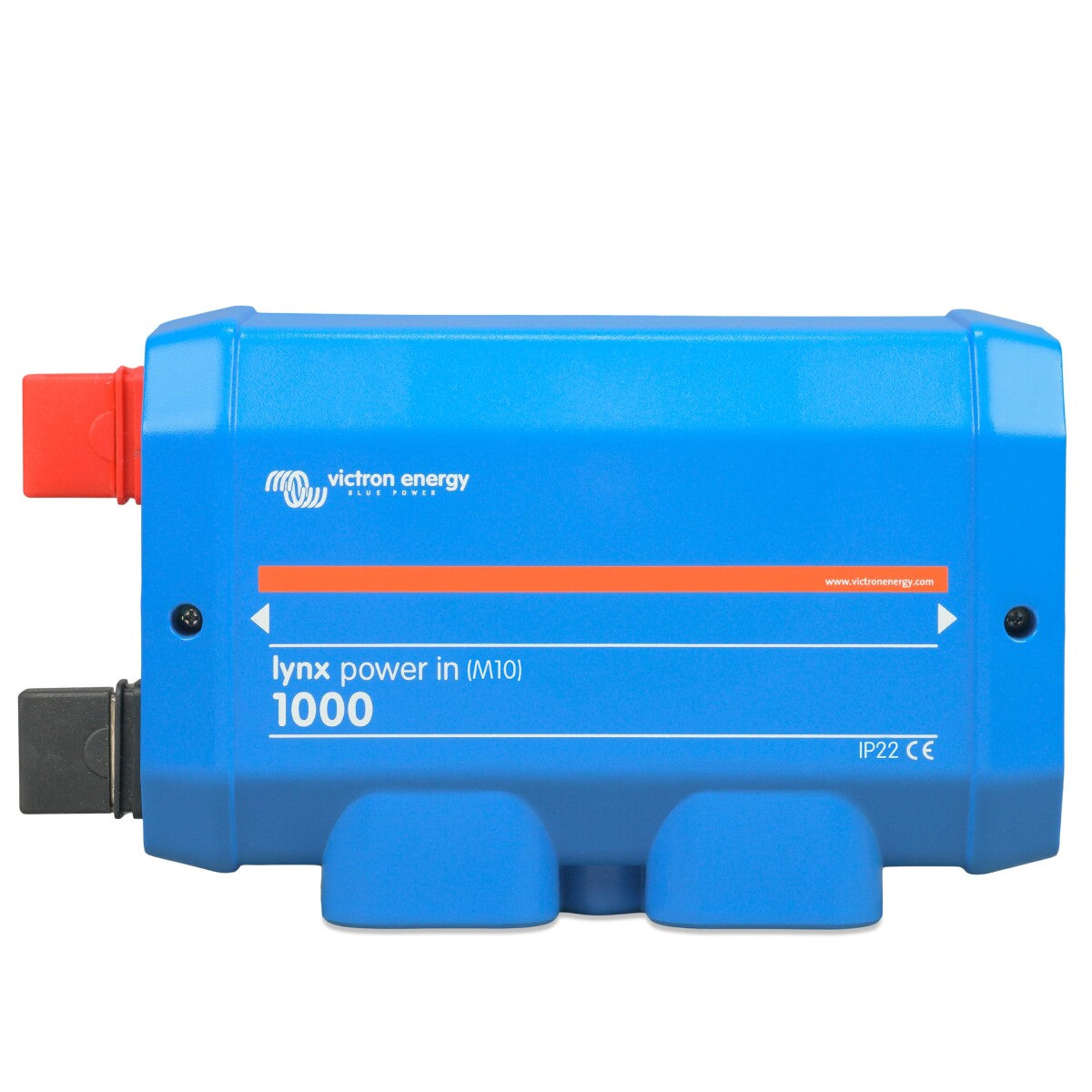

Victron Energy Lynx Power In (M10) – Modular Busbar for the Lynx DC Distribution System

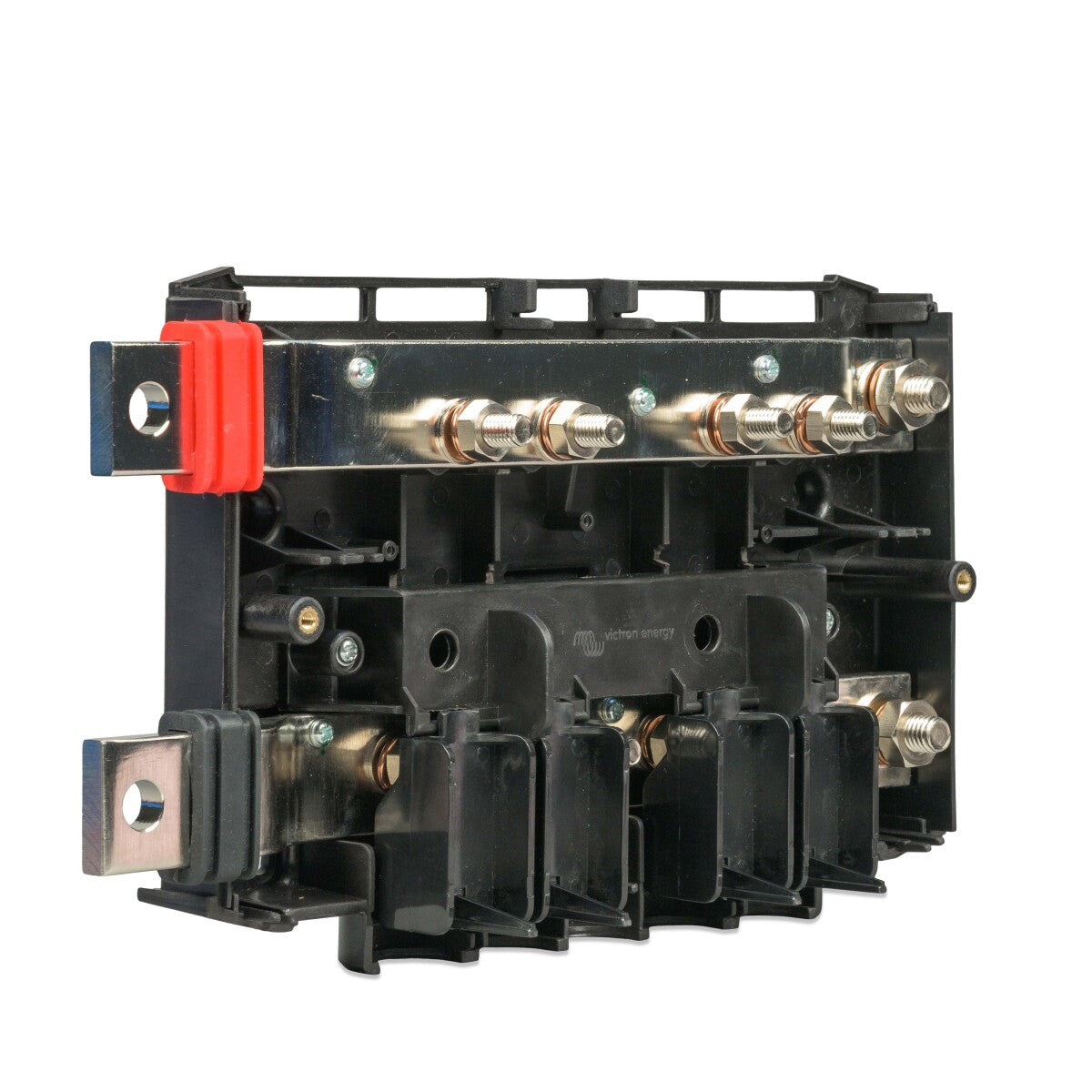

The Victron Energy Lynx Power In is a modular DC busbar that allows batteries to be connected to the Lynx DC distribution system. This positive and negative busbar features four connections for batteries, loads, chargers, and a shunt connection, and is available in two variants: M8 and M10. The designation "M10" refers to the busbar connections through which the modules are connected in the system. However, the fuse and cable connections remain in the M8 format.

Features and Functions of the Lynx Power In (M10)

• Modular Integration: Part of the Victron Energy Lynx distribution system
• Four connections: For batteries, loads, chargers, and shunt connection
• Easy installation: Quick and secure connection of modules
• Positive and negative busbar: Optimized for DC systems
• Monitoring via VictronConnect: Supported by the VictronConnect App
