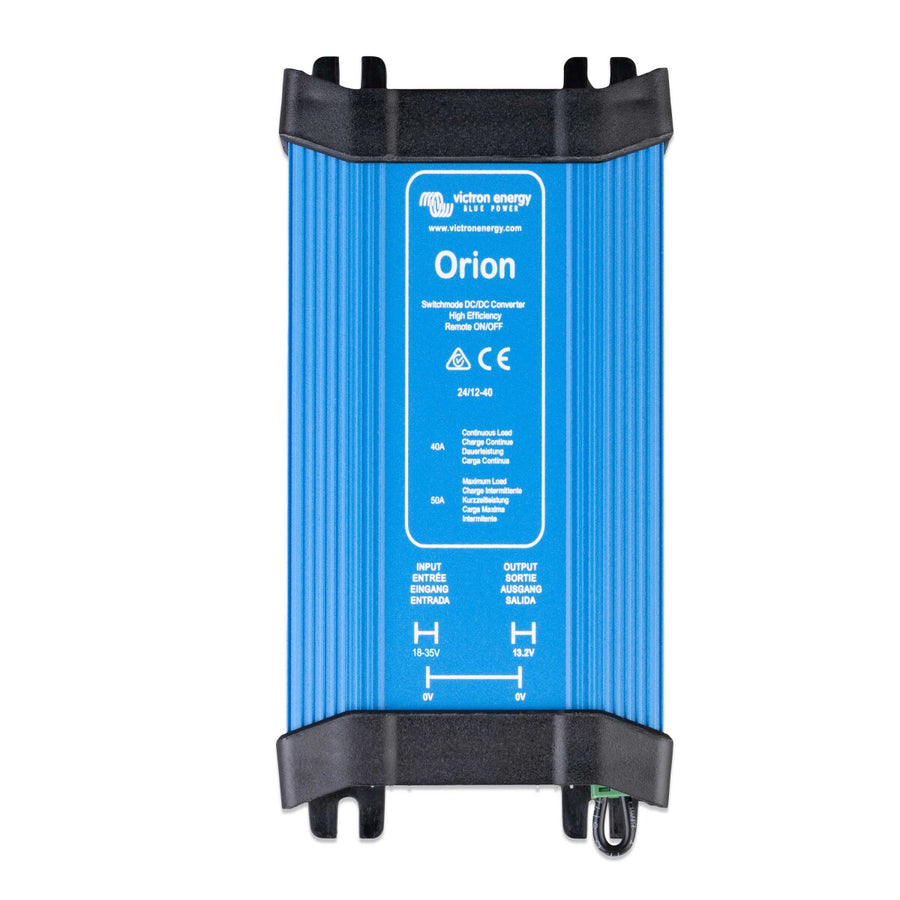

Victron Orion DC-DC Converter 24/12-40 - non-isolated

Victron Orion 24/12-40: High-Performance DC-DC Converter for Interference-Free Power Supply

The Victron Orion 24/12-40 is an advanced DC-DC converter that provides a stable and regulated 12V DC voltage from a 24V source, ideal for the smooth operation of your DC consumers. With an impressive continuous power of 480W and a constant current of 40A, this model guarantees efficient energy transfer, making it perfect for a variety of applications.

Product Features and Benefits of the Victron Orion 24/12-40:

• Operating Voltage and High Output Power: Utilizes a 24V DC input voltage and delivers a reliable 12V output voltage. With a maximum output power of 480W and a continuous current of 40A, it offers robust performance for all your needs.
• Extended Input Voltage Range: Operates within a wide input voltage range of 18V to 35V, allowing for flexible application under various operating conditions.
• Temperature-Controlled Ventilation: Increases the efficiency and lifespan of the device through temperature-controlled ventilation, which is only activated when needed.
• Remote On/Off Switch: Integrated switch that can be controlled remotely to save energy and simplify operation. This eliminates the need for a high-current switch in the input wiring.
• High Efficiency: Achieves an outstanding overall efficiency of 95%, leading to lower energy losses and better performance.
• Lightweight Design: Weighing only 0.85 kg, the converter is easy to install and handle.

Areas of Application:

The Victron Orion 24/12-40 is ideal for marine, automotive, and industrial applications where a clean and stable DC power supply is required. It effectively compensates for line losses and fluctuations in battery voltage, making it a reliable solution for critical electronic applications.

Documents & Downloads

• Datasheet Orion DC-DC 24/12-40
• Manual Orion DC-DC 24/12-40
