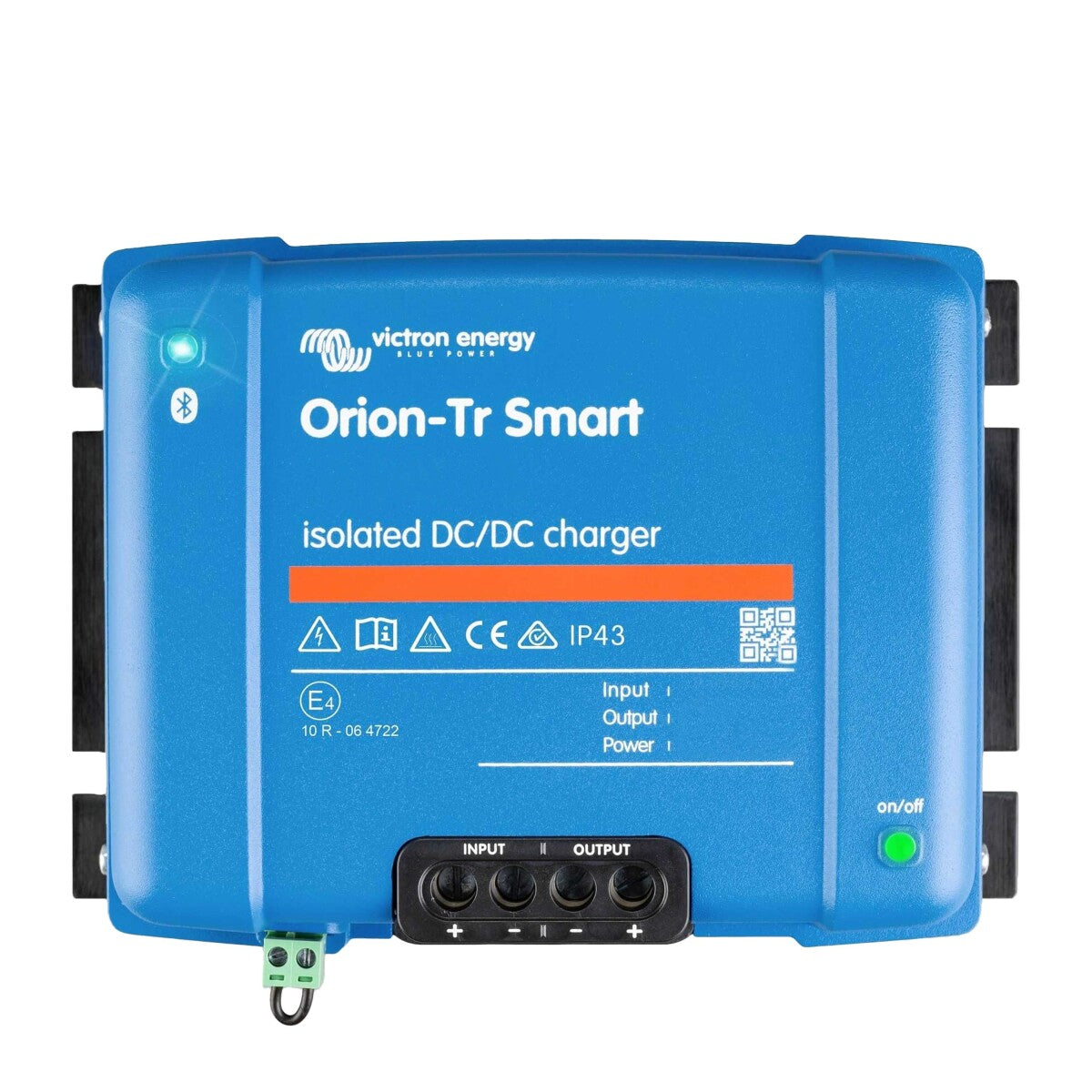

Victron Orion-Tr Smart 48/24-16A Isolated DC-DC charger

Orion-Tr Smart 48/24-16A DC-DC Charger – Smart Charging Technology for Vehicles, Boats & RVs

The Orion-Tr Smart DC-DC charger ensures a reliable and efficient power supply – ideal for vehicles with smart alternators (Euro 5 & Euro 6), RVs, and boats. Thanks to its wide input and output voltage range, it guarantees stable charging performance even with low alternator voltage or long cable runs.

Powerful & Versatile – Technical Highlights

• Input voltage range: 32-70V
• Undervoltage shutdown: 28V (restart at 30V)
• Nominal output voltage: 24.2V (adjustable from 18-30V)
• Continuous output current: 16A at 40°C
• Short-circuit output current: 40A
• Powerful:
  • 430W continuous power at 25°C
  • 380W continuous power at 40°C
• Efficient battery charging with adaptive 3-stage charging algorithm
• Smart adjustment: Prevents overcharging of lead-acid batteries and ensures full charging of lithium batteries
• Constant voltage output: Ideal for use as a power source

Smart Battery Management with Bluetooth

• Easy configuration via the VictronConnect App
• Instant display of status & warnings
• Software updates conveniently via smartphone or tablet

Reliable Protection & Easy Installation

• Integrated engine shutdown detection: Prevents discharge of the starter battery
• Short-circuit proof & suitable for parallel operation
• IP43 protection class: Safe when correctly installed
• Easy screw terminals – no special tools required!

The Orion-Tr Smart 48/24-16A DC-DC charger offers maximum energy efficiency, safety, and flexibility – perfect for mobile use.
