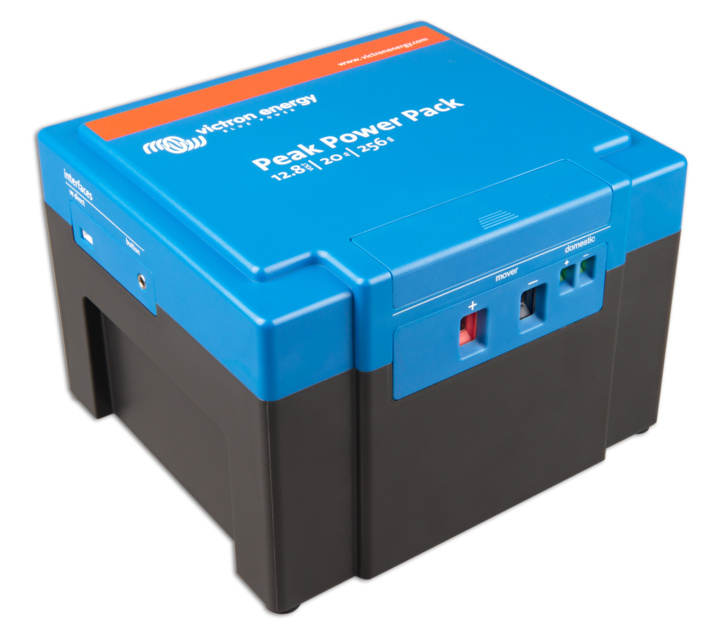

Victron Peak Power Pack 12.8V/20Ah Lithium Battery 256Wh

Victron Peak Power Pack 12.8V/20Ah Lithium Battery 256Wh

WS300-2001

€550,86 EUR
€550,86 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Victron Peak Power Pack PPP-20 Battery 12.8 V Nominal Voltage

The Peak Power Pack is a complete replacement for heavy lead-acid batteries in applications where high currents occur for short periods. Primarily designed for caravans, it is equipped with a built-in charger. This allows charging via the vehicle's electrical system while traveling with the caravan. In this way, the pack is fully charged upon arrival at the campsite. If necessary, charging via the mains is also possible using the included adapter. Charging via a solar panel is also possible.

Nominal voltage: 12.8V
Battery capacity range: 20Ah

The practical Peak Power Pack batteries feature the following characteristics:
  • Low weight and easy installation
  • Effective protection against improper use
  • Outputs:
    - "Mover": High-capacity output for caravan movers and other applications requiring a lot of energy.
    - "Domestic": for low DC loads (not available for the 8 Ah model).
  • Inputs:
    - "Car/Solar": Charging while driving or via a solar panel.
    - "Adapter": The included adapter can be connected to this.
  • Fast charging possible via the high-current output (high-power output 1), only with 30 Ah and 40 Ah models.
  • Storage mode reduces power consumption to almost zero by protecting against excessive discharge.
  • Remote control with status indicator
  • VE.Direct Port: Can be connected to a PC or a smartphone.
    ("VE.Direct to USB" cable or "VE.Direct Bluetooth Smart Dongle" required)

The Peak Power Pack can be charged via your vehicle, via a solar panel, or via a power connection at your campsite. If you charge the battery while driving, it will be fully charged upon arrival and you can maneuver your caravan as desired. Thanks to the included cable, the Peak Power Pack is very easy to use. A push button operates a built-in LED light with different colors. These indicate the status of the battery.

Technical Data

Capacity (Ah) 20 Ah
Stored Energy (Wh) 256 Wh
Battery Type Lithium-ion (LiFePO4)
Continuous current at output 150 A
Protection Overload / Short circuit / Overtemperature / Deep discharge
Max. charging voltage 14.2 V
Operating temperature -20°C to 40°C
Special features Data exchange via USB or Bluetooth possible
Weight 3.8 kg
Dimensions (H x W x D) 132 x 190 x 172 mm
