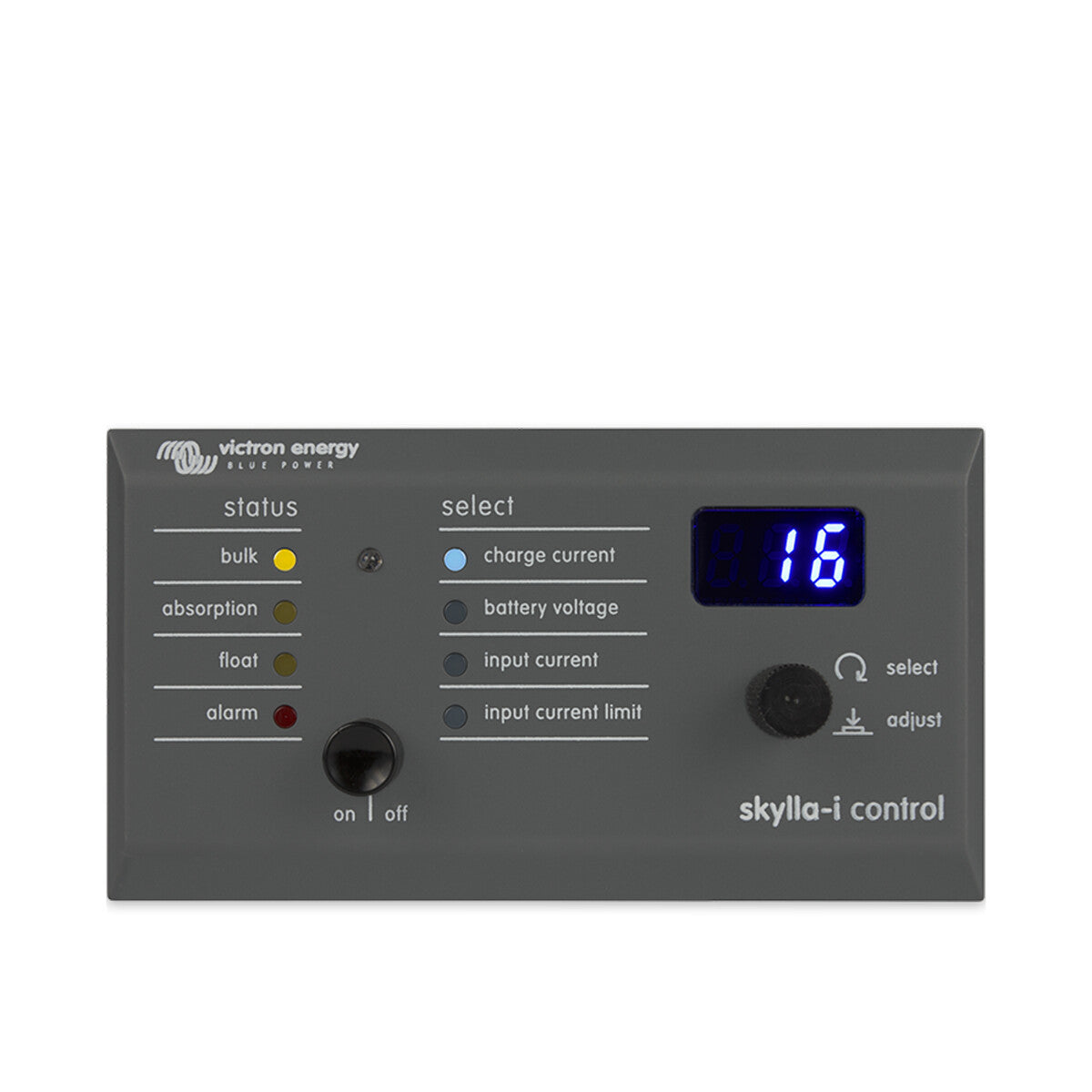

Victron Skylla-i Control GX (Right Angle RJ45) Retail

Skylla-i Control GX Remote Panel by Victron Energy (MPN REC000300000R) – Intuitive Charge Control

The Skylla-i Control GX Remote Panel by Victron Energy is your ideal companion for precisely adjusting the charging current of your Skylla-i battery charger and clearly displaying the system status.

This remote control panel is specifically designed for use with all Skylla-i charger models and allows for effortless integration into your system. By utilizing the VE.CAN bus, connecting the Skylla-i panel to your charger is incredibly simple. Connect the two devices with a conventional UTP (Unshielded Twisted Pair) cable with two RJ45 connectors. Note that RJ45 bus termination plugs are necessary at both ends. The Skylla-i panel comes complete with both RJ45 bus termination resistors. Thanks to the two RJ45 jacks on the charger and panel, which are internally connected, you have flexible connection options.

Skylla-i Control GX Functions

Controllable parameters of the Skylla-i Control GX:

• Charge current
• Battery voltage
• Input Current
• Input Current Limit
• The LEDs on the control panel serve various display purposes; their meanings can be found in the German operating manual.

Switching the Skylla-i charger on and off:

The Skylla-i charger can be switched on or off by briefly pressing the on/off button. However, the main power switch on the charger takes precedence. If it is switched off, the charger cannot be switched on via the panel.

Setting the charger's input current limit:

Change the input current limit by pressing and releasing the rotary knob. The current input current limit value will appear blinking on the screen and can be adjusted by turning the knob. To confirm the new value, wait a few seconds or briefly press the rotary knob.

Scope of delivery:

1x Victron Energy REC000300000R Skylla-i Control GX Remote Panel

1x Installation manual

Documents & Downloads

• Skylla-i Control GX Manual
