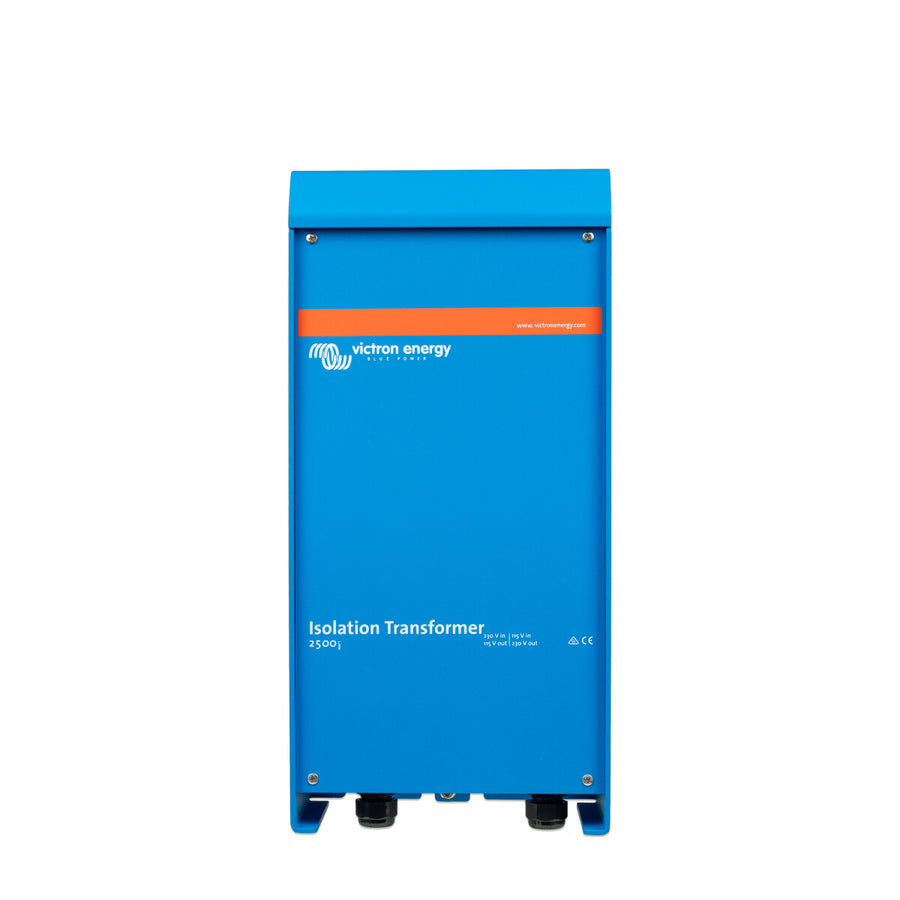

Victron Isolation Transformer 2500W 115/230V
Victron Isolation Transformer 2500 W 115/230 V – Reliable Protection for Boats & Industry
The Victron Isolation Transformer 2500 W offers you maximum safety and efficiency for your onboard or industrial system. It reliably isolates your grid from the shore connection, thereby preventing electrolytic or galvanic corrosion. With its high-quality toroidal winding, robust construction, and integrated SoftStart function, it is ideally suited for boats, yachts, and industrial applications.
Technical Features at a Glance
- Power: 2,500 W
- Input Voltage: 115 V or 230 V AC (switchable)
- Output Voltage: 115 V or 230 V AC
- Output Current: 22 A at 115 V / 11 A at 230 V
- Frequency: 50 Hz & 60 Hz compatible
- SoftStart Function: Prevents high inrush currents
- Construction: efficient toroidal winding
- Housing: robust aluminum housing, IP21 protection class
- Dimensions: 446 × 214 × 135 mm (H × W × D)
- Weight: 12.7 kg
High-Quality Materials & Construction
The transformer is made of corrosion-resistant materials and equipped with a specially treated copper toroidal winding. Thanks to its robust aluminum housing, it is ideally suited for humid, maritime environments and reliably withstands mechanical stress.
Energy Efficiency & Safety
The Victron Isolation Transformer operates with high energy efficiency and low heat loss. Built-in protection mechanisms and an input fuse further increase operational safety. Thanks to ISO certification, CE marking, and international quality standards, the transformer is perfectly prepared for professional use.
Your Advantages at a Glance
- Effective protection against galvanic corrosion
- Guarantees a stable & safe onboard power supply
- SoftStart function prevents voltage spikes
- Robust construction & IP21 protection against moisture
- Certified according to international safety standards
Optimal for Maritime & Industrial Applications
With the Victron Isolation Transformer 2500 W 115/230 V, you choose maximum safety, efficiency, and durability. Whether at sea, in port, or in industrial facilities – this transformer is the reliable solution for your power supply.
| Technical Data | Isolation Transformer 2500W 115/230V |
| Input | 115/120 or 230/240 V |
| Output | 115/120 or 230/240 V |
| Frequency | 50/60 Hz |
| Rated Current | 22/11 A |
| Protection Class | IP21 |
| Weight | 12 kg |
| Dimensions | 446 x 214 x 135 mm |
