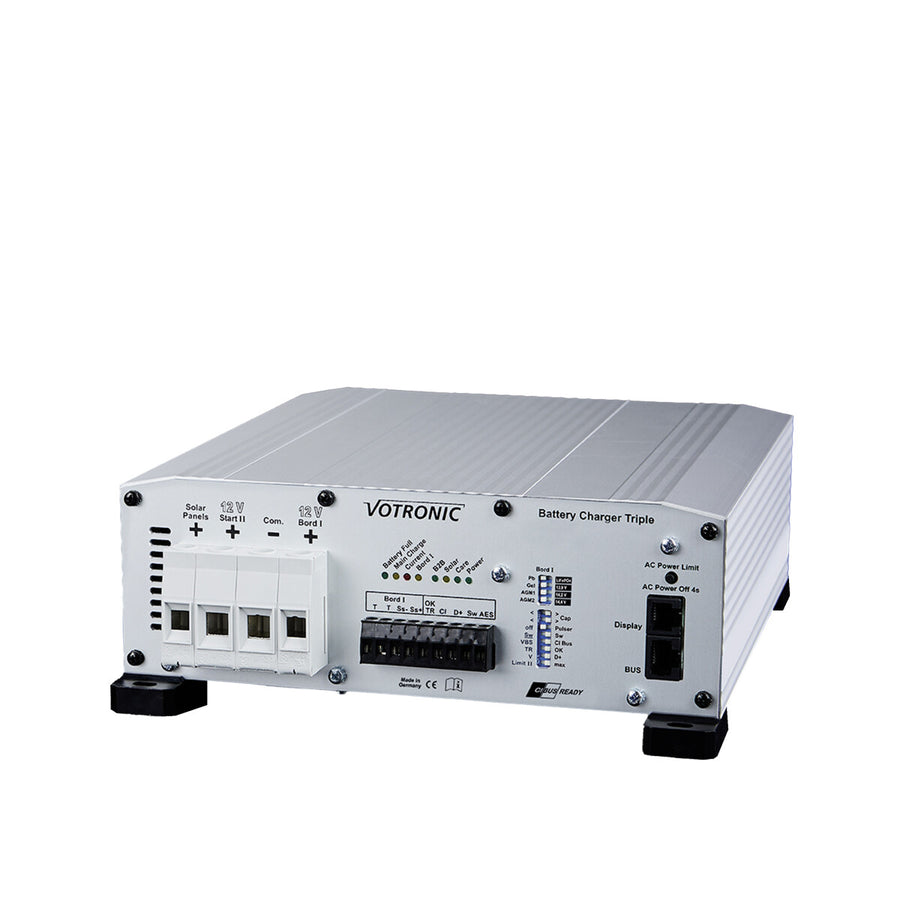

Votronic Battery Charger VBCS 60/40/800 Triple HV CI 3272
Votronic Battery Charger VBCS 60/40/800 Triple HV CI - Shore Power, Alternator & Solar in one Device
Shore power, 12 V/12 V B2B charging converter (alternator/Euro 6 compatible), and MPPT solar charge controller in one compact device. When connected to shore power, it charges your leisure battery with up to 40 A; in B2B mode, up to 60 A is possible, and via solar, it supports modules from 60 to 800 Wp.
Triple Charger: Shore Power, B2B, and MPPT Solar – Flexible for On the Go
The VBCS is designed as a "Triple" system for vehicles: You can charge from shore power (110–230 V / 45–65 Hz worldwide, full charging power), recharge via the alternator while driving, and additionally use solar power. Practical features include shore power detection and an AC power limit function, allowing you to sensibly limit power consumption at weaker connections.
Suitable for Many Battery Types – Including LiFePO4
To ensure charging matches your battery, the battery type is adjustable: Gel, AGM, Acid, or LiFePO4. Additionally, the device supports lead-acid temperature compensation and LiFePO4 protection. A temperature sensor 825 is already included in the delivery.
Clean Integration in the Vehicle: CI-BUS, Control, and Switching Output
For modern RV setups, the charger is CI-BUS capable and offers a control input to influence its functionality. It also includes practical interfaces such as the plug connection for Display LCD-Charge Control S and the plug connection VBS2. For greater everyday comfort, a switching output for AES refrigerator is also integrated.
B2B Charging (Euro 6) and Starter Battery Monitored
In 12 V/12 V B2B charging converter mode, the VBCS delivers up to 60 A charging power for the leisure battery. The voltage range at the starter battery/alternator is 10.5–16.5 V (Euro 6), with a max. current of 82 A. For the starter battery, a charging power of 5 A is available (via a charging current distributor); a starter battery with 12 V and >100 Ah is recommended.
Your Benefits at a Glance
- 3-in-1: Shore charger + 12 V/12 V B2B charging converter + MPPT solar controller
- Up to 40 A charging in shore power mode, up to 60 A in B2B mode
- MPPT Solar for 60–800 Wp, max. 26.0 A, max. 55 V Voc
- Selectable battery type: Gel, AGM, Acid, LiFePO4
- Shore power detection & AC power limit for controlled power consumption
- CI-BUS capable, connections for LCD-Charge Control S and VBS2
- AES refrigerator switching output and temperature sensor 825 included
If you want a powerful, versatile charging center for your 12V onboard electrical system that cleanly integrates shore power, driving, and solar, the VBCS 60/40/800 Triple HV CI (3272) is a very well-thought-out solution.
| Technical Data | Votronic VBCS 60/40/800 |
| Operating Voltage | 110 V - 230 V |
| Operating Voltage Range | 90 V - 270 V |
| Max. Power Consumption | 700 W |
| Max. Current Starter Battery | 10.5 V - 16.5 V |
| Solar Module Power | 60 Wp - 800 Wp |
| Max. Current Solar Module | 26 A |
| Max. Voltage Solar Module | 55 V |
| Weight | 2.9 kg |
| Dimensions | 256 mm x 219 mm x 85 mm |
