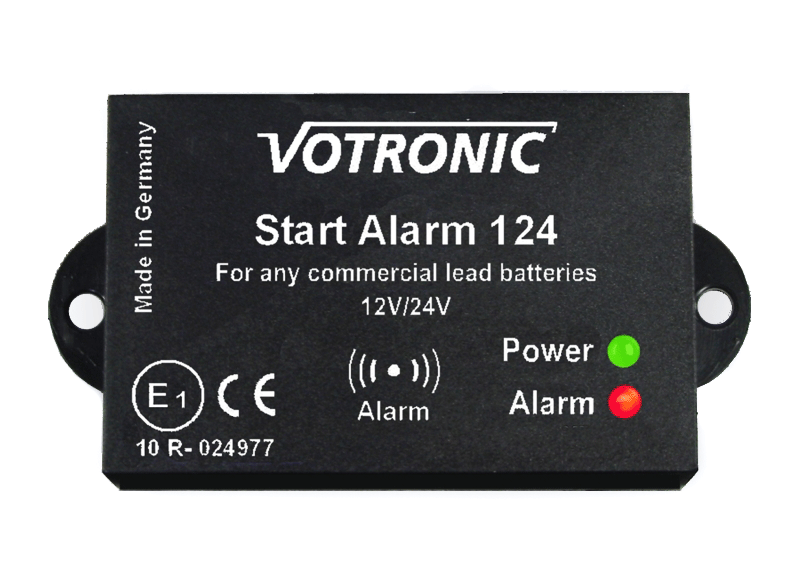

Votronic Start Alarm 124 - 0161

The VOTRONIC Start Alarm 124 is a warning device with an acoustic (beeper) and optical (LED) alarm message for the starter battery in emergency vehicles with only one battery circuit (according to DIN EN 1789, section 4.3.2). Its purpose is to warn the driver early about a battery that is no longer capable of starting the vehicle. An additional horn, consumer relay, or similar can be connected via a switching output (PNP, positive output max. 0.5 A). The self-consumption is below 3 mA (according to DIN EN 13976). Connection via plug-in screw terminal.

Documents & Downloads

• Manual
• Datasheet
