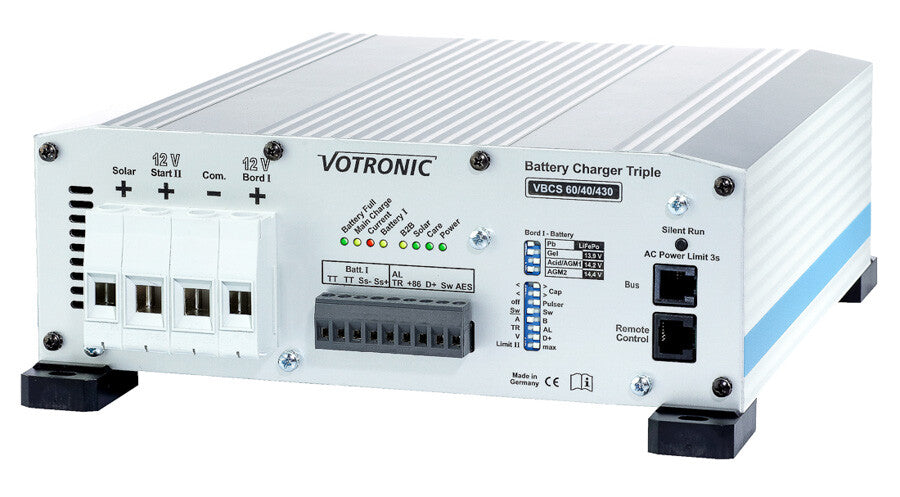

Votronic VBCS 60/40/430 CI-Triple Combination Unit - Charger/Controller/Converter/Device - 3246
Votronic VBCS 60/40/430 CI-Triple Combination Unit - Charger/Controller/Converter/Device - 3246
SKU:WS302-1145
Couldn't load pickup availability
Device combination of 40A AC charger, 60A charge booster, and 430 Wp MPPT solar controller including Battery Trainer
The Battery Charger VBCS Triple is a completely new device combination consisting of a lead-acid AC charger, VCC charge booster, and MPPT solar controller, ensuring the power supply in motorhomes. The batteries are always charged automatically, whether during travel or at the campsite. Especially the generously dimensioned charging power of the integrated charge booster, with 30, 45, or 60 A respectively, ensures that the leisure battery is charged with full current even during short trips and is fully charged upon arrival.
The VBCS Triple series corresponds to VOTRONIC individual devices in terms of quality, features, and functions, and stands out for its particularly compact and lightweight design. The devices contribute significantly to cost reduction and help save valuable space in motorhomes. Acquisition, installation, and connection wiring are reduced to a minimum, thus saving valuable resources.
Designed for common battery sizes, three different device combinations are available. All devices are equipped with 8 charging characteristics, for lead-acid, gel, and AGM batteries, as well as for future-proof lithium LiFePO4 batteries. The integrated Battery Trainer keeps the leisure batteries in good condition during long periods of inactivity.
An LCD display and control unit specially designed for this charging unit shows all important device information. In addition, the charger can be adapted to the campsite's power supply.
Product features:
- Constant, fully automatic battery charging
- High operational safety
- Fast, battery-friendly charging
- Integrated battery care
- Full charging power worldwide
- 8 charging characteristics for acid, gel, AGM, and LiFePO4 batteries
- Temperature sensor 825 included
- Robust technology and compact design
- Easy installation
- Short cable runs
- Optional: Plug and Play display and control unit LCD-Charge Control S
Recommended accessory: LCD-Charge Control S. This practical display panel can show a variety of information.
For example, active charging sources can be read, an AC Power Limit can be set, or system voltages and currents can be viewed.
Technical data VBCS 60/40/430
| Mains operation | |
| Rated operating voltage (AC) in [V] | 110 to 230 / 45 - 65 Hz worldwide |
| Operating voltage range (AC) in [V] | 90 - 270 (full charging power) |
| Max. power consumption (AC) in [W] | 700 |
| Charging power leisure/starter battery max. [A] | 40.0 / 5.0 |
| Switching output for engine start inhibit | yes |
| Power-Limit function | yes |
| 12 V / 12 V B2B charge booster operation | |
| Charging power leisure battery max. [A] | 60 |
| Automatic activation D+ / ignition | yes |
| Starter battery/alternator voltage range (Euro 6) in [V] / max. current [A] | 10.5 - 16.0 / 82 |
| Limit II max. current limitation (adjustable) in [A] | 65 |
| MPPT solar charge controller operation | |
| Solar module power (Pmax) in [Wp] | 60 - 430 |
| Solar module current max. [A] | 26.0 |
| Solar module voltage (Voc) max. [V] | 36 |
| Charging current leisure / starter battery max. [A] | 31.5 / 5.0 |
| Switching output AES refrigerator | yes |
| Starter battery | |
| Nominal voltage [V] / minimum capacity [Ah] recommended | 12 / > 100 |
| Leisure battery, IU1oU2oU3 | |
| Nominal voltage lead / LiFePO4 [V] | 12 / 12.0 - 13.3 |
| Battery capacity, adjustable [Ah] | 90 - 560 |
| Device mounting position | any |
| Temperature range [°C] | -20 to +45 |
| Protection class/-degree | IP 21 |
| Dimensions (WxHxD) in [mm] - Dimensions incl. mounting flanges, without connections | 217 x 85 x 250 |
| Weight [g] | 2,900 |
