WATTSTUNDE® SOLA Flex Mono 100 Wp
WATTSTUNDE® SOLA Flex Mono 100 Wp
SKU:WS101-71100
Regular price
€236,81 EUR
Regular price
Sale price
€236,81 EUR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

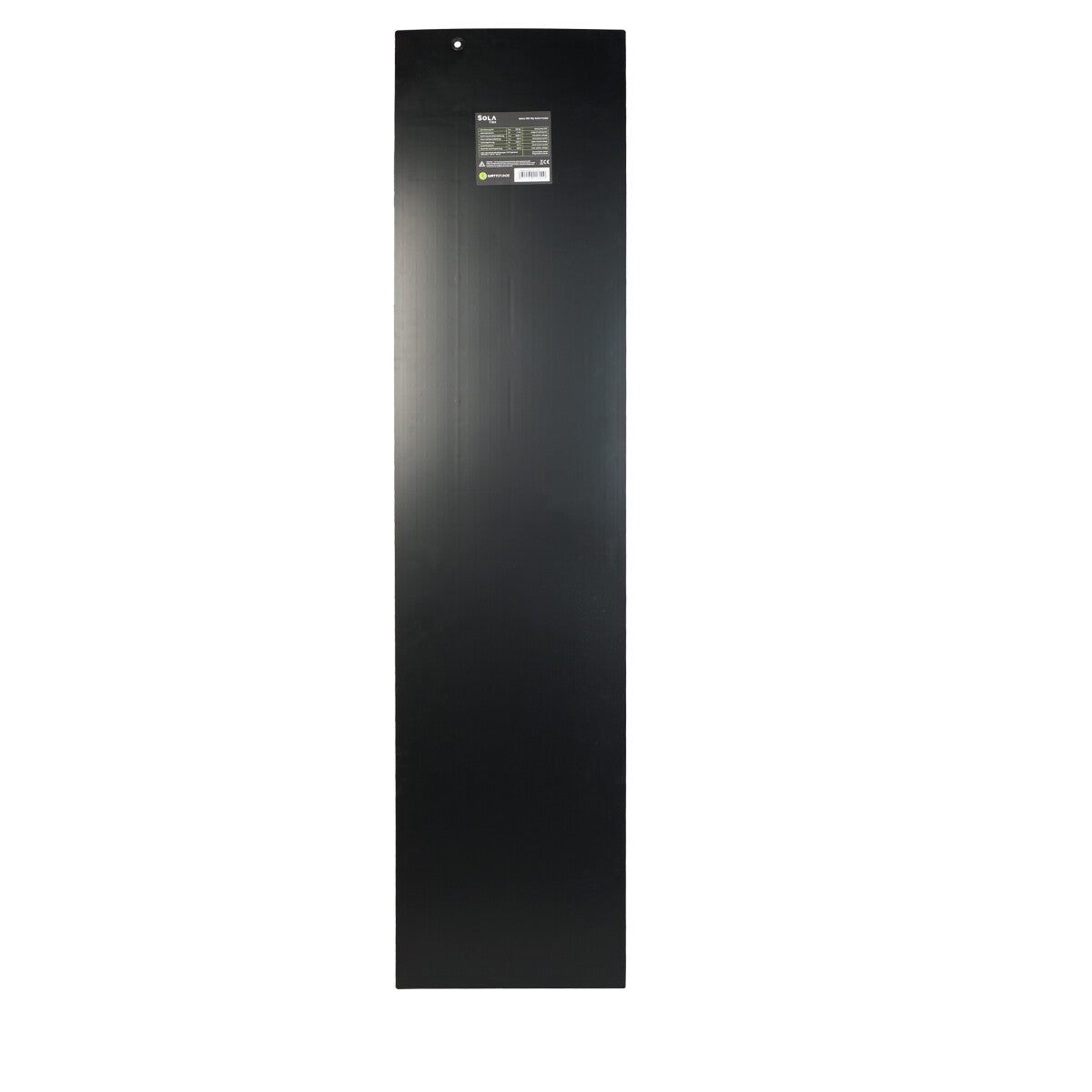

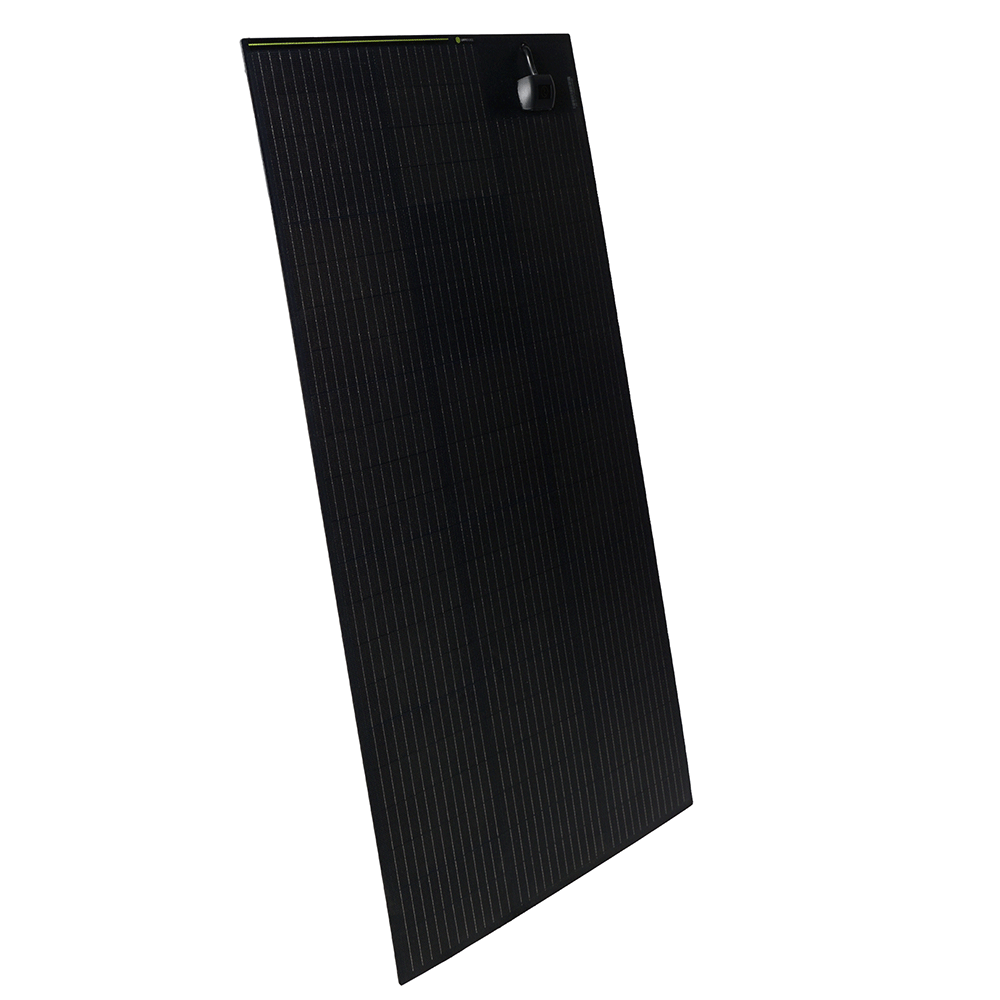

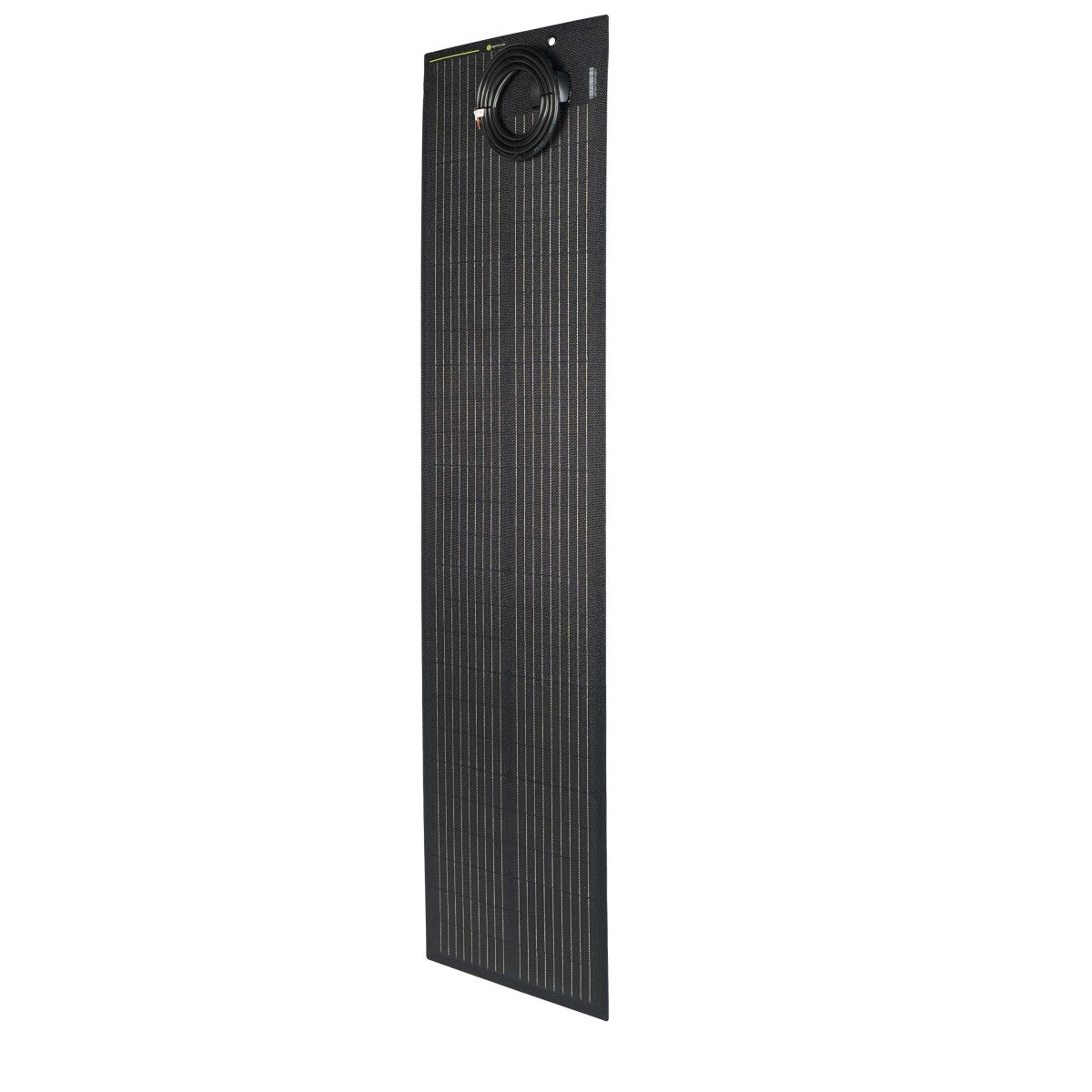

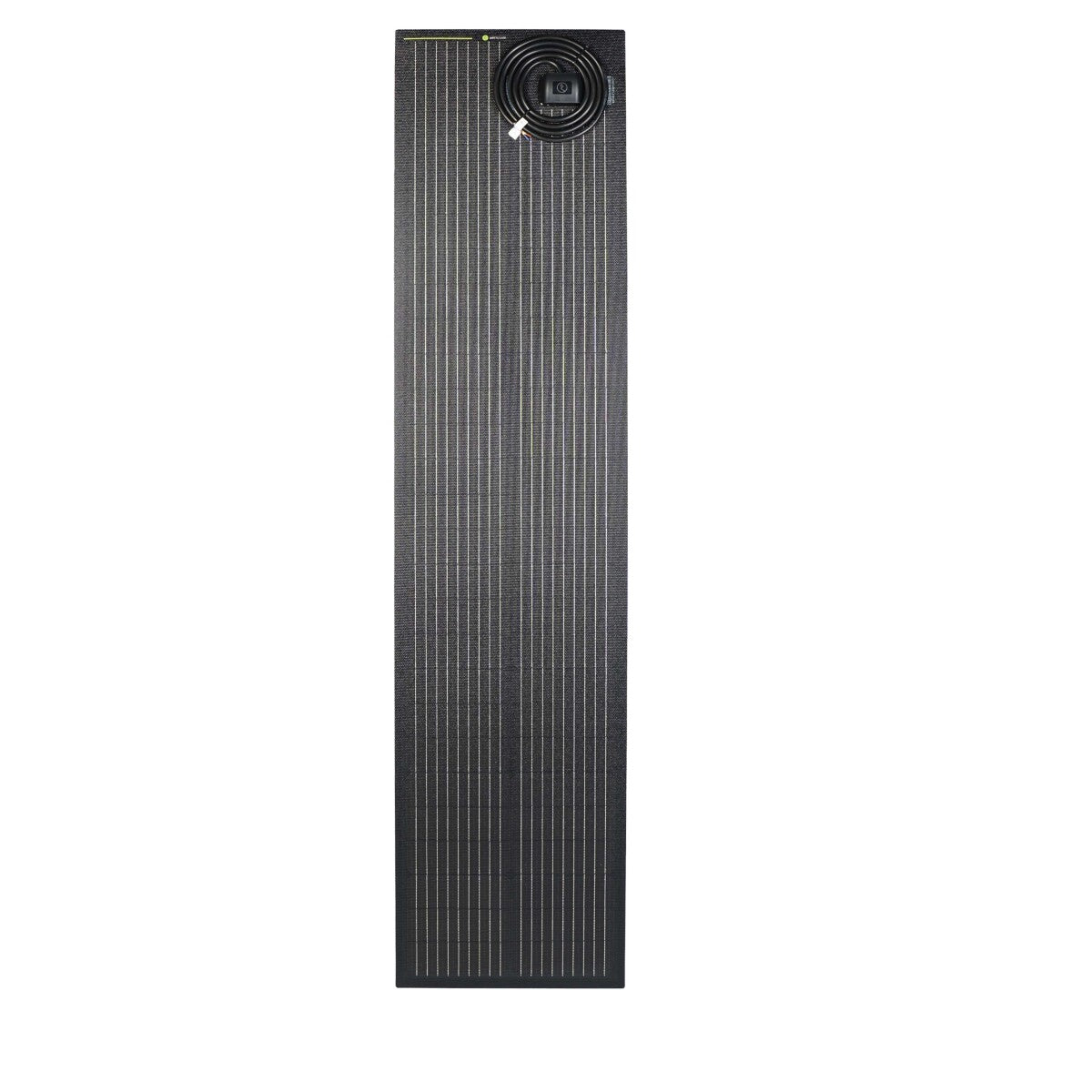

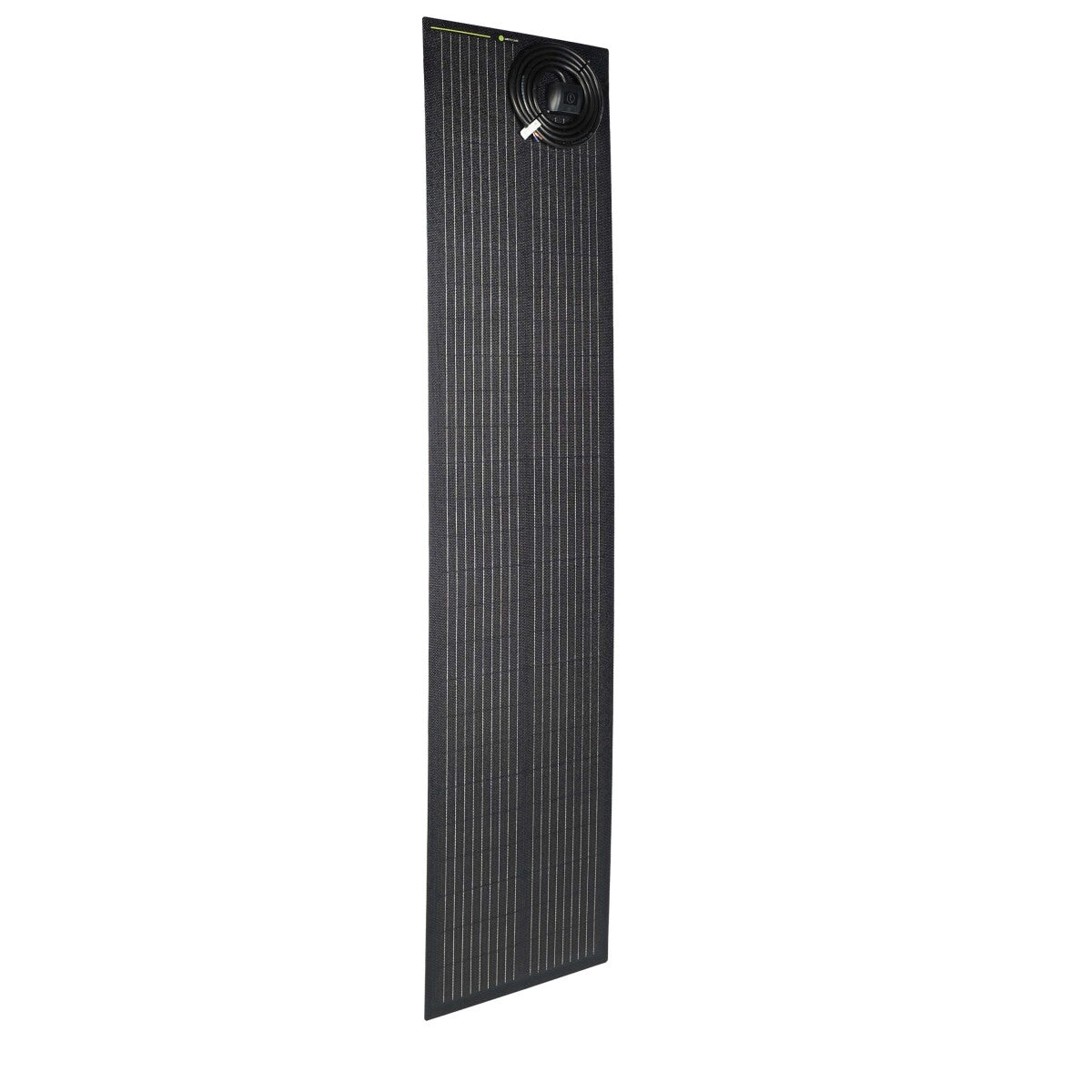

WATTSTUNDE® SOLA Flex Mono 100 Wp – Flexible Solar Module for Compact Energy Applications
The WATTSTUNDE® SOLA Flex Mono 100 Wp is a slim, flexible solar module with a power output of 100 W and a voltage of 28.6 V. Equipped with monocrystalline solar cells and a robust ETFE coating, this module offers high efficiency and durability. It is ideal for tight spaces on motorhomes and campers where reliability and a compact design are required.
Key Features
- Efficient Performance: Delivers 100 W at 28.6 V, suitable for reliable power supply in compact systems.
- Monocrystalline Solar Cells: Maximize energy yield and offer a long lifespan.

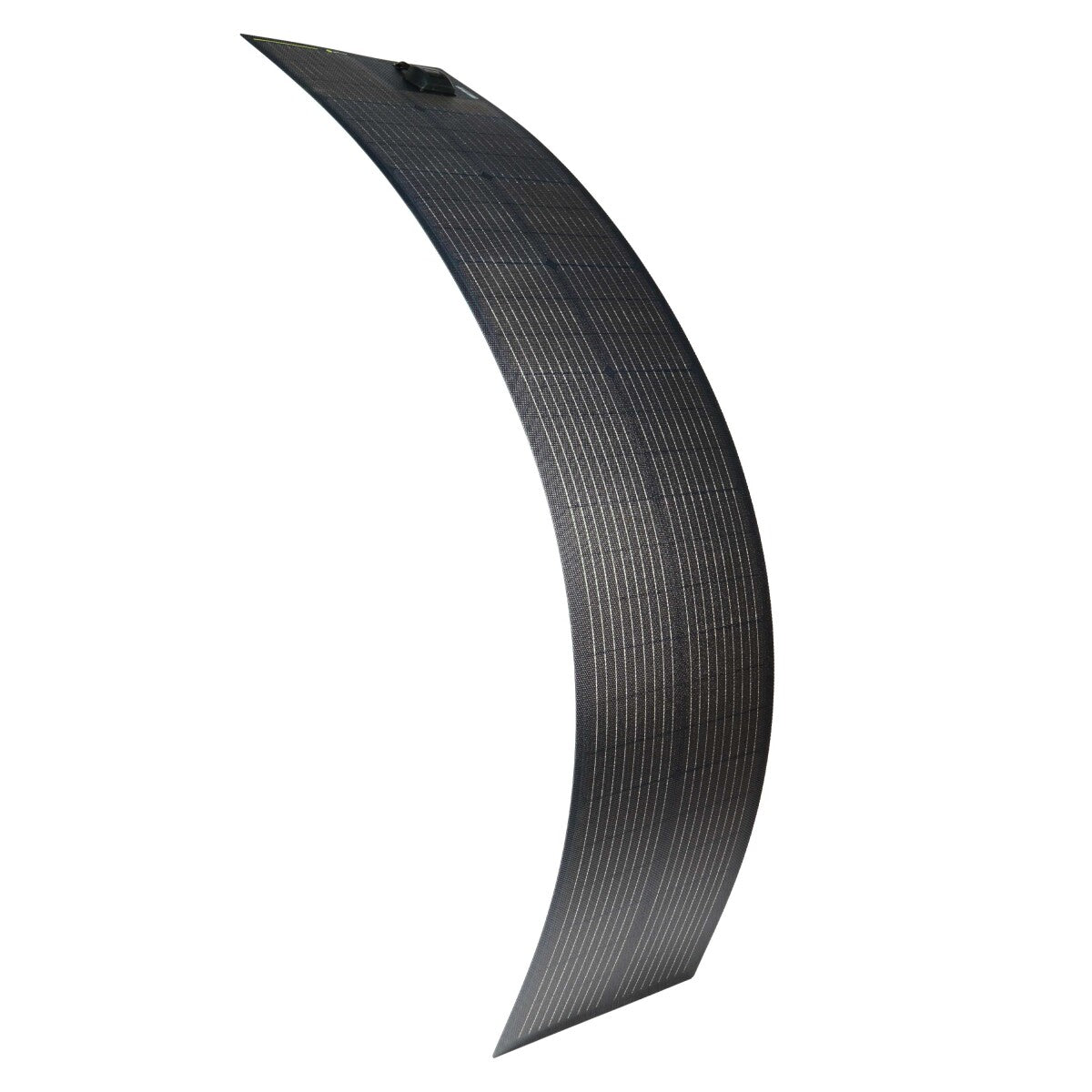

- Slim, Flexible Design: With a thickness of only 3.1 mm, the module adapts perfectly to uneven or curved surfaces.
- ETFE Coating: Highly resistant to UV radiation, moisture, and salt water – ideal for outdoor use.
- Compact Size: With dimensions of 1595 x 370 x 3.1 mm, the module is space-saving and easy to install.

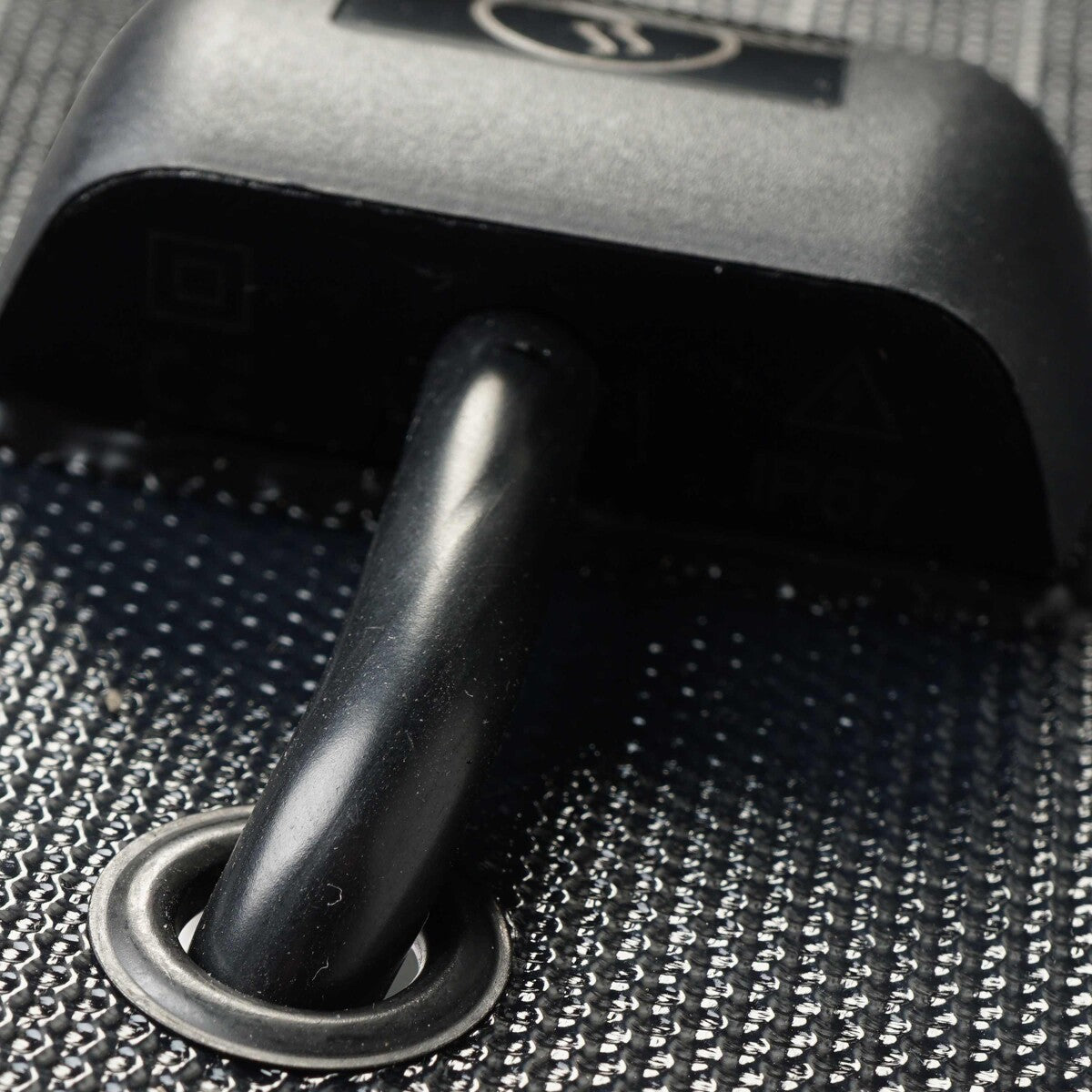

- Integrated Junction Box: Weatherproof junction box with two diodes and a 2-meter cable for flexible and secure connections.
- Warranty Period: 5 years
| Technical Data | SOLA Flex Mono 100 Wp |
| Rated Power | 100 W |
| Max. Daily Yield (Summer) | 400 Wh/d |
| Voltage (Umpp) | 28.60 V |
| Current (Impp) | 3.49 A |
| Open Circuit Voltage (Voc) | 34.32 V |
| Short Circuit Current (Isc) | 3.77 A |
| Cell Efficiency | ≥ 22 % |
| Cell Material | PERC Mono |
| Bypass Diode | Integrated |
| Weight | 2.06 kg |
| Dimensions | 1595 x 370 x 3.1 mm |
