WATTSTUNDE® SOLA Frame Mono 100 Wp

Reliability and Energy Independence with the WATTSTUNDE® SOLA Frame Mono 100 Wp Solar Module

The WATTSTUNDE® SOLA Frame Mono 100 Wp solar module is the updated successor model with adjusted frame dimensions of 1010 × 515 × 30 mm. It has been revised to facilitate installation and to make integration into existing systems even more flexible – while maintaining consistently high quality and performance. Ideal for self-sufficient solar systems in motorhomes, garden sheds, or on boats.

Product Features in Detail

• Monocrystalline solar module with 100 Wp and a cell efficiency of 18%.
• New dimensions: 1010 × 515 × 30 mm – compact, stable, and easy to install.
• MC4-compatible connectors for easy connection of multiple modules.
• Integrated bypass diodes ensure yield in partial shading or low light.
• IP68 junction box – protected against water and dust.

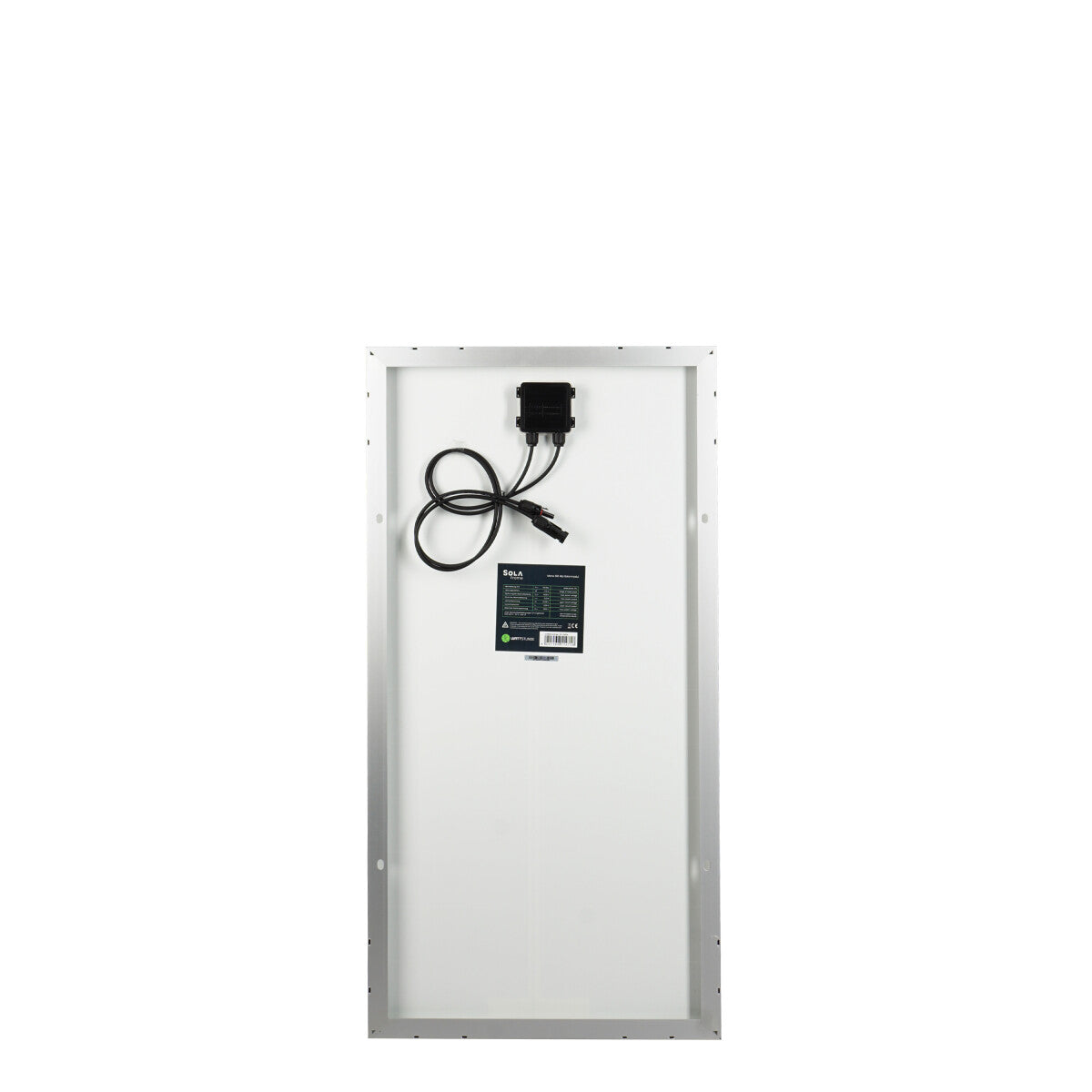

• Pre-wired with 90 cm solar cable – ready for immediate use.
• Hollow chamber profile frame ensures high stability, even under extreme conditions.
• Anti-reflective glass for better light transmission and higher energy yields with diffuse radiation.
• This module is tested according to IEC 61215 and IEC 61730.
• 10-year manufacturer's warranty & 25-year performance warranty on 80% of nominal power.

The combination of proven technology and optimized design makes this solar module an ideal choice for mobile and stationary applications. It reliably provides energy, minimizes line losses due to its high system voltage, and thus ensures maximum efficiency even in low-light seasons.

Documents & Downloads

• Datasheet SOLA Frame Mono
• Certificate

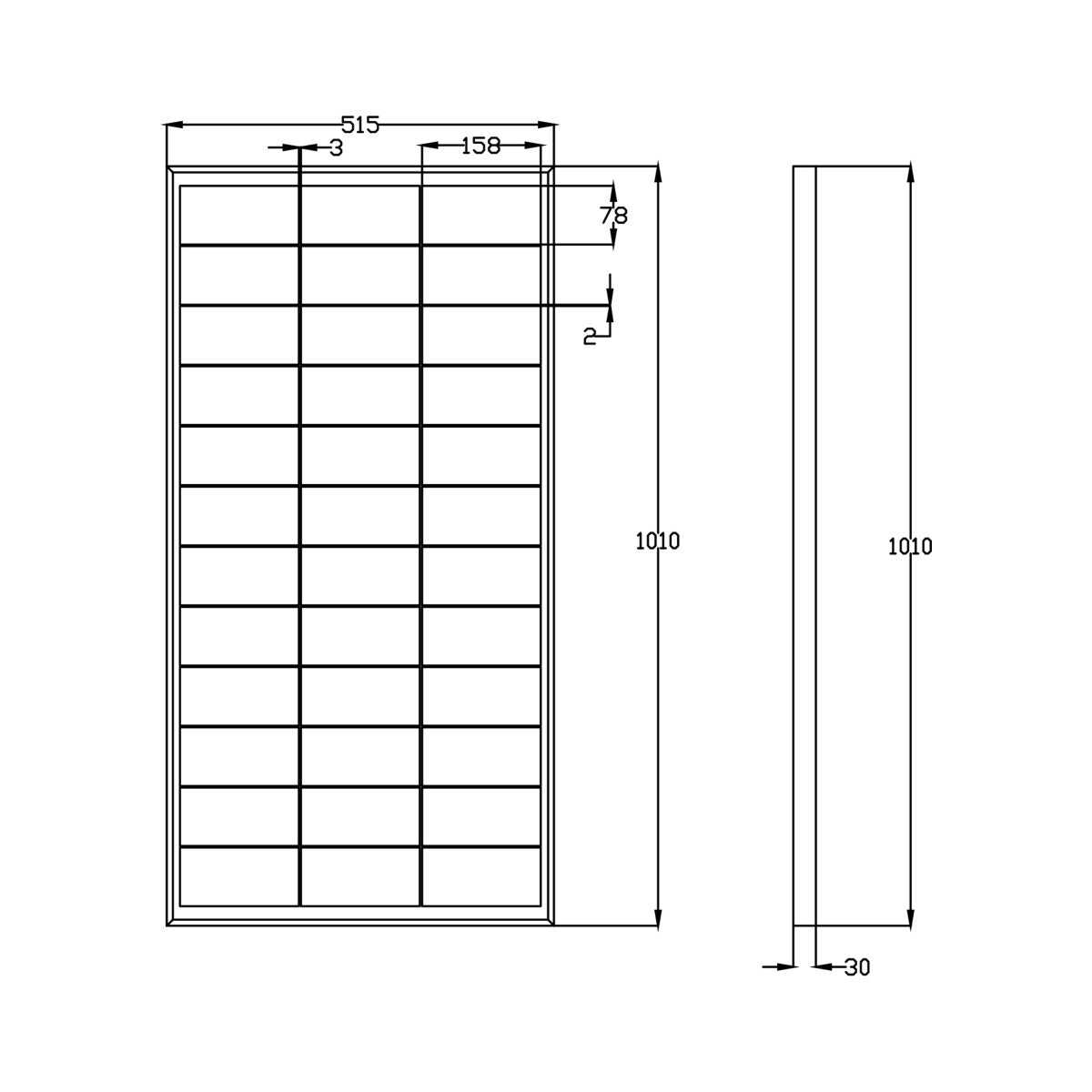

• Technical Drawing
