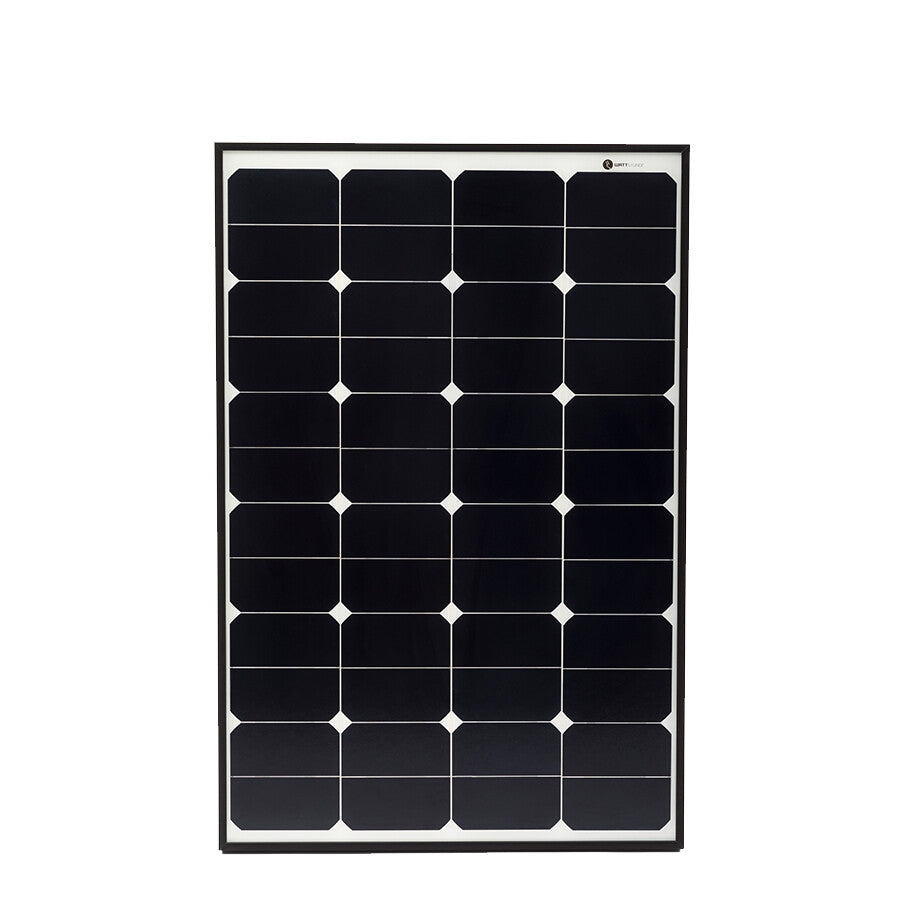

WATTSTUNDE® WS80SPS DAYLIGHT Sunpower Solar Panel 80 Wp

SunPower Back-Contact High-Performance Module 80 Wp - High-Power Solar Cell Meets Back-Contact Process

The WATTSTUNDE® WS SPS series solar modules are high-quality modules with monocrystalline SunPower cells that always promise a top result. They are characterized by excellent quality and power efficiency. This is because by using only high-quality components and innovative Back-Contact SunPower solar cells, an above-average cell efficiency of over 22% is achieved. So nothing stands in the way of your next adventure (even in wind and weather)!

Overview of Special Features:

• 80 Watt solar module
• Cell efficiency over 22%
• Back-Contact SunPower® cells
• Saltwater-resistant aluminum profile frame
• ESG anti-reflective glass
• Bypass diodes integrated in junction box
• Weatherproof junction box (IP65)
• Pre-wired with 90cm and MC4 connectors (+ / -)
• Easy connection of multiple modules thanks to MC4 connectors
• 25 year performance warranty
• 10 year product warranty

Mobile yet Robust

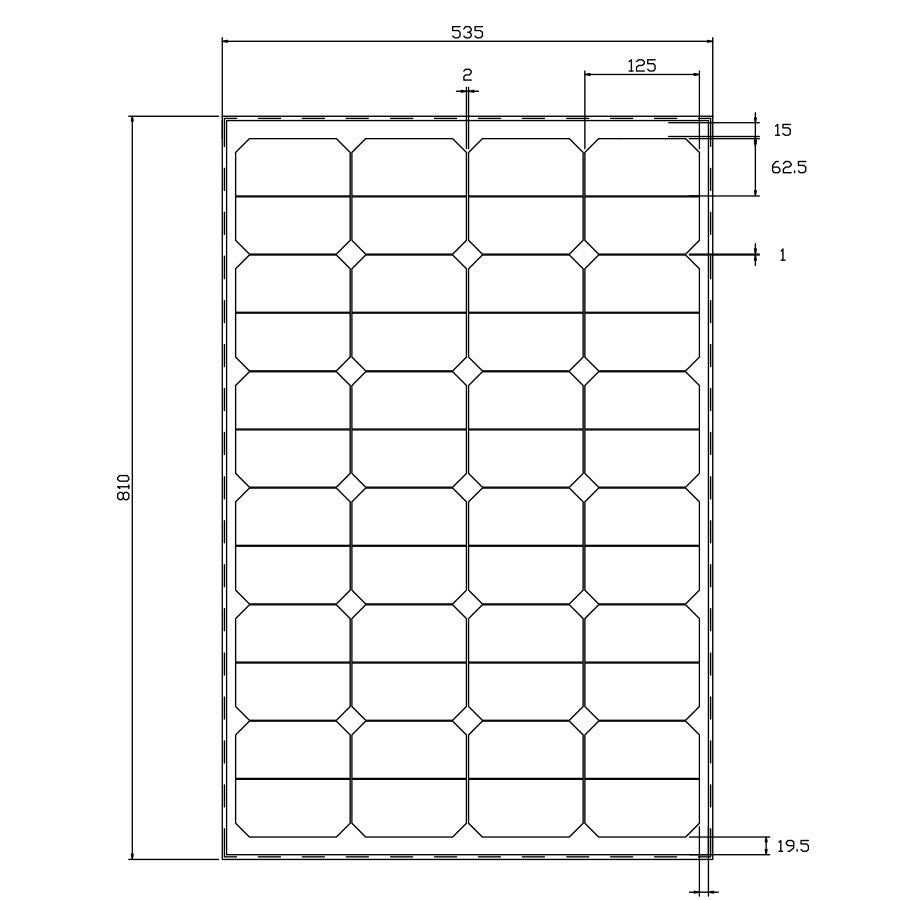

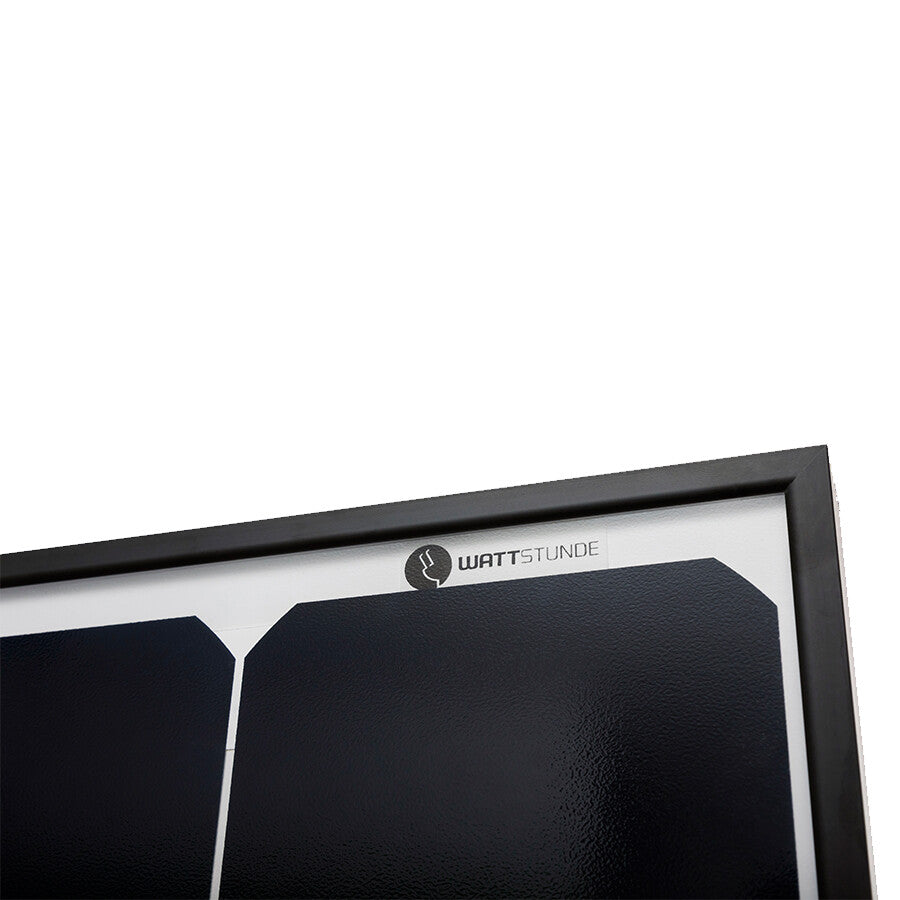

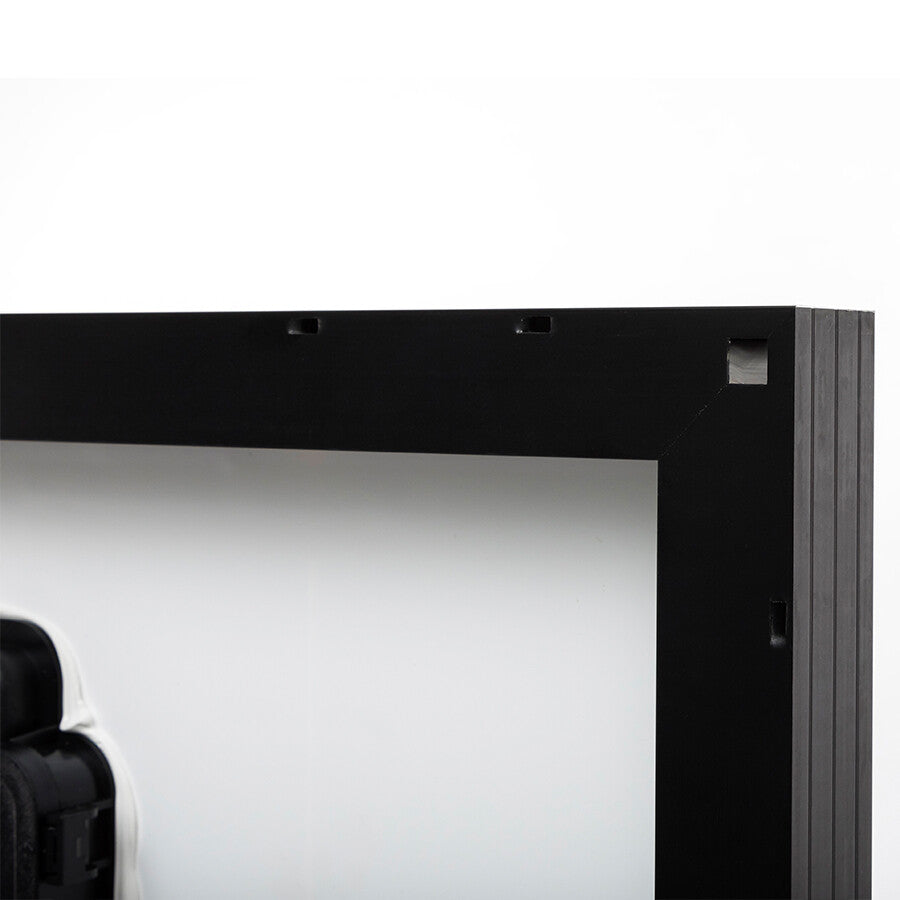

The housing frames of all WATTSTUNDE® DAYLIGHT models are made of anodized aluminum - this light yet strong material guarantees a high degree of mobility and resistance. It is extremely weather-resistant and highly stable, making it the ideal material. With dimensions of 810 x 535 x 35 mm and a weight of only 5.45 kg, they are significantly smaller and lighter than conventional 80 watt modules.

Specially Manufactured ESG Anti-Reflective Glass

The high-performance modules have acid-etched anti-reflective glass installed, which exhibits a self-cleaning effect (lotus effect). Due to a special pre-treatment, the solar modules have high transmittance, which is reflected in increased power output. Whether in storms, hail, snow or saltwater - thanks to the stable construction and water-repellent surface, they withstand even extreme climatic conditions!

Stable Wind and Weatherproof Construction

Due to our personal commitment to the quality of our solar modules, we monitor every production step: from cell manufacturing to the assembly of components into the finished product. The modules thus exhibit a stability that meets the requirements for outdoor use. They are therefore ideally suited for mobile use on motorhomes, in garden sheds and all other 12V solar island systems. Easy installation, quick commissioning and prepared materials make assembly a breeze!

Optimal Energy Yield

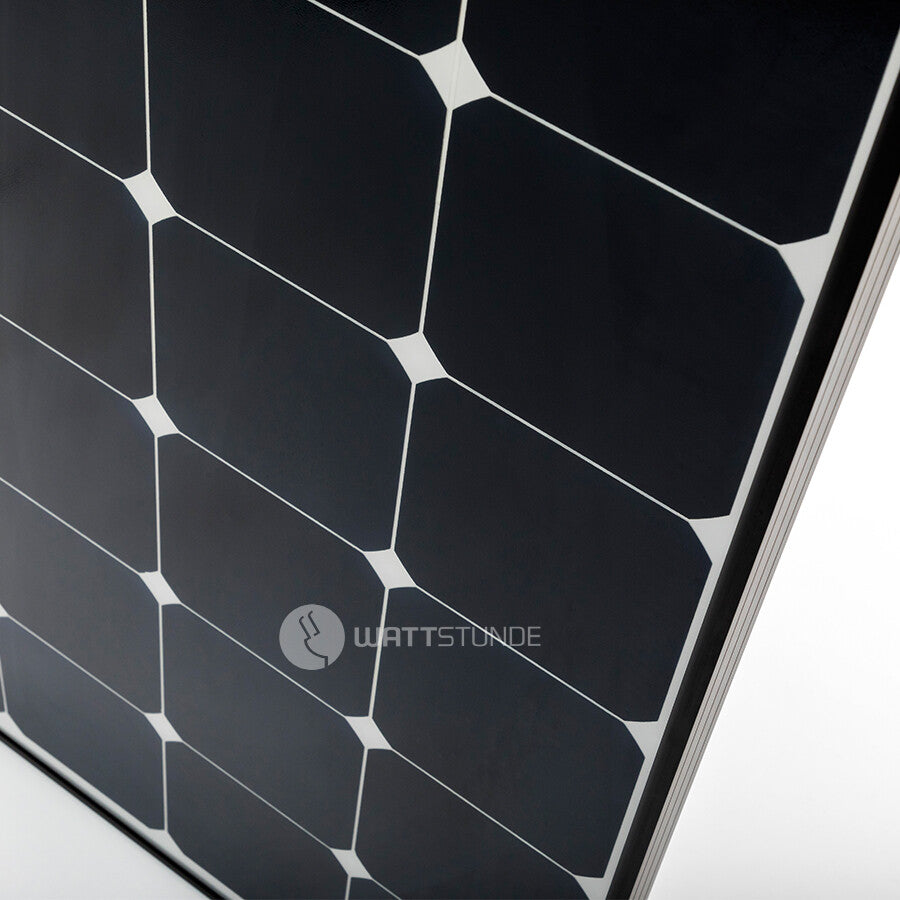

WATTSTUNDE® SPS DAYLIGHT solar modules are equipped with Sunpower cells with Back-Contact. But what does that mean? With normal modules, you can clearly see the running, mostly silver contacts (cell connectors) on the surface of the cell. These contacts are not present in Back-Contact modules and thus prevent shading of the cell. Thanks to their anti-reflective glass, the modules allow significantly more light to pass through and therefore ensure higher transmission compared to other modules. The result is a significantly higher cell efficiency of over 22%, which ensures a higher energy yield, which in turn saves volume and weight!
Optimal performance in the smallest area - especially in poor and diffuse light conditions, the high-performance modules guarantee a constant energy supply.

Protection according to IP65

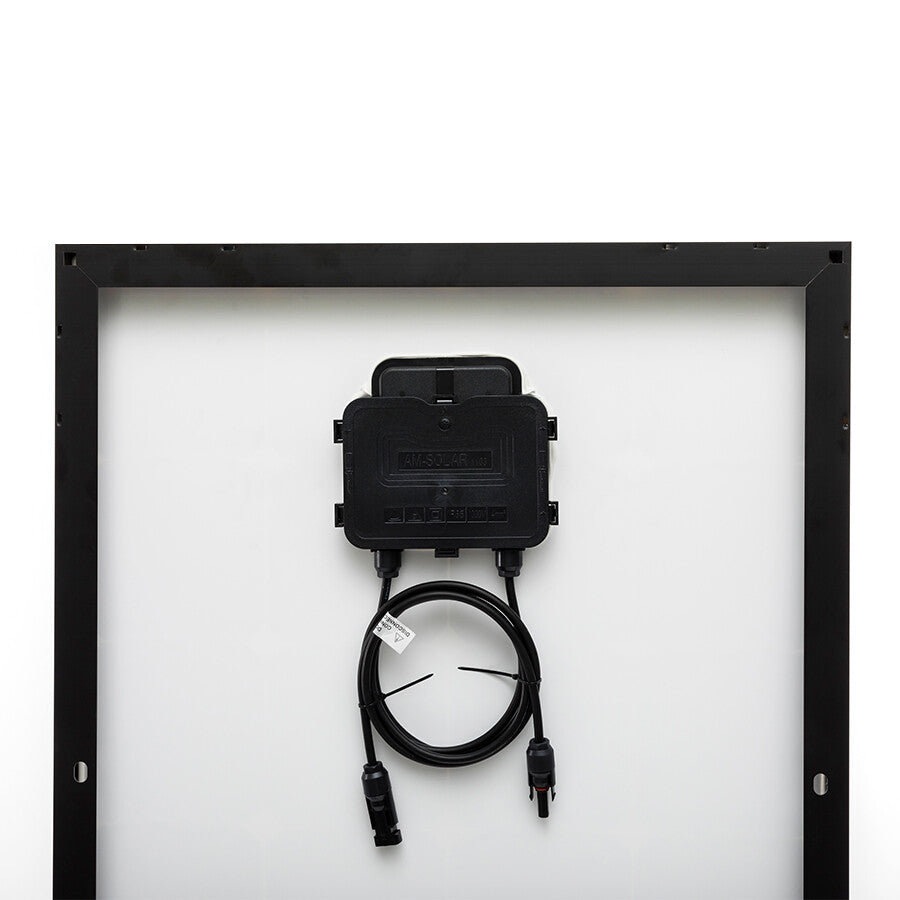

The modules are equipped ex works with a 90 cm cable connection and MC4 connectors to simplify the connection of multiple modules.
They can be installed and used in any autonomous battery applications such as in motorhomes, garden sheds, camping, island systems and all OffGrid systems.
Thanks to the integrated bypass diodes in the junction box, the module can continue to produce power even with shading or weak light conditions. The junction boxes are protected against the ingress of water and dust according to IP65.

Further Information

In addition to a 12V battery, you also need a charge controller that regulates the power supply and thus prevents overcharging or, if necessary, deep discharge of the battery. In addition, it ensures optimal charging voltage and guarantees the necessary reverse current protection at night.
Please visit our category for charge controllers.
Furthermore, the question often arises about suitable mounting for the new solar panel. Here we have various brackets, mounting systems and mounting spoilers for attachment to motorhomes, house walls and many other possibilities.
Please take a look at our category mounting systems.
Of course, we have already put together complete solar sets for various requirements. These sets contain, in addition to the modules and brackets, all materials necessary for installation such as connection cables, adhesive, sealant and roof feed-throughs.
Further information can be found in the Solar complete set category.

Technical data WS80SPS

Documents & Downloads

• Datasheet
• CE Certificate
