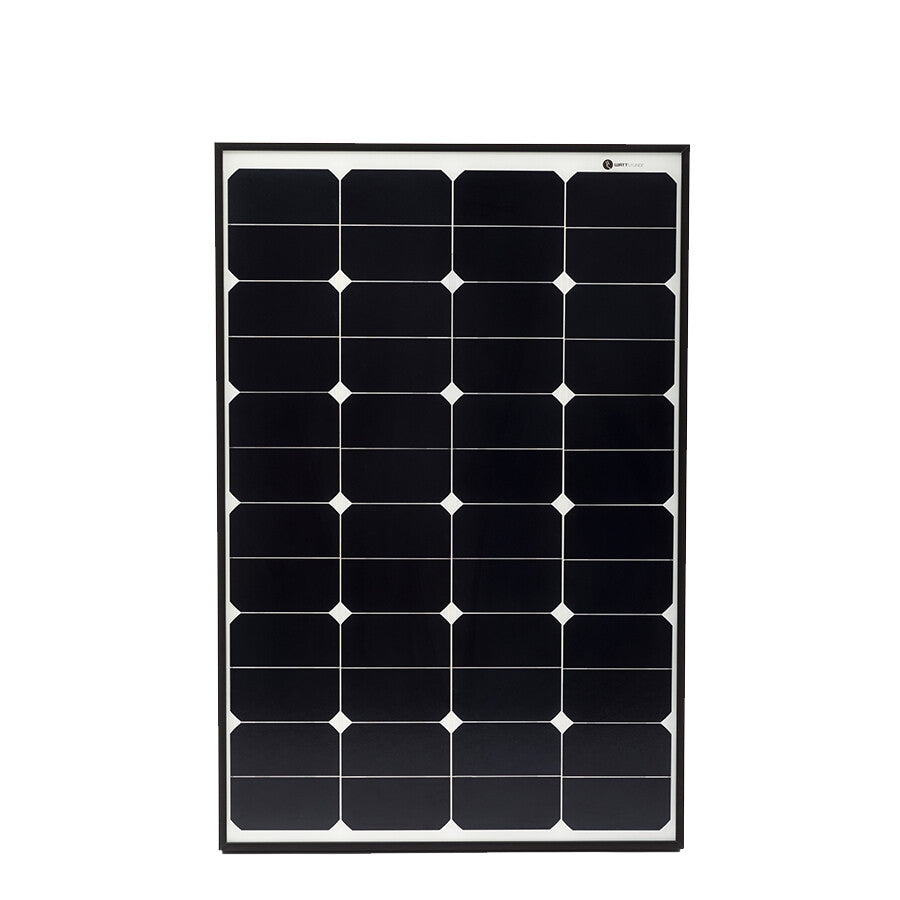

WATTSTUNDE® WS95SPS DAYLIGHT Sunpower Solar Panel 95 Wp

SunPower Back-Contact High-Performance Module 95 Wp - High-Power Solar Cell Meets Back-Contact Technology

The WATTSTUNDE® SPS modules are significantly smaller and lighter than conventional 95-watt modules and offer a high efficiency of over 24% thanks to back-contact technology. They are therefore ideally suited for mobile use in motorhomes, garden sheds, and all other 12V solar island systems that require maximum power in the smallest possible area.

Features at a glance:

• 95 Watt solar module
• Higher efficiency of over 24%
• SunPower high-performance back-contact cells
• Less weight and smaller area than conventional solar modules
• ESG anti-reflective glass
• Bypass diodes integrated

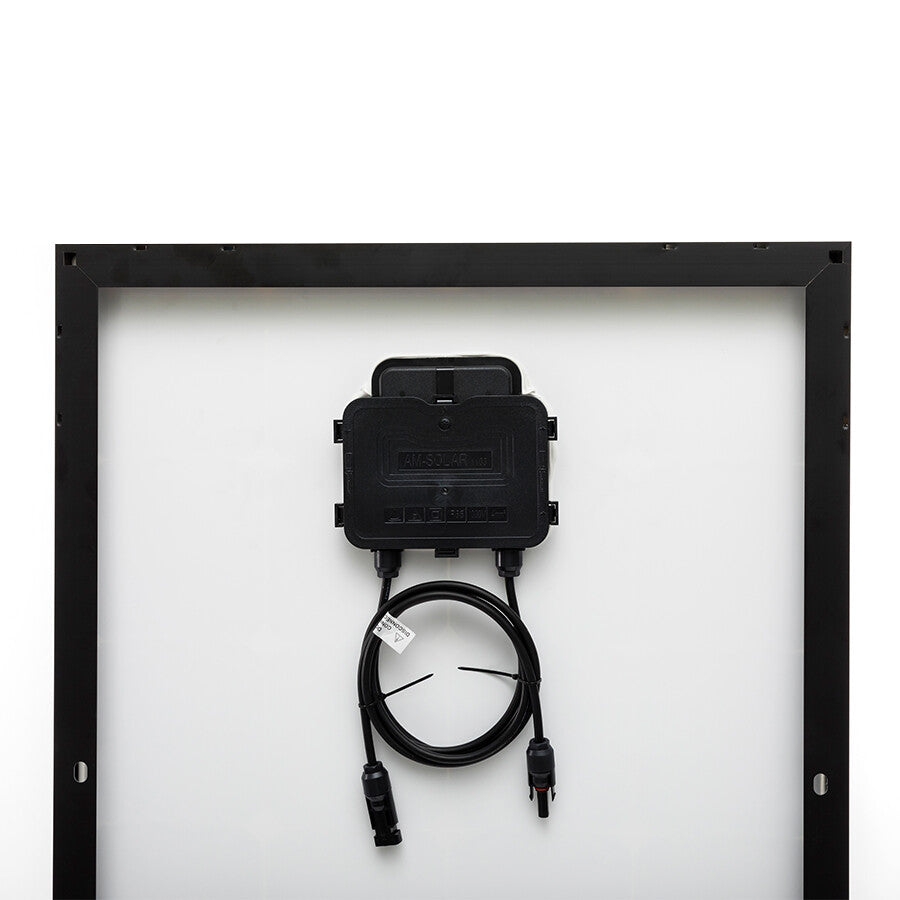

• Junction box with IP65
• Pre-wired with 90cm and MC4 connectors (+ / -)
• Easy connection of multiple modules thanks to MC4 connectors
• Power warranty 25 years
• Product warranty 10 years

The WATTSTUNDE® SP solar modules are equipped with back-contact Sunpower cells, which have a much higher cell efficiency than normal monocrystalline or polycrystalline solar modules, thus ensuring a higher energy yield and saving volume and weight!

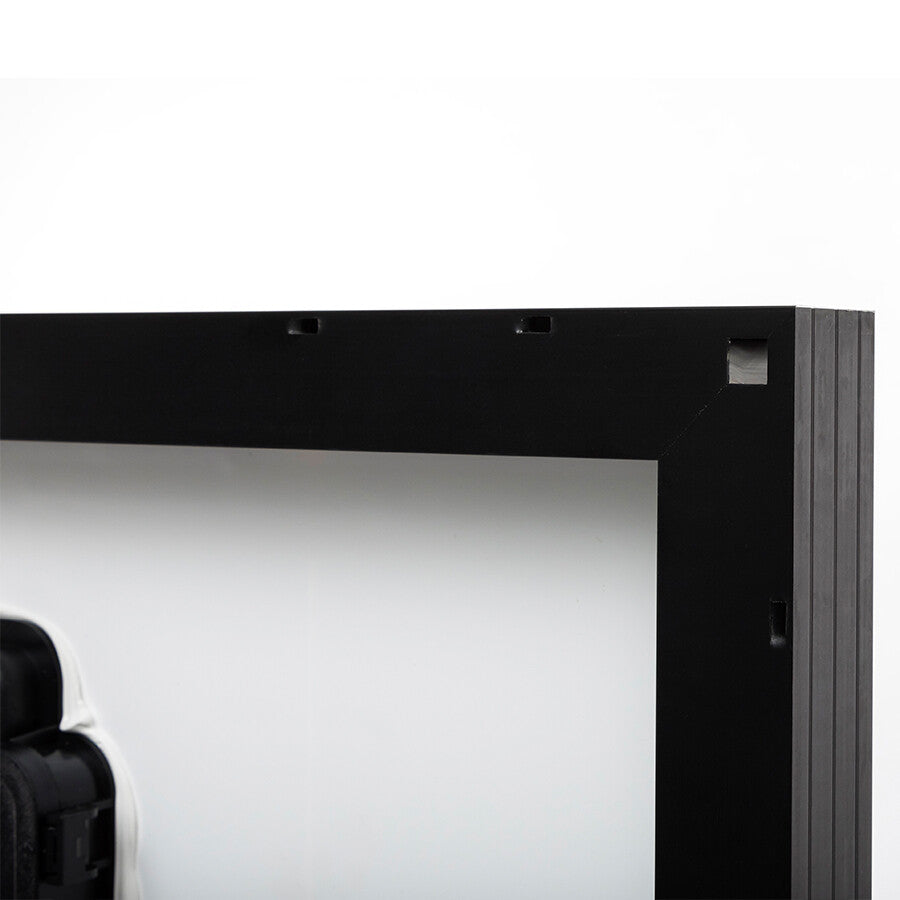

The modules are enclosed in a sturdy hollow chamber profile frame and promise maximum stability, even under extreme conditions.
Thanks to their anti-reflective glass, the modules allow significantly more light to pass through and therefore ensure higher transmission compared to other modules. The efficiency of the monocrystalline SunPower solar modules is 24%. The modules are equipped ex works with a cable connection and MC4 connectors to simplify the connection of multiple modules.


Thanks to back-contact technology, the cell can absorb more light and convert the additional absorption into electrical energy.

With normal polycrystalline or monocrystalline modules, you can clearly see the running, mostly silver contacts (cell connectors) on the surface of the cell. These contacts are not present in back-contact modules, thus preventing shading of the cell and contributing accordingly to higher efficiency.
Thanks to the integrated bypass diodes in the junction box, the module can continue to produce electricity even in shaded areas or weak light conditions.

The solar modules of the WATTSTUNDE® WS-SP series are high-quality modules with monocrystalline SunPower cells, which always promise a top result and a high energy yield. They can be installed and used in all autonomous battery applications such as in motorhomes, garden sheds, camping, island systems and all OffGrid systems.

Further Information
In addition to a 12V battery, you also need a charge controller that prevents power supply and thus overcharging or, if necessary, deep discharge of the battery. In addition, it ensures optimal charging voltage and guarantees the necessary reverse current protection at night.
Please visit our category for charge controllers.
Furthermore, the question of a suitable mounting for the new solar panel often arises. Here we have various brackets, mounting systems and mounting spoilers for mounting on motorhomes, house walls and many other options.
Please take a look at our category mounting systems.
Of course, we have already put together complete solar kits for various requirements. These kits contain, in addition to the modules and brackets, all the materials necessary for installation such as connection cables, adhesive, sealant and roof penetrations.
Further information can be found in the category Solar Complete Kit.

Technical Data WS95SPS

Documents & Downloads

• Datasheet WS95SPS
• CE Certificate
