WATTSTUNDE® Crimp Connectors 0.5 - 1.5 mm² red 25 pcs.

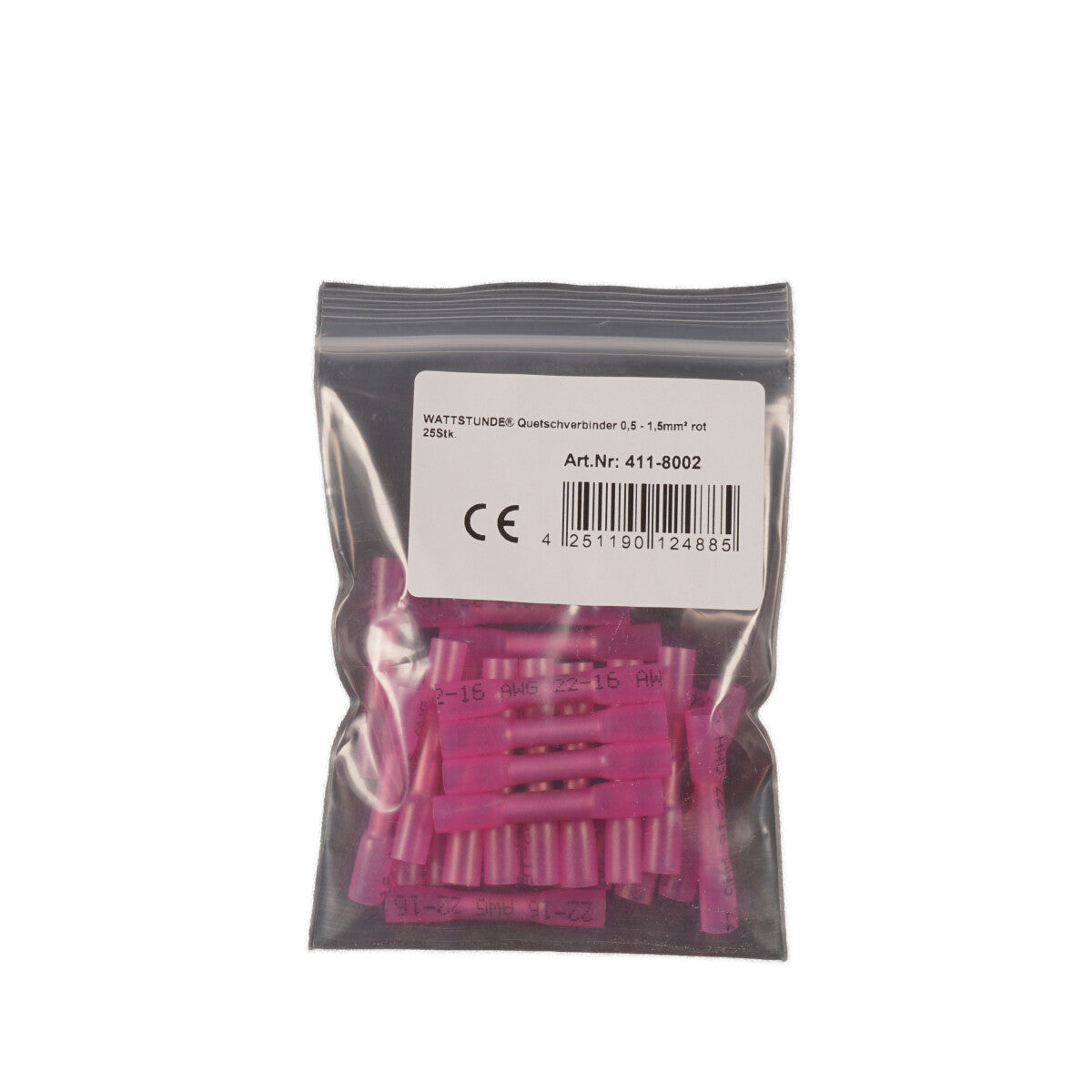

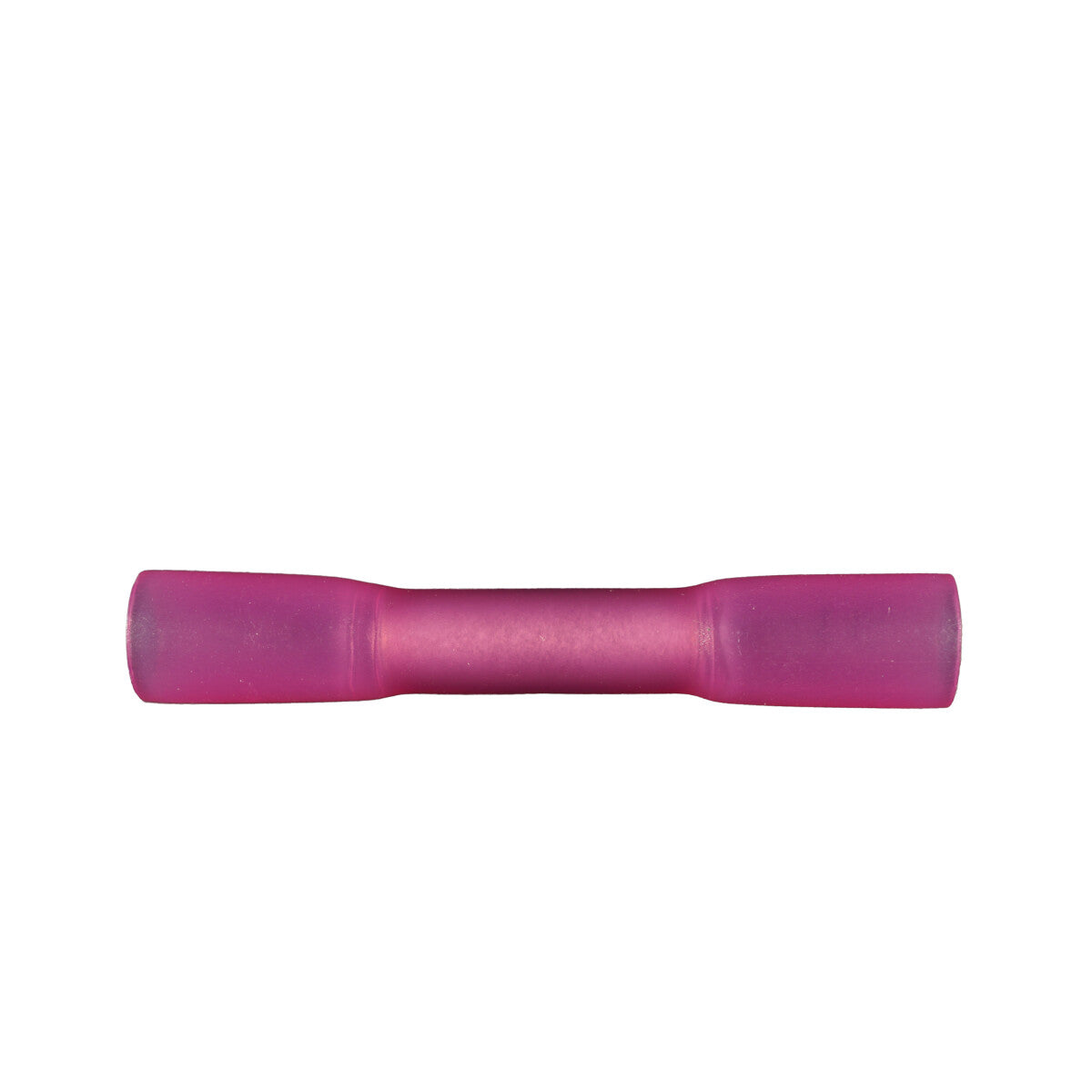

WATTSTUNDE® Crimp Connectors 0.5–1.5 mm² Red – 25 Pieces

The red WATTSTUNDE® Crimp Connectors 0.5–1.5 mm² offer you a reliable, mechanically stable and cleanly insulated solution for cable connections in the medium conductor cross-section. Thanks to a robust crimp core, durable PE insulation material, and high-quality copper contact, you get long-lasting and secure connections – ideal for many electrical applications.

Technical Key Data at a Glance

• Dimensions: d: 1.7 mm, F: 15 mm, D: 4.8 mm, L: 36.5 mm
• Crimp core thickness: 0.8 mm
• Rated voltage: 250 V
• Rated current: 9 A
• Conductor cross-section: 0.5–1.5 mm²
• Operating temperature: –20 °C to +105 °C
• Insulation material: PE
• Contact material: Copper
• Color: red
• Scope of delivery: 25 pieces

Strong Crimp Connection

The robust connectors are ideal for medium conductor cross-sections and offer high mechanical stability thanks to a 0.8 mm crimp core – perfect for vibrating or moving applications.

Efficient Power Transmission

The copper contact ensures reliable conductivity and supports clean transmission of power and signals.

Reliable Insulation

The PE insulation material withstands temperatures from –20 °C to +105 °C and protects your connection from external influences.

Your Advantages

• Stable 0.8 mm crimp core
• Red color coding
• High-quality copper contact
• PE insulation
• Wide temperature range
• Warranty period: 2 years

Reliable Connection, Durable Quality

The WATTSTUNDE® Crimp Connectors 0.5–1.5 mm² red are the ideal choice for secure, permanent, and professionally processed cable connections.

Documents & Downloads

• Technical Drawing
