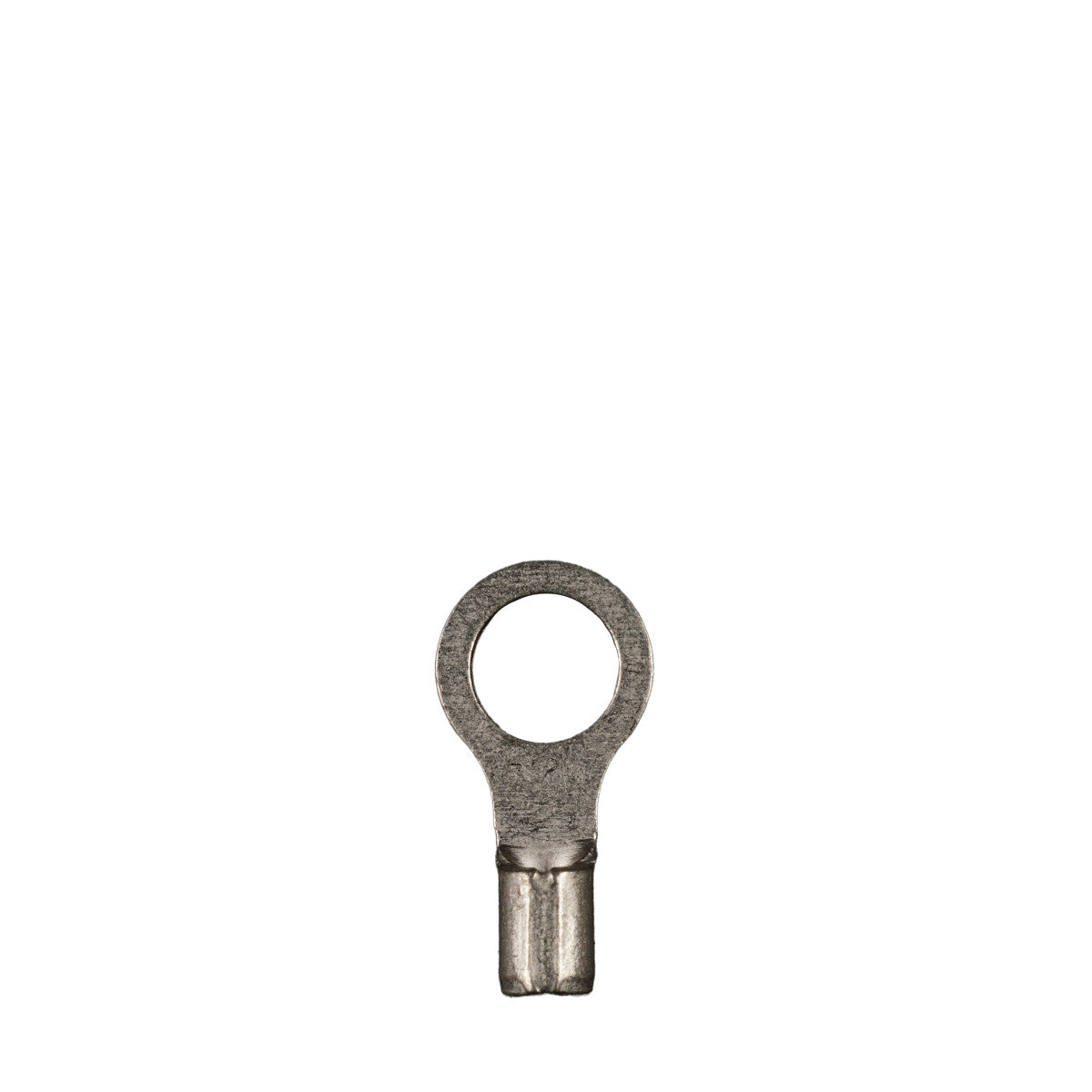

WATTSTUNDE® Ring Cable Lug 1.5 mm² M5 25 pcs.

WATTSTUNDE® Ring Cable Lug 1.5 mm² M5 – 25 Pieces for Secure & Precise Cable Connections

With the WATTSTUNDE® Ring Cable Lugs 1.5 mm² M5, you get high-quality connectors for permanently stable electrical installations – ideal for vehicles, solar systems, boats, or off-grid systems.

Technical Key Data at a Glance

• Outer-Ø Sleeve (D): 3.4 mm
• Inner-Ø Ring (E): 5.3 mm
• Inner-Ø Cable Entry (d): 1.7 mm
• Width (W): 8.0 mm
• Contact Area Width (B): 4.5 mm
• Overall Length (L): 15.8 mm
• Material Thickness (T): 0.8 mm
• Cable Cross-Section: 1.5 mm²
• Bore Size: M5

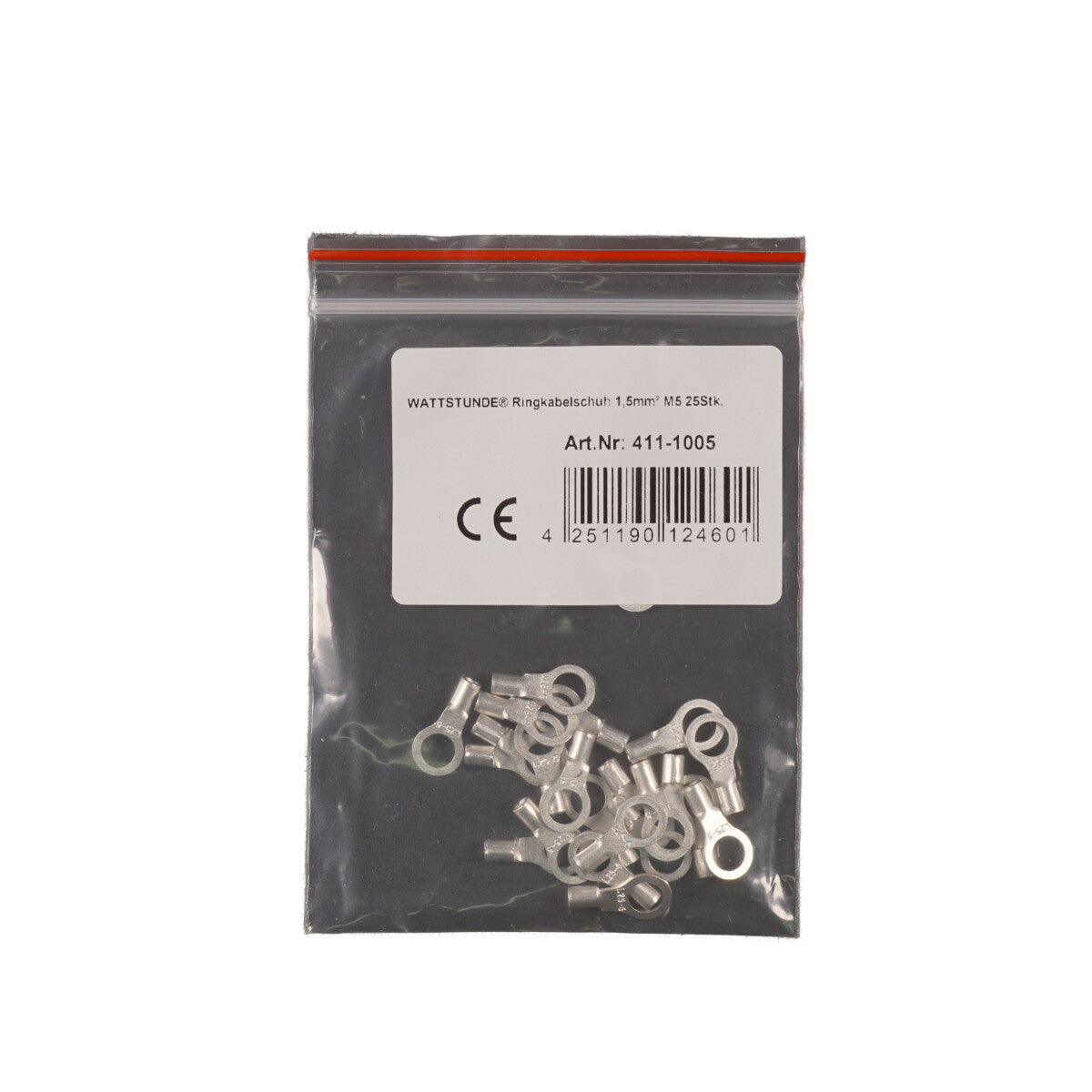

• Quantity: 25 pieces

Robust & Reliable

The precisely manufactured ring cable lugs offer a stable, vibration-proof connection. The internal dimensions support clean crimping, ensuring long-term conductivity.

Easy Installation

Thanks to the M5 ring shape, the cable lugs can be easily attached to screw points and distribution strips. The compact design also allows for installation in confined spaces.

Your Advantages

• Precisely manufactured crimp receiver
• Optimal conductivity
• Robust & vibration-resistant
• Universally applicable
• 25 pieces in a set
• Warranty period: 2 years

Reliable Cable Lugs for Your Projects

The WATTSTUNDE® Ring Cable Lugs 1.5 mm² M5 are ideal for secure, clean, and durable electrical connections – perfect for mobile and stationary energy systems.

Documents & Downloads

• Technical Drawing
