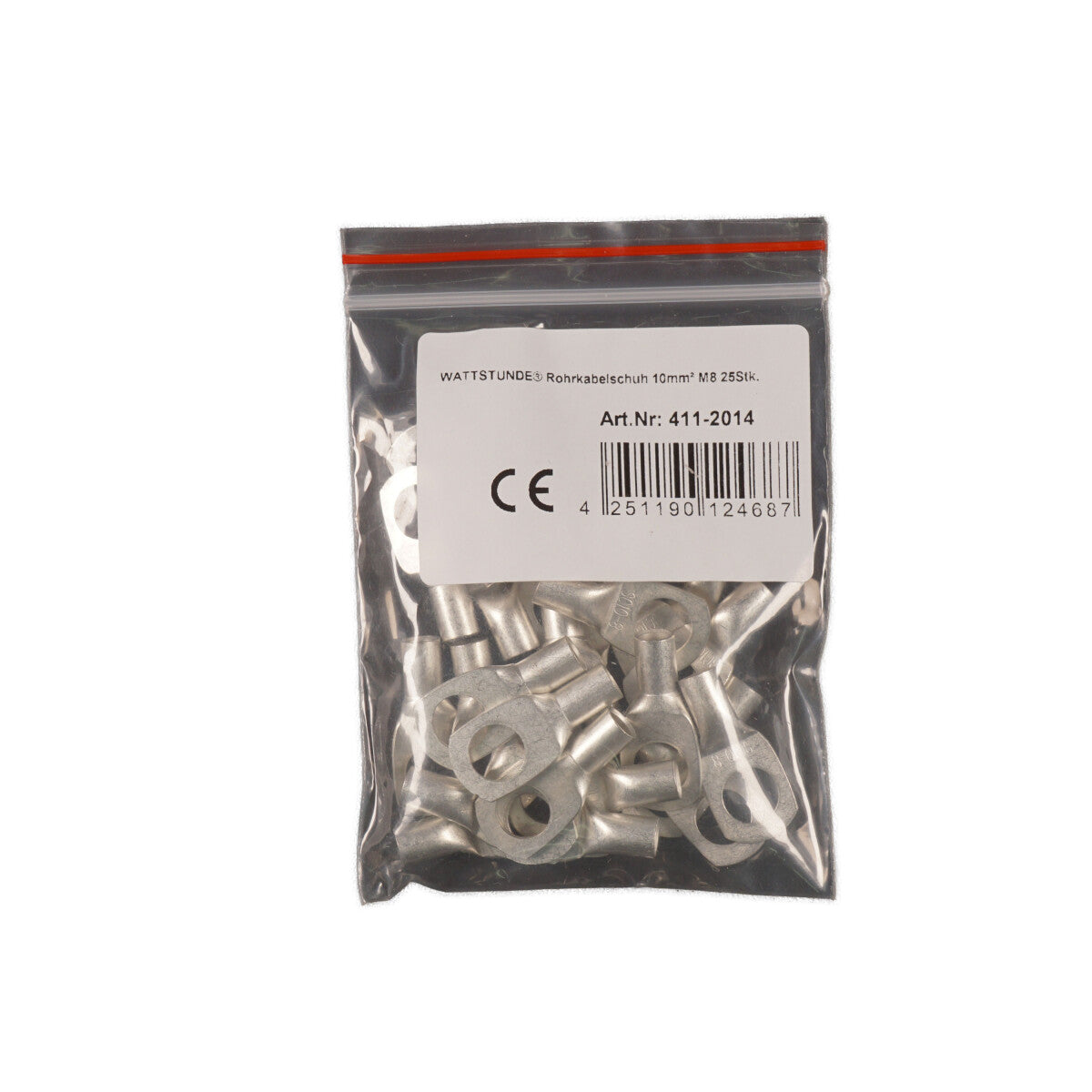

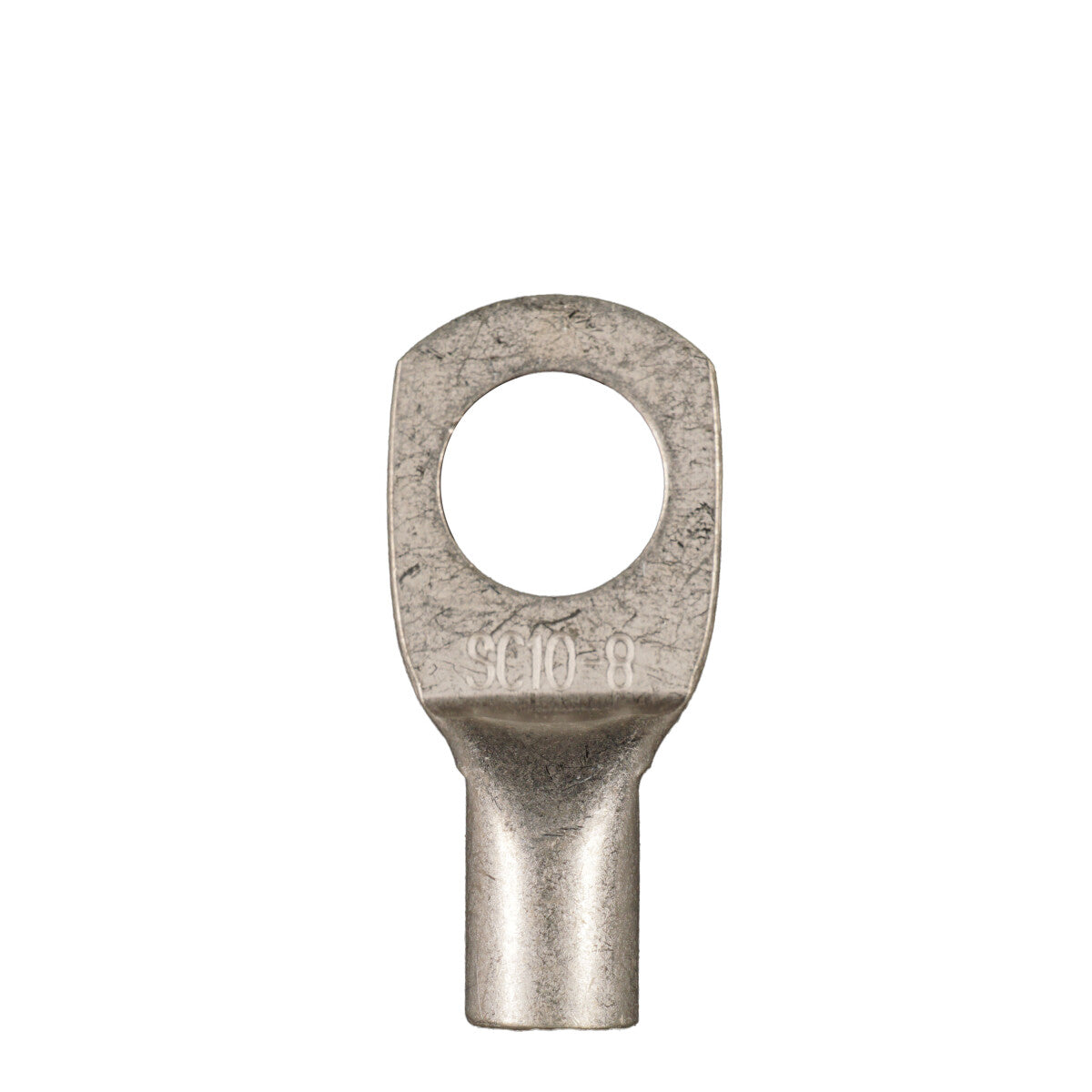

WATTSTUNDE® Tube Cable Lug 10 mm² M8 25 pcs.

WATTSTUNDE® Tubular Cable Lug 10 mm² M8 – 25 Pieces

The WATTSTUNDE® Tubular Cable Lugs 10 mm² M8 offer you a particularly robust and reliable solution for cables with high current requirements. They are ideal for PV systems, battery systems, inverters, starter and on-board power lines, and all high-current applications in the 12 V and 24 V range. With this set of 25 pieces, you are perfectly equipped for installations, repairs, or expansions.

Key Technical Data at a Glance

• For conductor cross-section: 10 mm²
• Bolt hole: M8
• Quantity: 25 pieces
• Dimensions (in mm): ØE 8.4 / ØD 6.2 / Ød 4.5 / W 12.5 / B 9.0 / L 27.0 / C1 7.0

Robust Metal Construction

The cable lugs are made of durable metal and offer large, uniform contact surfaces. This ensures low contact resistance and low-loss current transmission – particularly important for high currents, as typically found with 10 mm² cables.

Perfectly Matched to M8 Screw Connections

The bolt hole diameter ØE 8.4 mm is precisely designed for M8 connections. This ensures a secure, firm, and reliable connection – even in systems with strong vibrations, high load changes, or demanding environments.

Clean Crimp Connections for Maximum Stability

With an internal guide of Ød 4.5 mm, the cable lugs are ideally sized for 10 mm² conductors. You can crimp them force-fit with a suitable crimping tool, so the connection remains stable long-term.

Typical Applications

• PV systems, battery systems & DC cabling
• Inverter & charge controller connections
• Starter & supply lines in vehicles
• Boat & off-grid electrical installations
• High-current applications in the 12 V and 24 V range

Your Advantages at a Glance

• Optimized for 10 mm² cables
• Secure hold thanks to M8 bolt hole
• Large contact surface for low contact resistance
• Robust, durable metal construction
• 25 pieces – ideal for installations & repairs
• Warranty period: 2 years

Professional Quality for High-Current Systems

The WATTSTUNDE® Tubular Cable Lugs 10 mm² M8 offer you maximum stability, high load capacity, and first-class contact quality. This makes them perfect for all demanding electrical installations where reliability is paramount.
