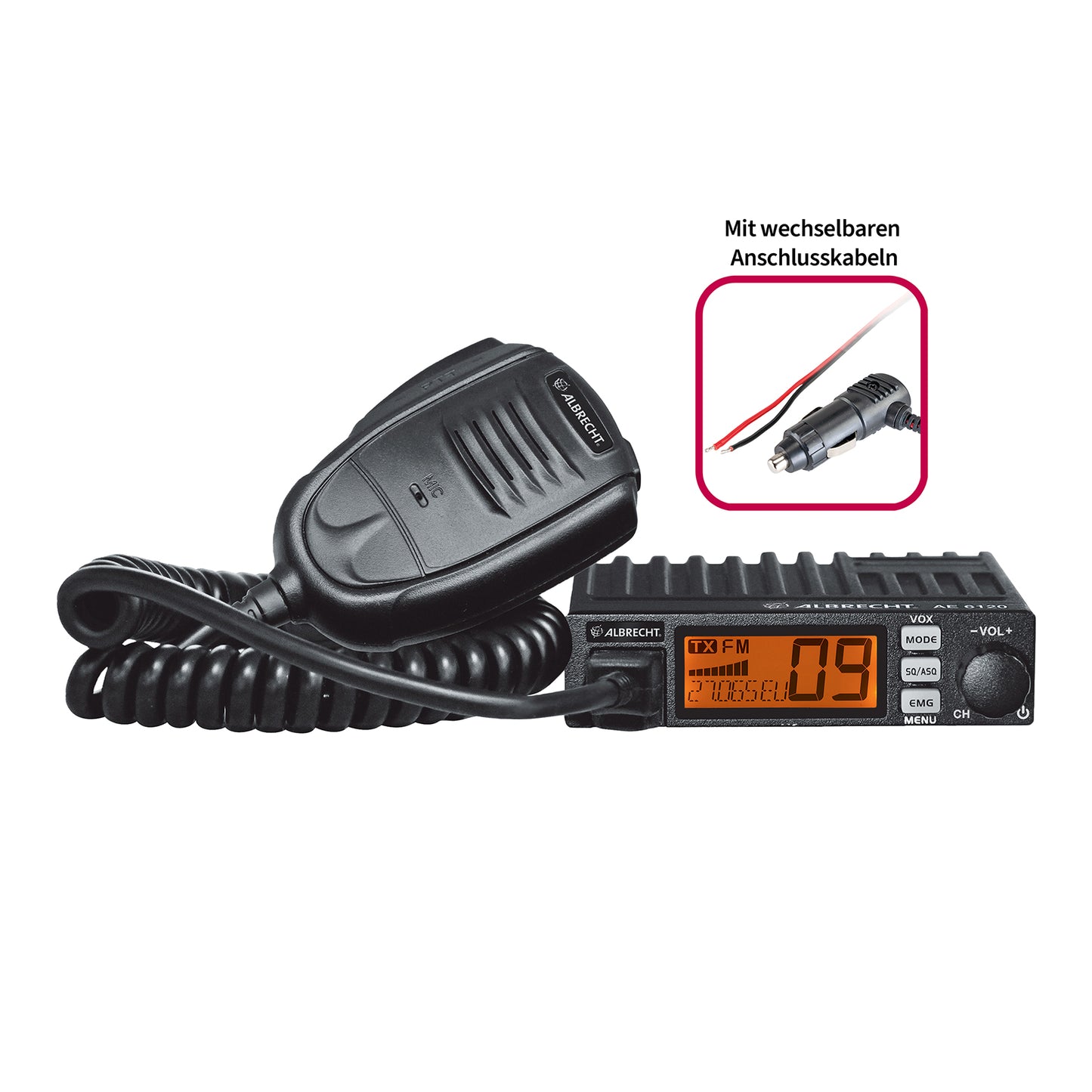

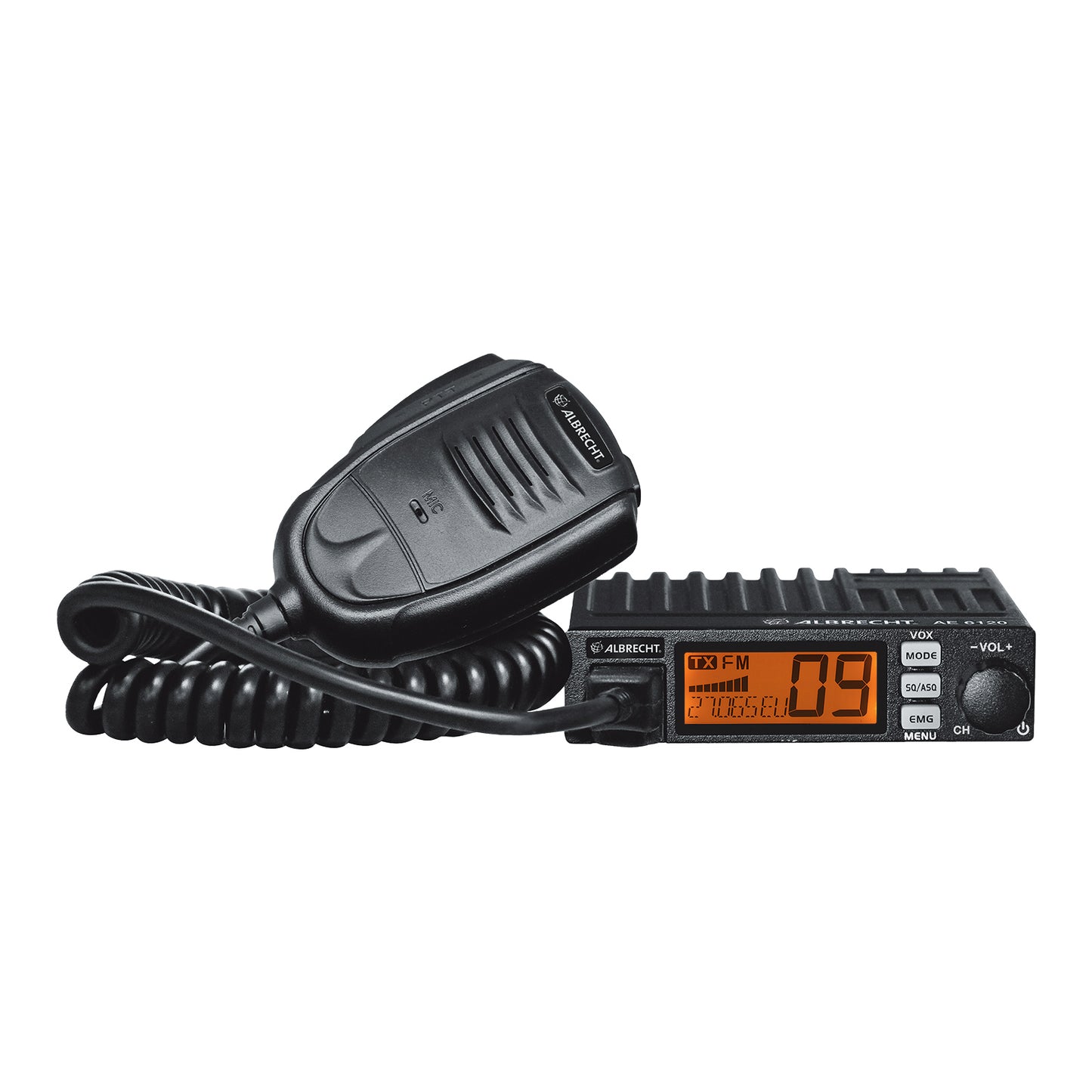

Albrecht AE 6120 VOX, Mini-CB radio, with 2 power cables

Albrecht AE 6120 VOX, Mini-CB radio, with 2 power cables

AE12620

€87,90 EUR
€87,90 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
► NEW: with 2 power cables: cigarette lighter or hard wiring

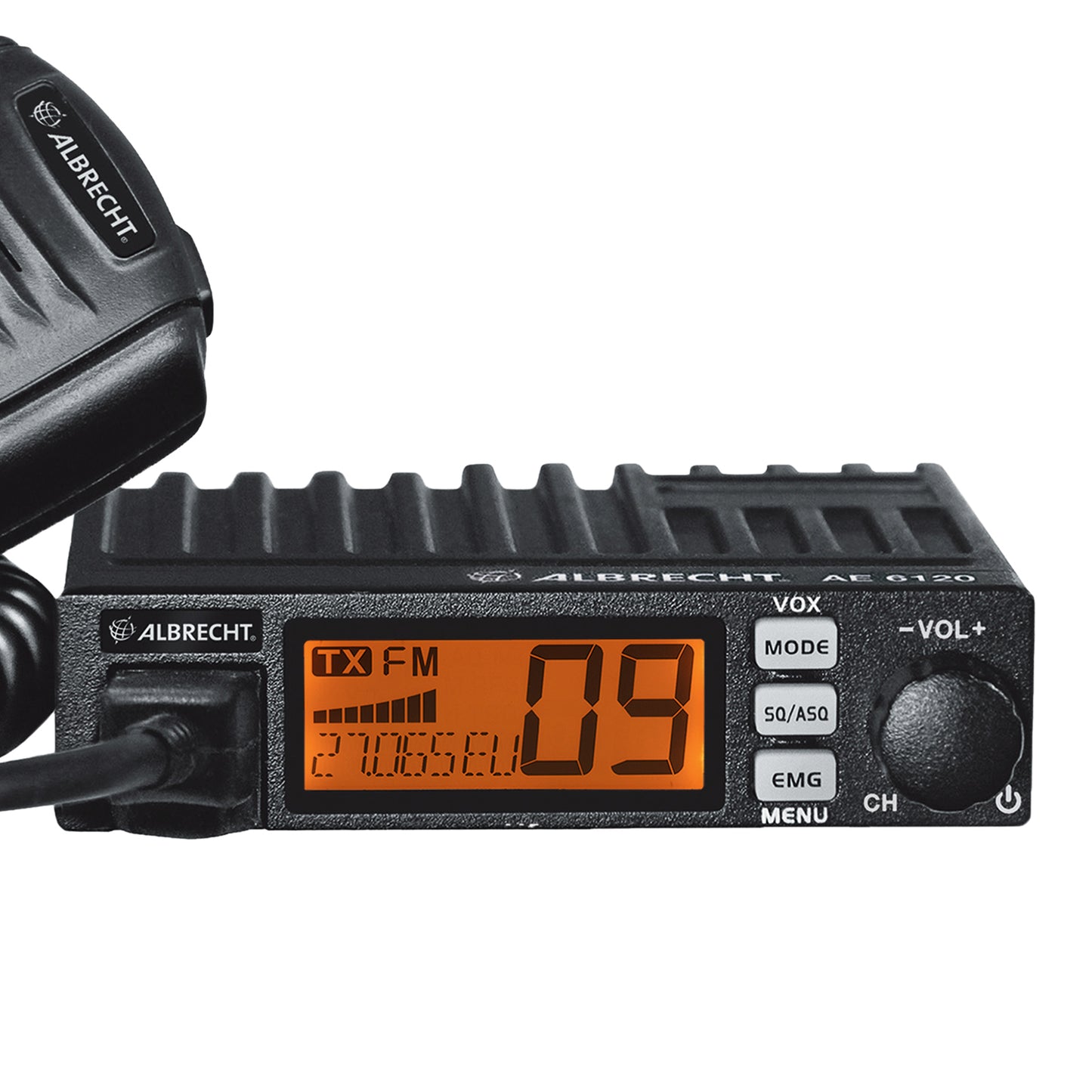

► Minimalist design with large display
► All European CB standards
► VOX hands-free function
► Detachable microphone with RJ45 Western plug
The Albrecht AE 6120 VOX may be small in size, but it still impresses with its various integrated functions.
At just 11 cm wide and 2.5 cm high, it easily fits into even the smallest spaces. Its die-cast housing makes it extremely sturdy. Despite its small size, the device features a detachable microphone with an RJ45 connector.

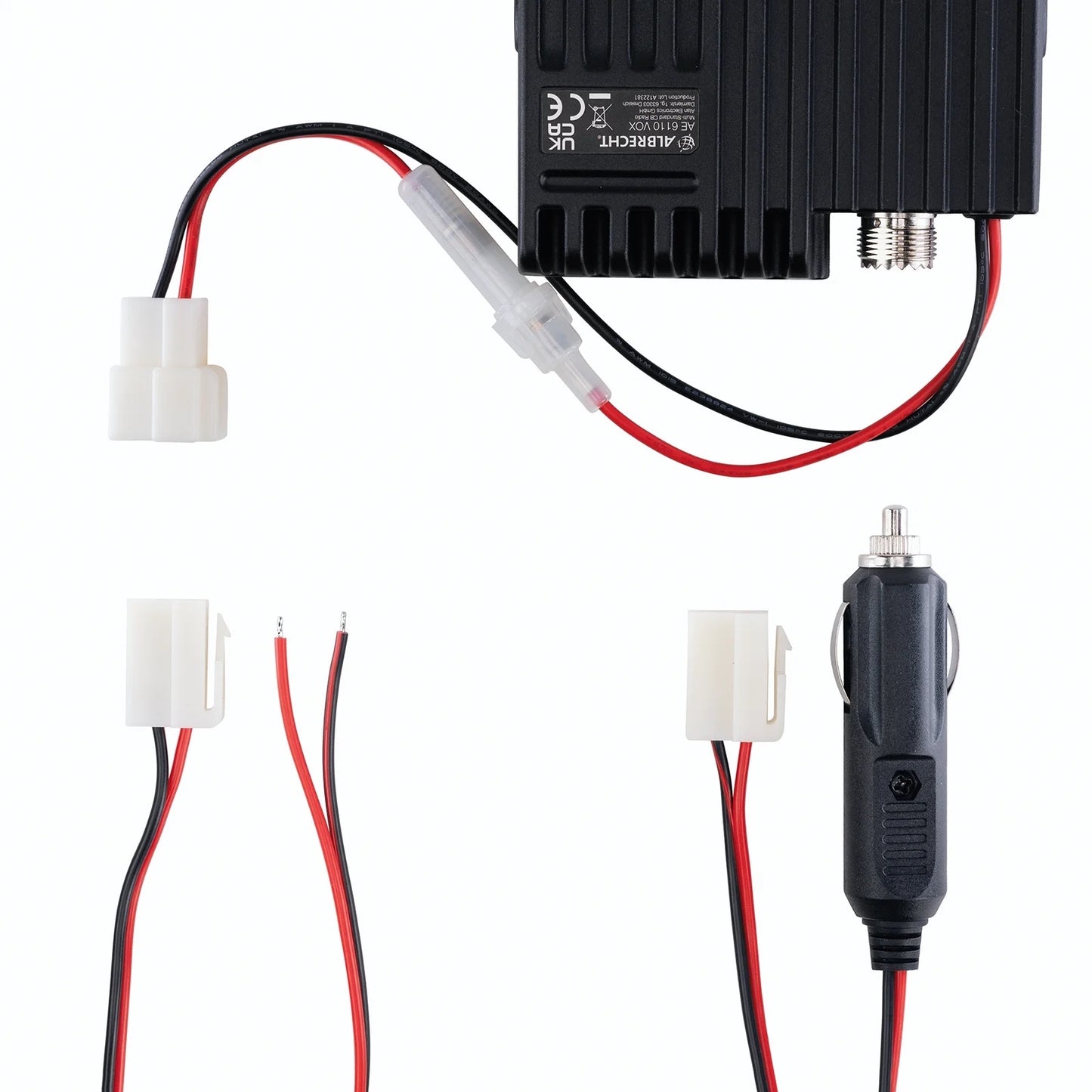

The new version of the AE 6120 VOX comes with a power connection socket. Choose whether you want to install the CB radio in your vehicle via a cigarette lighter plug or hardwired. Simply plug in the included power cable and you're ready to go – it's child's play.
Features:
Channel scan
Key tones
Rogerbeep
Automatic squelch (ASQ), 8-step adjustable
S-meter, 8-stage
LED indicators for RX and TX
Adjustable reception sensitivity (RF Gain)
Channel 9/19 direct selection button (EMG)
Die-cast housing
Channel selection buttons on the microphone
RF gain
Channel setting on the device using the rotary control
Jack for external speaker
Technical data:
Dimensions: 111 x 104 x 25 mm
Weight: 300g
Supply voltage: 13.2 V
Power consumption: 2 A max.
Operating temperature range: -20 to +50 °C
Antenna input: UHF, SO-239
Frequency error: < +/- 300 Hz
Transmitting power: 4 watts AM/FM
Interference transmission: < 4 nW (-54 dBm)
Adjacent channel power: < 20 µW
FM frequency deviation: < 1.9 kHz
AM modulation depth: < 90%
Receive sensitivity: better than 1 μV (20 dB SINAD)
Image rejection: 70 dB
Adjacent channel rejection: 60 dB
Audio output: 1 watt into 8 ohms
Frequency response: 300-3000 Hz

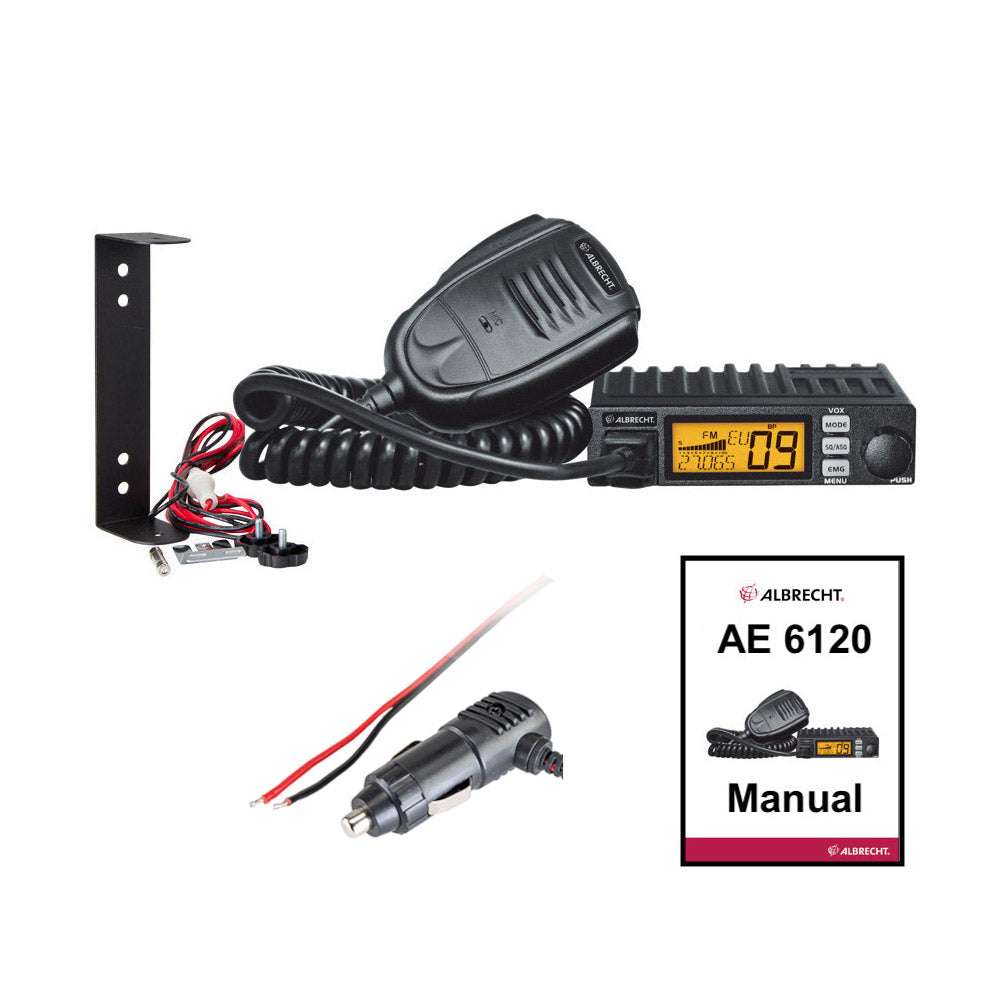

Scope of delivery: AE 6120 VOX CB radio, 2 power cables (cigarette lighter or hardwired), microphone with RJ45 Western plug, microphone holder, mounting bracket, instructions
