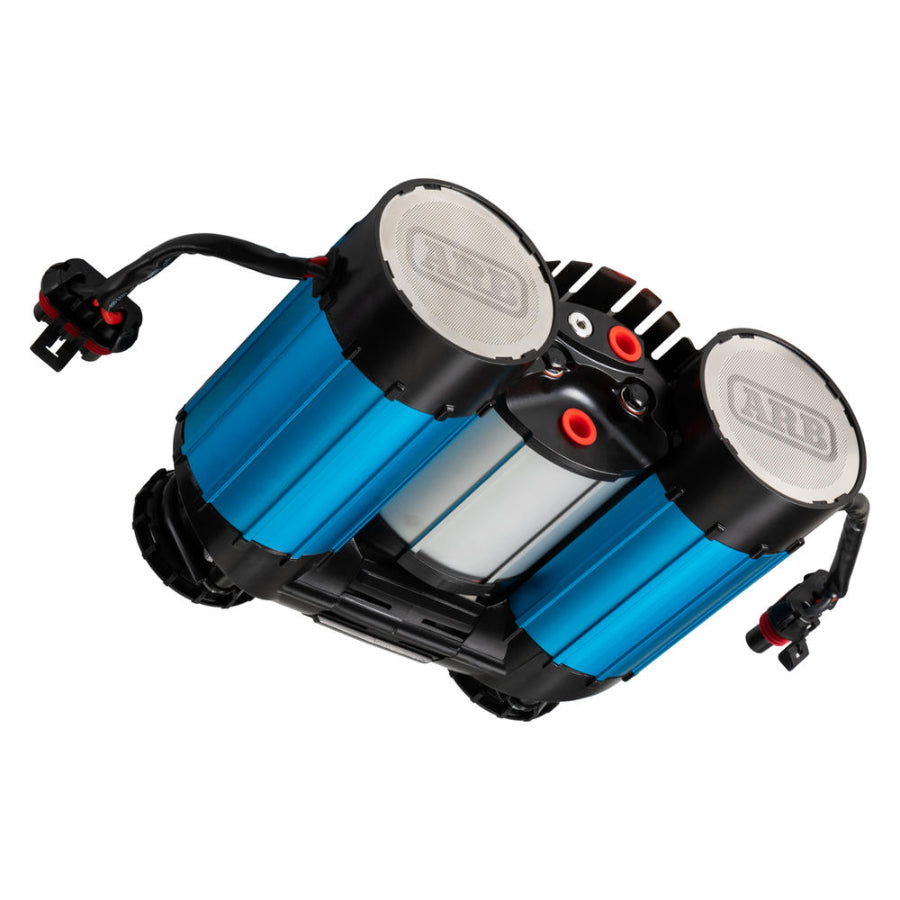

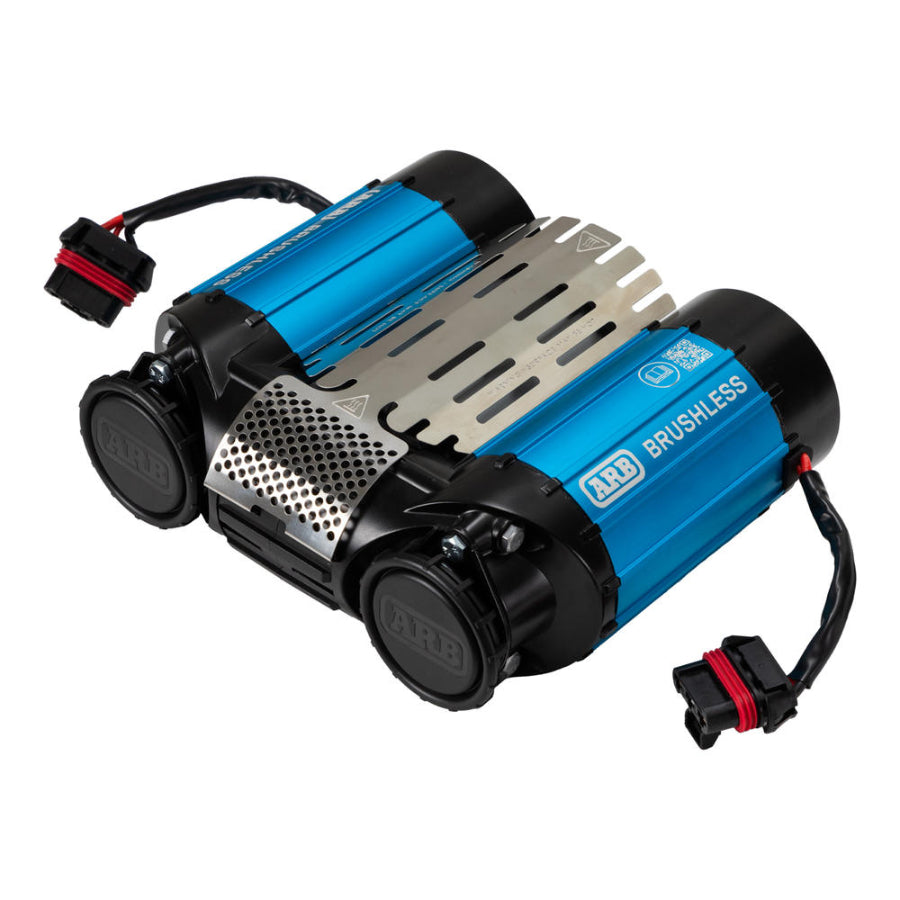

ARB Brushless Twin Compressor 12V, for fixed installations, CKBLTA12

Compact ARB double compressor for fixed installation

The brushless motors of the new ARB compressors deliver up to 50% more power compared to previous ARB compressors.
Thanks to the brushless motors, the compressors require less maintenance, as wear-prone components are eliminated. Electronically controlled fans ensure the compressor's operating temperature remains optimal by continuing to run even when the compressor is no longer in use.
The system also offers protection against voltage spikes, drops, or fluctuations, as well as overcurrent. Integrated live diagnostics provide audible and visual warnings to detect potential problems early.

• Model: CKBLTA12

• Description: Max Vol. - Permanent installation

• Required voltage: 12V


Performance without back pressure:

• Current consumption: 30 A

• Air pressure set at 0 BAR: 260 LPM

• Air pressure at 0 PSI: 9.18 CFM


Working performance with counter pressure:

• Current consumption: 80 A

• Air flow at 2 BAR: 176 LPM

• Air flow at 29 PSI: 6.2 CFM


• Weight: - kg / - lbs

• Duty cycle in % at 22°C: - %

• On/off time in minutes: - /-

• Size (HxWxL): - mm x - mm x - mm

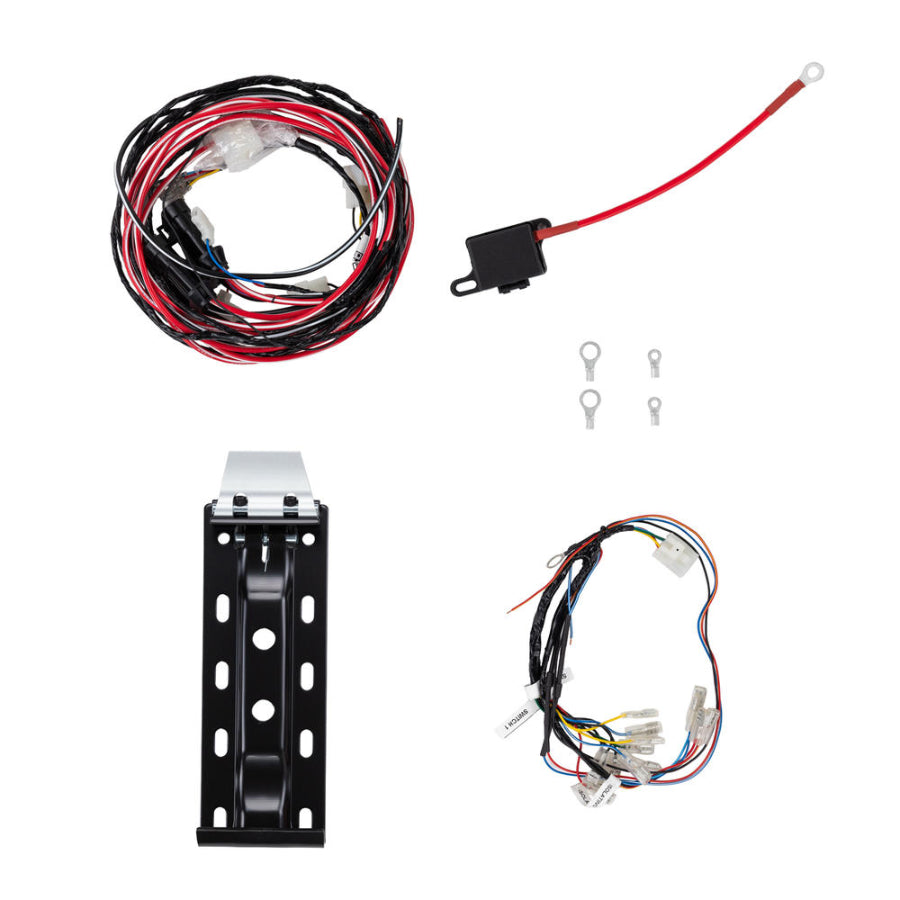

• Fuse included in cable set: yes

• Connection point for AIR Locker solenoid valve: no

• Overpressure switch: yes

• Robust carrying case: no

• Equipped with air filter: yes

• Tire inflation hose: no

• Thermal overload protection: yes
