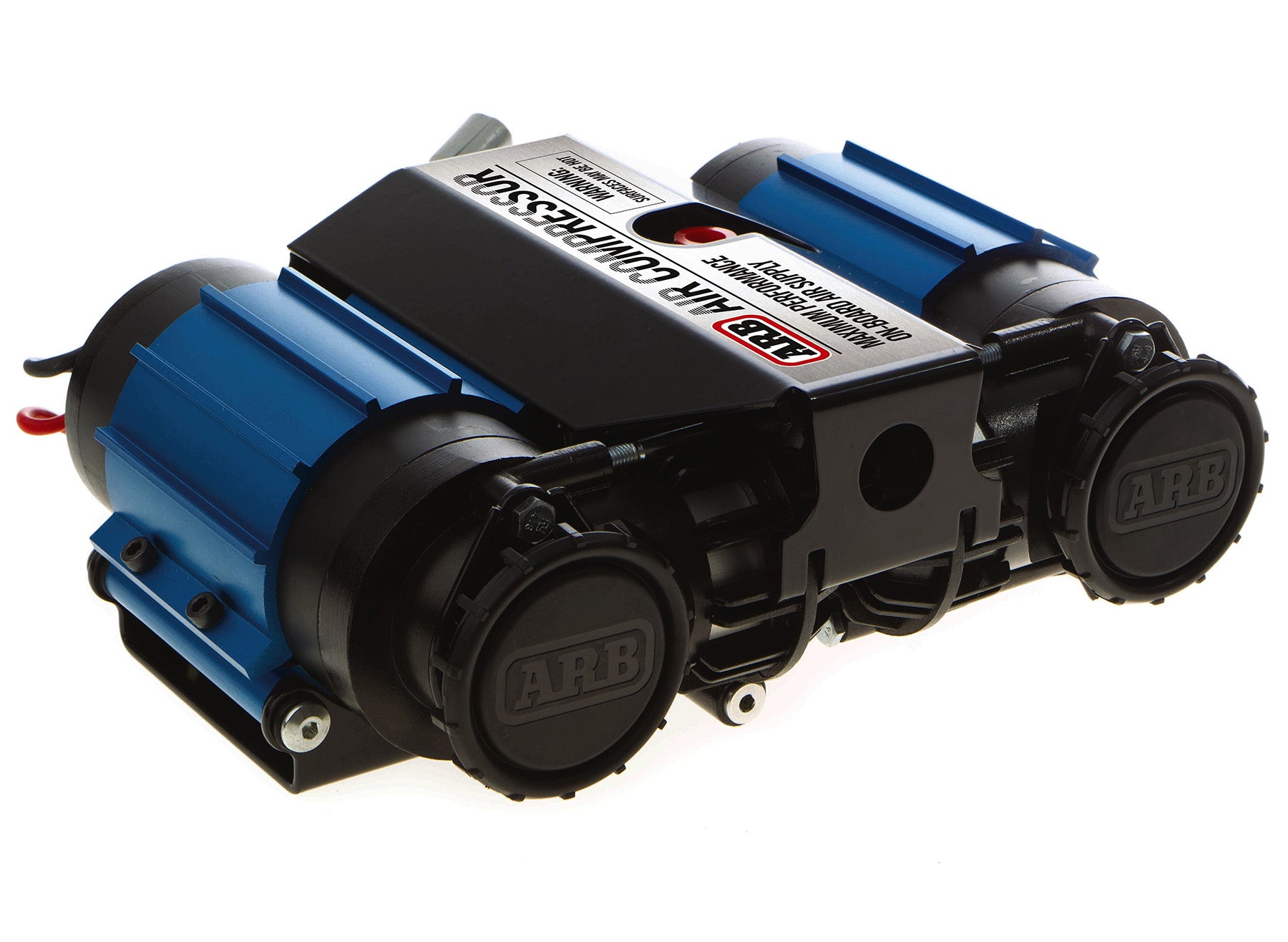

ARB double compressor 12V, CKMTA12, 174L/min, HxLxW 102x190x275mm

In conjunction with the operation of ARB airlockers, the mounting kit TR2-171503 is also required, as this ensures the correct installation (vertical) and problem-free operation of the pressure switch(es).

• Model: CKMTA12

• Description: Max. Vol. - Permanent installation

• Required voltage: 12V


Performance without back pressure:

• Current consumption: 28.4A

• Air pressure set at 0 BAR: 174.4 LPM

• Air pressure set at 0 PSI: 6.16 CFM


Working performance with counter pressure:

• Current consumption: 50.4A

• Air flow at 2 BAR: 131.7 LPM

• Air flow at 29 PSI: 4.68 CFM


• Weight: 8.8 kg / 19.4 lbs

• Duty cycle in % at 22°C: 100%

• On/off time in minutes: n/a

• Size (HxWxL): 102mm x 190mm x 275mm

• Fuse included in cable set: Yes

• Connection point for AIR Locker solenoid valve: No

• Overpressure switch: Yes

• Robust carrying case: No

• Equipped with air filter: Yes

• Tire inflation hose: No

• Thermal overload protection: Yes
