ARB Relay Box incl. 6 Relays 30 Amp & 6 Blade Fuses (mixed)

The installation of electrical accessories in vehicles can be a time-consuming job. Finding space to mount relays and fuses in the engine compartment of a modern vehicle is a challenge for installers. And the end result is multiple power cables connected to the crowded positive battery terminal, multiple holes drilled in the engine compartment to mount different relays and fuses. That's why ARB helps with the ARB RELAY BOX.

The relay box functions as a 12V power distribution center, providing 6 output channels. Once the high current cable of the relay box is connected to the battery, for the power connection of any load (e.g. lighting), only one cable needs to be routed from the load to the screw terminal of the box.

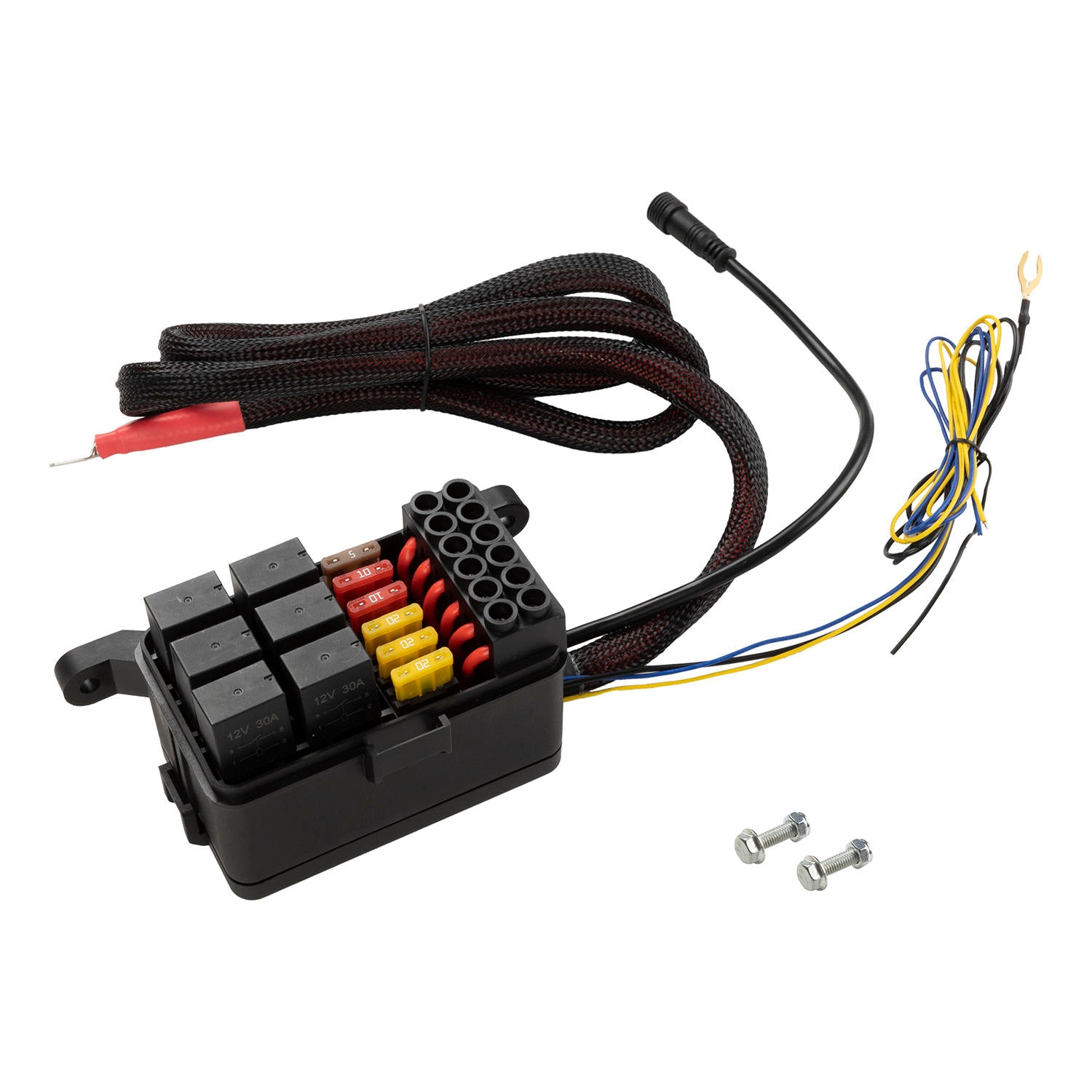

The rated current of each channel is 20A and the total output rated current of the relay box is 60A. Each channel has its own standard blade fuse for overload protection and a 30A automotive relay to switch power on and off. There is also built-in over-temperature protection. A lid protects the wiring in a compact housing. A quick connect cable simplifies LINX installation with pre-terminated direct connections to all 6 x LINX switch panel outputs as well as 2 x LINX inputs for convenient under-hood connections for low and high beam.

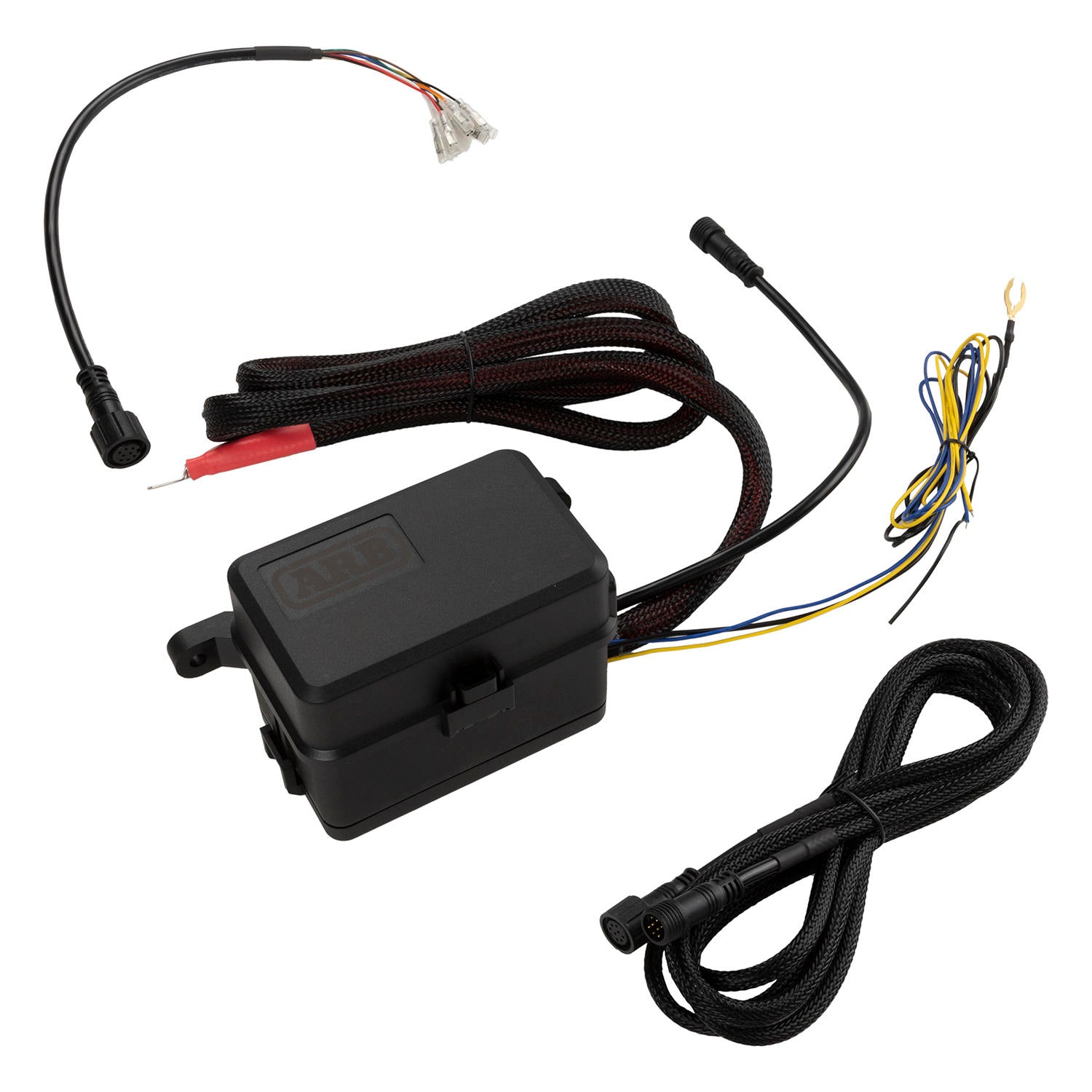

The following is included in the scope of delivery:

• 1 x Relay box (160mm x 93.7mm x 84.3mm)

• 6 x 20A relays

• 1 x Pre-fabricated quick connect cable

• 1x 3m extension cable with cable sleeve

• 10 x Cable ties

• 2 x M6 x 20mm hex flange bolts and M6 lock hex nuts

• Instruction manual
