ARB SLIMLINE LED Work Light 36" Combo, Aluminum Housing, (36"=91.44cm)
Item no.: TR39-1780500
€562,95
🇩🇪 Ships from Germany
↺ 14-day returns
💬 Advice
To fully cover a SLIMLINE LED Bar 36", 2 sets of covers are required.
Matching the elegant design of the ARB BASE Rack, ARB has developed a new special roof rack light bar for its family of driving lights. With a uniquely tuned reflector design to limit reflection from the bar and the vehicle, this slim bar delivers a competitive 1 lux at 728m with up to 60m illumination range.
Extremely robust, made from extruded aluminum with die-cast aluminum end caps, the heat-dissipating housing ensures a long lifespan for the LEDs. The housing is fully powder-coated, with the polycarbonate lens lightly tinted to provide an unobtrusive appearance.
The unique half-shell reflectors direct light where it is needed, providing a defined beam pattern tuned to a spot/flood 'combo' configuration.

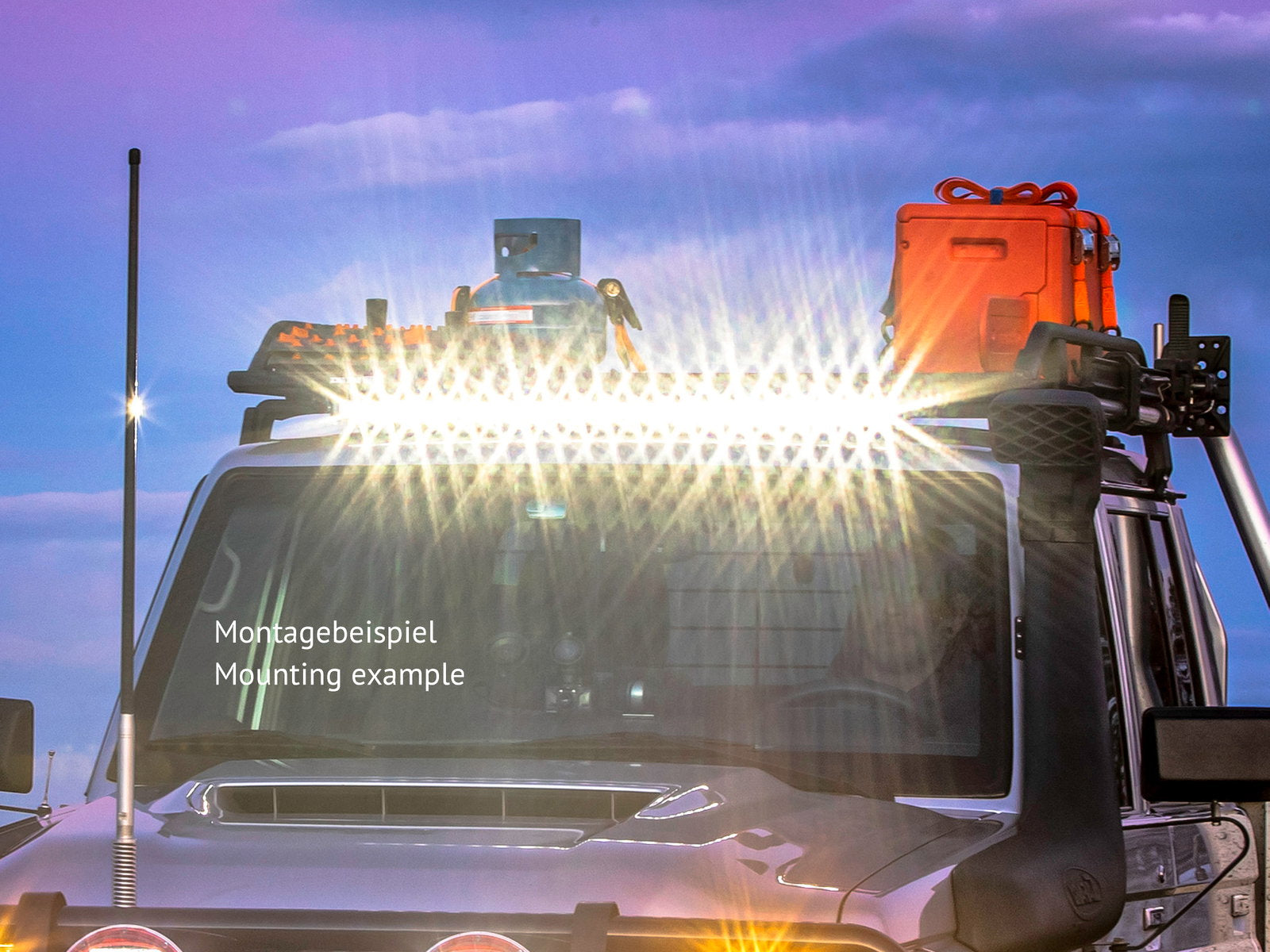

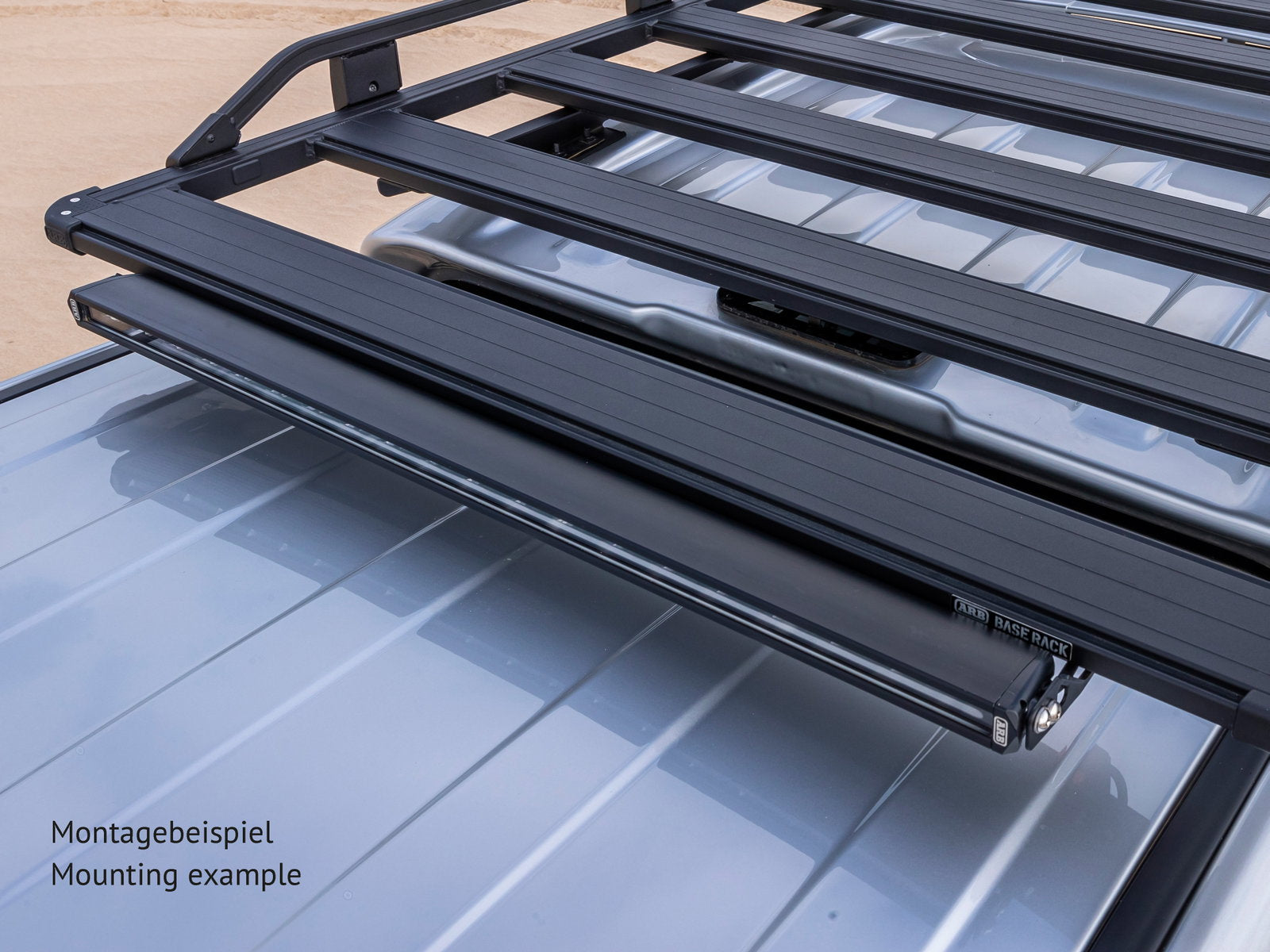

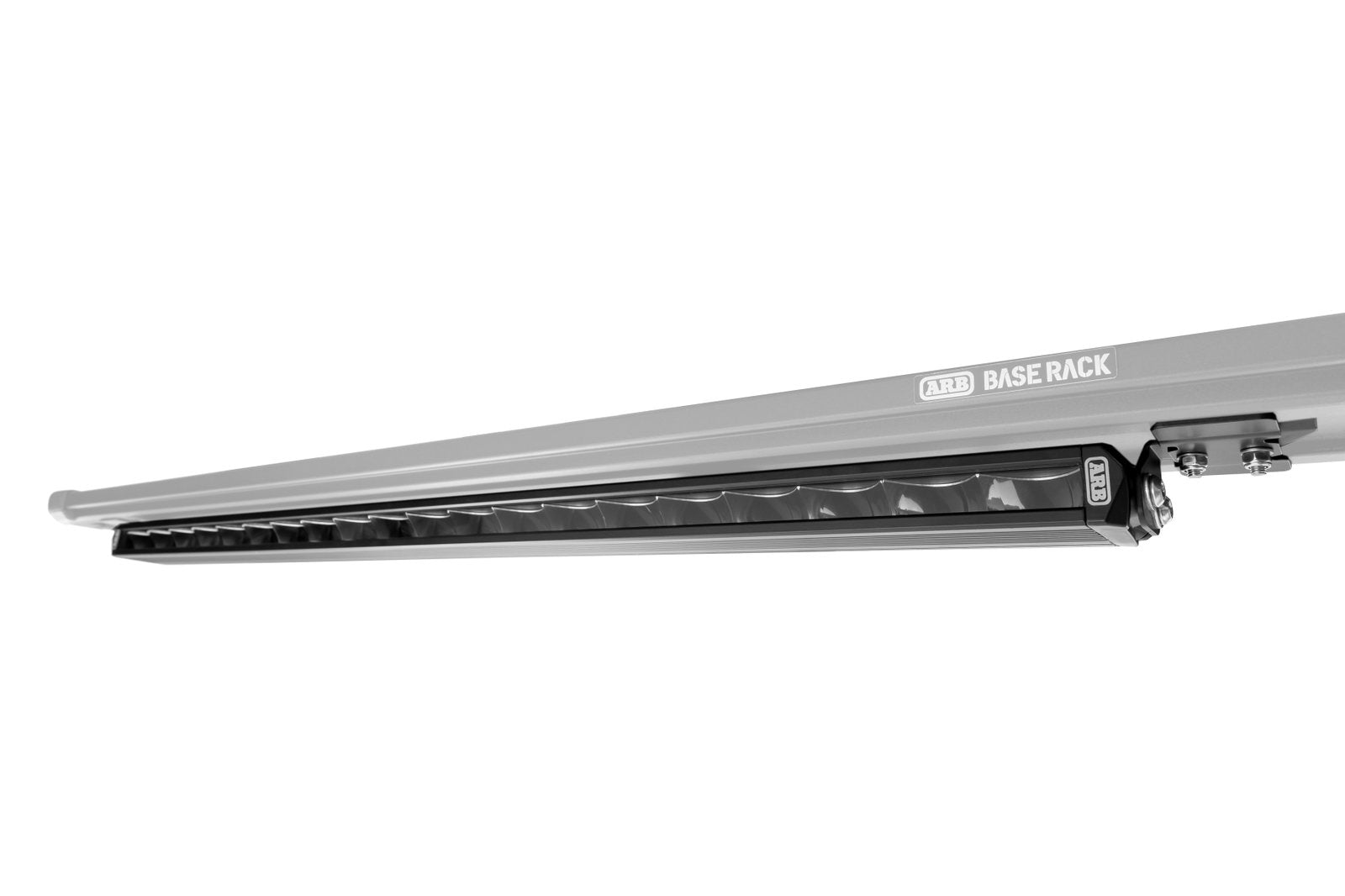

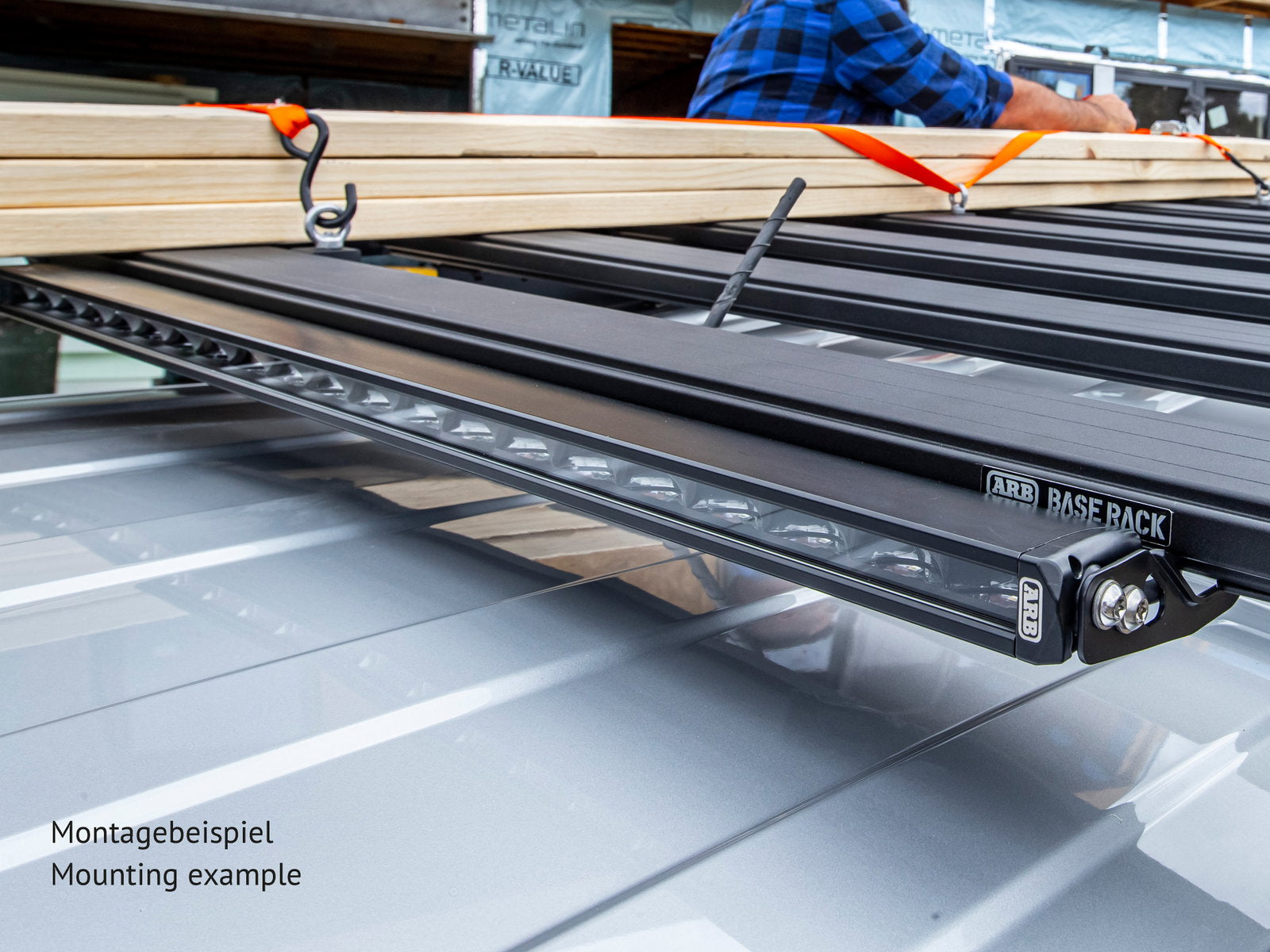

With the mounting system integrated into the ARB BASE Rack, the light can be set up in minutes with two different mounting options - mounted in front of the rack and under the rack, which offers additional protection and a hidden appearance. The light can also be attached to most existing ARB roof racks, however, drilling is required. All mounting hardware is included with the light.
Features:
Kit includes:
Matching the elegant design of the ARB BASE Rack, ARB has developed a new special roof rack light bar for its family of driving lights. With a uniquely tuned reflector design to limit reflection from the bar and the vehicle, this slim bar delivers a competitive 1 lux at 728m with up to 60m illumination range.
Extremely robust, made from extruded aluminum with die-cast aluminum end caps, the heat-dissipating housing ensures a long lifespan for the LEDs. The housing is fully powder-coated, with the polycarbonate lens lightly tinted to provide an unobtrusive appearance.
The unique half-shell reflectors direct light where it is needed, providing a defined beam pattern tuned to a spot/flood 'combo' configuration.
With the mounting system integrated into the ARB BASE Rack, the light can be set up in minutes with two different mounting options - mounted in front of the rack and under the rack, which offers additional protection and a hidden appearance. The light can also be attached to most existing ARB roof racks, however, drilling is required. All mounting hardware is included with the light.
Features:
- Unique reflector design and combo-beam technology provide good range and width for driving, while minimizing reflection on the vehicle's hood, on the bar, etc.
- Very robust lens made of hardened polycarbonate
- Housing made of extruded aluminum with stealth powder coating on the back
- Unique multi-position mounts for ARB BASE Racks
- The included mounts offer two mounting options (front or under the roof rack)
- Stainless steel fittings and brackets
- Reverse polarity protection
- Breather with pressure-tested seal
- Vibration and UV tested resistance
- The design allows for excellent heat management and a long lifespan of the LEDs
- Dust and waterproof according to IP68
- Over and undervoltage protection
- Two-pin, molded, waterproof connector
Kit includes:
- 1 x 91.44 cm Slimline light bar
- 2 x Brackets for under-rack mounting
- 2 x Brackets for front-of-rack mounting
- 1 x Set of mounting hardware for the bracket
Specifications
- Artikelnummer: 1780500
- Ausführung: Combo
- Maße: 95x7x4 cm
- Gewicht: 3,07 kg
- Nennspannung: 12,0 - 48,0 V
- Nennleistung: 130 W
- Prüfspannung: 14,4 V
- Lichtstrom: 8552 lm
- Farbtemperatur: 5500-6000 k
- Light distance at 1lx [PIM]: 728 m
- Lebensdauer: 50.000 h
- Anschluss zur Lampe: Kabelverbindung
- Technologie: LED
- Normen: R10
- Prüfzeichen-Zulassung: k. A.
- Schutzart: IP68
- Referenznummer: k.A.
