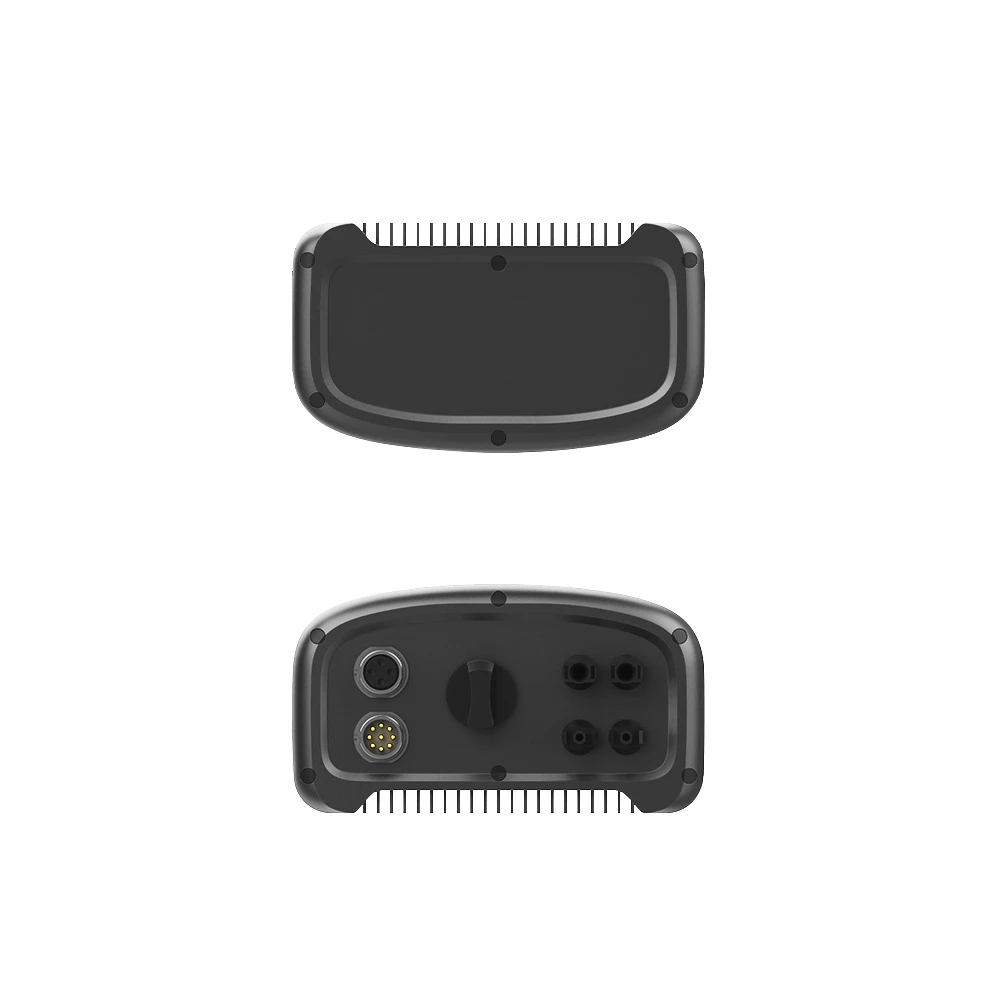

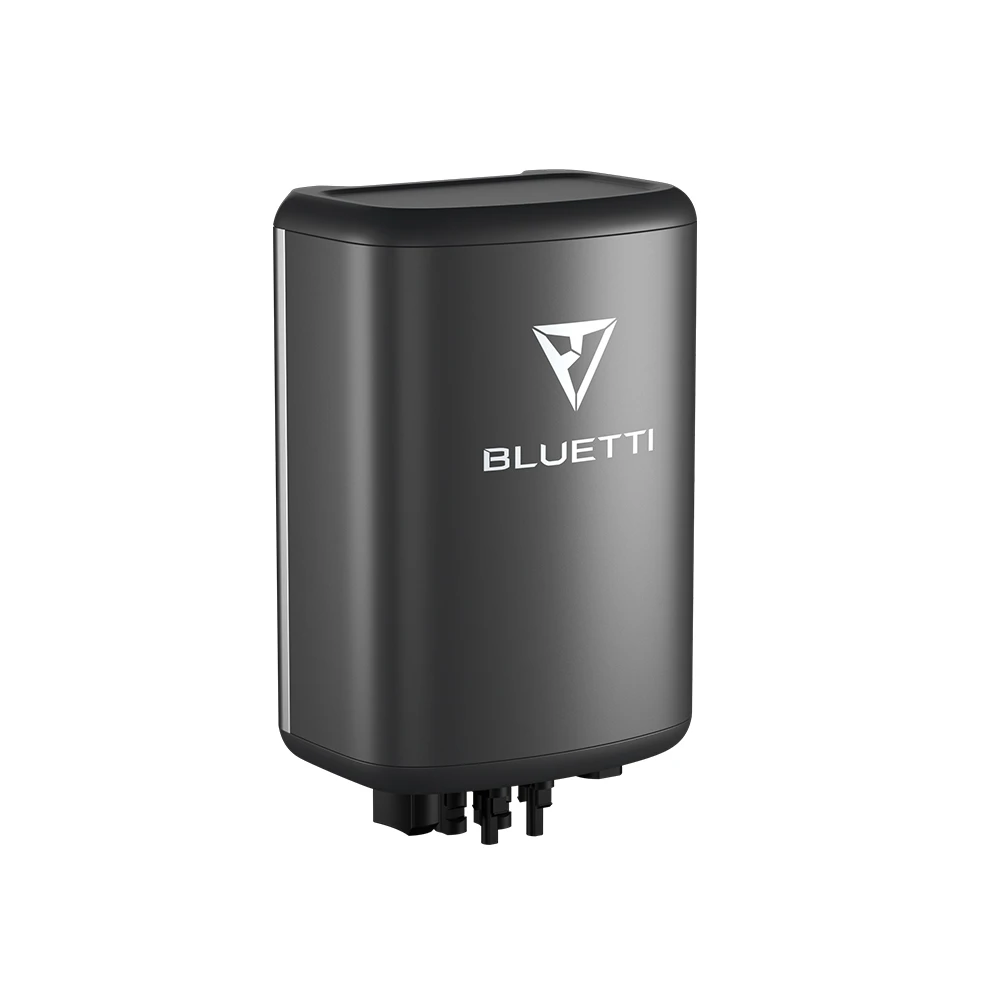

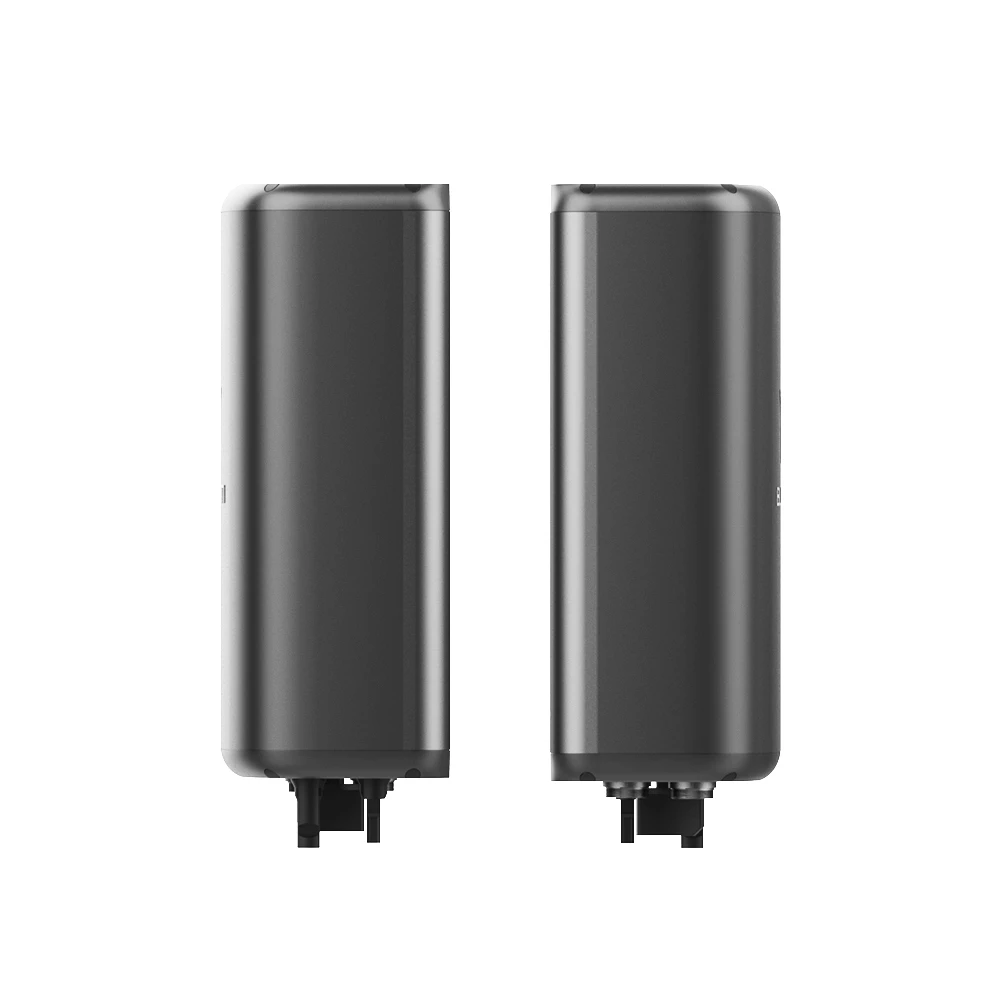

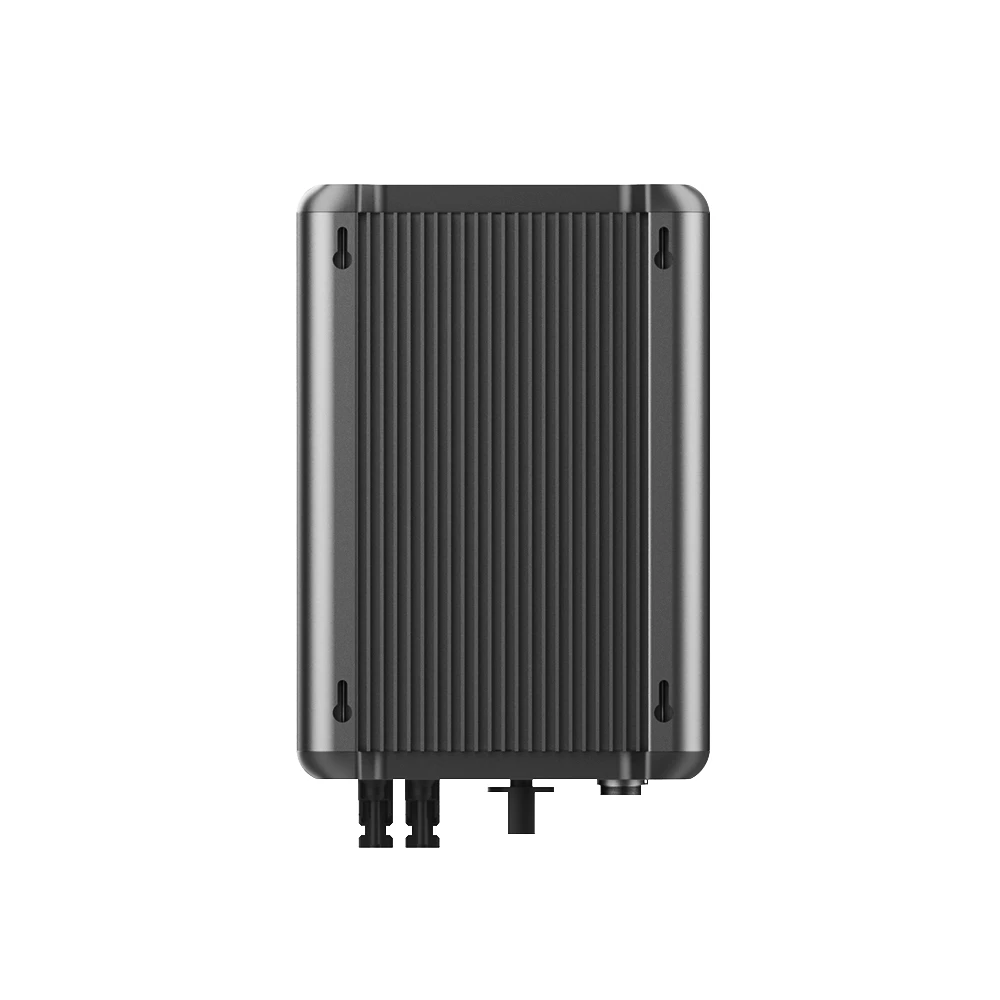

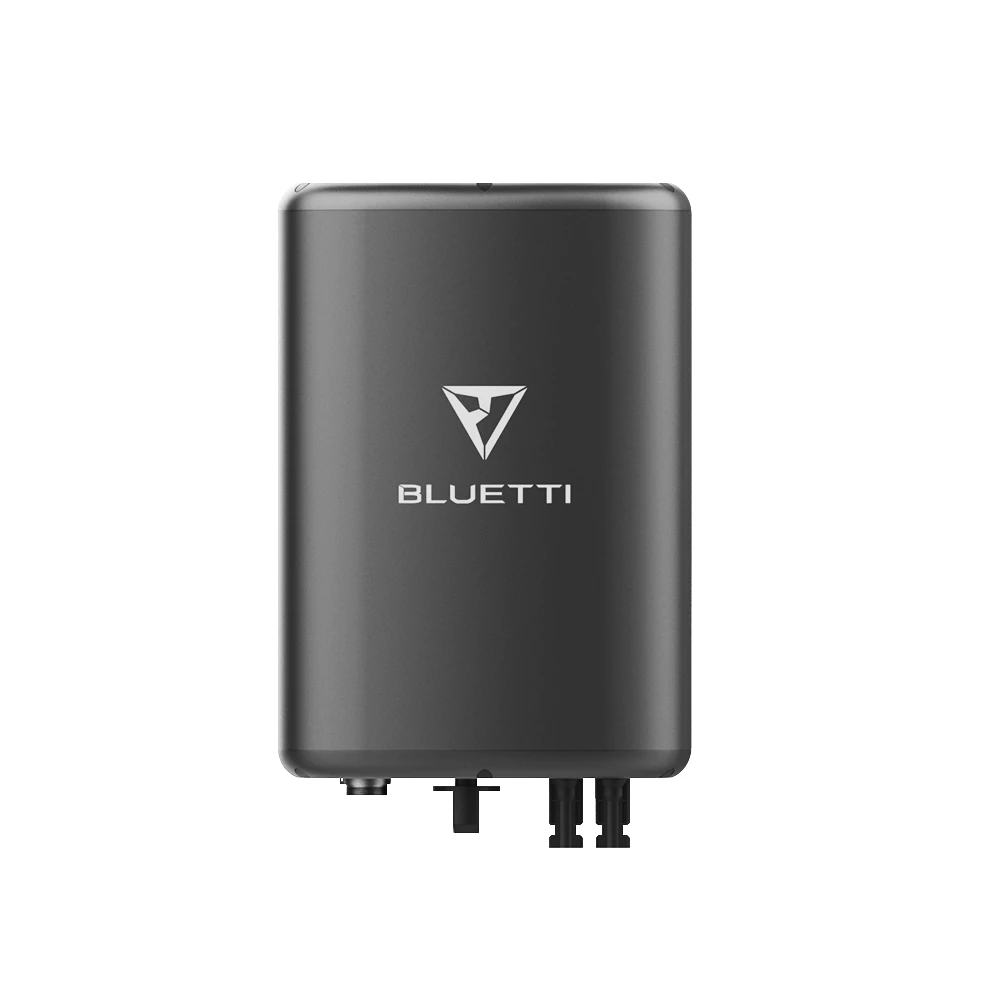

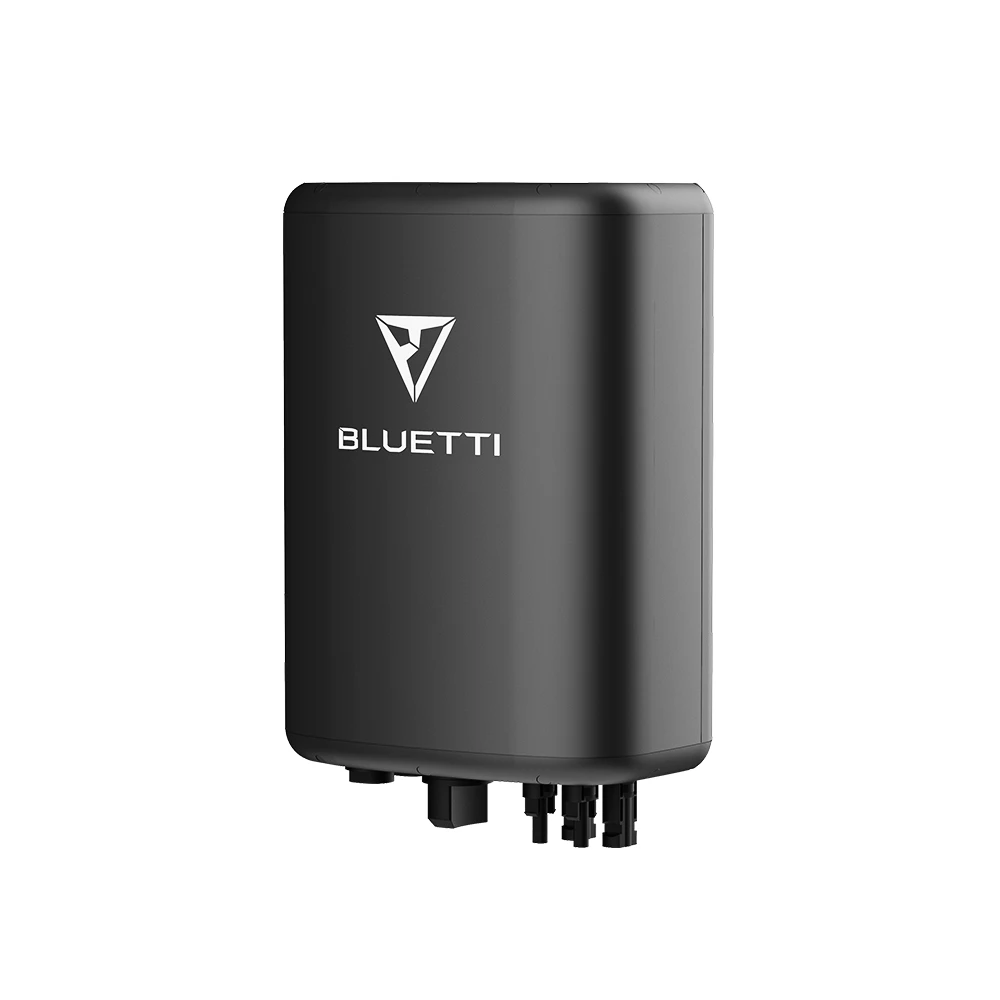

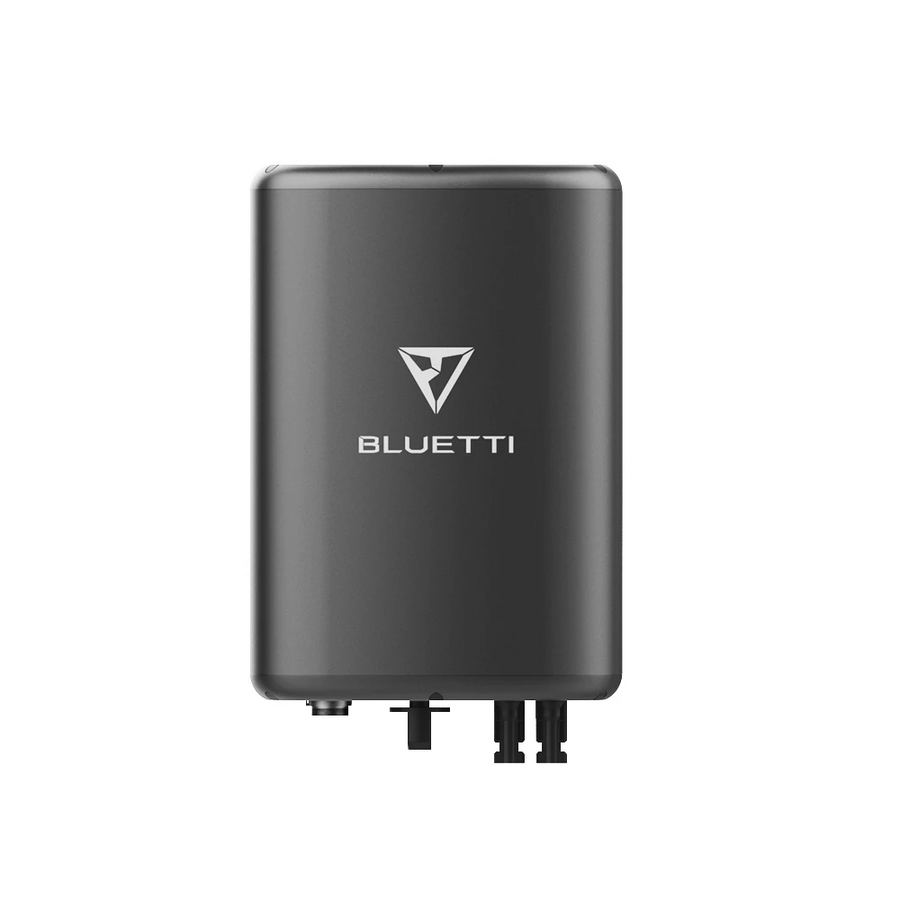

Bluetti D300S Drop Down Module
Item no.: WS305-30039
€589,95
Available again soon
🇩🇪 Ships from Germany
↺ 14-day returns
💬 Advice
Maximum PV Charging for Bluetti Power Stations
The D300S Drop Down Module from Bluetti was built to make large PV systems compatible with Bluetti power stations and to maximize solar charging performance.
With the D300S, it is possible to connect solar modules/solar systems with up to 3000 watts and 550 volts to the AC300, AC500, or EP500Pro. The D300S regulates the voltage of the connected modules to 120 V and 15 A.
Scope of delivery
- Bluetti D300S Drop Down Module
- DC output cable
- User Manual
| Technical Data | Bluetti D300S Drop Down Module |
|---|---|
| Type | MPPT Charge Controller |
| Max. DC Input Power (Solar) | 3000 Watt |
| Max. DC Input Voltage (Solar) | 550 Volt |
| Charging Power Powerstation | 120 Volt |
| Charging Current Powerstation | 15 A |
| Weight | 7 kg |
| Dimensions | 216 mm x 120 mm x 350 mm |
