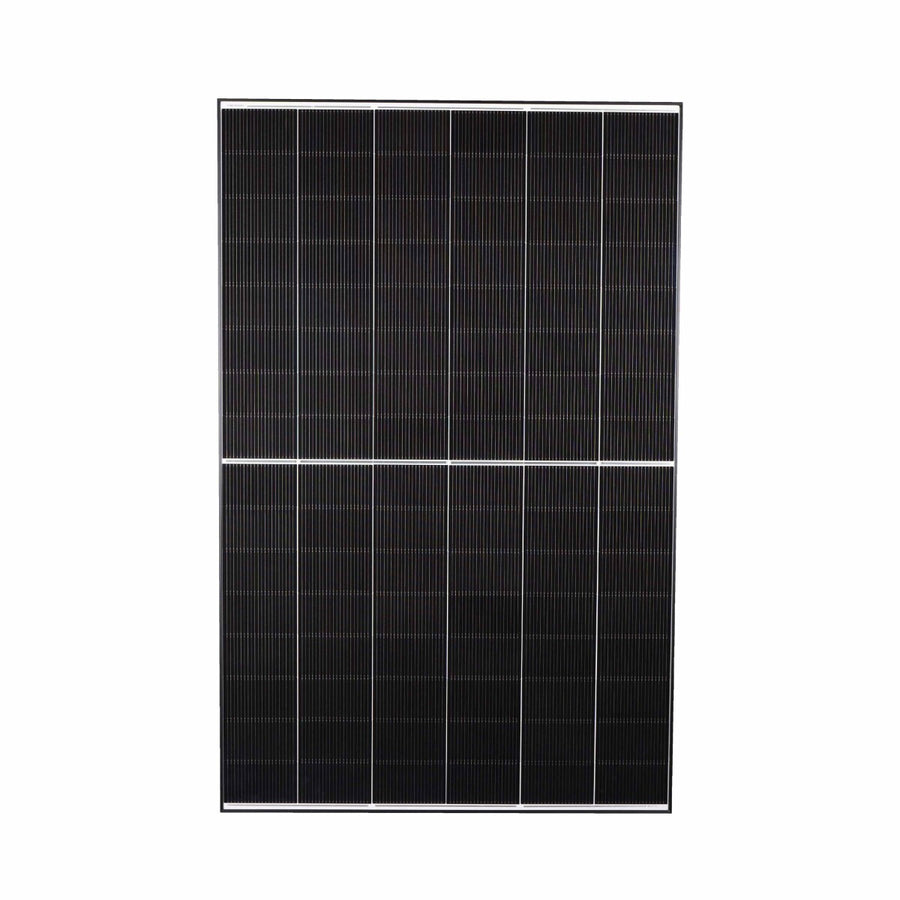

DAH Solar Solar Module 475 Wp - Bifacial

DAH Solar Solar Module 475 Wp – Bifacial, Glass-Glass & N-Type TOPCon (Frame Black)

More yield from the same area: The DAH Solar 475 Wp solar module is a highly efficient double-glass module with a bifacial cell structure and N-Type TOPCon technology. This means you not only use direct sunlight on the front but also generate additional power from the back – depending on the installation and surface, a rear-side additional yield of 5–25% is possible. With up to 24.27% module efficiency, an IP68 junction box, and a 30-year linear performance warranty, this module is a strong choice for roofs, carports, gardens, or more demanding environments.

Technically, the series also features modern cell and connection architecture: No-Busbar technology can shorten transmission paths within the module, thereby reducing losses. Additionally, there's the robust double-glass construction, designed for longevity and stability – useful if you want consistently predictable yields.

Optimal Energy Yield Thanks to Dual-Side Light Utilization

Bifacial modules operate like two power plants in one: direct radiation on the front, reflected light on the back. This is particularly effective on light-colored surfaces (e.g., gravel, concrete, light foil, or snow) and when mounted in a way that doesn't "cover" the back. According to the data sheet, rear-side gains of 5%, 15%, and 25% are shown as typical scenarios – for the 475 Wp module, this corresponds to up to 593.8 W with a 25% rear gain.

Innovative TOPCon Cells for High Performance

• N-Type TOPCon: designed for lower degradation and good performance
• Strong performance in low light and a favorable temperature coefficient: temperature coefficient Pmax -0.29 %/°C
• Bifacial factor: 80 ± 5 %

Double-Glass Technology for Durability

• 2.0 mm glass with anti-reflective coating for better light yield
• High mechanical load capacity: 5,400 Pa snow load (front) and 2,400 Pa wind load (rear)
• Reliable electrical system: IP68 junction box, 3 bypass diodes, MC4-compatible

If you're looking for a modern 475 Wp module that impresses with bifacial additional yields, robust glass-glass construction, and N-Type TOPCon, this DAH SOLAR module is a very strong basis for consistently predictable solar yields.
