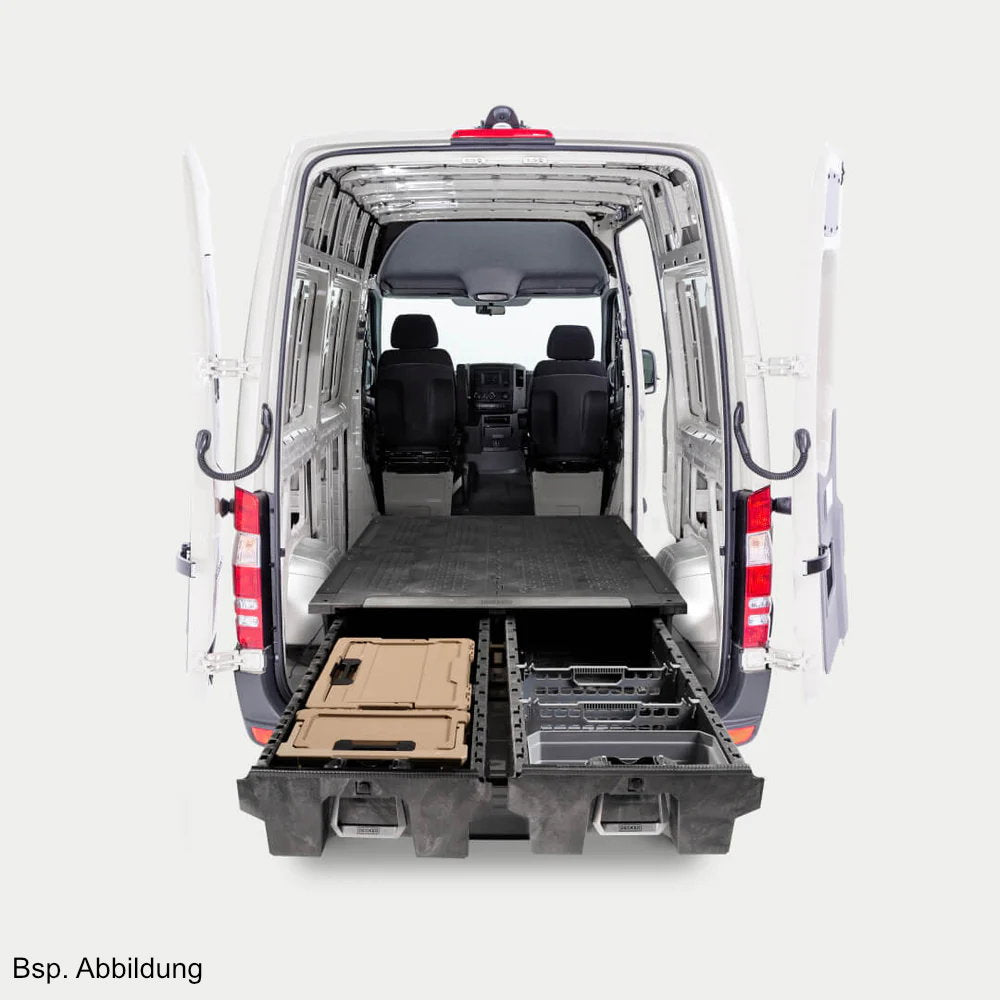

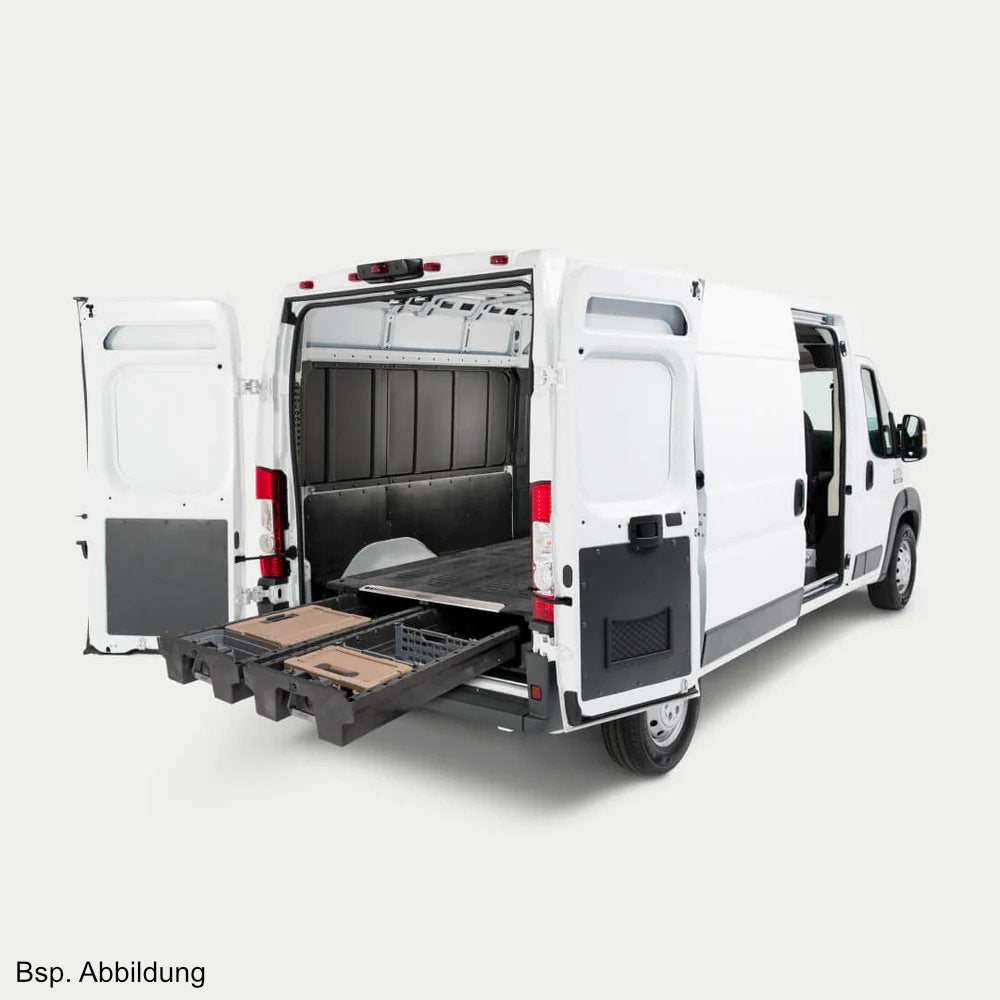

DECKED VX Drawers for Citroen Jumper from model year '14 (wheelbase 4039mm)
The DECKED drawer system offers secure, weatherproof, and organized storage for vans, featuring two lockable drawers (locks must be ordered separately) each capable of holding 90 kg. Evenly distributed, the system has a payload capacity of 900 kg.
Additional Load Anchors
In response to requests for load bed tie-downs, integrated load tie-downs have been added to the top of the system, along the outer edge of the load bed. Eight attachment points (four per side) have been added with a D-ring fastening system that lies flat and flush with the surface when not in use. These anchors provide a steel-to-steel connection with the factory load bed anchors and allow for a load capacity of 180 kg.
Increased Load Bed Utilization, More Storage Space
Also new and significantly improved is the removal of the corner bins, formerly known as "Ammo Cans," which used to connect the system to the load bed and offered small additional storage compartments. In their place, users will now find an unobstructed pass-through, both front and rear, outside the drawers. This allows for the storage of longer items (e.g., camping chairs), and water-resistant and lockable storage covers have been added for this purpose. DECKED also includes four removable Stash Bins, which snap into these openings from above and can be used in any of the four corners.
Improved Weather Resistance
DECKED has always ensured that its drawers are not Tupperware-tight but are very effective at keeping the weather out. The designers have increased protection from external environmental conditions by redesigning the drawer front to better seal against weather elements. This significantly reduces the amount of air swirling around in the load bed that could potentially deposit dust or other particles into the drawers.
Please note:
The manufacturer does not take into account any accessories on or in the load bed during the development process. This includes original accessories such as lashing rails, style bars, or bed liners. These must be dismantled before drawer installation and can no longer be used.
Specifications
- Ladeflächenlänge (Fzg.): 4039 mm
- Zuladung Schublade: 90 Kg
- "On Top" Zuladung: 900 Kg
- Systemlänge: 1892 mm
- Material: HDPE
- Gewicht: 104 Kg
- Versandgewicht (ex. PAL): 118 Kg
- Schubladen Innenmaße: 198x99x61 cm
- Packmaß (ex. PAL):
- 1x Sixer 16 D-co Case in tan
- 1x Halfrack 32 D-co Case in tan
- 1x vX Drawerganizer
- 1x Set aus zwei vX Drawer Dividers
