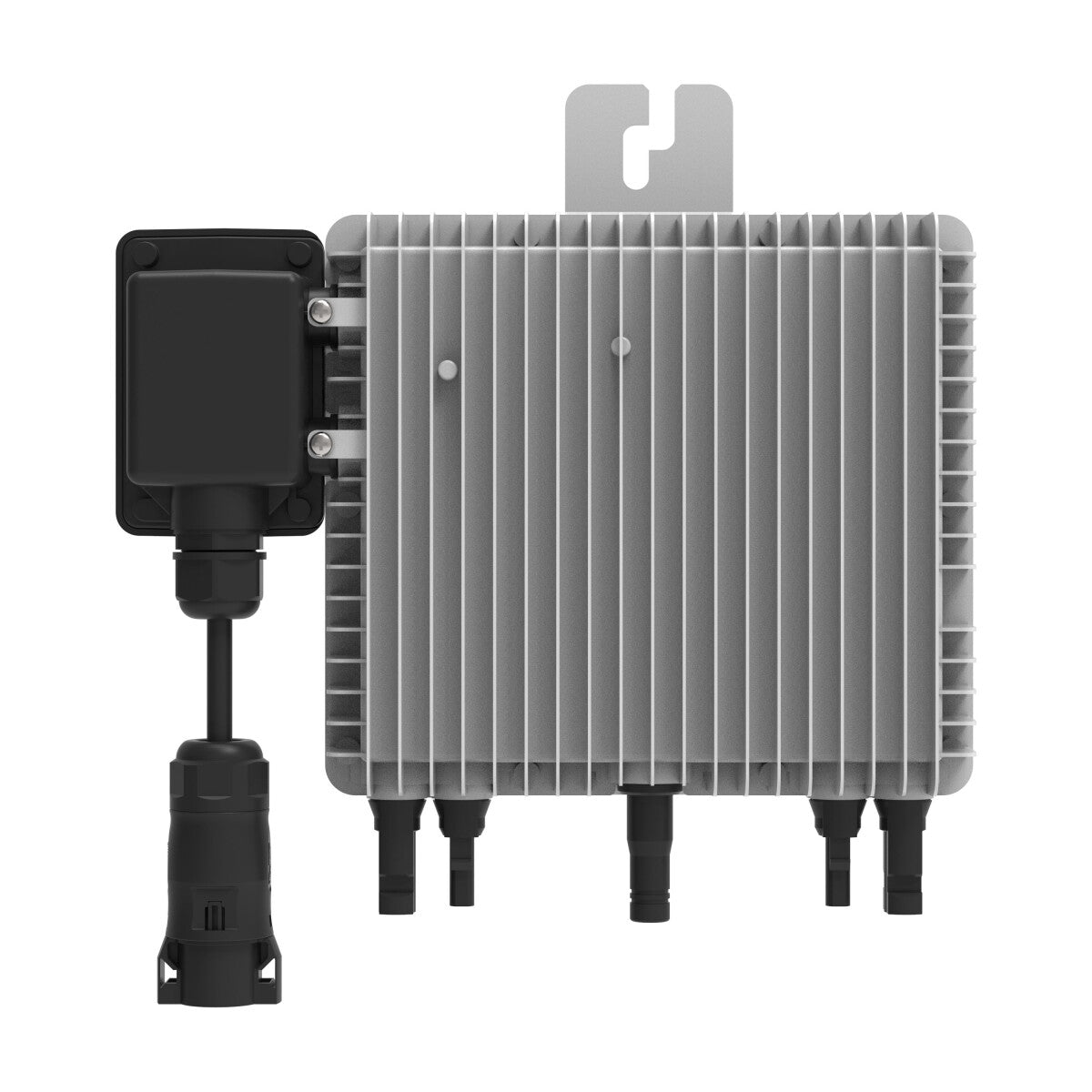

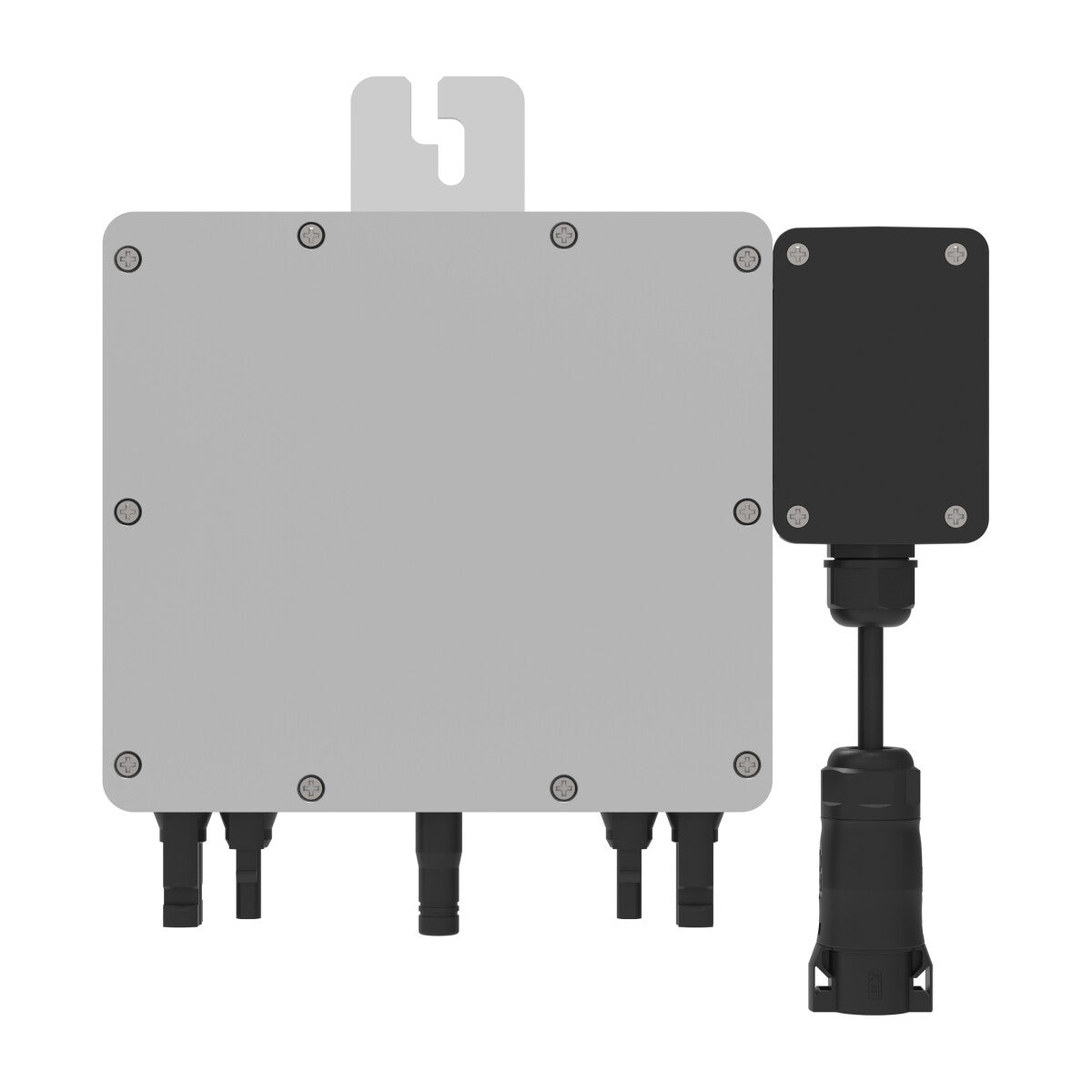

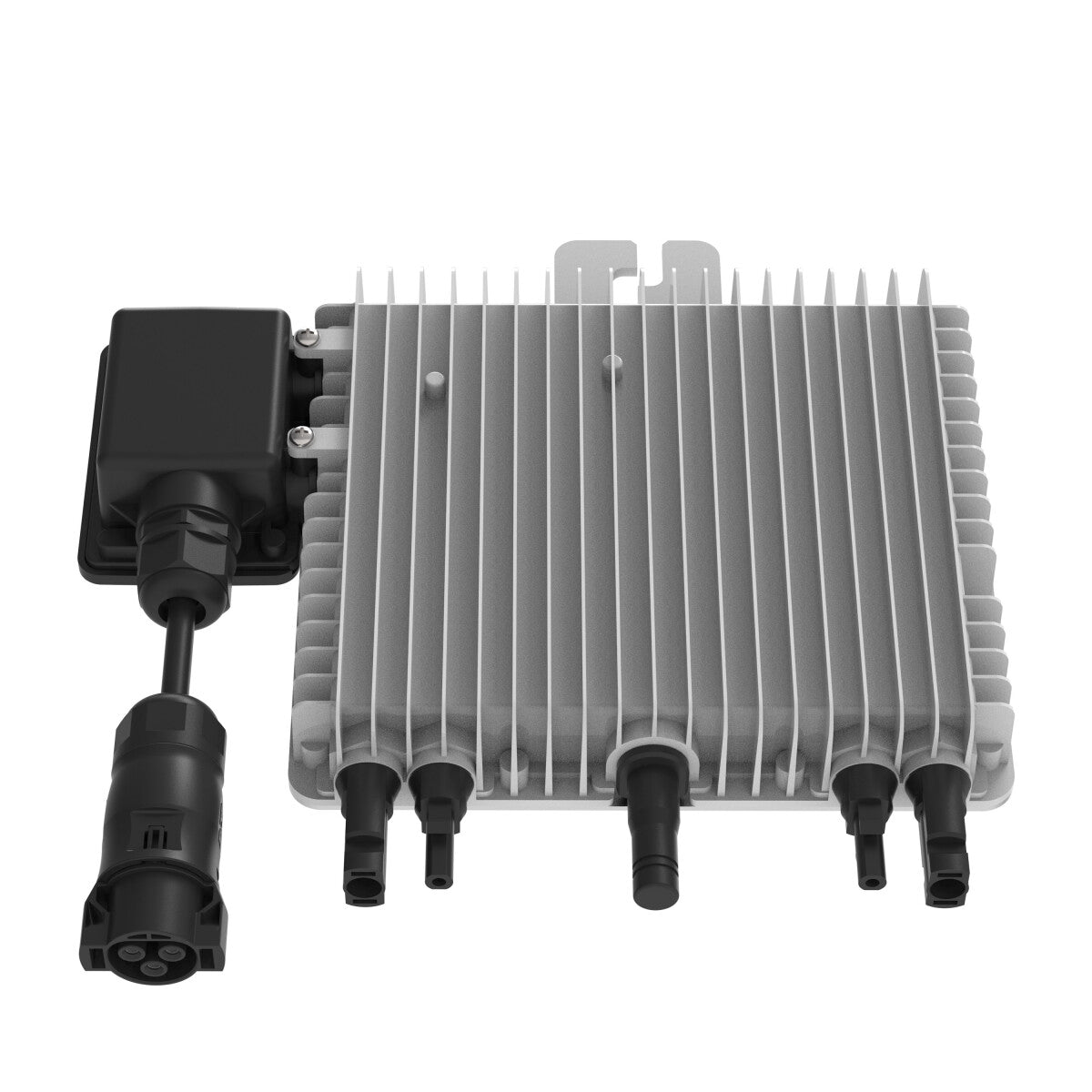

DEYE 800W Micro Inverter M80G4 for Balcony Power Plants
DEYE 800W Micro Inverter M80G4 for Balcony Power Plants
SKU:WS301-20804
Couldn't load pickup availability
Experience Efficiency and Safety with the DEYE 800 W Microinverter M80G4 for Balcony Power Plants
Discover innovative energy performance for your home with the DEYE 800 W Microinverter M80G4
Specifically designed for balcony power plants. This powerful device offers an impressive output of 800 watts, ideal for supporting two modules with an input power between 210 and 560 watts.
Benefit from modern technology: The DEYE microinverter features two MPP trackers that enable optimal monitoring at the module level. Stay connected and informed thanks to integrated WIFI communication, which allows for easy monitoring and control of your system from anywhere.
Your safety is a top priority: The M80G4's rapid shutdown function provides additional protection, while the IP67 protection rating guarantees reliable performance in all weather conditions. Trust in quality and durability with an extended 10-year warranty.
Invest in the DEYE 800 W Microinverter M80G4 and increase the energy efficiency of your balcony power plant while prioritizing environmental friendliness and safety.
| Technical Data | Deye M80G4-Q0 |
| Recommended Input Power (STB) | 210 - 560 W (2 pieces) |
| Max. DC Input Voltage | 60 V |
| Max. DC Short-Circuit Current | 2 x 19.5 A |
| Max. Input Current | 2 x 13 A |
| MPPT Voltage Range | 25 - 55 V |
| Rated Output Power | 800 W |
| Rated Output Current | 3.7 A / 3.5 A |
| Frequency Range | 50 / 60 Hz at 230 V |
| Self-Consumption | 50 mW |
| Weight | 3 kg |
| Dimensions (housing only) | 280 x 190 x 40 mm |
