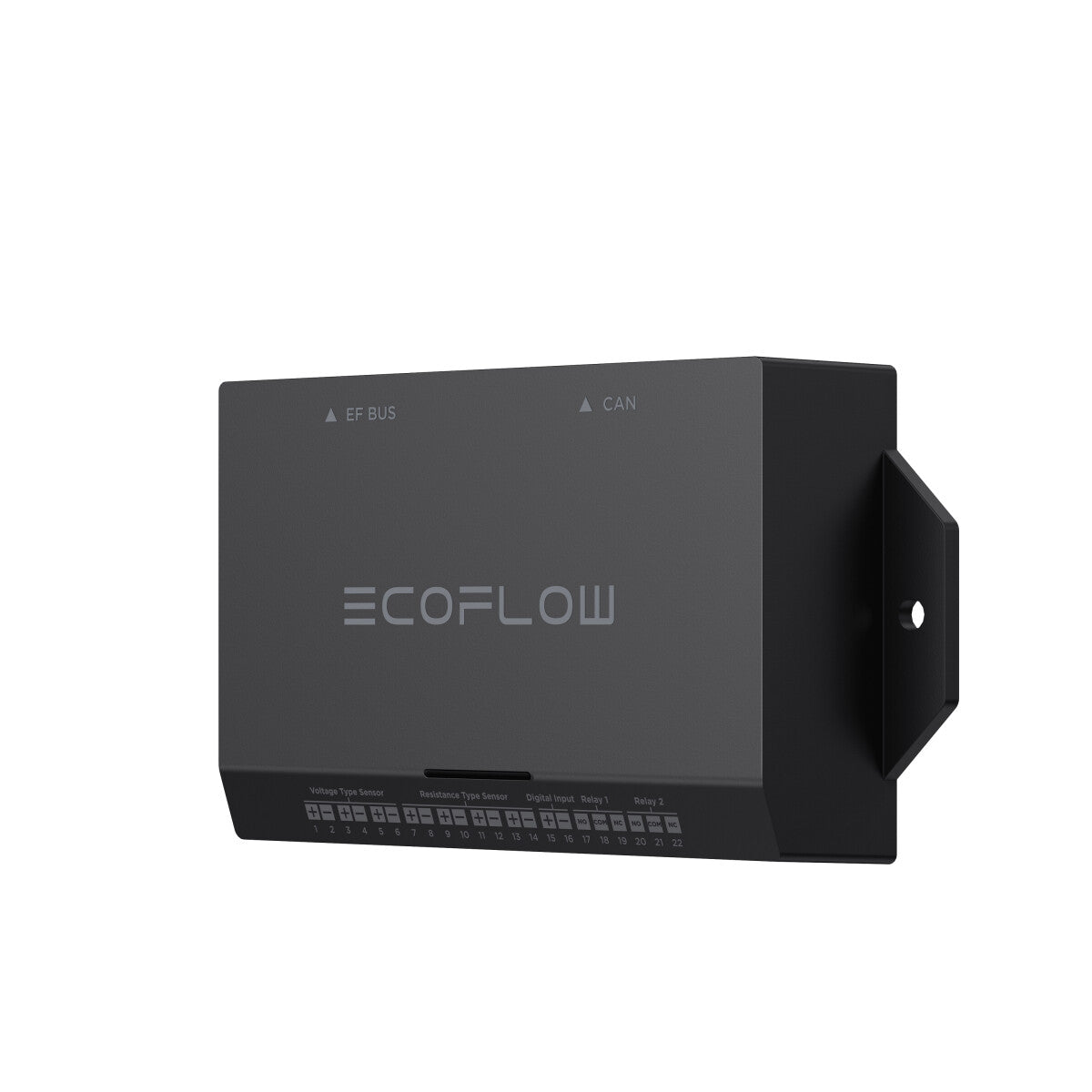

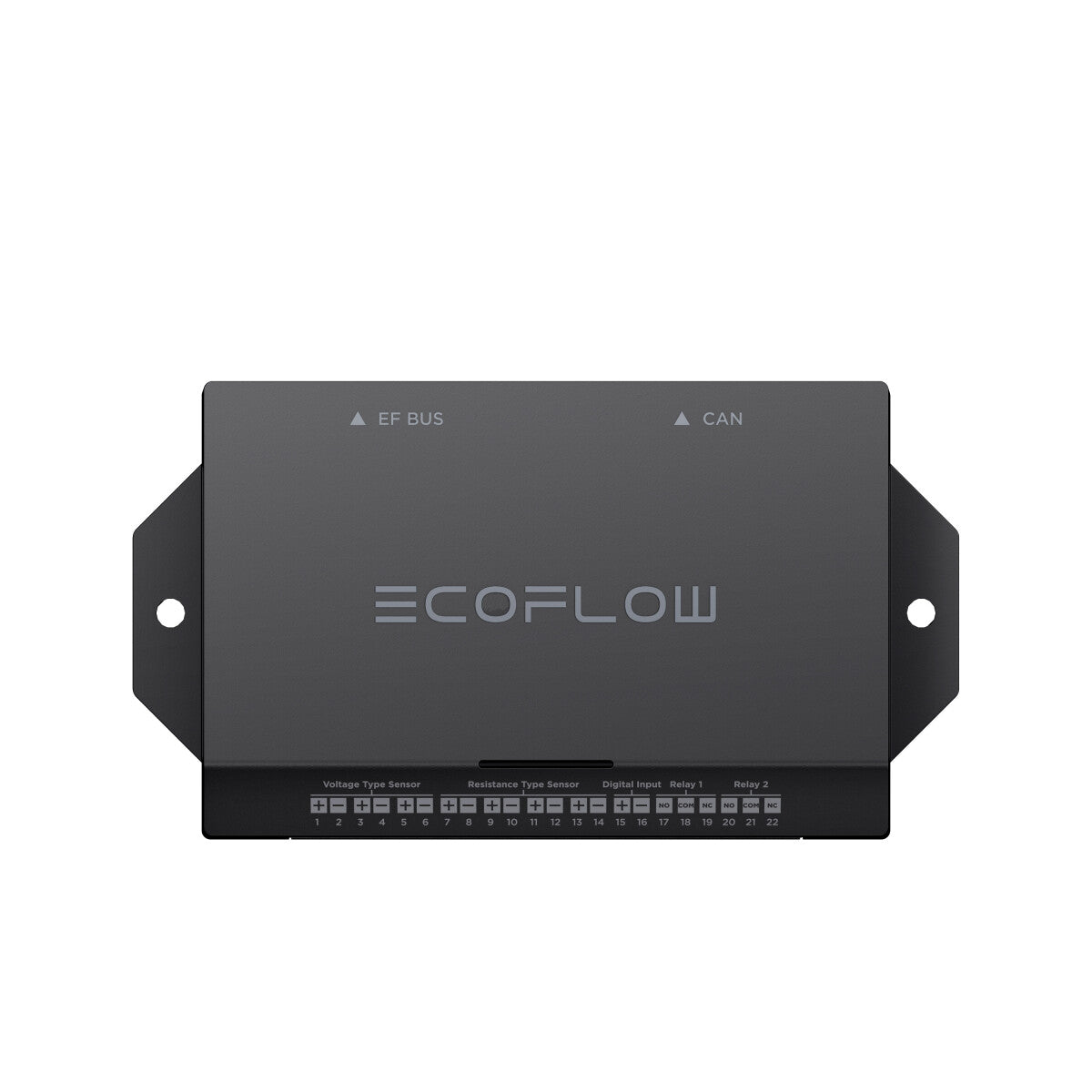

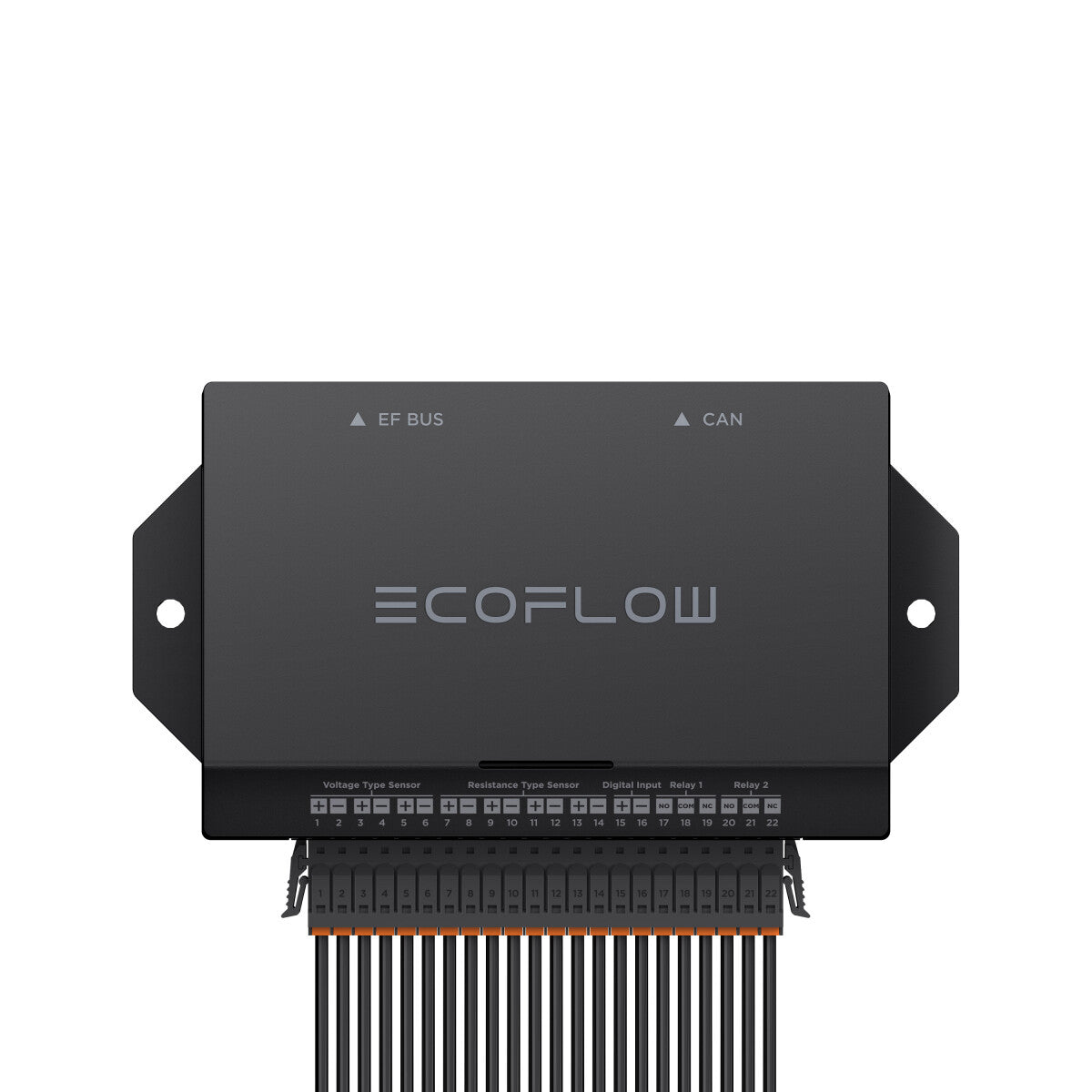

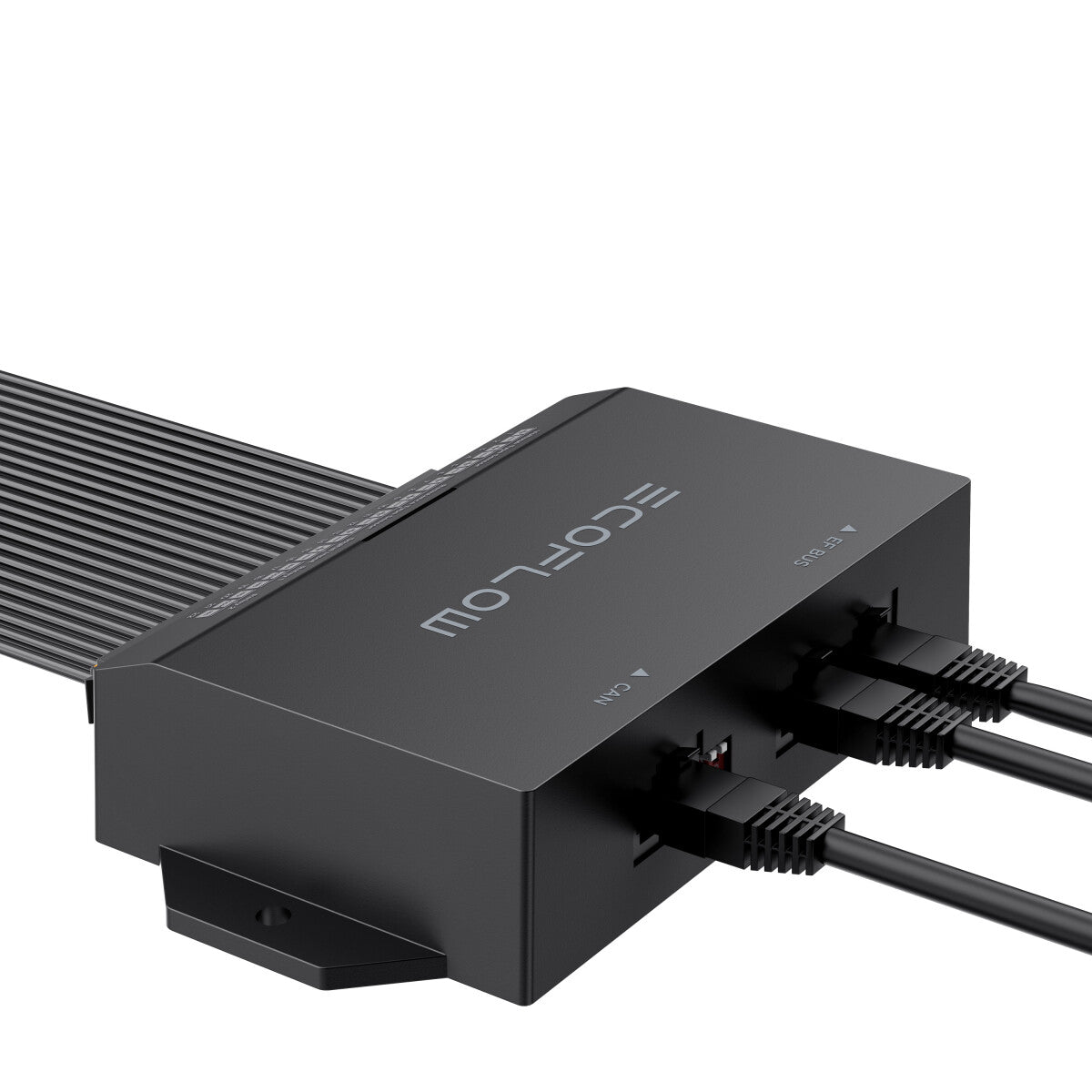

EcoFlow Power Link

EcoFlow Power Link – Smart Sensor Integration for Power Kit Systems

The EcoFlow Power Link is the central connection element for all measurement and switching processes within your EcoFlow Power Kit system. It connects voltage, resistance, and temperature sensors as well as user-defined relays with the Power Kit Console, EcoFlow PowerInsight, or the EcoFlow App – for centralized, clear control and real-time monitoring of your power system in an RV, caravan, or boat.

Unlike complex systems from other providers, the Power Link impresses with its simple plug-and-play integration. Calibrations and configurations can be conveniently performed via software – without additional special tools or lengthy setup.

Optimized for EcoFlow Power Kits

• Compatible with EcoFlow Power Hub 3.6 kW and 5 kVA
• Seamless connection with PowerInsight, Power Kit Console, and EcoFlow App
• Easy integration into RV, caravan, and boat installations

Performance Features at a Glance:

• 3x inputs for voltage sensors (0–35 V)
• 3x inputs for resistance sensors (10 Ω – 100 kΩ)
• Support for 4-wire RTD level sensors
• 1x digital input, 2x relay outputs (max. 42.4 V / 1.75 A)
• Hidden terminal block for secure and clear connection
• Up to 2 Power Links can be connected to one Power Hub

Technical Data:

• Dimensions: 74 x 137 x 31 mm
• Weight: 0.12 kg
• Operating Temperature: -25 °C to 50 °C
• Storage Temperature: -25 °C to 70 °C
• Protection Class: IP20
• Warranty: 5 years

With the EcoFlow Power Link, you always maintain control over your self-sufficient energy system – precisely, efficiently, and conveniently. Ideal for anyone who wants to intelligently and easily network modern technology in their mobile home.
