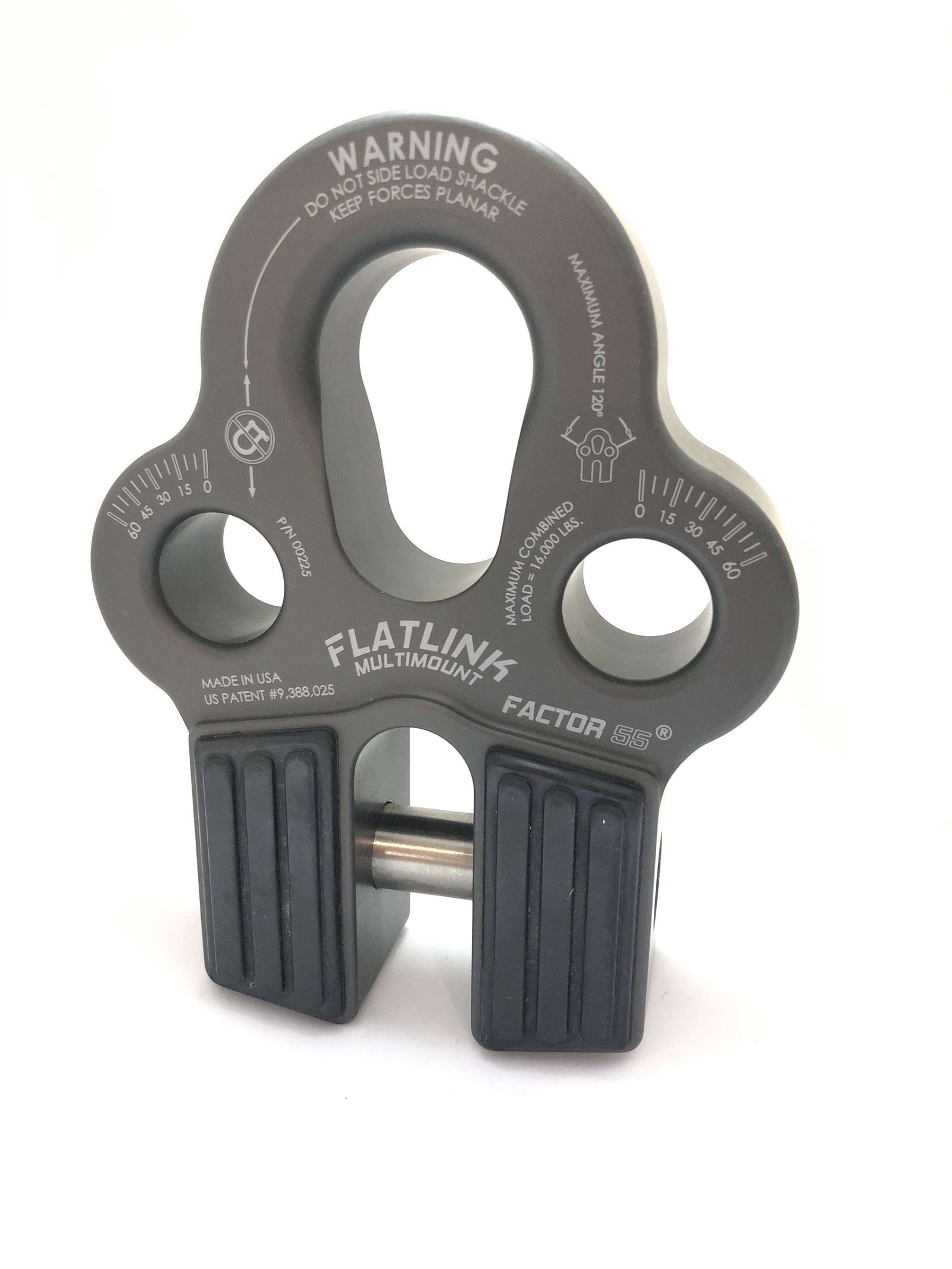

"FACTOR 55" FLATLINK MULTIMOUNT WINCH SHACKLE MOUNT, GRAY

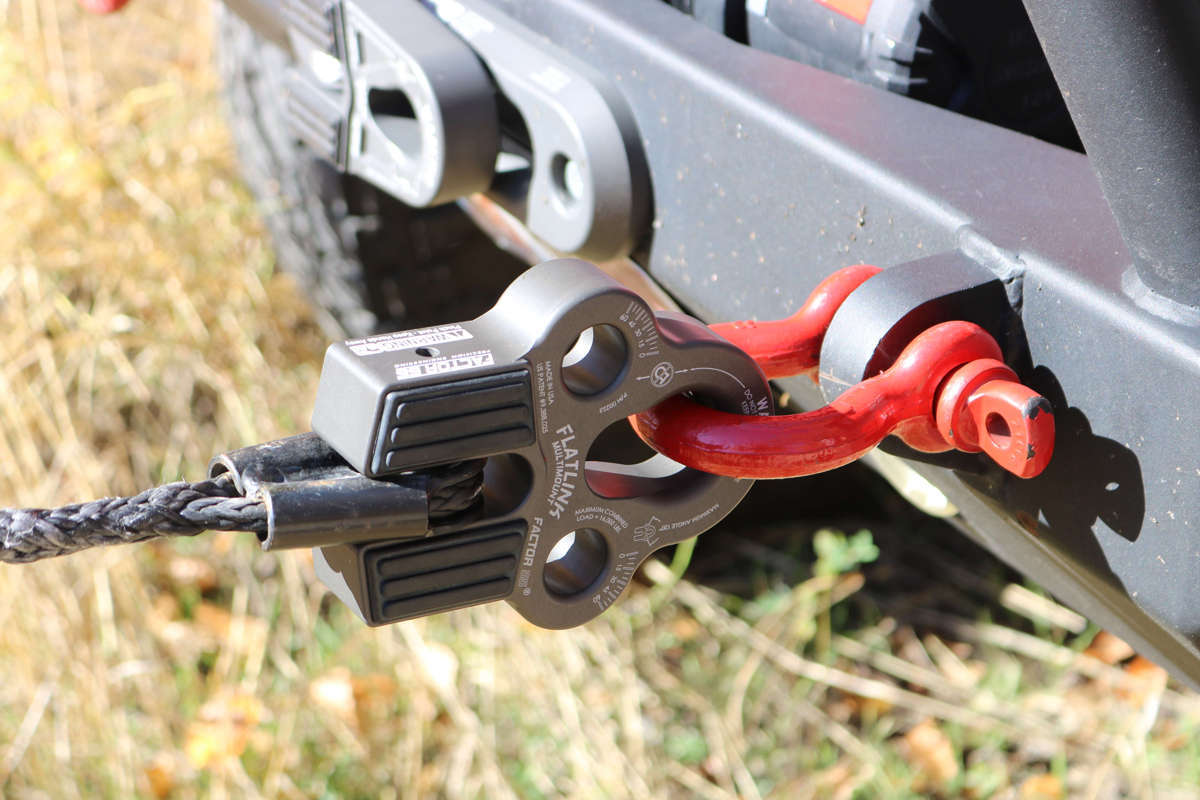

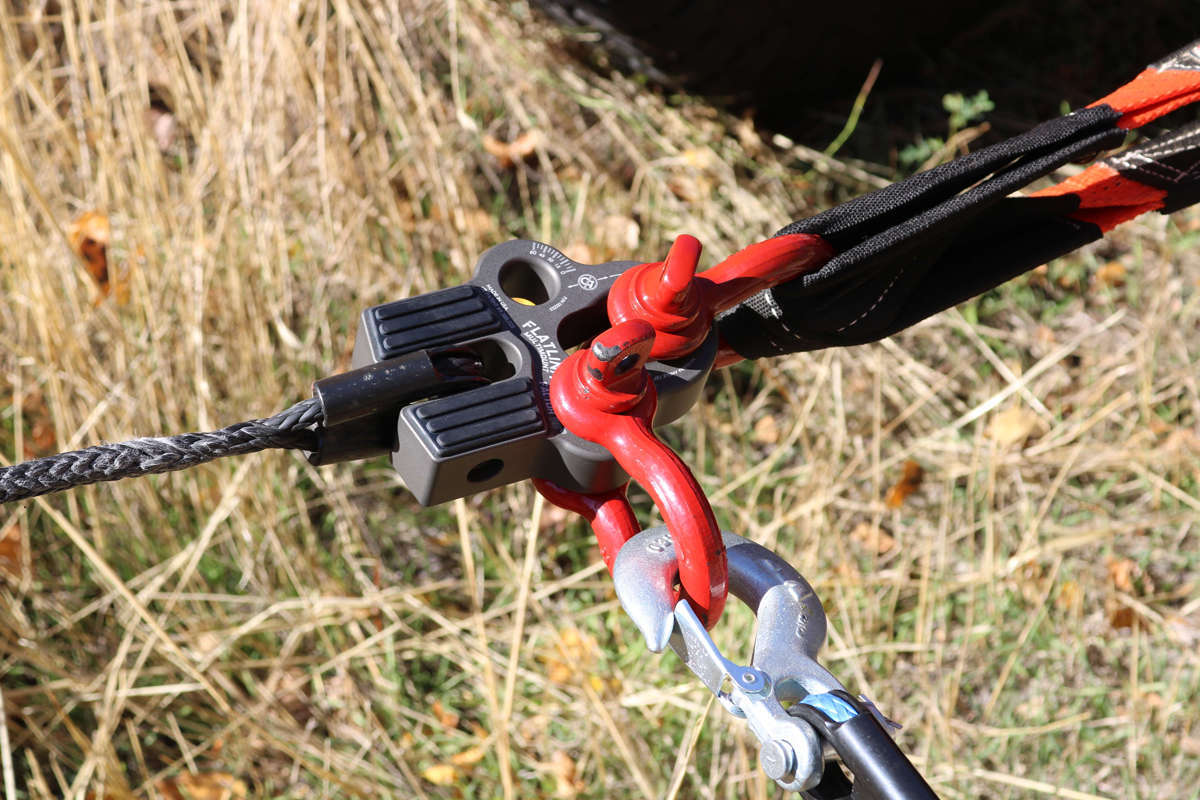

FlatLink MultiMount was developed for difficult recovery scenarios with vehicles on an incline, which often require two different winch pull directions. The two additional shackle pin mounting holes provide secure shackle attachment points for multiple winch pull directions, while the center hole provides a secure conventional attachment point for the center pull shackle. This arrangement eliminates all lateral loading forces of the shackles at the Multimount interface (the shackles can rotate freely and align with the direction of the load).

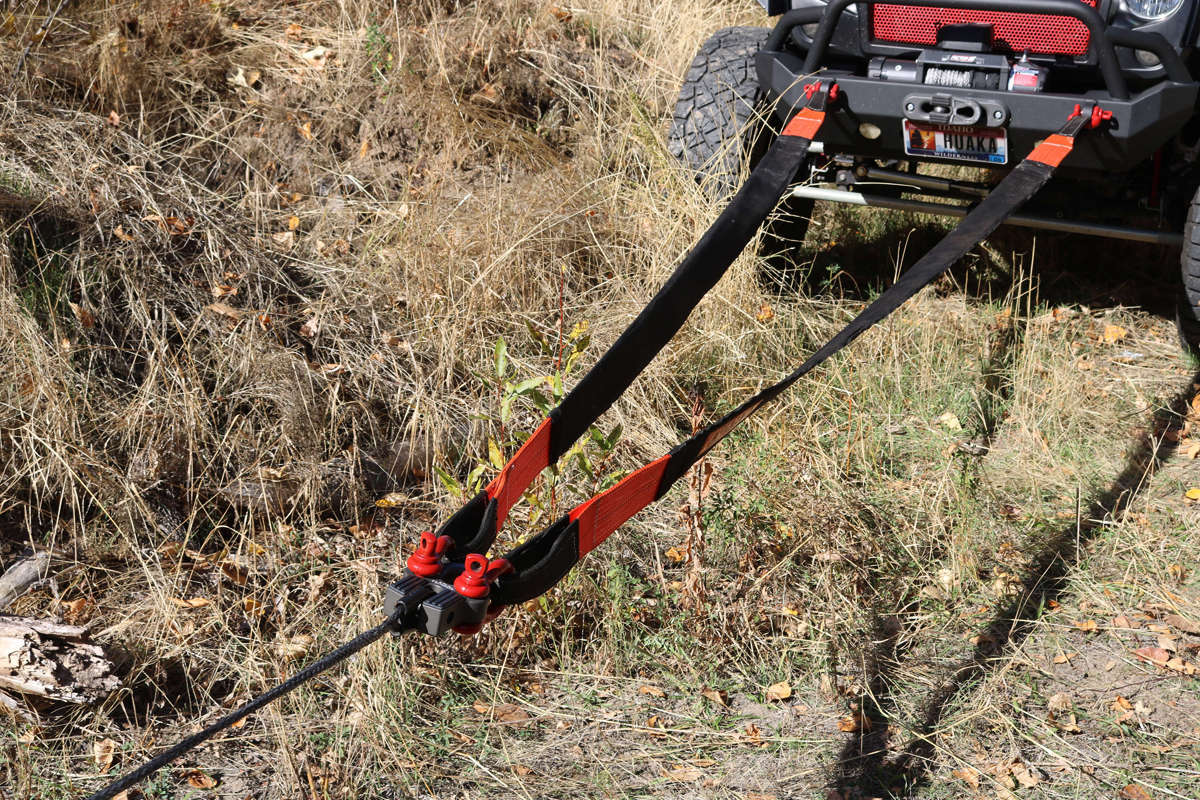

By using the two outer shackle pin mounting holes in combination with the recovery gear, it is also possible to work with different anchor points. Similar to the rest of the FlatLink product line, the MultiMount can be folded flat against the fairlead surfaces when stowed, resulting in minimal impact on the vehicle's approach angle. Designed, tested, and manufactured in the USA.

Product Specifications:

• Replace conventional winch hooks with a more secure shackle/D-ring

• Multiple anchor points in one

• Lightweight - Precision CNC-machined 6000 series aluminum

• No splicing required - dual titanium shear pin construction

• Suitable for both steel cables and synthetic winch ropes

• Integrated EPDM rubber bumpers to protect the fairlead

• Foldable - 1.75 inches thick (Compatible with all license plate mounts for rope fairleads)

• For rope diameters up to 3/8 inch

• Fits multiple 3/4'' screw-pin shackles

• Oval hole opening for connection to the pin or bow end of common ¾" screw-pin shackles

• Fits over most OEM tow hooks

• WARNING: Keep forces in line. DO NOT SIDE LOAD SHACKLES

• Available in military-spec anodizing (Mil-A-8625 F Type III), gray and powder-coated

• 5/8" diameter 6AI-4V Titanium dual shear pin

• Maximum Load: 7,257 kg

• Maximum Strength: 18,143 kg

• Weight: 0.85 kg
