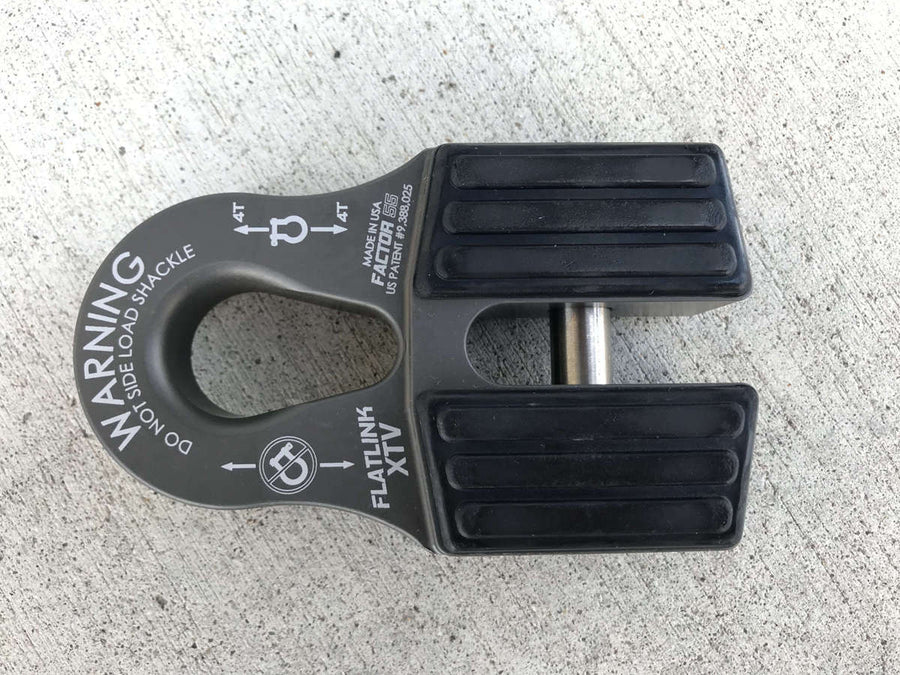

"FACTOR 55" FLATLINK XTV (ATV and UTV) WINCH SHACKLE MOUNT, GRAY

The "FlatLink XTV" allows UTV and ATV winch owners to replace the traditional winch hook with a safer and stronger shackle/D-ring. Winch hooks can cut and fray recovery straps, and the strap ends can often escape during the typical loosening and tensioning cycles of a winch recovery. Screw-pin shackles, due to their secure screw-pin fastening, do not allow strap loops to escape. The "FlatLink XTV" does not require splicing and is compatible with steel cables or synthetic ropes up to 5/16 inch. The rope eye is held in the "FlatLink XTV" by a double 7/16 inch diameter titanium shear pin and an internal circlip. It is easy to install in minutes. The EPDM rubber guard protects the aluminum fairlead and is securely attached to the "FlatLink XTV" with 4 barbs. The "FlatLink XTV" is compatible with both aluminum and roller fairleads and is designed for use with ½ - 5/8 inch standard shackles.

Product Specifications

• Precision machined from 6000 series aluminum and 6Al-4V titanium

• Weight - 0.36 kg

• Maximum working load limit: 2,721 kg

• Breaking strength: 12,700 kg

• Suitable for steel and synthetic winch ropes up to 5/16 inch diameter

• EPDM rubber guard protects alloy fairleads and cushions the line storage area

• Easy removal of circlip for shear pin

• Oval hole opening for connection to the pin or bow end of ½ or 5/8 screw-pin shackles/D-rings

• Oval hole opening for connection to the pin ends of 3/4 screw-pin shackles/D-rings

• Prevents hook rattle and damage to the fairlead
