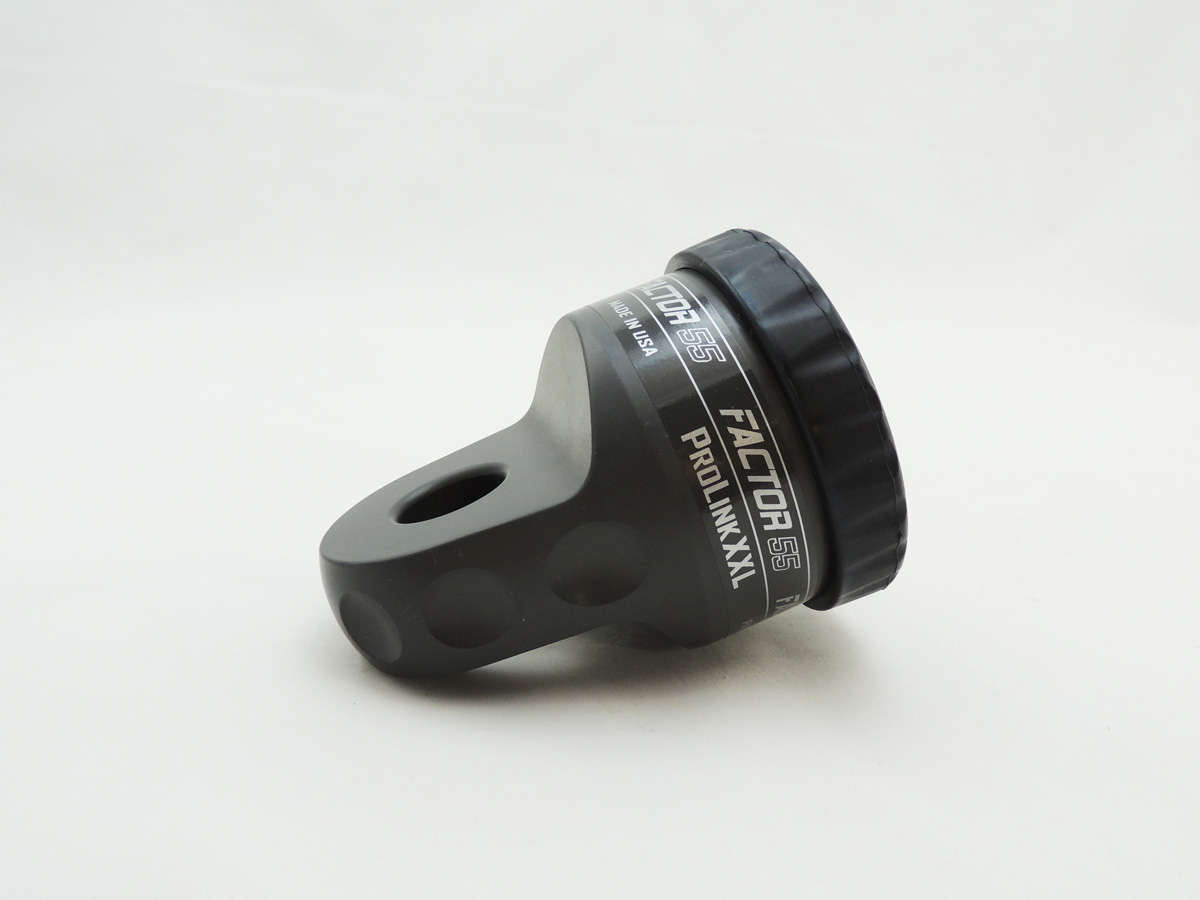

"FACTOR 55" PROLINK XXL WINCH SHACKLE MOUNT, GRAY

The Factor 55 ProLink XXL is the largest and strongest ProLink winch shackle in production. The ProLink XXL provides winch owners with a way to replace the conventional winch hook with a safer and stronger screw pin shackle/D-ring. Originally designed for 24,000lb military winch applications, the ProLink XXL is now available to the general public.

Like all ProLink family models, the XXL model is made in the USA from 6000 series aluminum and features a titanium double shear pin. In this case, the shear pin diameter is 0.750 inches. The base of the XXL is protected by a high-strength barbed EPDM rubber guard. With a working load limit of 24,000 pounds and a breaking strength of over 63,000 pounds, the Prolink XXL is definitely up to the task.

The XXL is compatible with wire ropes and synthetic ropes up to ½ inch in diameter. The XXL is also compatible with conventional ¾-inch shackles as well as larger 7/8-inch shackles. Like other ProLink products, the XXL is available in 5 anodized/powder-coated colors - black, silver, gray, red, and blue.

Product Specifications

• MADE IN USA

• Kaiser 6000 Series Billet Aluminum

• 0.750 inch diameter titanium double shear pin

• 5 inches high and 4 inches in diameter

• 24,000 lb working load limit

• Breaking strength of more than 63,000 lbs

• Fits all wire ropes and synthetic ropes up to ½ inch in diameter

• Simple snap ring shear pin attachment
