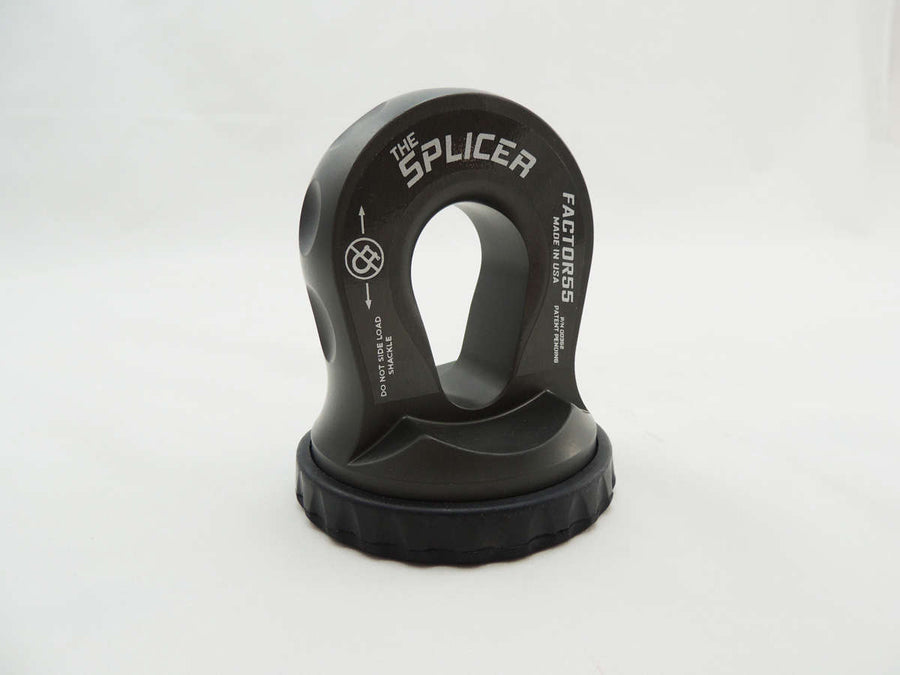

"FACTOR 55" SPLICER 3/8-1/2" SYNTHETIC ROPE SPLICE-ON SHACKLE MOUNT, GRAY

The world's first splice thimble for synthetic rope shackles with rope protection and an integrated rubber bumper.

The unique machined rope passage provides a robust outer barrier to protect against rope impact and abrasion, as well as UV radiation. Compatible with synthetic ropes up to 1/2" diameter.

NOTE: Unlike the Factor 55 ProLink and Flatlink shackle mounting products, the Splicer requires knowledge of splicing synthetic ropes. We recommend either the "locking Brummel splice" or the "Long Bury splice." Many video tutorials for splicing ropes are available online.

WLL: Due to the splice design, the Working Load Limit (WLL) is based on the diameter of the rope used. Each Splice-On Shackle Mount exceeds the minimum bend radius requirements to ensure the full breaking strength of the synthetic winch ropes used.

Product Specifications

• Replace conventional winch hooks with a safer shackle/D-ring

• The industry's first splice thimble for winch ropes with impact and UV protection

• Unique machined rope path provides complete rope protection

• Secure recoveries through Closed System Winching

• Lightweight - Precision CNC machined military-grade 6000 series aluminum

• For synthetic winch ropes only

• Integrated EPDM rubber pad to protect the fairlead

• Connects to both the pin and bow ends of common ¾" screw-pin shackles

• For connecting to the pin ends of 7/8" and 1" screw-pin shackles

• For synthetic winch ropes up to ½" diameter

• Available in military specification hard anodized (Mil-A-8625 F Type III) and powder-coated finishes

• Weight: 0.70 kg
