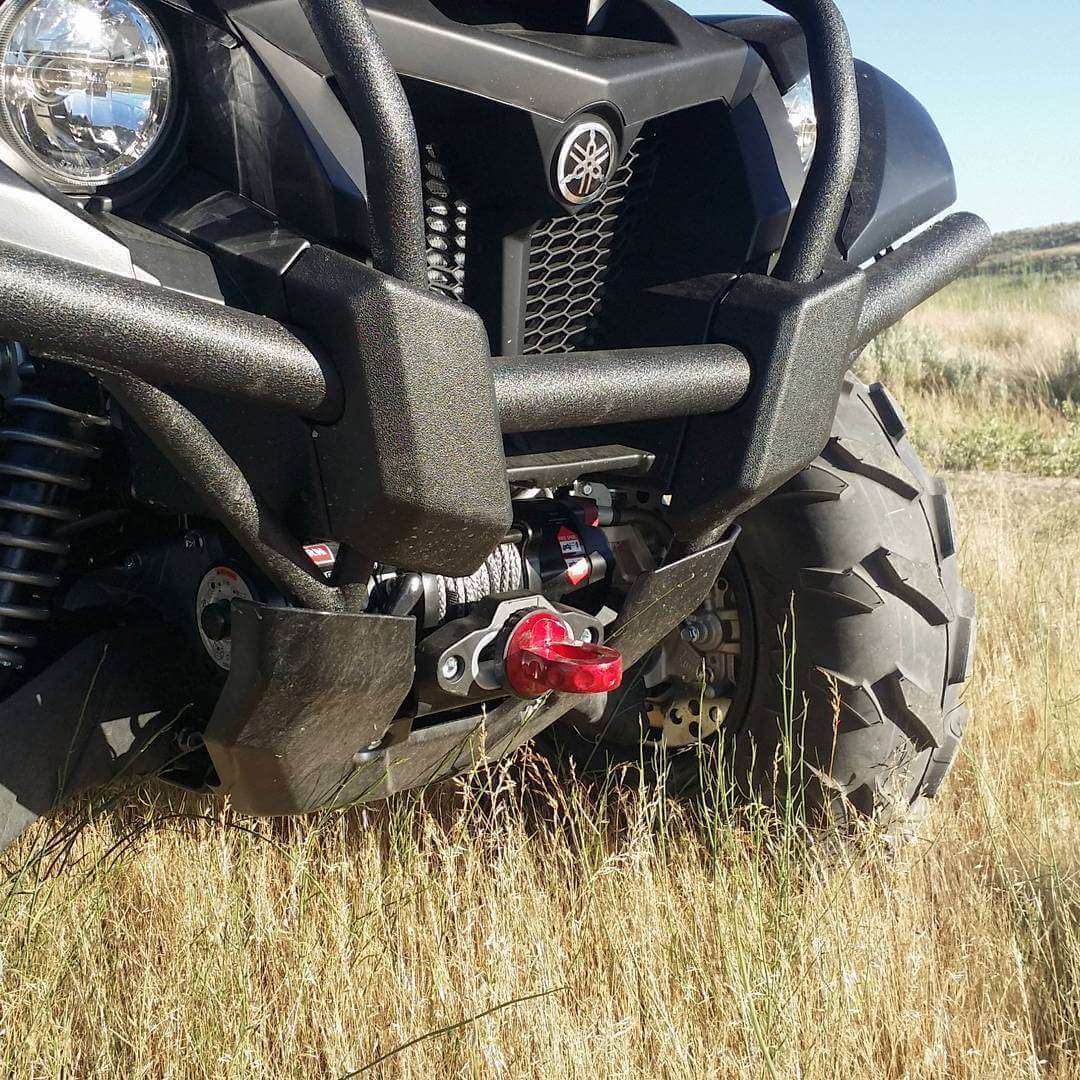

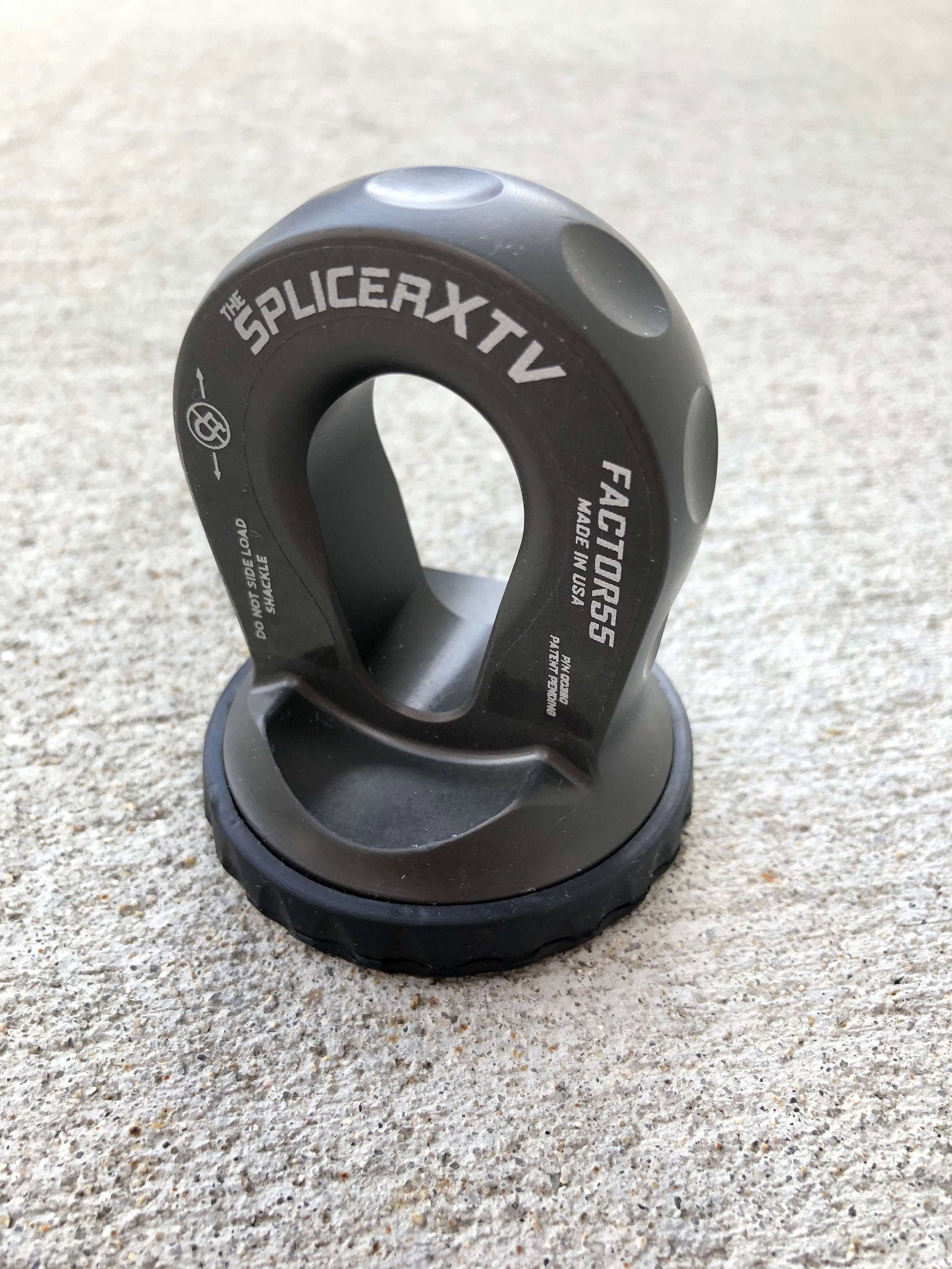

"FACTOR 55" SPLICER XTV 3/16-1/4" SYNTH. ROPE SPLICE-ON SHACKLE MOUNT, GRAY

The SPLICER XTV Splicing Thimble for UTV/ATV Winches. The world's first splicing thimble for synthetic rope shackles with rope protection and integrated rubber pad for UTV/ATV. The unique machined rope passage provides a robust outer barrier to protect against rope impact and abrasion as well as UV radiation.

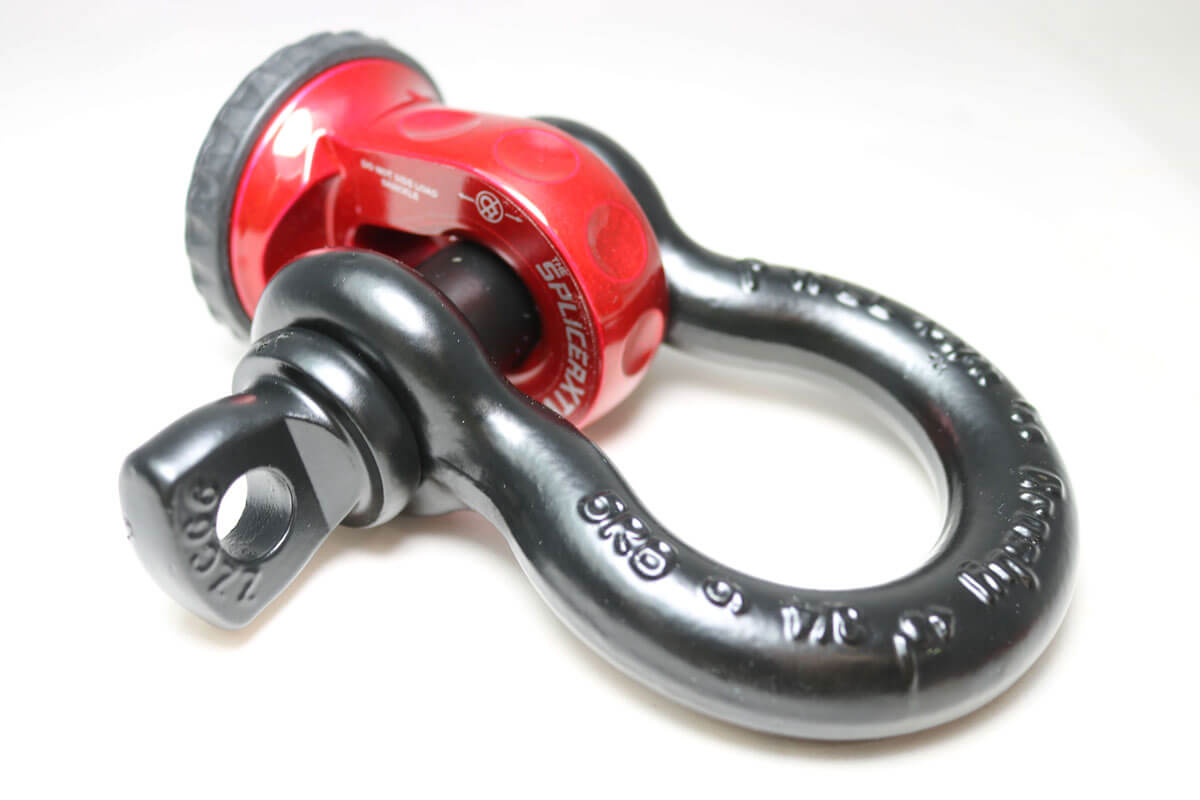

• Fits both the pin and the bow end of common 1/2 and 5/8 screw pin shackles

• For connecting to the pin end of conventional 3/4 shackles

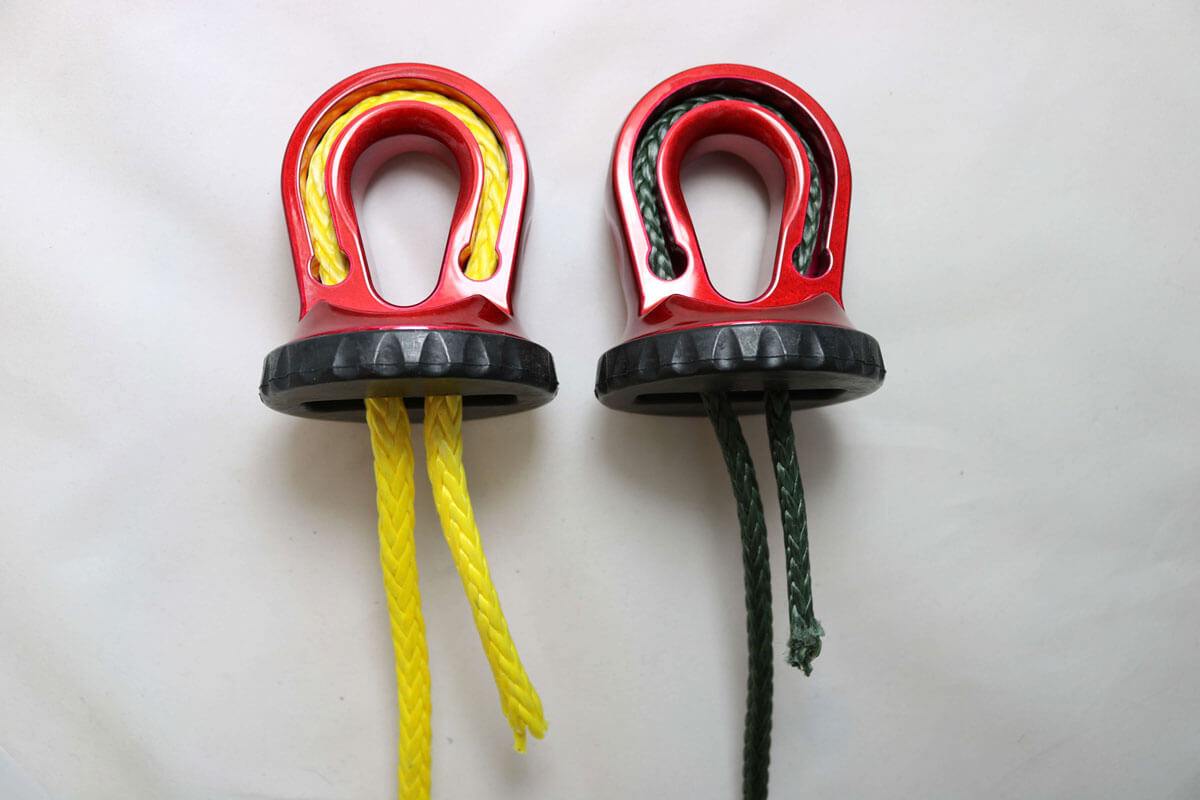

• For synthetic ropes up to 5/16 inch diameter.

• Weight: 0.4 kg


NOTE: Unlike the Factor 55 ProLink XTV and UltraHook XTV shackle mounting products, the Splicer XTV requires knowledge of splicing synthetic rope. We recommend either the locking Brummel splice or the long bury splice. There are many video tutorials for splicing rope online.

WLL: Due to the splice design, the Working Load Limit (WLL) is based on the rope diameter used. Each Splice-On Shackle Mount exceeds the minimum bend radius requirements to ensure the full breaking strength of the synthetic winch ropes used.
