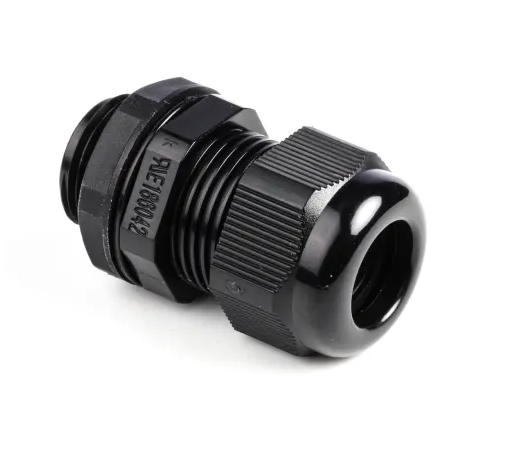

Cable Gland M20, Black, IP68
Cable Gland M20, Black, IP68
SKU:WS202-9000
Couldn't load pickup availability
M20 Cable Gland
M20 cable gland with metric thread, offering excellent strain relief and cable protection.
Cable glands allow for the installation of a cable in a pre-drilled hole. Cable glands are commonly used in construction and by electrical engineers and are easy to use. Each cable gland is rated IP68 to ensure that the cable protection is extremely resistant to outdoor and other harsh environments. All models are highly reliable and of excellent quality.
Cable glands are standard cable entries. They are a practical accessory to ensure a good seal and complete protection from the area into which the cable is inserted. They are simply screwed into an existing threaded hole or socket. The wire, which continues to seal the wall or housing, is then guided through the carefully dimensioned bore. These special cable glands comply with IP68 and offer excellent indoor and outdoor use.
| Technical Data | M20 Cable Gland |
| Thread Size | M20 |
| Max. Cable Diameter | 14 mm |
| Min. Cable Diameter | 10 mm |
| Internal Thread Diameter | 15 mm |
| External Thread Diameter | 20 mm |
| Protection Class | IP68 |
