OSRAM LED BAR Headlight FX1000-CB SM GEN 2, 12/24V

Item no.: TR36-3LEDDL114-CB
€444,95
Available again soon
🇩🇪 Ships from Germany
14-day returns
💬 Advice
Attention REF. No. 100!

Perfect visibility on dark forest paths and country roads ensures greater safety on the roads and off-road. A range of up to 635 meters is made possible by 40 high-performance LEDs. During limited light conditions and at dusk, the powerful 6000 Kelvin provide a daylight-like light perception.
The combination of high-quality workmanship and extremely lightweight, yet robust materials ensures a long service life.
The headlight has been tested in a DIN-certified environmental simulation laboratory for extreme external influences, such as dust, water, shocks, heat, cold, and continuous vibration. Accordingly, the IP protection classes IP6K8, IP6K9 were confirmed.

OSRAM's LED work and auxiliary lights offer the most sophisticated LED technology on the market. Attention: High beam and fog lights must be installed in pairs (except "Singlemount").

The manufacturer OSRAM provides a 5-year warranty on LED work and auxiliary lights.
The warranty conditions, scope of application, and manufacturer's address(es) can be found at:
www.osram.de
Your statutory warranty rights remain unaffected.

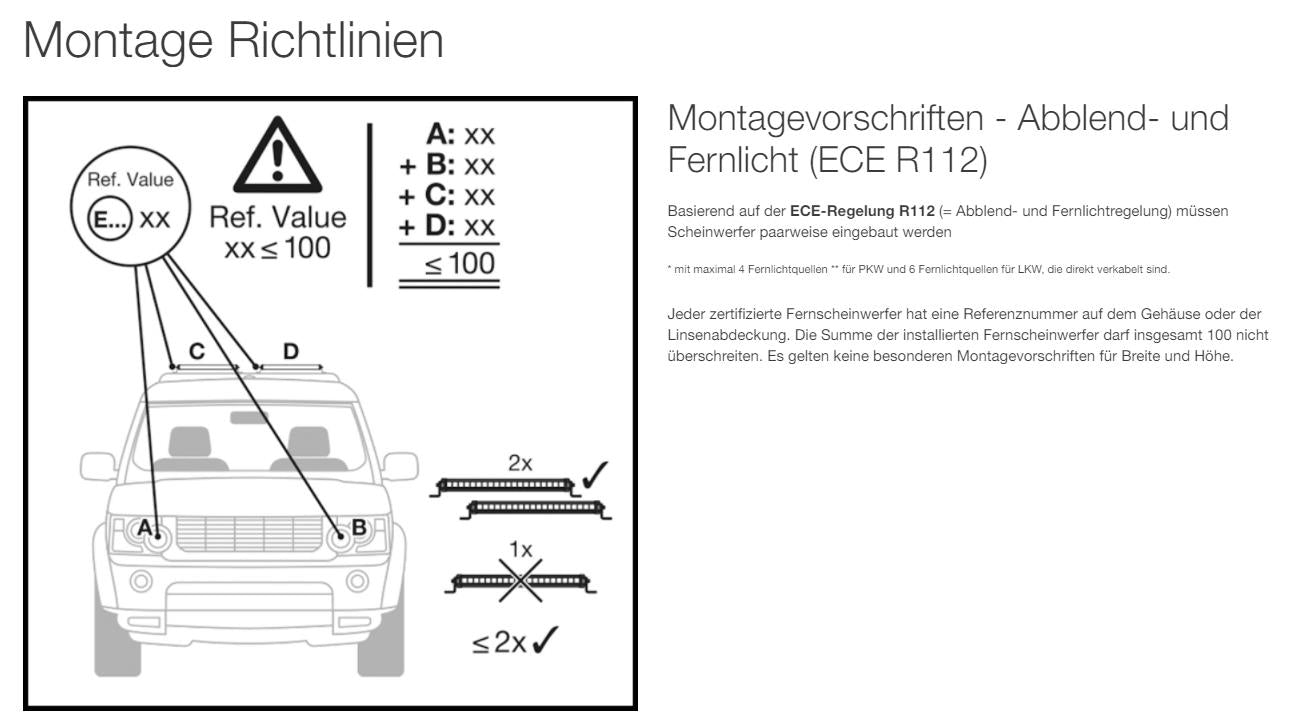

Attention! Please note:
Every certified headlight has a reference number (abbreviated as REF. NO. in our texts). This is located directly on the lens cover or housing. The sum of all reference numbers of the headlights installed on the vehicle (original + auxiliary lights) must not exceed 100.

Specifications

  • Artikelnummer: LEDDL114-CB SM
  • Ausführung: CB/SM = Combo/single mount
  • Maße: 1074x54x83
  • Gewicht: 3840 g
  • Nennspannung: 12/24 V
  • Nennleistung: 140,00 W
  • Prüfspannung: 13,5 V
  • Lichtstrom: 8000 lm
  • Farbtemperatur: 6000 K

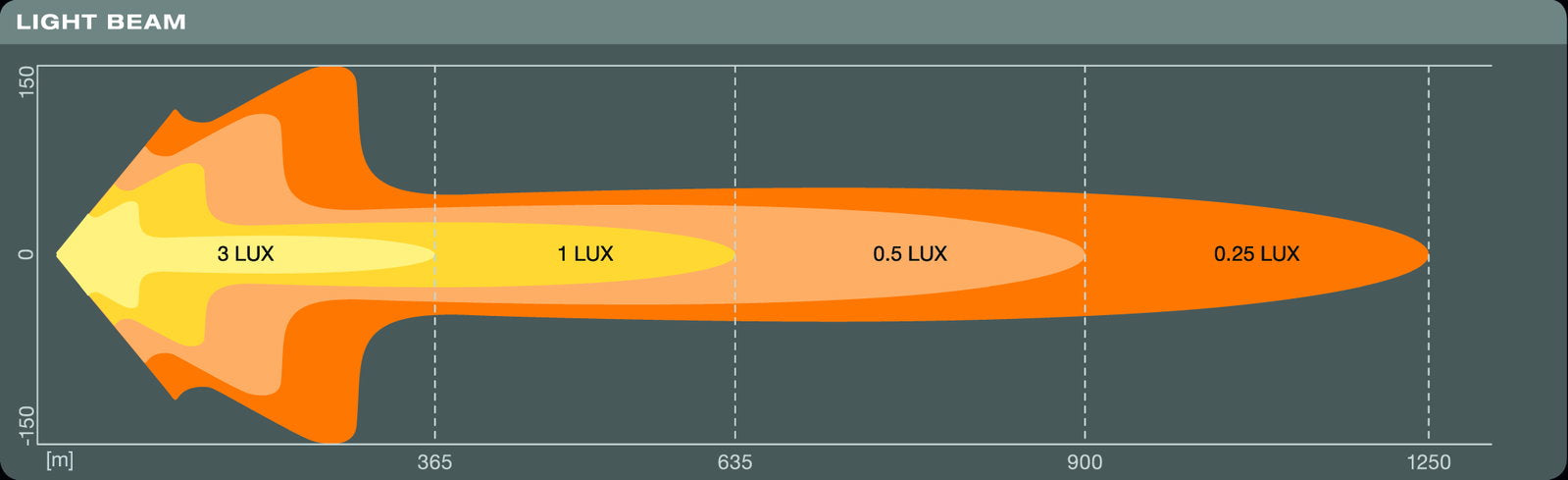

  • Light distance at 1lx [PIM]: 635 m
  • Lebensdauer: 5000 h
  • Anschluss zur Lampe: Kabelverbindung
  • Technologie: LED
  • Normen: ECE R10, R112
  • Prüfzeichen-Zulassung: E4-Zulassung
  • Schutzart: IP69K
  • Referenznummer: 50 + 50
Product safety (GPSR)

Safety notices

Sicherheitshinweise gemäß GPSR
Lesen Sie vor der Benutzung sorgfältig die Bedienungs- bzw. Anbauanleitung.
Vorsicht: Elektrische Spannung.
Achtung: Heiße Oberfläche - Verbrennungsgefahr.
Achtung nicht im Rauschzustand verwenden.
Vorsicht vor scharfen und spitzen Gegenständen - Verletzungsgefahr.
Kein Spielzeug - nur sachgerecht verwenden!
Achten Sie auf eine sichere Umgebung.

Manufacturer contact

Hersteller & EU Verantwortlicher:
Osram GmbH
Marcel-Breuer-Straße 4
D 80807 München
Mail: contact@osram.com
