OSRAM LED BAR Headlight VX1000-CB SR SM, 12/24V, Singlemount
Item no.: TR36-3LEDDL135-CB
€355,95
Available again soon
🇩🇪 Ships from Germany
↺ 14-day returns
💬 Advice

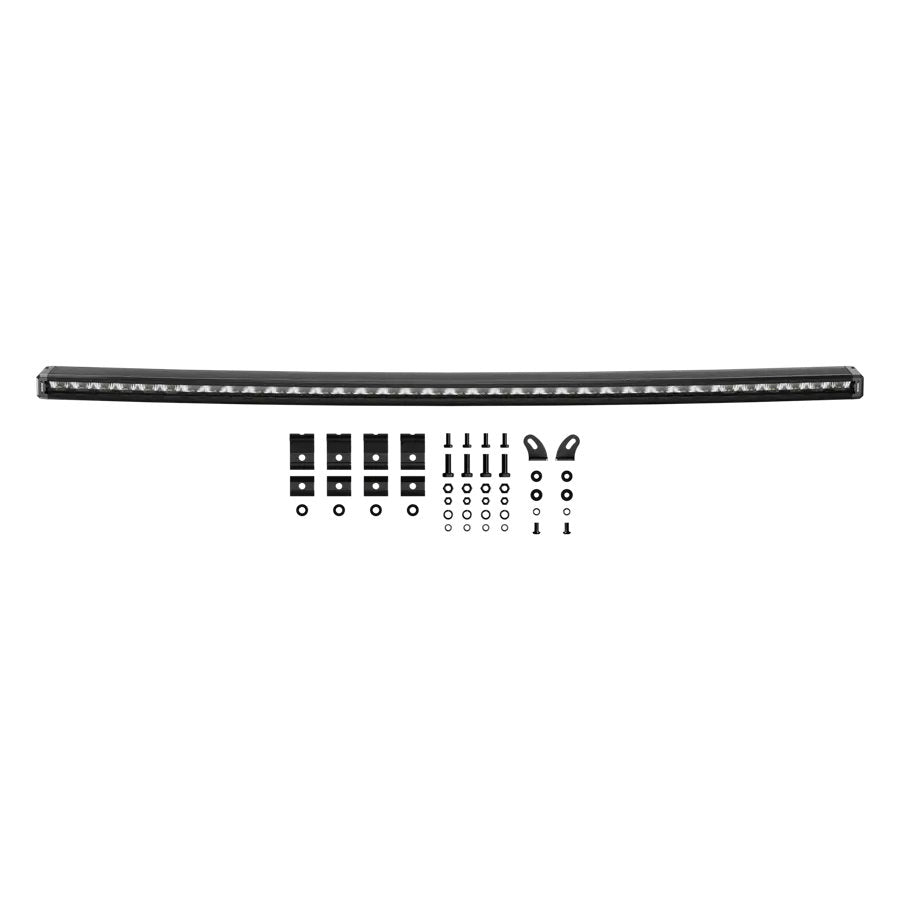

The LEDriving Curved Lightbar VX1000-CB SR SM offers a powerful and versatile lighting solution for long-range and close-range illumination. With 36 high-performance OSRAM LEDs, it achieves an effective luminous flux of 7650 lumens and enables a visibility range of up to 525 meters. Its curved design harmoniously adapts to the vehicle's lines, giving the vehicle a modern appearance. Even in difficult lighting conditions, the light color of up to 6000 Kelvin ensures visibility that is almost daylight-like. The lightbar is approved for single mounting (2x ECE R149), complies with protection classes (IP6K8 and IP6K9K), and features a robust die-cast aluminum housing with a slim, single-row design. The included brackets allow for flexible mounting at various positions on the vehicle, even on curved surfaces such as bumpers, grilles, or windshields.
OSRAM LED work and auxiliary lights offer the most sophisticated LED technology on the market. Please note: High beams and fog lights must be installed in pairs (except for "single mount").
The manufacturer OSRAM grants a 5-year warranty on LED work and auxiliary lights.
The warranty conditions, scope of application, and manufacturer's address(es) can be found at:
www.osram.de
Your statutory warranty rights remain unaffected.
Attention! Please note:
Every certified headlight has a reference number (abbreviated as REF. NO. in our texts). This is located directly on the lens cover or housing. The sum of all reference numbers of the headlights installed on the vehicle (original + auxiliary headlights) must not exceed 100.
OSRAM LED work and auxiliary lights offer the most sophisticated LED technology on the market. Please note: High beams and fog lights must be installed in pairs (except for "single mount").
The manufacturer OSRAM grants a 5-year warranty on LED work and auxiliary lights.
The warranty conditions, scope of application, and manufacturer's address(es) can be found at:
www.osram.de
Your statutory warranty rights remain unaffected.
Attention! Please note:
Every certified headlight has a reference number (abbreviated as REF. NO. in our texts). This is located directly on the lens cover or housing. The sum of all reference numbers of the headlights installed on the vehicle (original + auxiliary headlights) must not exceed 100.
Specifications
- Artikelnummer: LEDDL135-CB SR
- Ausführung: CB = Combo
- Maße: 1109x67x35mm
- Gewicht: 3100,00 g
- Nennspannung: 12/24 V
- Nennleistung: 108 W
- Prüfspannung: 13,2 V
- Lichtstrom: 10100 lm
- Farbtemperatur: 6000 K
- Light distance at 1lx [PIM]: 385
- Lebensdauer: 5000 h
- Anschluss zur Lampe: DT Connector
- Technologie: LED
- Normen: ECE R149
- Prüfzeichen-Zulassung: E57-Zulassung
- Schutzart: IP6K8, IP6K9K
- Referenznummer: 30+30
