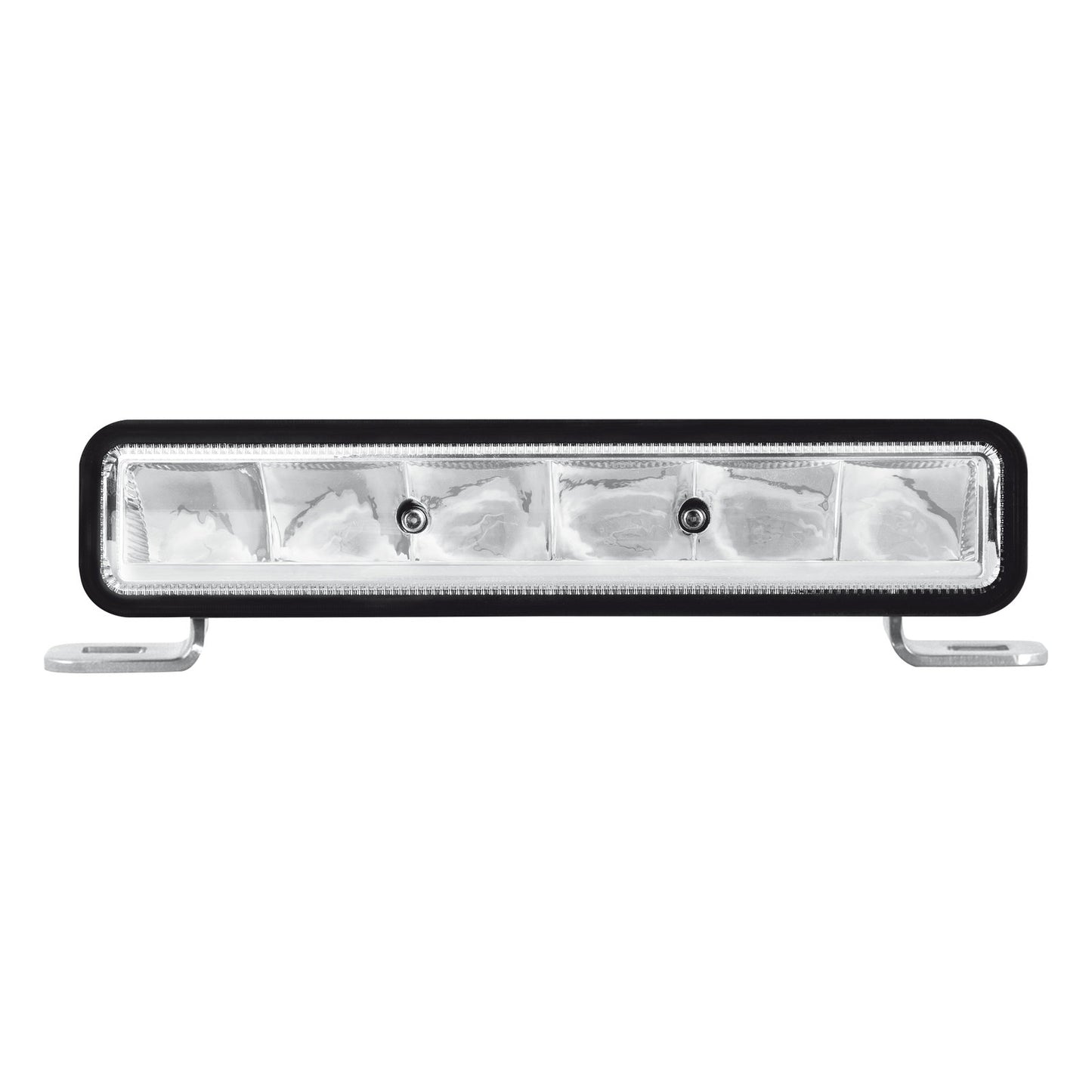

OSRAM LED Driving Light SX180-SP 12/24V, 1300 Lumens, 14W, Spot, REF. NO 10

Item no.: TR36-3LEDDL105-SP
€89,95
🇩🇪 Ships from Germany
14-day returns
💬 Advice
For more road safety on the road, but also particularly on dirt and forest paths, the auxiliary headlight provides an extra boost. Poor visibility is improved by the LEDriving Lightbar SX180-SP.
The spotlight achieves a light beam of up to 190 meters.
The very high optical efficiency with uniform light distribution is guaranteed by the smart reflector design.
In addition to the excellent light output, the visual feature must not be forgotten. The LED headlight brings out the off-road style of the vehicle.
Thanks to its certified road approval, its use is not limited to off-road areas.

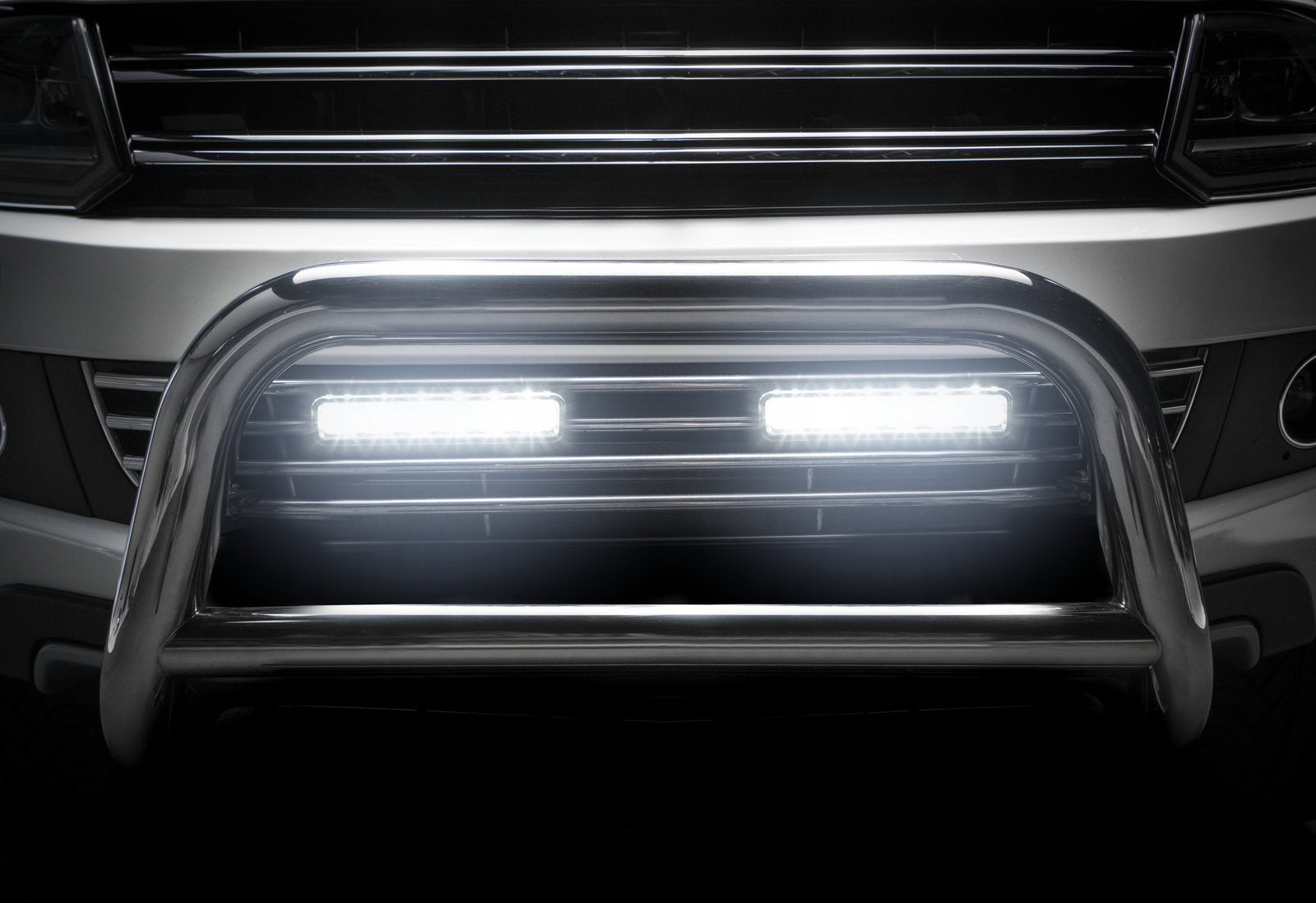

OSRAM's LED work and auxiliary lights offer the most sophisticated LED technology on the market. Please note: High beams and fog lights must be installed in pairs (except "Singlemount").

The manufacturer OSRAM grants a 5-year warranty on LED work and auxiliary lights.
The warranty conditions, scope of application, and manufacturer's address(es) can be found at:
www.osram.de
Your statutory warranty rights remain unaffected.

Attention! Please note:

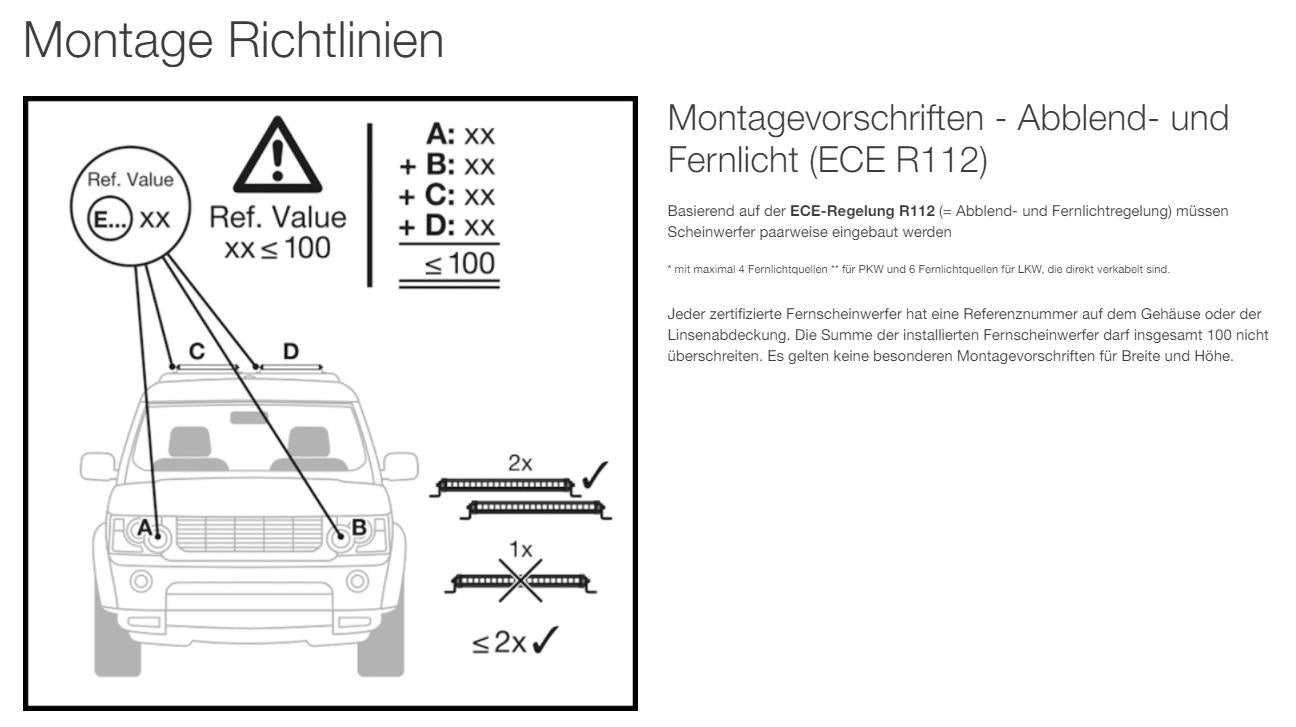

Every certified headlight has a reference number (abbreviated as REF. NO. in our texts). This is located directly on the lens cover or housing. The sum of all reference numbers of the headlights mounted on the vehicle (original + auxiliary headlights) must not exceed 100.

Specifications

  • Artikelnummer: LEDDL105-SP
  • Ausführung: SP = Spot

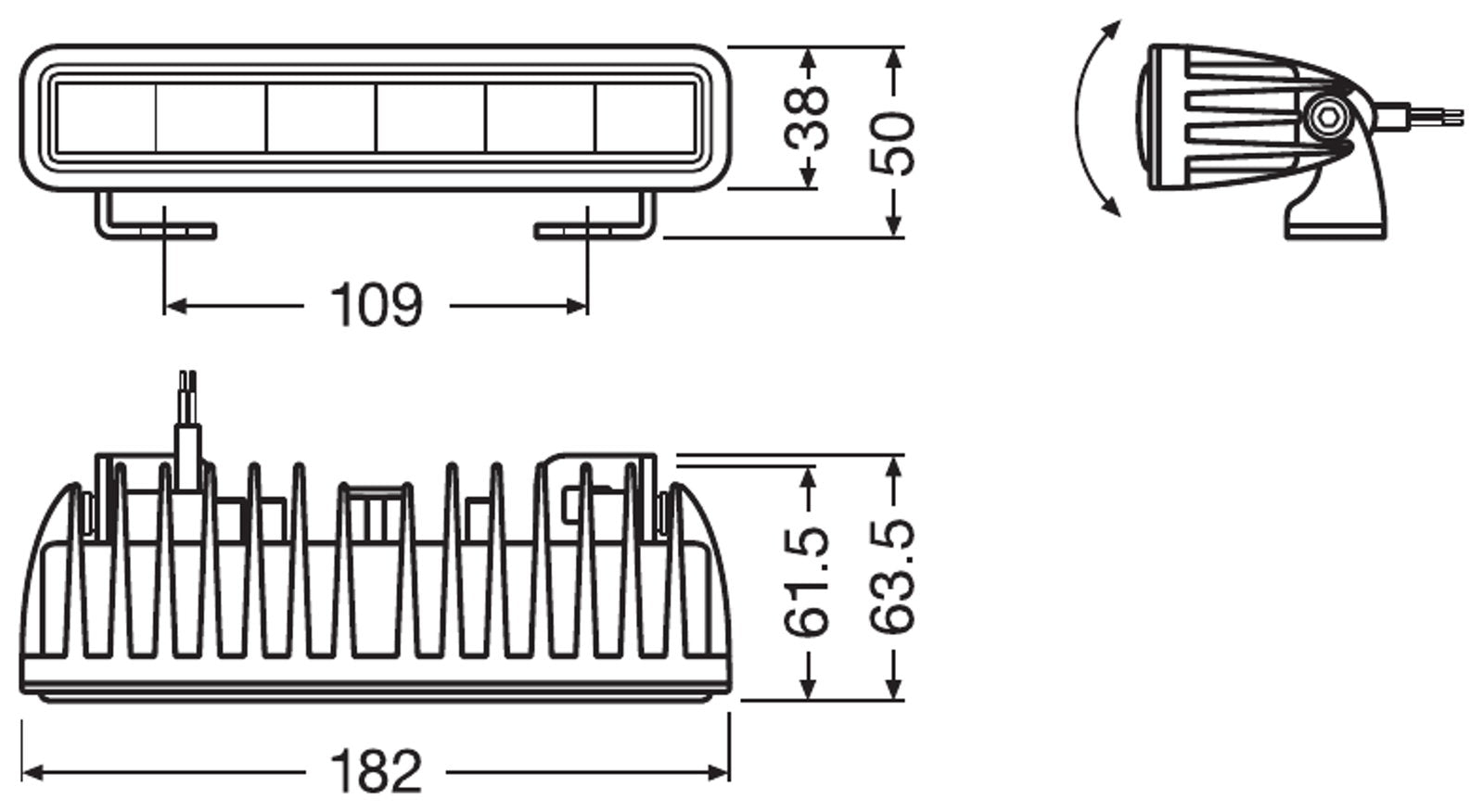

  • Maße: 182x62x38
  • Gewicht: 440,00 g
  • Nennspannung: 12/24 V
  • Nennleistung: 15 W
  • Prüfspannung: 13,5 V
  • Lichtstrom: 1300 lm
  • Farbtemperatur: 6000 K
  • Light distance at 1lx [PIM]: 190 m
  • Lebensdauer: 5000 h
  • Anschluss zur Lampe: DT Connector
  • Technologie: LED
  • Normen: ECE R10, R112
  • Prüfzeichen-Zulassung: E4-Zulassung
  • Schutzart: IP69K
  • Referenznummer: 10

Documents

Product safety (GPSR)

Safety notices

Sicherheitshinweise gemäß GPSR
Lesen Sie vor der Benutzung sorgfältig die Bedienungs- bzw. Anbauanleitung.
Vorsicht: Elektrische Spannung.
Achtung: Heiße Oberfläche - Verbrennungsgefahr.
Achtung nicht im Rauschzustand verwenden.
Vorsicht vor scharfen und spitzen Gegenständen - Verletzungsgefahr.
Kein Spielzeug - nur sachgerecht verwenden!
Achten Sie auf eine sichere Umgebung.

Manufacturer contact

Hersteller & EU Verantwortlicher:
Osram GmbH
Marcel-Breuer-Straße 4
D 80807 München
Mail: contact@osram.com
