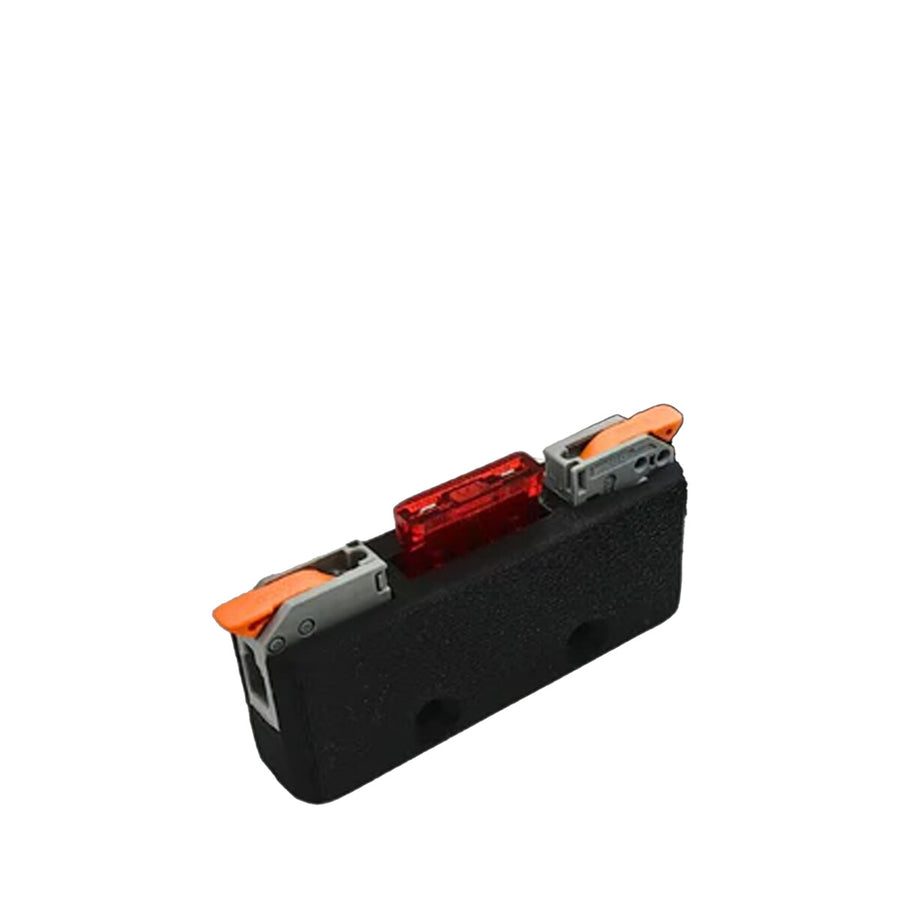

Pekaway FUSY Micro

Pekaway FUSY Micro – Compact Fuse Block with WAGO Lever Connectors

The Pekaway FUSY Micro is the smart alternative to classic fuse blocks with screw terminals. Instead of crimp connections, it relies on modern WAGO lever connectors, which allow for quick, secure, and tool-free installation. This makes the FUSY Micro particularly attractive for confined installation spaces such as under seats, in cabinets, or hard-to-reach technical areas.

Easy Installation – Reliable Connection

• No crimping necessary – simply insert the cable, close the lever, and you're done
• Secure spring-cage connection that holds reliably even with vibrations
• Quick replacement or rewiring possible at any time

Compact and Powerful

• 1 fuse channel (ATO-standard automotive fuse)
• Maximum current load: 30 A
• Suitable for cables up to 4 mm²
• Compatible with flexible cables, wire ferrules, and solid conductors

Safety Notes:

• Fusing should be done a maximum of 30 cm from the power source
• The continuous current load should not exceed 80% of the fuse value
• The fuse block must be screwed down for secure fastening

The FUSY Micro is ideal for use in caravans, vans, boats, cars, trucks, or expedition vehicles. Wherever space is limited and secure, time-saving wiring is required, this fuse block offers a modern solution – flexible, durable, and reliable.

Documents & Downloads

• FUSY Datasheet
