Pekaway FUSY Standard
Item no.: WS306-4101
€100,95
🇩🇪 Ships from Germany
↺ 14-day returns
💬 Advice

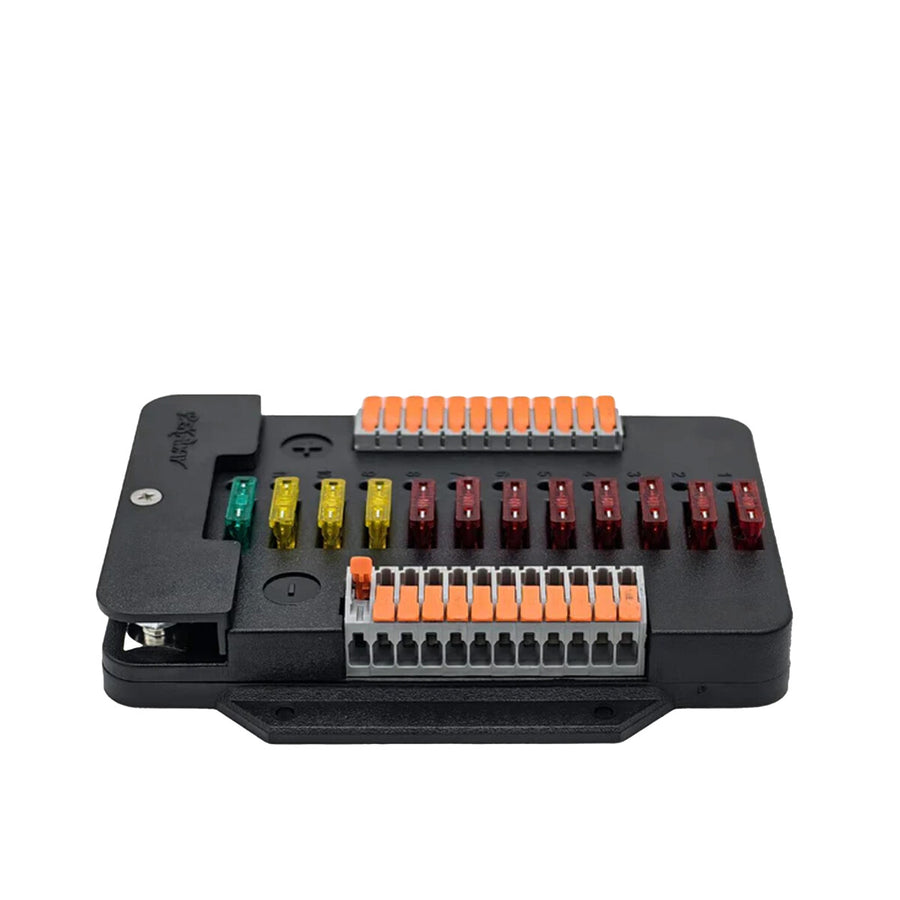

Pekaway FUSY Standard – Modern Fuse Box with Wago Lever Clamps
The Pekaway FUSY Standard brings efficiency and safety to your electrical installation – completely without crimping. Instead of conventional screw connections, this fuse box uses high-quality Wago lever clamps, which enable a simple and reliable connection. This makes installation significantly more pleasant, especially in hard-to-reach areas such as under the bed or in a cupboard.
Optimized for simple and secure cable connections
- Quick connection without crimping tools
- Suitable for cable cross-sections from 0.5 mm² to 4 mm²
- Compatible with wire end ferrules, solid and flexible wires
- Spring tension instead of screw connection – vibration-proof and maintenance-free
Powerful and versatile
- Load capacity up to 100 A continuously, short-term up to 150 A
- Each of the 12 fuse circuits can carry up to 30 A
- Uses standard ATO automotive fuses
Compact design – easy integration
- Dimensions: 117 x 22 x 142 mm (W x H x D)
- Fits standard 12-channel fuse boxes
- Connection to the battery via M6 terminals
Scope of delivery:
- 1x Pekaway FUSY Fuse Box
- 2x M6 Fuse Nuts
- 2x Silicone Covers for the Terminals
- ATO automotive fuses for all fuse channels
The FUSY Standard impresses with its easy handling, high load capacity, and reliable connection technology. Ideal for applications in campers, RVs, boats, or for individual power distributions in the DIY sector.
| Technical Data | Fusy Standard |
| Max. Total Current | 100 A |
| Max. Current per Fuse Circuit | 30 A |
| Number of Fuse Channels | 12 |
| Cable Cross-Section | 0.5 - 4 mm² |
| Number of Status LEDs | 12 |
| Connection Terminal Battery | M6 |
