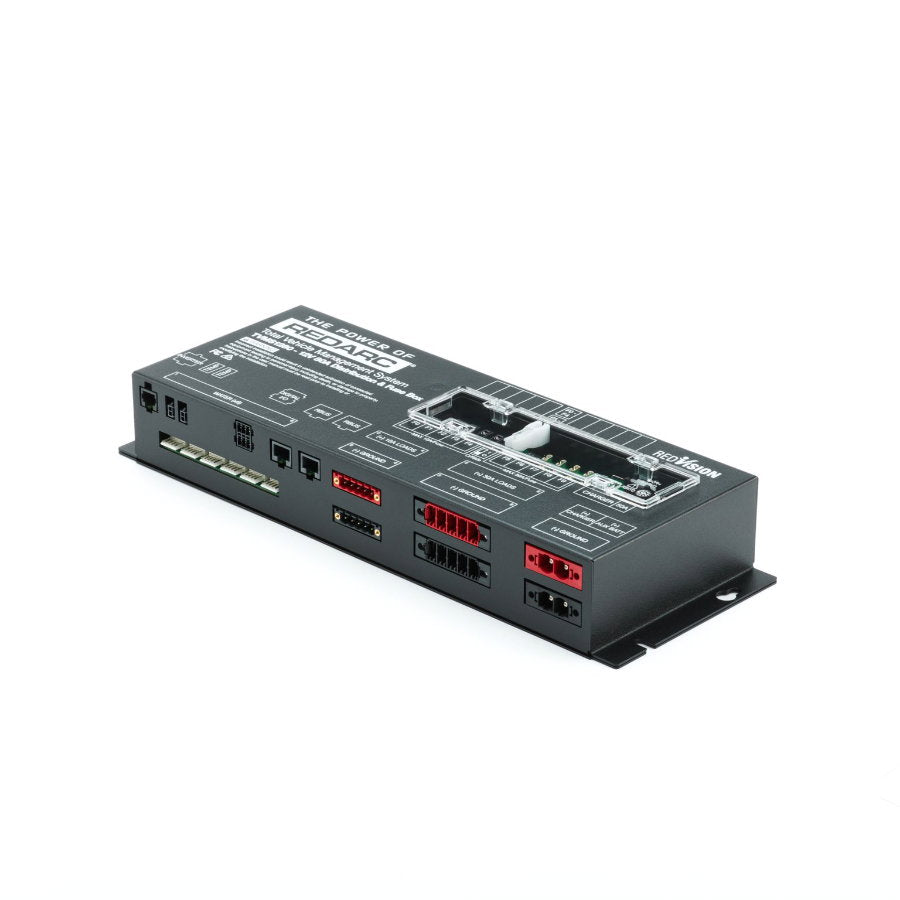

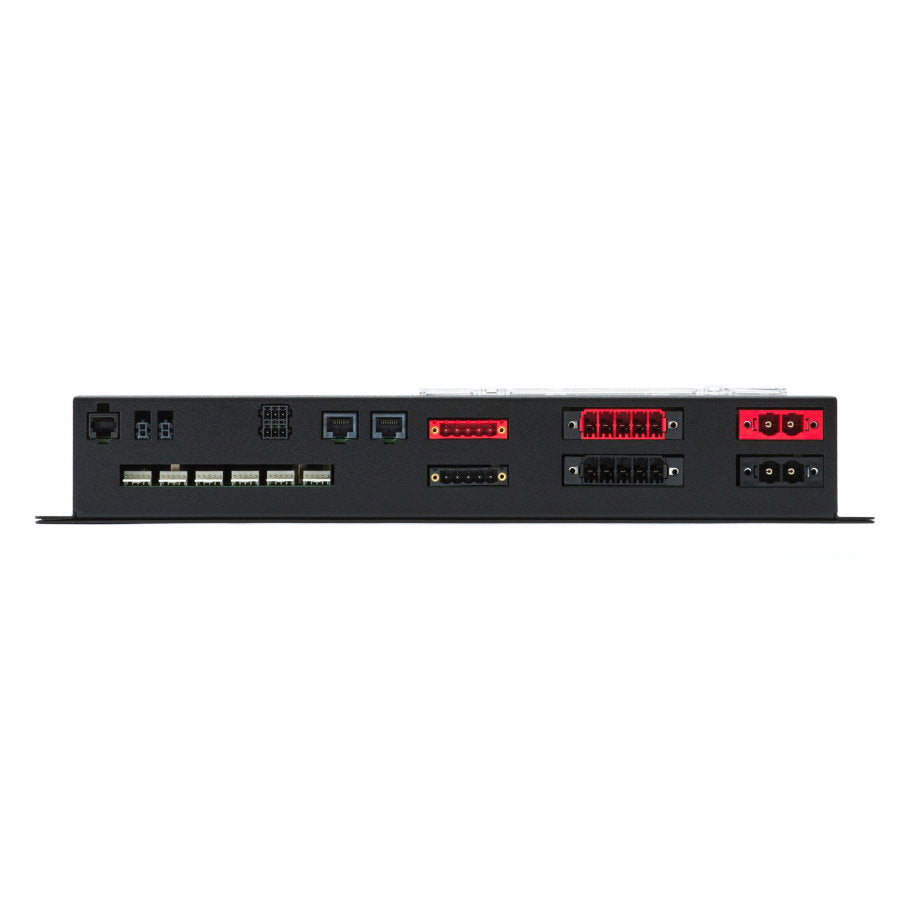

REDARC TVMS1280 Prime Control Module, 80A

This is a pure retrofit device that requires an existing Manager30 and RedVision display to provide all functions.

REDARC's TVMS Control Module offers an unprecedented level of control and automation for your 4x4, caravan, motorhome, RV or work vehicle. Control accessories such as lighting, fridges, TVs and inverters via the physical screen or your Bluetooth-connected mobile device (sold separately 69-06001 or 69-06002)

Monitoring
In conjunction with the RedVision screen and the Manager30 battery management system (sold separately 69-05001) , the TVMS Rogue provides accurate real-time information on charge status, power consumption/output and ambient temperature.

6 inputs for tank level sensors and two inputs for monitoring ambient temperature make the Prime RedVision System the all-knowing eye of your power system.

Control
The Prime RedVision system allows control of multiple onboard devices, including lights, fans, refrigerators, inverters and pumps.
The 10 output channels include 5x 30A and 5x 10A channels, perfectly suited for controlling a mix of low and high power devices. With a maximum current of 80A, it includes almost unlimited possibilities to use multiple devices simultaneously. A dedicated inverter channel can extend the number of channels to 11.

Automation
Save time and energy by automating everyday tasks. Turn everything off except the fridge with the touch of a button or shut down unnecessary consumers.

Features:

• 5x 30A outputs

• 5x 10A outputs

• 80A maximum rated current

• 6x tank sensor inputs

• 2x temperature sensor inputs

• 1 x voltage sensor input

• 1 x dedicated inverter output

• Easily accessible fuses

• Fully programmable
