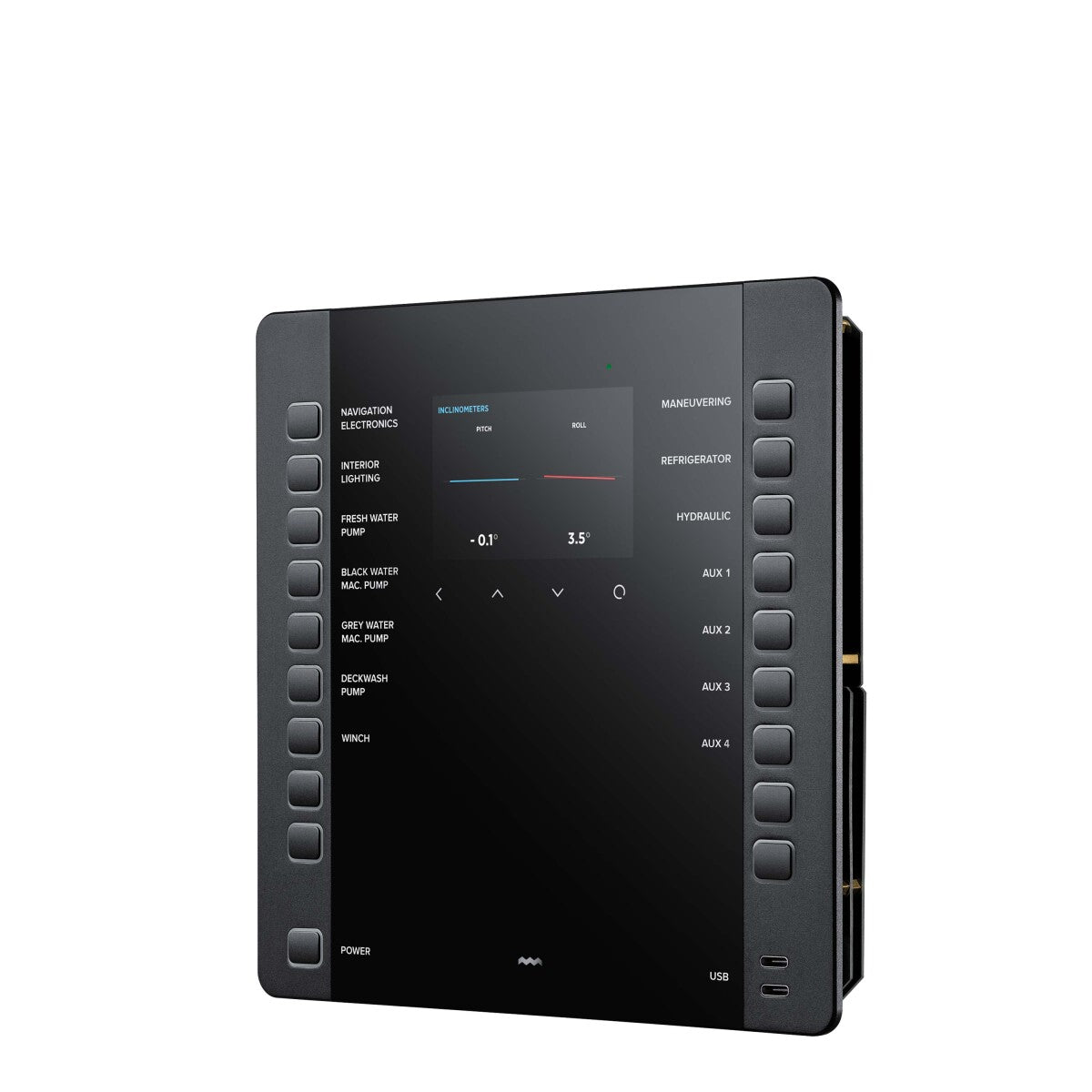

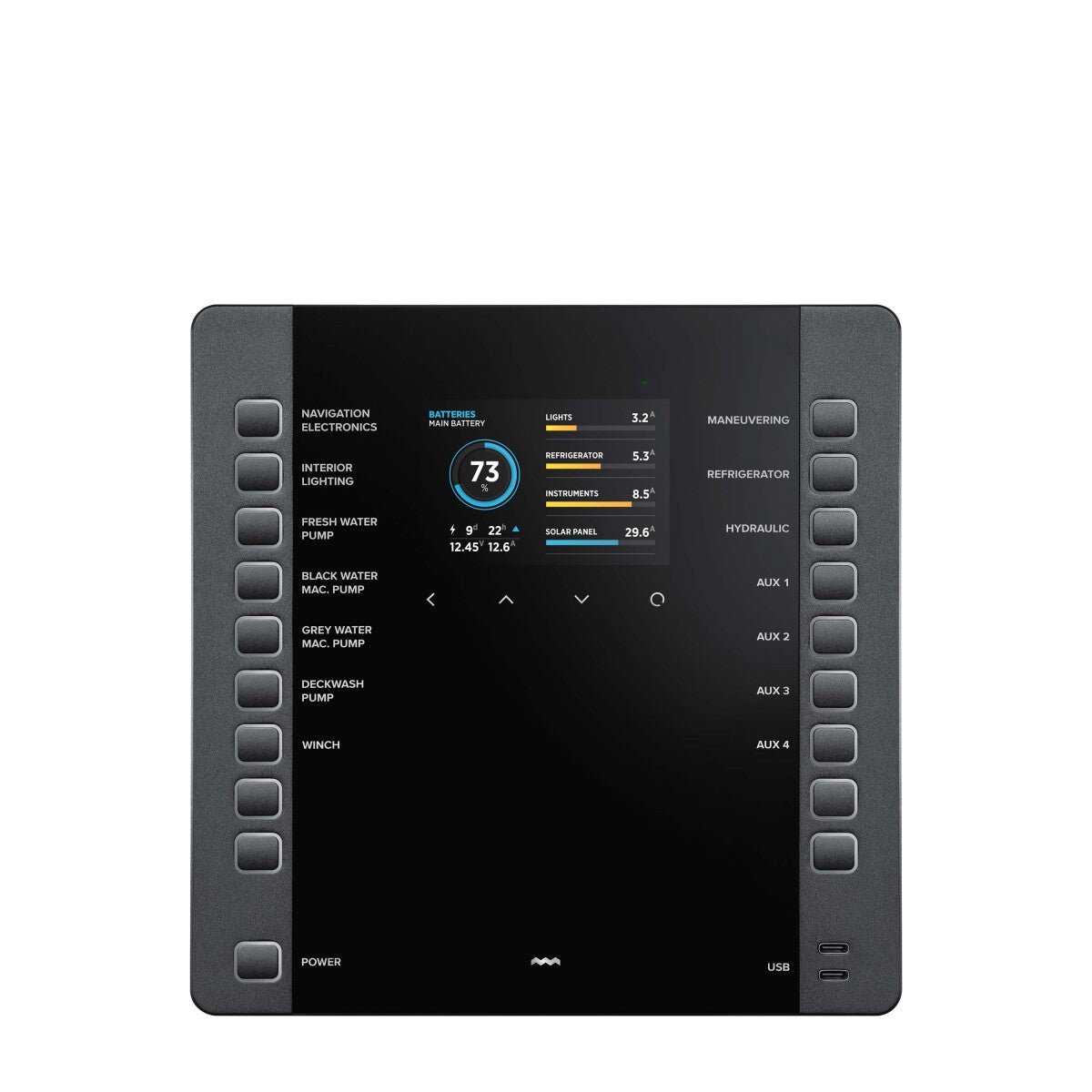

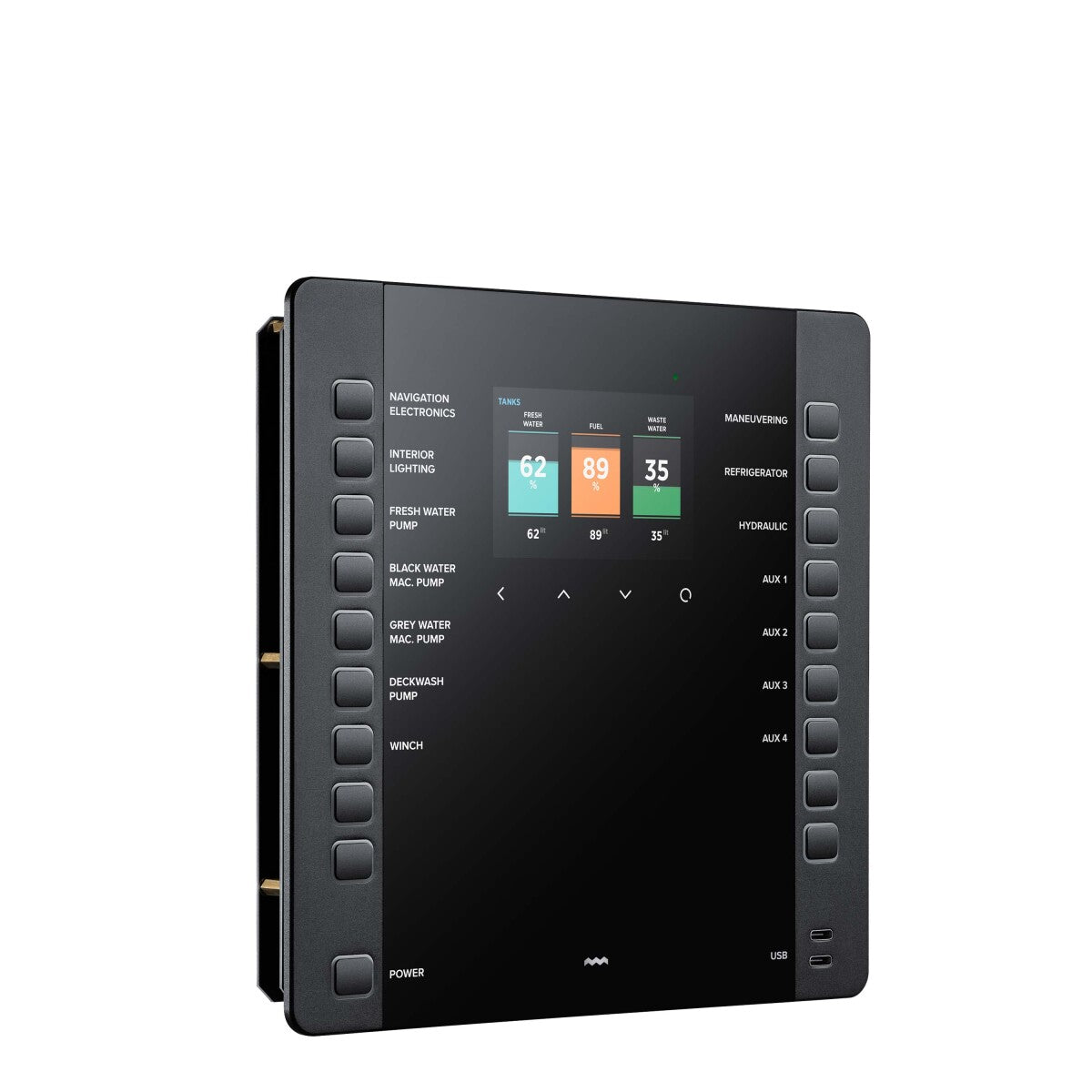

Simarine Nereide 2 Control Unit Hanse Version

Simarine Nereide 2 – The Digital Switching Solution for Modern Yachts

The Simarine Nereide 2 is an advanced, fully digital switching solution developed specifically for use on yachts. It combines an elegant design with robust technology and offers a high level of functionality, safety, and user-friendliness – both in operation and installation.

High-Quality Workmanship and Intuitive Operation

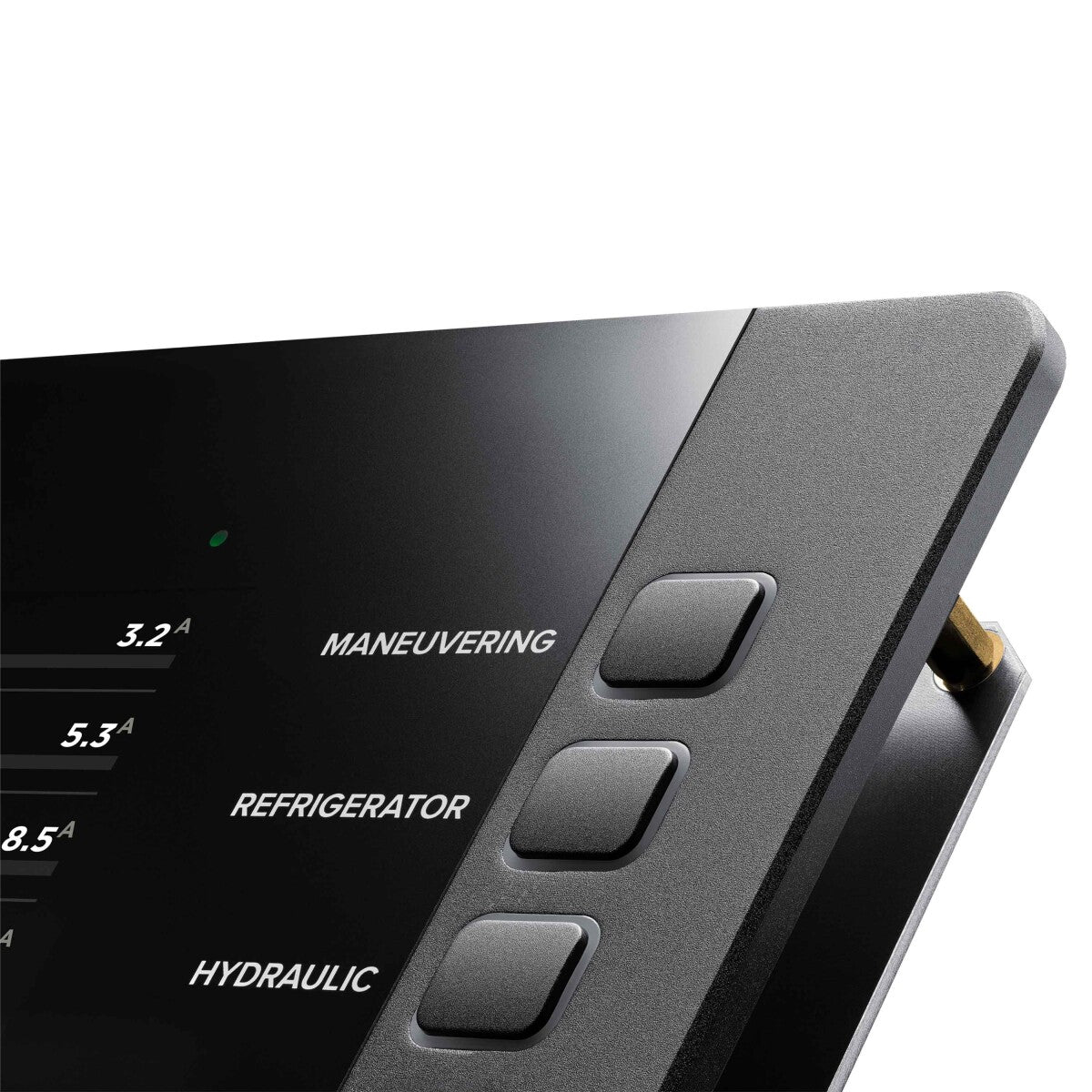

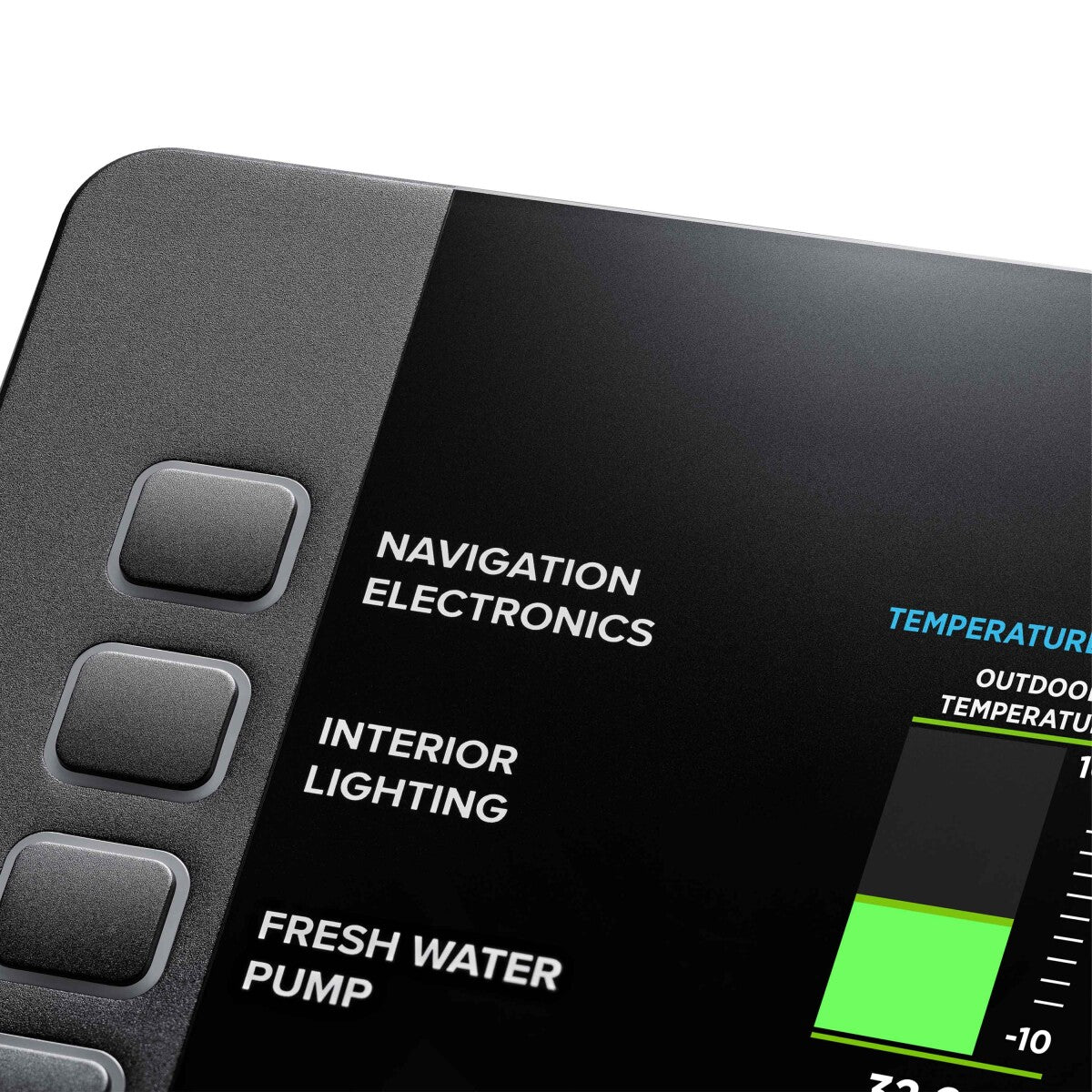

The aluminum housing, the optically bonded display, and the slightly raised buttons offer a clearly defined pressure point. Depending on the installation variant, the front can be flush or protrude 5 mm – ideal for various design concepts on board.

Compact DC Power Distribution with 31 Outputs

The distribution unit is flat, with a robust circuit board and efficient passive cooling thanks to the aluminum housing. It offers 30 DC outputs up to 10 A and one high-current output up to 30 A – totaling up to 200 A. Standard mini fuses ensure safety. Fault conditions such as tripped fuses or defective relays are immediately visible via a red LED ring indicator on the affected button.

Powerful Features at a Glance:

• Buttons configurable as momentary or toggle switches
• Fault indication by color change of the button
• 8 tank and 7 voltage inputs
• Compatibility with all SiCom modules
• Automatic backlighting
• Display for navigation lights

AC Modules for Safe 230 V Power Distribution

With the optional AC modules SAC15M-RCBO or SAC15R-RCBO, you control AC power distribution safely and efficiently. Both variants offer:

• Two selectable inputs (e.g., shore power, generator, inverter)
• Three fused output channels (20 A)
• Integrated RCBO circuit breakers (residual current + overcurrent)
• Remotely controllable switches in the SAC15R version
• Display of fault conditions directly on the control panel
• Current measurement via integrated shunt

Low Self-Consumption & Smart Energy Monitoring

With only 10 mA power consumption (distributor) and 30 mA in sleep mode (panel), the Nereide 2 is particularly energy-saving. Your onboard battery is protected even during longer periods of non-use. Via the integrated Pico monitoring system, you always have access to battery status, tank levels, temperature, and air pressure.

Flexible, Networked, Future-Proof

The Nereide 2 is NMEA 2000 compatible and can be seamlessly integrated into existing onboard networks – for control directly via the plotter. Thanks to its modular design, SiCAN communication, and WAGO® plug connectors, installation is quick and uncomplicated.

Developed in Collaboration with HanseYachts

The Simarine Nereide 2 is used by renowned shipyards such as Hanse, Dehler, and Fjord – a sign of quality and practical suitability in the premium class.
